Toyota COROLLA Transfer Lever & Shift Fork Shaft — Figure 3611

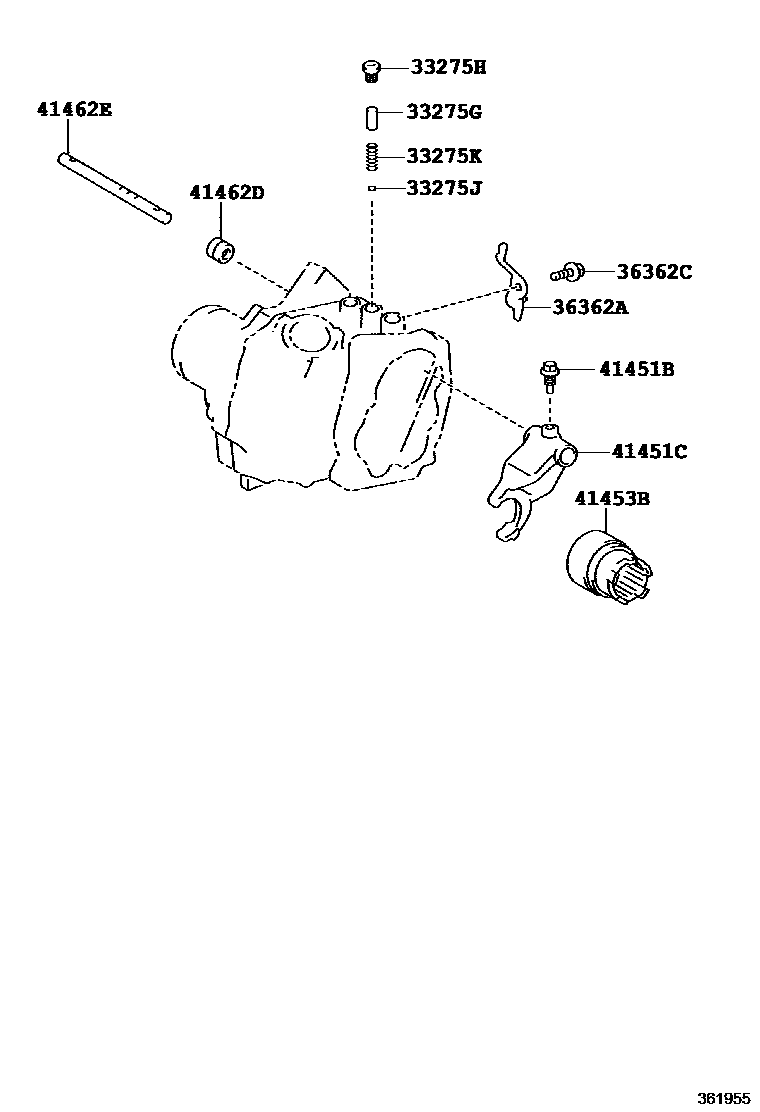

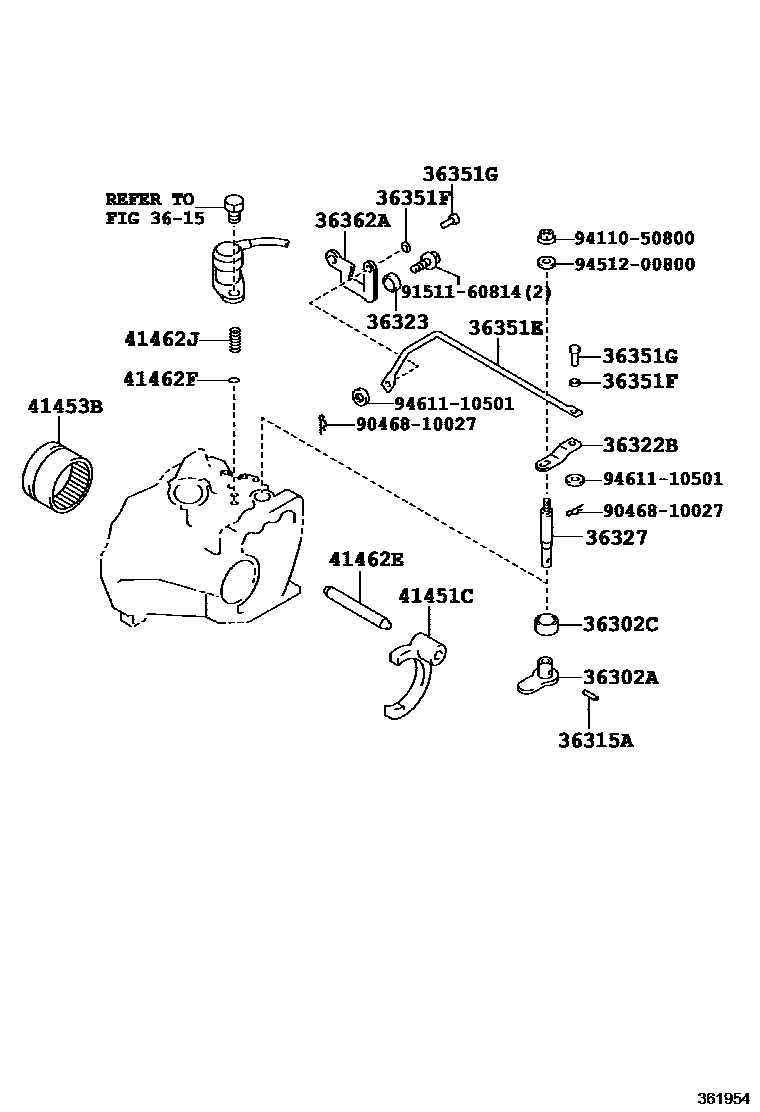

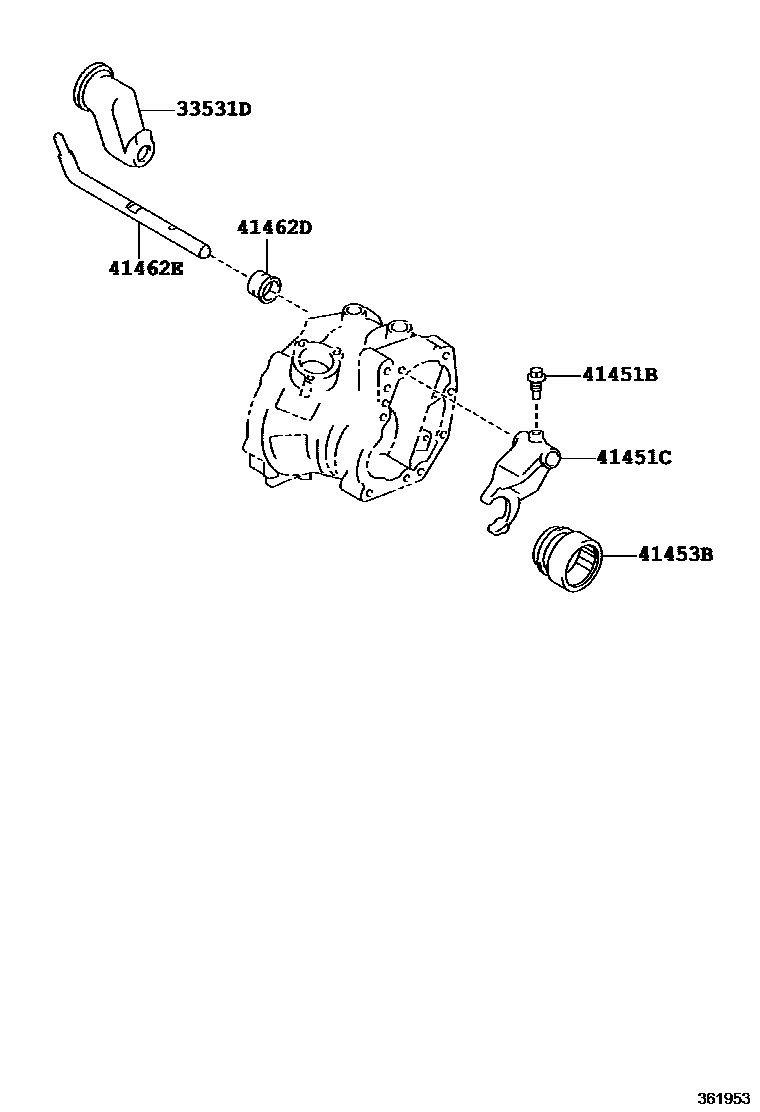

Toyota COROLLA EPC diagram 3611, Transfer Lever & Shift Fork Shaft, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33275G | Transfer case shift lock steel ball spring seat | 33275-16010 |
| 33275H | Screw plug (for transfer case shift lock steel ball) | 90341-12004 |
| 33275J | Steel ball (for transfer case shift lock) | 90360-08009 |
| 33275K | Compression spring (for transfer case shift lock steel ball) | 90501-14110 |
| 33531D | Dust boot (for differential lock shift fork shaft) | 33531-12010 |
| 36302A | No. 1 transfer case shift lever sub-assembly | 36302-12020 |
| 36302C | Spacer (for transfer case shift lever) | 90560-18008 |
| 36315A | Transfer case shift fork pin | 36315-12020 |
| 36322B | No. 2 transfer case shift lever | 36322-12020 |
| 36323 | Transfer case shift lever guide plate | 36323-12020 |
| 36327 | Transfer case shift lever shaft | 36327-12020 |
| 36351E | Transfer case shift lever | 36351-12010 |
| 36351F | Wave washer (for transfer case shift rod) | 90206-05002 |
| 36351G | Holed pin (for transfer case shift lever) | 90240-05002 |
| 36362A | Transfer case external shift lever | 36362-12010 · 36362-12020 |
| 36362C | Bolt (for transfer case outer shift lever) | 90105-08202 |
| 41451B | Bolt (for differential lock shift fork) | 90105-06094 |
| 41451C | Differential lock shift fork | 41451-12010 · 41451-12020 · 41451-12030 |
| 41453B | Differential lock sleeve | 41453-12010 · 41453-12020 · 41453-12030 |
| 41462D | Oil seal (for differential lock shift fork shaft) | 90311-14007 · 90311-14010 |
| 41462E | Differential lock shift fork shaft | 41462-12010 · 41462-12020 · 41462-12030 |
| 41462F | Steel ball (for differential lock shift fork shaft) | 90360-08009 |
| 41462J | Compression spring (for differential lock shift fork shaft) | 90501-12114 |
