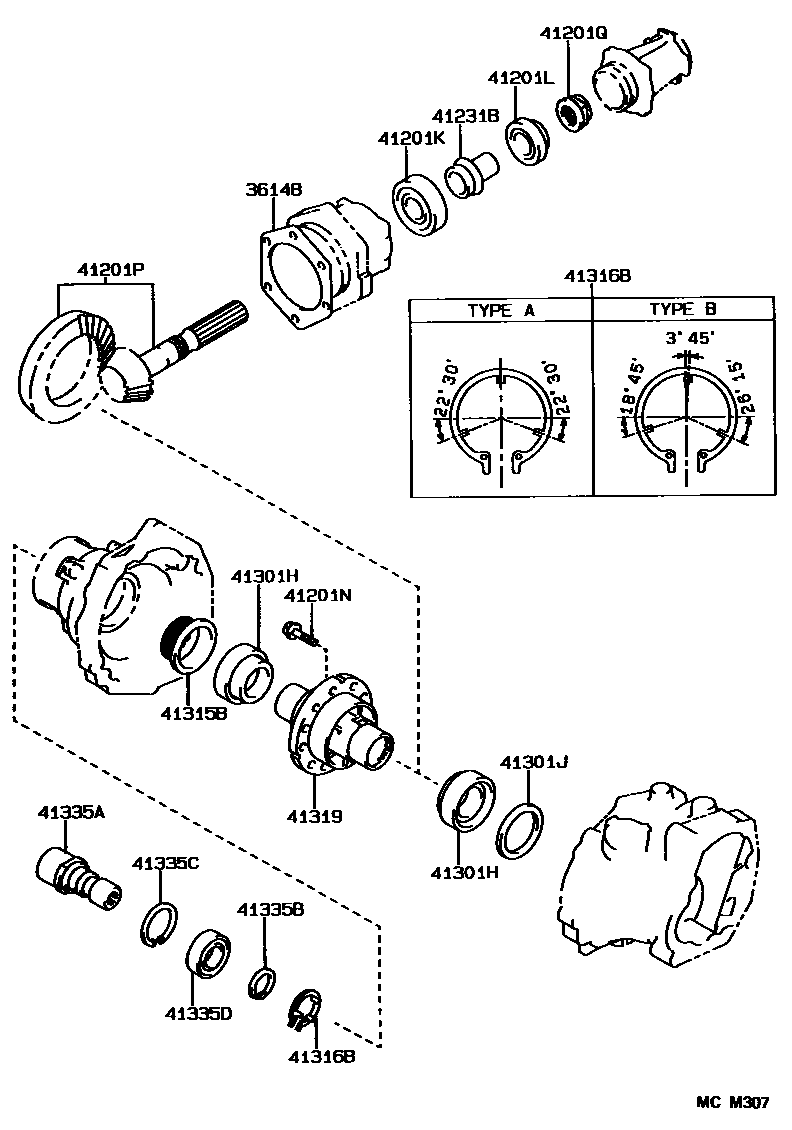

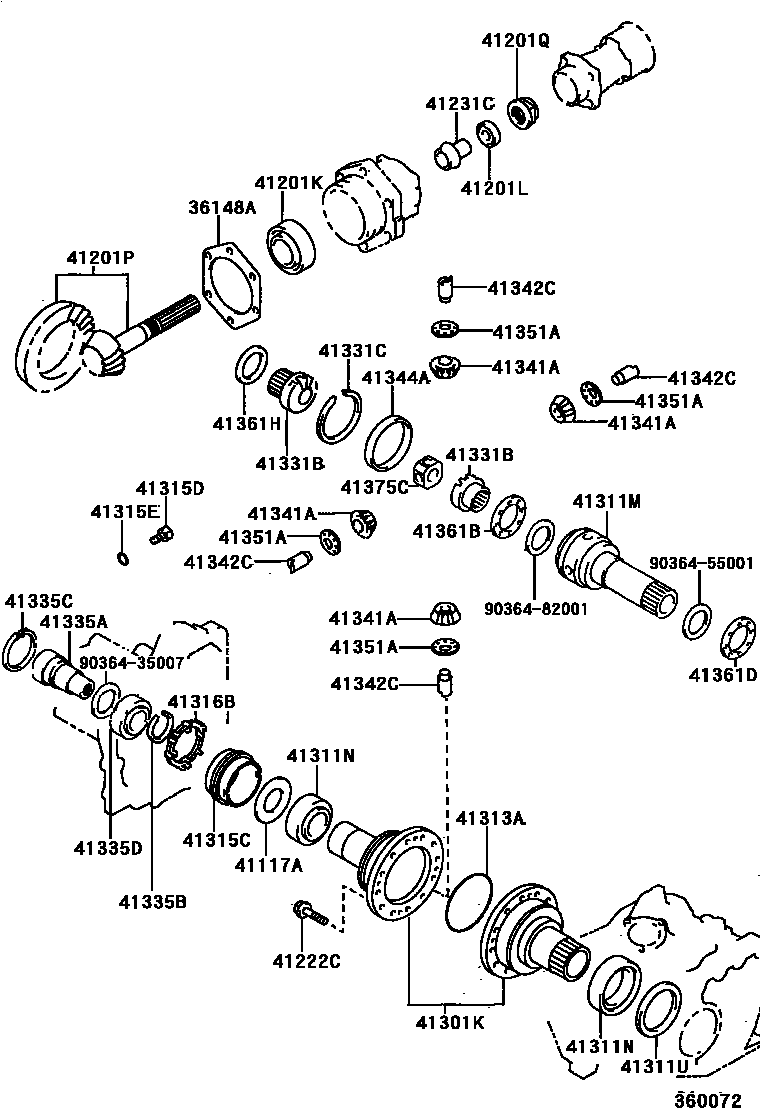

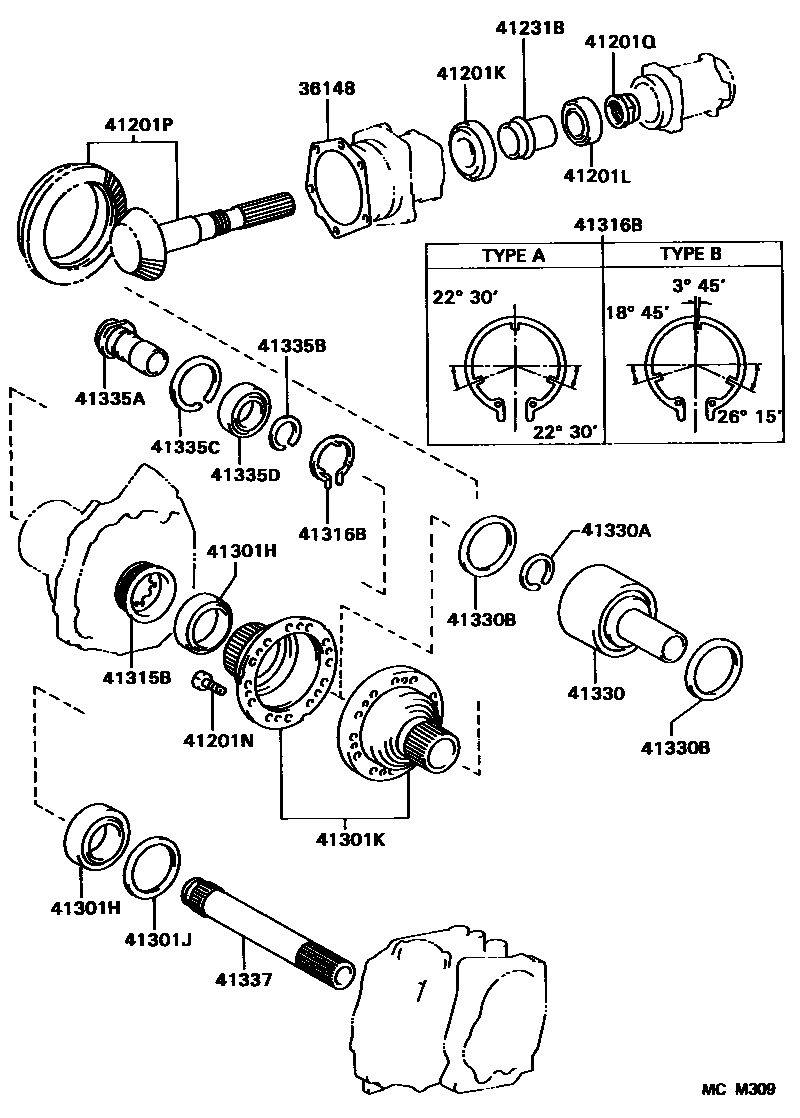

Toyota COROLLA Transfer Gear — Figure 3610
Toyota COROLLA EPC diagram 3610, Transfer Gear, with 3 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 36148 | Pinion bearing cover gasket | 36148-32010 · 36148-32020 · 36148-32030 · 36148-32040 · 36148-32050 · 36148-32060 · 36148-32070 · 36148-32080 · 36148-32090 · 36148-32100 |
| 36148A | Transfer case pinion bearing cover gasket | 36148-32010 · 36148-32020 · 36148-32030 · 36148-32040 · 36148-32050 · 36148-32060 · 36148-32070 · 36148-32080 · 36148-32090 · 36148-32100 |
| 41117A | Center differential oil reservoir | 41117-12020 |
| 41201K | Bearing (for transfer case front driven pinion) | 90366-40052 · 90366-40055 |
| 41201L | Bearing (for transfer case rear driven pinion) | 90366-32019 |
| 41201N | Bolt (for transfer case gear) | 90105-11026 |
| 41201P | Transfer gear assembly | 41201-12160 · 41201-12170 |
| 41201Q | Nut (for transfer case gear) | 90179-30004 |
| 41222C | Bolt (for transfer case ring gear) | 90105-11028 |
| 41231B | Transfer case pinion bearing spacer | 41231-12040 |
| 41231C | Transfer case pinion bearing spacer | 41231-12040 |
| 41301H | Bearing (for ring gear mounting housing) | 90366-54008 · 90366-55017 · 90366-55039 · 90366-58007 |
| 41301J | Flat washer (for ring gear mounting housing) | 90201-68025 · 90201-68026 · 90201-68027 · 90201-68028 · 90201-68029 · 90201-68030 · 90201-68031 · 90201-68032 · 90201-68033 · 90201-68034 · 90201-68035 · 90201-68036 · 90201-68037 · 90201-68038 · 90201-68039 · 90201-68040 · 90201-68041 · 90201-68042 · 90201-68043 · 90201-68044 · 90201-68045 · 90201-68046 · 90201-68047 · 90201-68048 |
| 41301K | Center differential ring gear mounting housing sub-assembly | 41301-12151 · 41301-12152 · 41301-12160 · 41301-20170 |
| 41311M | center differential housing | 41311-12121 · 41311-12122 |
| 41311N | Roller cone bearing (for center differential housing) | 90366-54011 · 90366-62001 |
| 41311U | Spacer (for transfer case ring gear) | 90564-64001 · 90564-64002 · 90564-64003 · 90564-64004 · 90564-64005 · 90564-64006 · 90564-64007 · 90564-64008 · 90564-64009 · 90564-64010 · 90564-64011 · 90564-64012 · 90564-64013 · 90564-64014 · 90564-64015 · 90564-64016 · 90564-64018 · 90564-64019 · 90564-64020 · 90564-64021 · 90564-64022 · 90564-64026 · 90564-64027 · 90564-64028 |
| 41313A | O-ring (for center differential ring gear mounting housing) | 90301-99053 |
| 41315B | Bearing adjusting nut | 41315-12030 · 41315-12050 |
| 41315C | Transfer gear adjustment nut | 41315-12040 |
| 41315D | Bolt (for transfer case gear adjustment nut) | 90109-08162 |
| 41315E | O-ring (for transfer case gear adjustment nut bolt) | 90301-06196 |
| 41316B | Adjust nut locking plate | 41316-12020 · 41316-20030 · 41316-20040 |
| 41319 | Transfer gear ring gear mounting housing | 41319-12010 |
| 41330 | Center differential control coupling assembly | 41330-20010 · 41330-20011 |
| 41330A | Hole snap ring (for differential countershaft) | 90521-41004 |
| 41330B | Washer (for center differential control coupling) | 90209-69001 |
| 41331B | Center differential side gear | 41331-12050 · 41331-12060 · 41331-32040 · 41331-32050 |
| 41331C | Shaft snap ring (for planetary gear shaft spacer) | 90520-89001 |
| 41335A | Differential side gear shaft support | 41335-12011 · 41335-12020 |
| 41335B | Shaft snap ring (for side gear shaft support) | 90520-40001 |
| 41335C | Hole snap ring (for side gear shaft support) | 90521-75004 · 90521-76004 · 90521-76005 |
| 41335D | Bearings (for side gear shaft supports) | 90365-44006 |
| 41337 | No. 2 differential side gear countershaft | 41337-12010 |
| 41341A | Center differential planetary gear | 41341-12010 · 41341-32030 |
| 41342C | Center differential planetary gear shaft | 41342-12071 · 41342-12100 |
| 41344A | No. 1 center differential planetary gear shaft spacer | 41344-12011 |
| 41351A | Center differential planetary gear thrust washer | 41351-12050 |
| 41361B | No. 1 center differential side gear thrust washer | 41361-12130 · 41361-12140 · 41361-12150 · 41361-12160 · 41361-12170 · 41361-12180 · 41361-12190 · 41361-12200 · 41361-12210 |
| 41361D | No. 2 center differential side gear thrust washer | 41361-12220 · 41361-12230 · 41361-12240 · 41361-12250 · 41361-12260 · 41361-12270 · 41361-12280 · 41361-12290 · 41361-12300 · 41361-12310 · 41361-12320 |
| 41361H | Conical spring washer (for center differential side gears) | 90208-40001 |
| 41375C | Center differential planetary gear shaft support | 41375-12040 |
