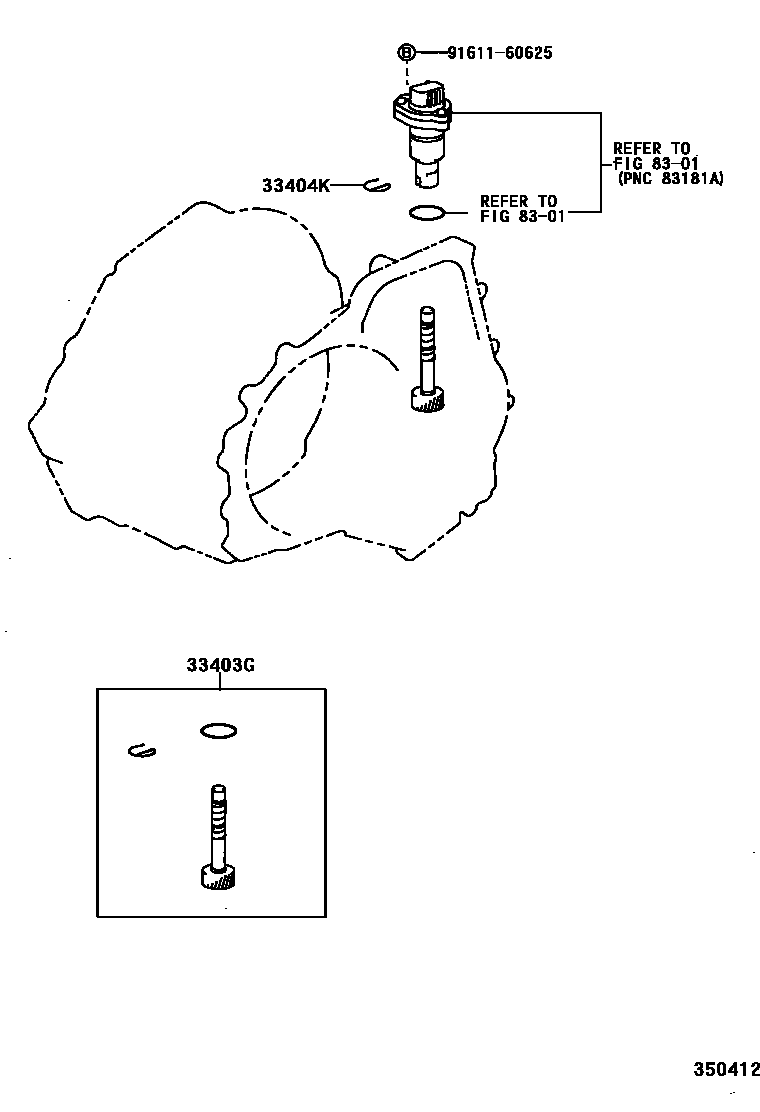

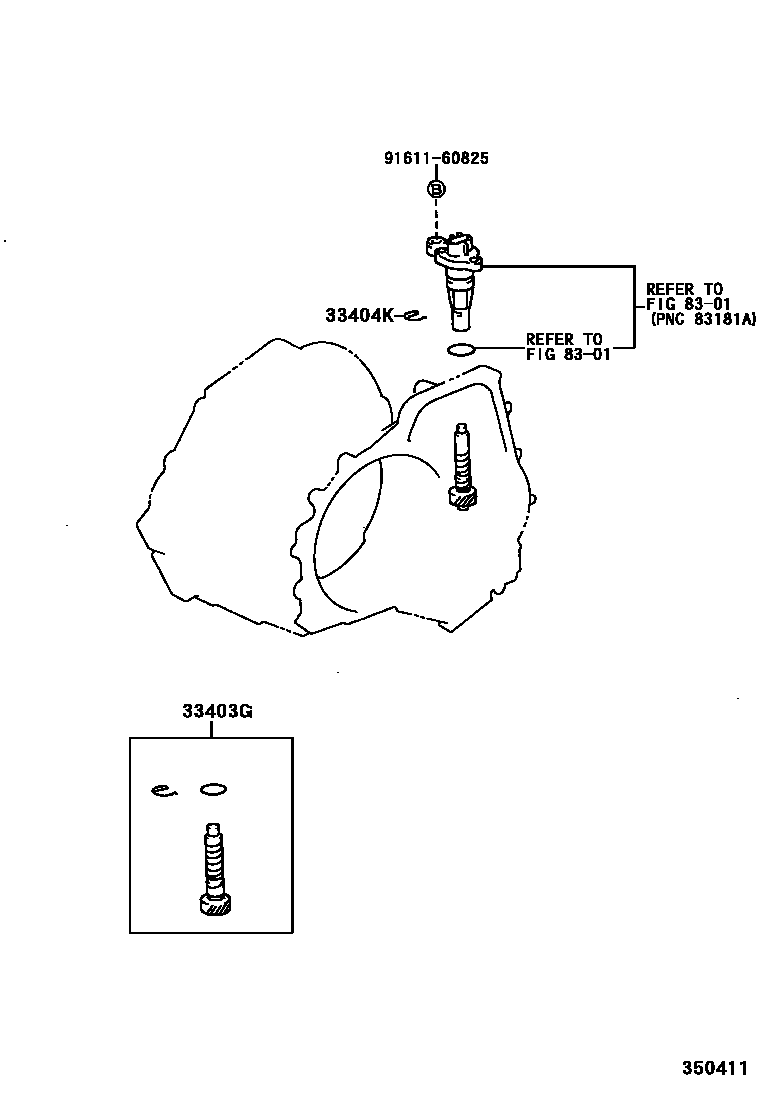

Toyota COROLLA 速度表从动齿轮(ATM) — Figure 3505
Toyota COROLLA EPC diagram 3505, 速度表从动齿轮(ATM), with 4 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33403G | Speedometer driven gear sub-assembly (ATM) | 33403-19455 · 33403-19465 · 33403-19515 · 33403-19525 · 33403-19535 · 33403-19545 · 33403-19555 |
| 33404K | Clamp (for automatic transmission speedometer shaft sleeve) | 90468-12005 |
