Toyota COROLLA 换档拨叉和换档杆轴(MTM) — Figure 3307

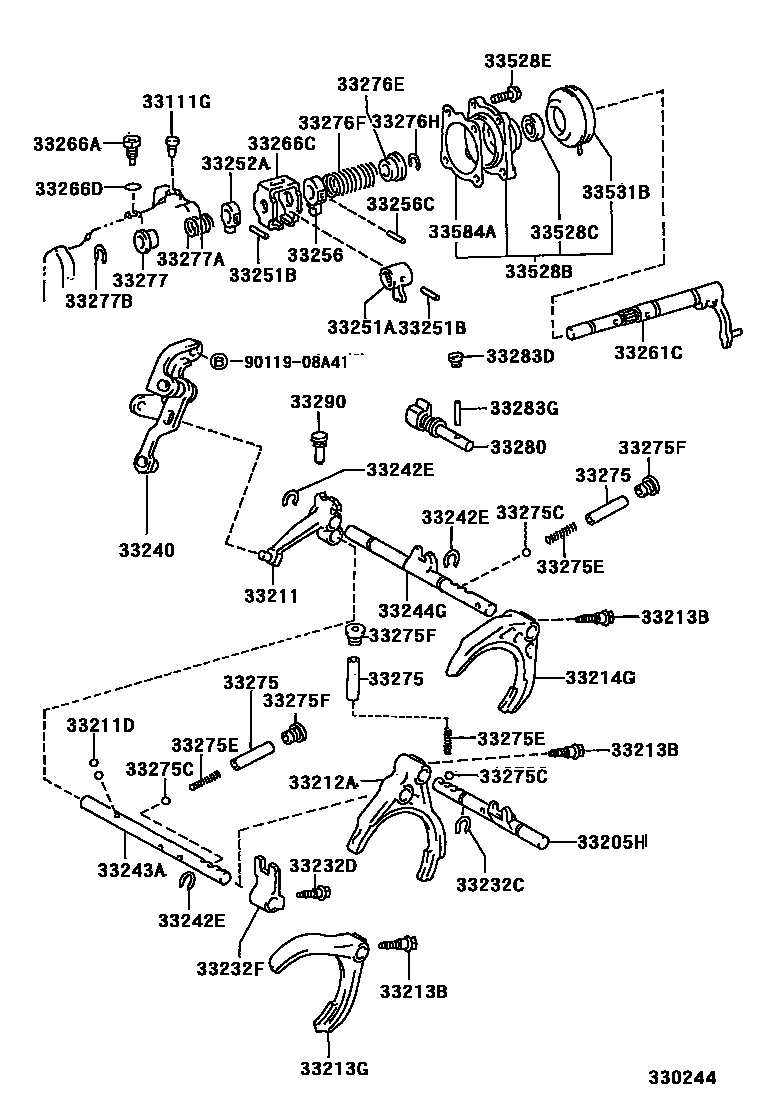

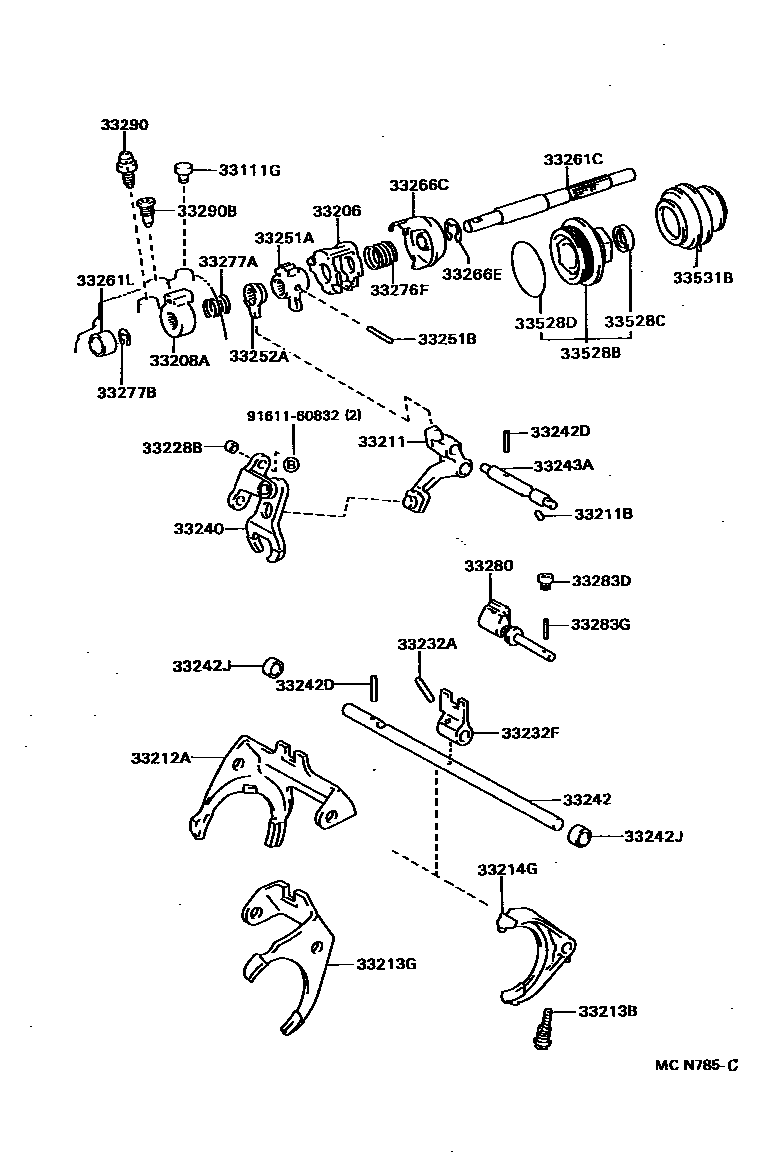

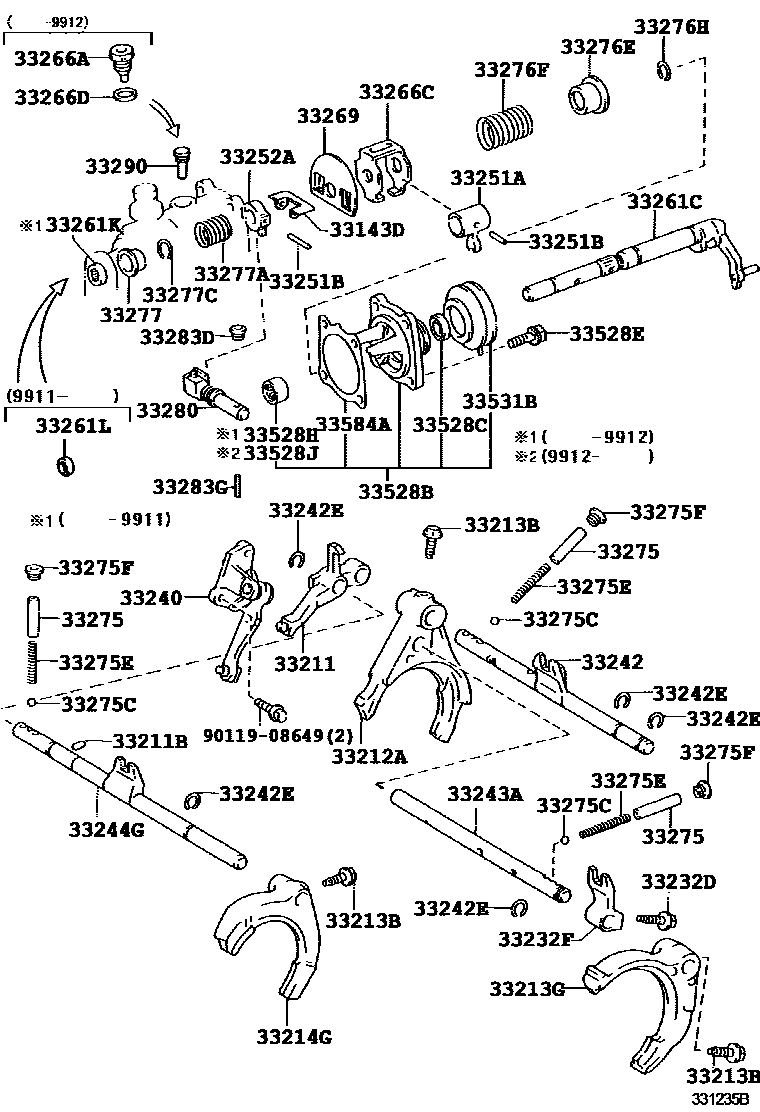

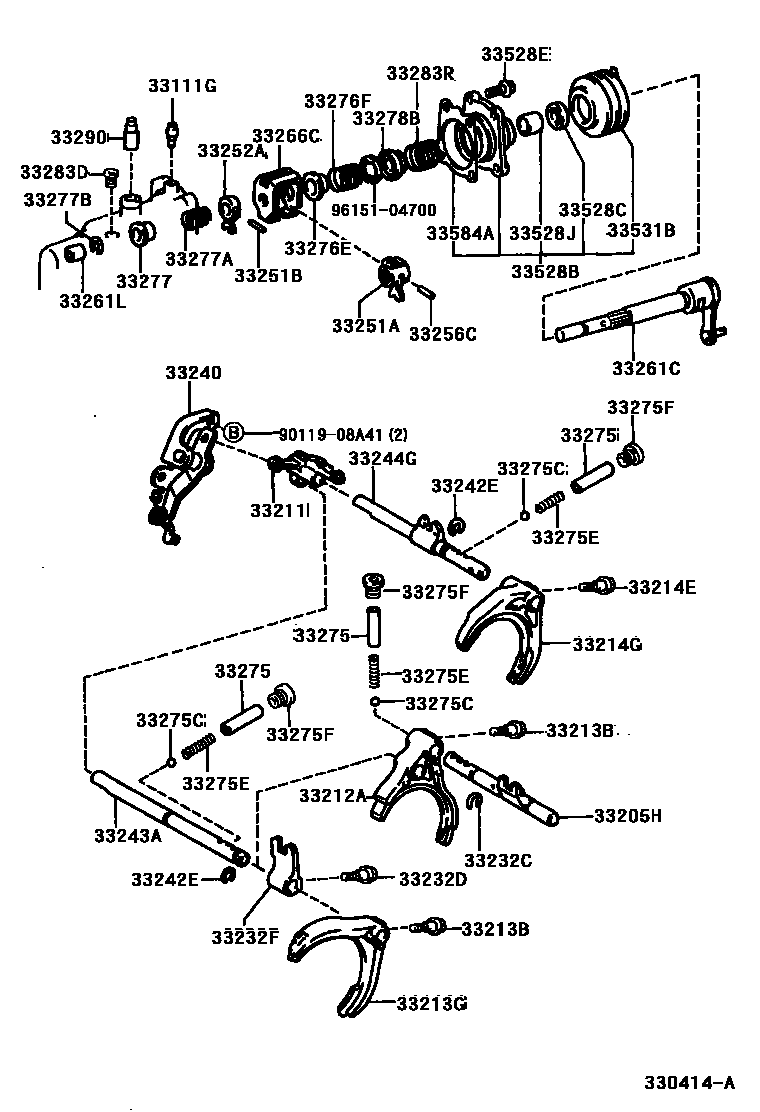

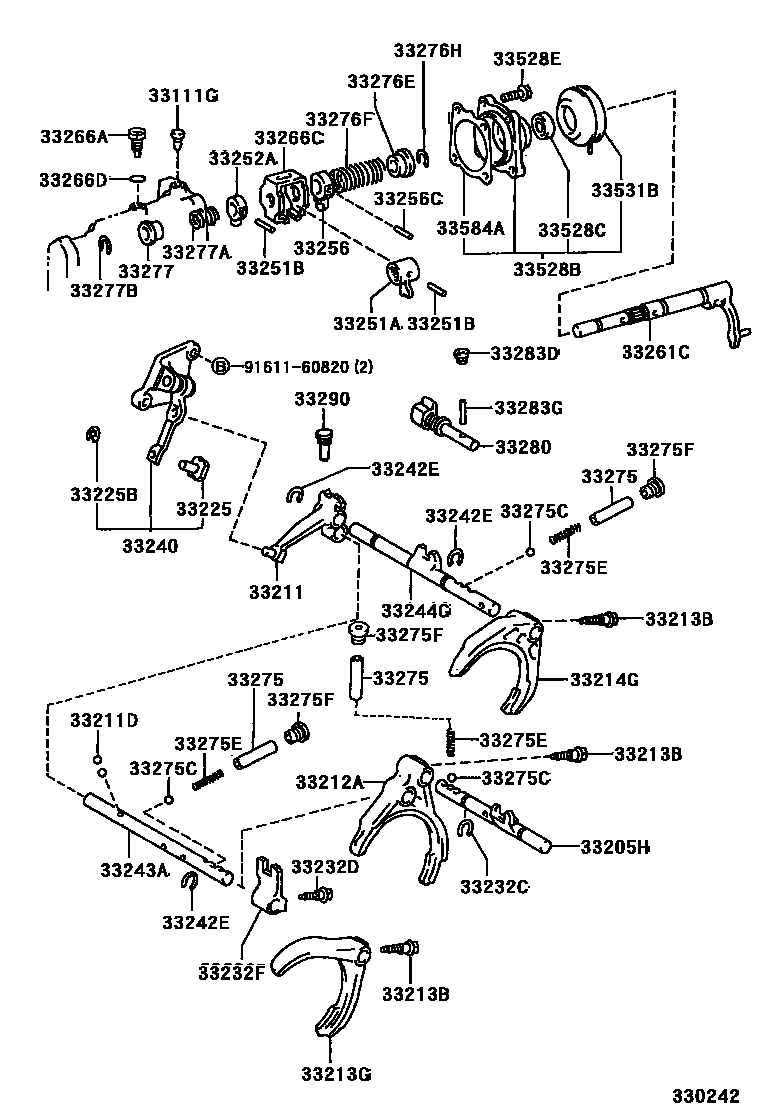

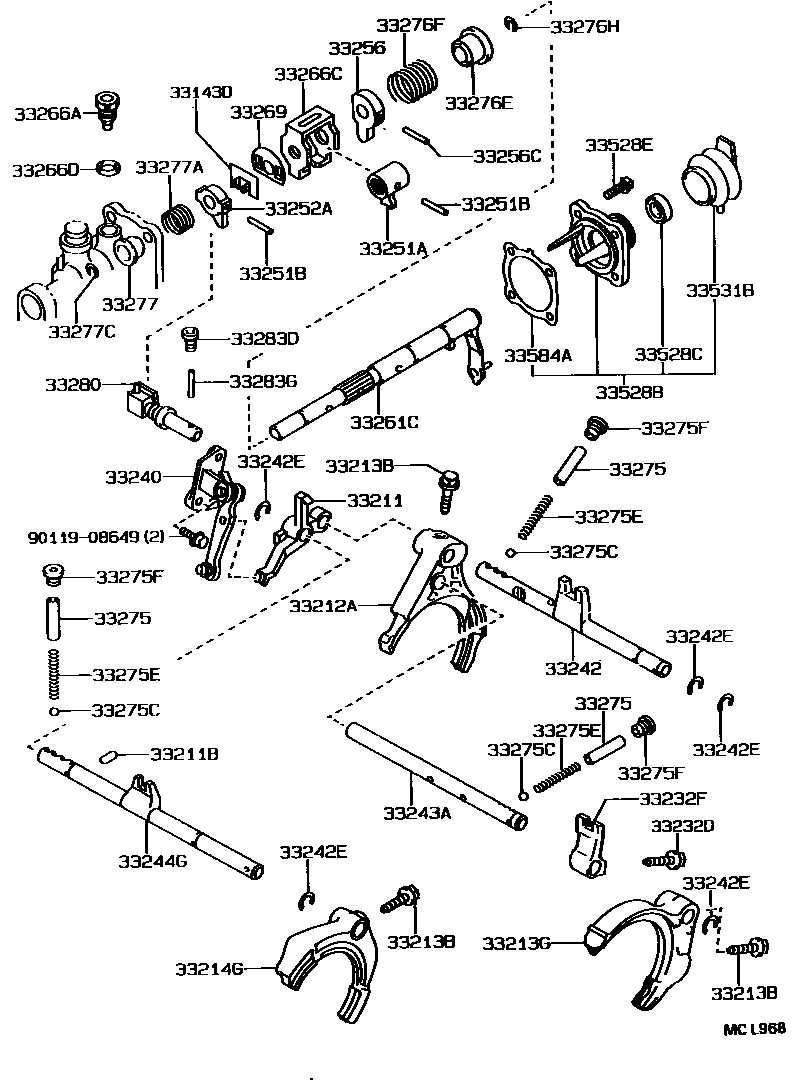

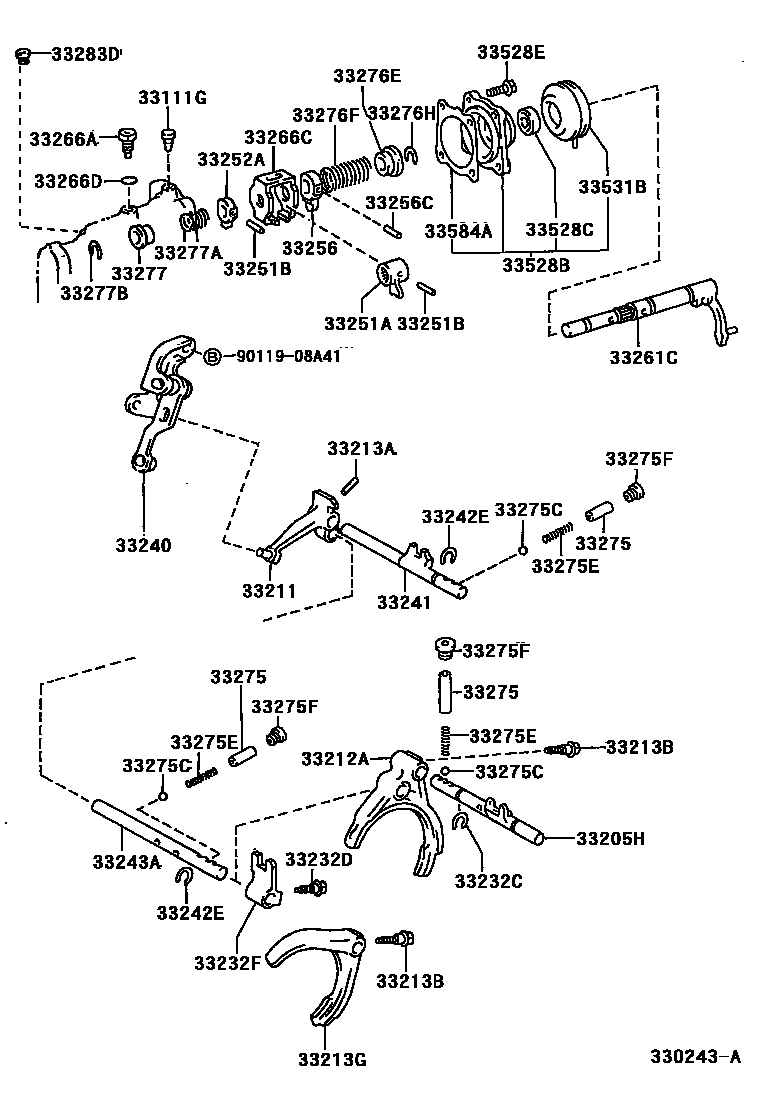

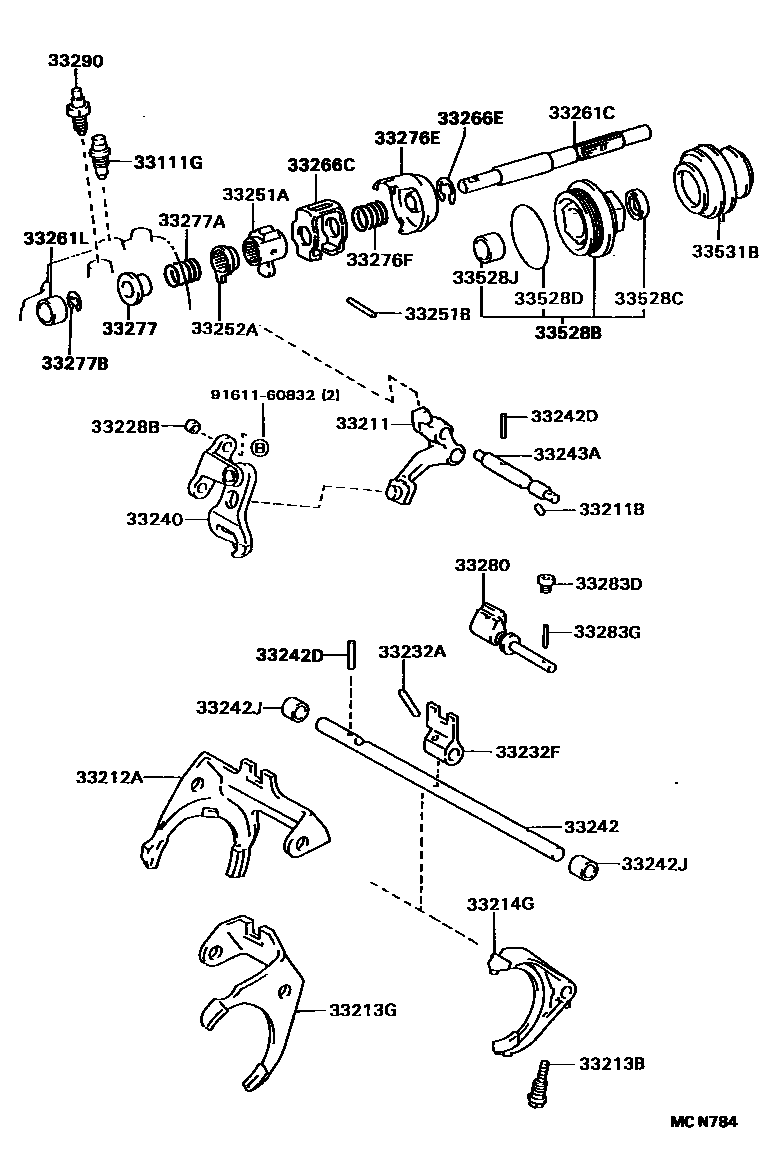

Toyota COROLLA EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 9 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-03080 · 90930-03133 |
| 33143D | Transmission oil baffle | 33143-12020 |
| 33205H | No. 1 shift fork shaft sub-assembly | 33205-12021 · 33205-12022 · 33205-12040 · 33205-12050 · 33205-20030 |
| 33206 | Shift interlock plate sub-assembly | 33206-32023 |
| 33208A | Reverse gear positioning pin sub-assembly | 33208-32022 |
| 33211 | Reverse Shift Fork | 33211-12020 · 33211-12021 · 33211-12030 · 33211-12031 · 33211-12050 · 33211-20020 · 33211-32020 · 33270-32010 · 33270-33011 |
| 33211B | Roller (for reverse shift fork) | 90361-08002 · 90361-08005 |
| 33211D | Steel ball (for reverse shift fork) | 90360-06004 |
| 33212A | No. 1 shift fork | 33210-32022 · 33210-32023 · 33212-10013 · 33212-12030 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05016 |
| 33213B | Bolt (for securing shift fork) | 90105-06065 · 90105-06115 · 90105-07002 |
| 33213G | No. 2 shift fork | 33213-10022 · 33213-12032 · 33213-20050 · 33220-28020 · 33220-32022 · 33220-32023 · 33220-32024 |
| 33214E | Bolt (for shift fork lock) | 90105-06115 |
| 33214G | No. 3 shift fork | 33214-12020 · 33214-12030 · 33214-20050 · 33214-32021 · 33214-33010 · 33214-33020 · 33230-12010 · 33230-20010 |
| 33225 | shift arm shoe | 33225-12010 |
| 33225B | E-ring (for shift arm shoe) | 96160-00800 |
| 33228B | Ring pin (for reverse shift arm bracket) | 90253-11001 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05001 |
| 33232C | Snap ring (for first and second gear shift guide blocks) | 90520-12003 |
| 33232D | Bolt (for fixing the transmission guide block) | 90105-06115 · 90105-07002 |
| 33232F | No. 1 transmission guide block | 33232-10021 · 33232-12012 · 33232-12030 · 33232-32012 |
| 33240 | Reverse shift arm bracket assembly | 33240-12011 · 33240-12021 · 33240-12030 · 33240-16020 · 33240-20030 · 33240-28010 · 33240-32020 · 33240-33010 |
| 33241 | Reverse shift fork shaft | 33244-12063 · 33244-12064 |
| 33242 | No. 1 shift fork shaft | 33242-12061 · 33242-12062 · 33242-28030 · 33242-32020 · 33242-33020 |
| 33242D | Slotted spring pin (for shift fork shaft) | 90254-05001 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 · 90520-13002 |
| 33242J | Bushing (for shift fork shaft) | 90384-14005 · 90389-14043 |
| 33243A | No. 2 shift fork shaft | 33243-12092 · 33243-12093 · 33243-12110 · 33243-12111 · 33243-12120 · 33243-12130 · 33243-20070 · 33243-28040 · 33243-32010 · 33243-32011 |
| 33244G | No. 3 shift fork shaft | 33244-12053 · 33244-12054 · 33244-12080 · 33244-12090 · 33244-12100 · 33244-20060 · 33244-28030 |
| 33251A | Internal shift lever No. 1 | 33251-10050 · 33251-12070 · 33251-12080 · 33251-20050 · 33251-20060 · 33251-28040 · 33251-32031 · 33251-33010 · 33251-33011 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05002 · 90254-05007 · 90254-05016 |
| 33252A | Internal shift lever No. 2 | 33252-12010 · 33252-12011 · 33252-12020 · 33252-20020 · 33252-20030 · 33252-32030 · 33252-33010 |
| 33256 | Internal gear selector | 33256-12021 · 33256-12022 · 33256-20010 |
| 33256C | Slotted spring pin (for interior selector lever) | 90254-05002 · 90254-05016 |
| 33261C | shift lever shaft | 33261-10061 · 33261-12051 · 33261-12060 · 33261-12080 · 33261-12090 · 33261-20070 · 33261-20071 · 33261-32031 · 33261-33010 |
| 33261K | Needle roller bearing (for gear selector shaft) | 90364-15003 |
| 33261L | Bimetallic bushing (for gear selector shaft) | 90384-15002 |
| 33266A | Bolt (for shift interlock plate) | 90109-12019 · 90109-12073 · 90109-18002 · 90109-18005 |
| 33266C | shift interlock plate | 33266-12021 · 33266-12030 · 33266-12040 · 33266-20030 · 33266-28010 · 33266-32022 · 33266-33011 |
| 33266D | Pad (for shift interlock plate) | 90430-12008 · 90430-18008 |
| 33266E | E-ring (with shift interlock plate) | 90523-14001 |
| 33269 | Shift interlock plate cover | 33269-12010 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12041 · 33275-20010 |
| 33275C | Steel ball (for shift lock) | 90360-08009 · 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-11059 · 90501-12168 · 90501-12173 · 90501-14104 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33276E | No. 1 gear selector spring seat | 33276-12021 · 33276-12022 · 33276-12030 · 33276-20010 · 33276-20020 · 33276-33011 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-13036 · 90501-14129 · 90501-14150 · 90501-16076 · 90501-16103 · 90501-16133 · 90501-16134 · 90501-16142 · 90501-16151 |
| 33276H | Shaft snap ring (for No. 1 gear selector spring seat) | 90520-15003 |
| 33277 | No. 2 gear selector spring seat | 33277-12010 · 33277-12011 · 33277-12020 · 33277-17010 · 33277-20010 · 33277-33010 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-15009 · 90501-16135 · 90501-16136 · 90501-16144 · 90501-16152 · 90501-17028 · 90501-17030 · 90501-18052 · 90501-18068 |
| 33277B | E-ring (for No. 2 gear selector spring seat) | 90523-12003 |
| 33277C | Shaft snap ring (for No. 2 gear selector spring seat) | 90520-12003 |
| 33278B | Shift lever shaft bracket | 33278-12020 |
| 33280 | Reverse gear positioning pin assembly | 33280-12061 · 33280-20041 · 33280-32012 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-04005 · 90254-05003 |
| 33283R | Compression spring (for right reverse gear positioning pin) | 90501-26087 |
| 33290 | No. 1 locking steel ball assembly | 33290-12011 · 33290-17010 · 33290-28010 · 33290-32012 · 33290-33010 · 33290-33011 · 33290-33020 |
| 33290B | No. 2 locking steel ball assembly | 33290-32021 · 90341-16015 |
| 33528B | control shaft cover | 33506-12061 · 33506-12110 · 33506-20210 · 33506-20270 · 33506-28210 · 33506-32040 · 33506-33010 |
| 33528C | Oil seal (for control shaft cover) | 90311-18006 · 90311-18009 · 90311-18013 |
| 33528D | O-ring (used to control shaft cover) | 90301-65004 |
| 33528E | Bolt (for control shaft cover) | 90119-10288 · 91611-61025 |
| 33528H | Needle roller bearings (for control shaft housing) | 90364-18009 |
| 33528J | Bimetallic bushing (for control shaft cover) | 90384-18017 |
| 33531B | Dust boot (for shift lever shaft) | 33531-12020 · 33531-12030 · 33531-32011 |
| 33584A | Shift lever stopper gasket | 33584-12050 · 33584-12060 · 33584-20020 |
