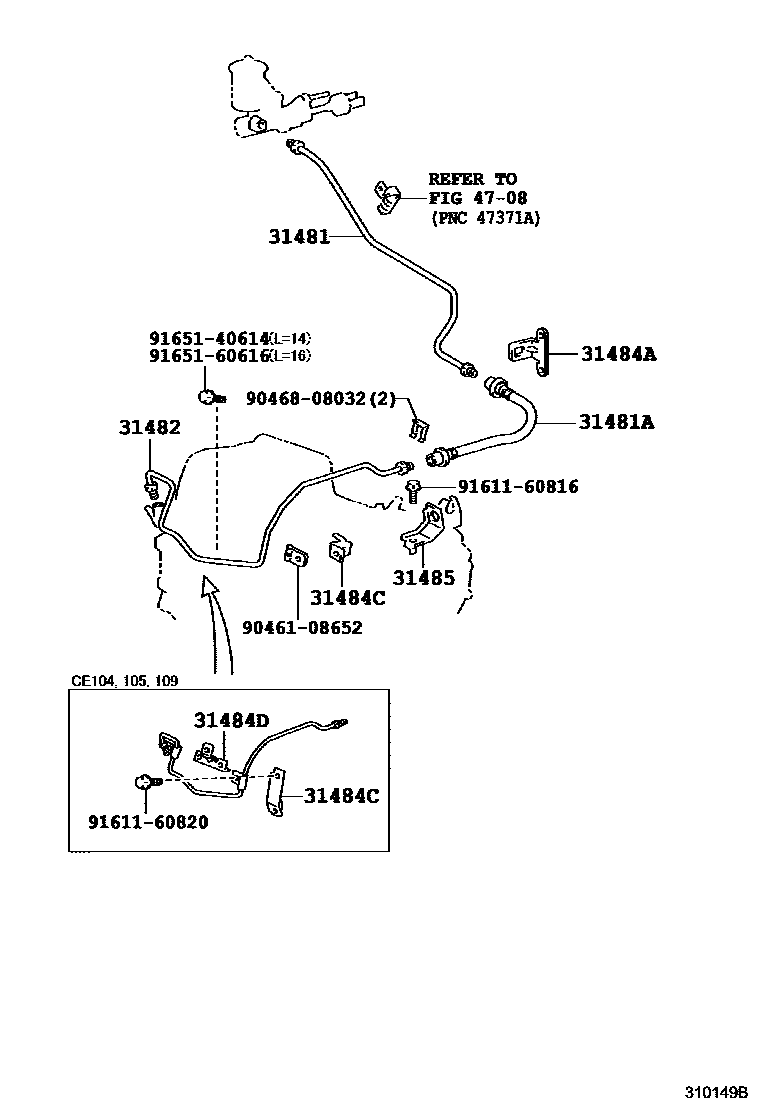

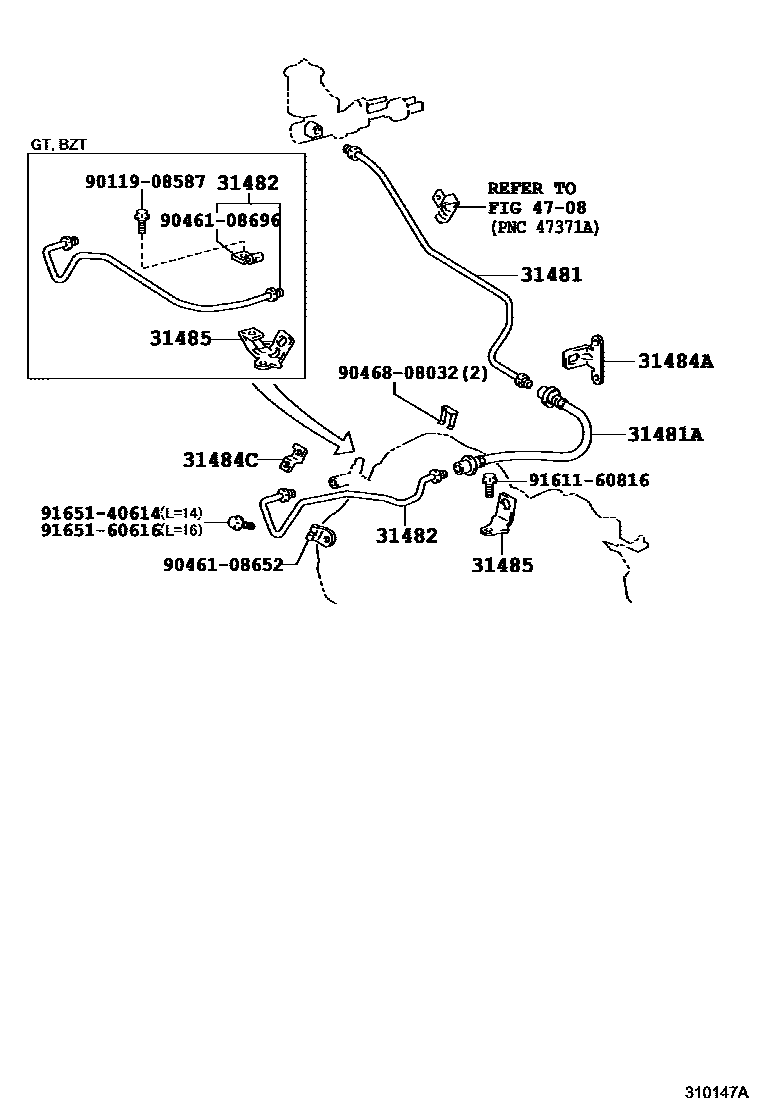

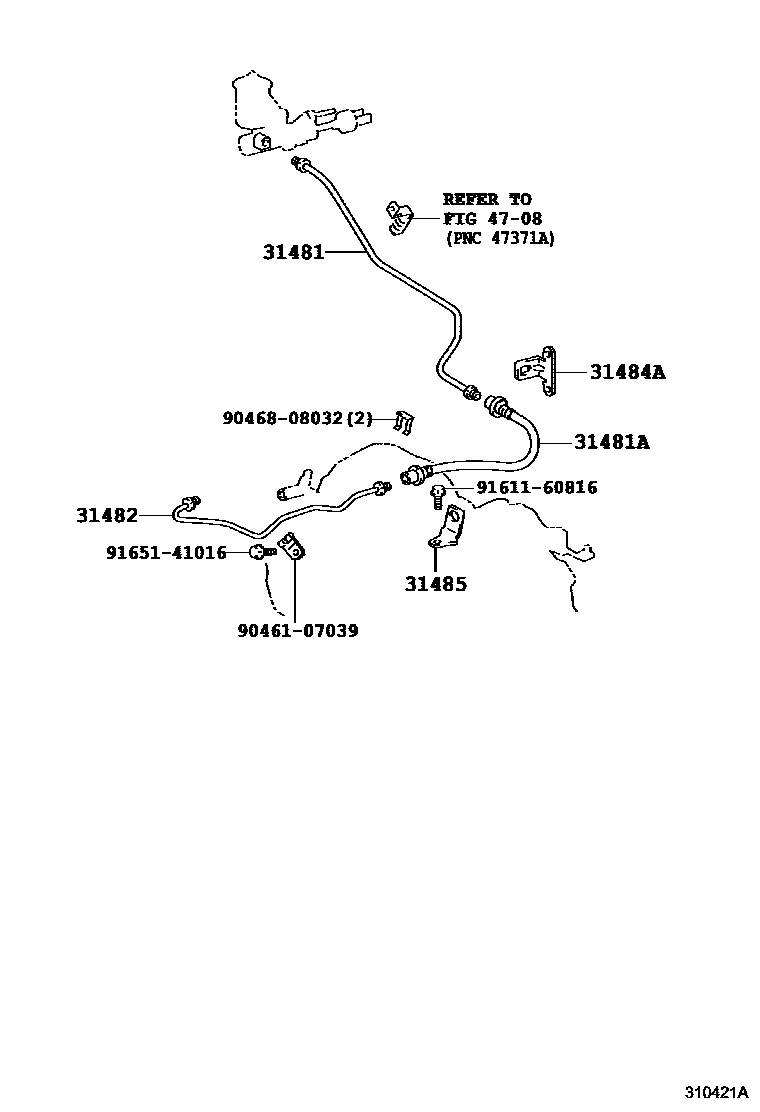

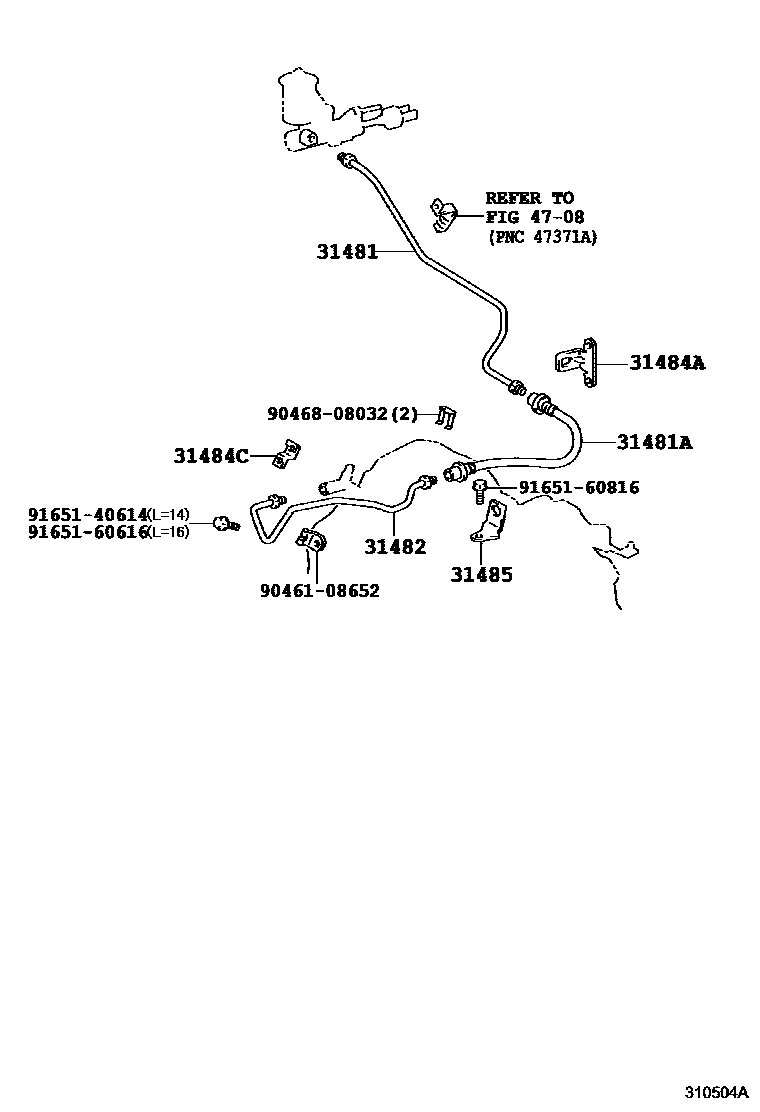

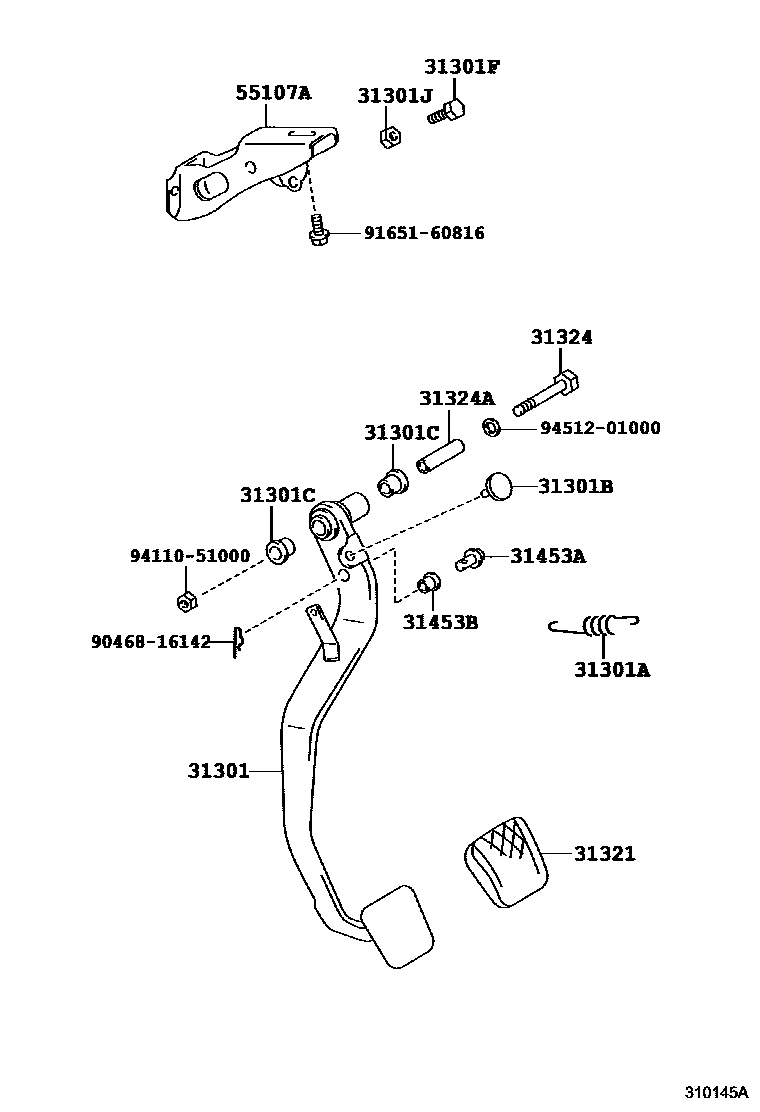

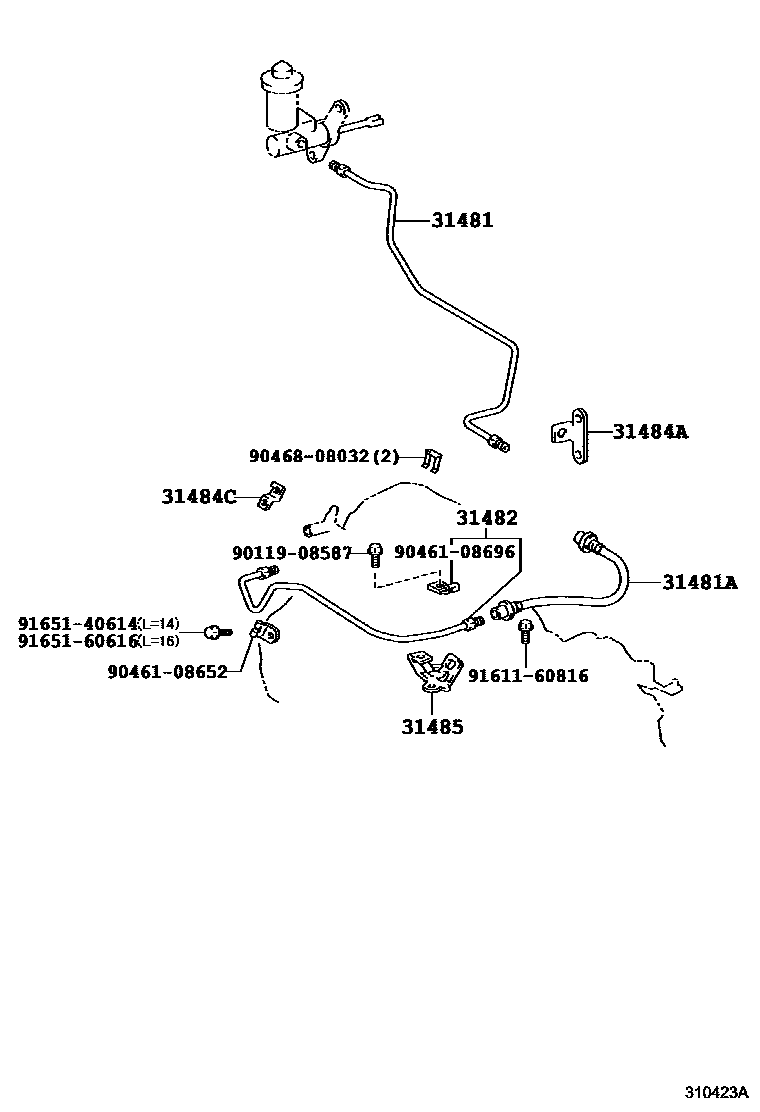

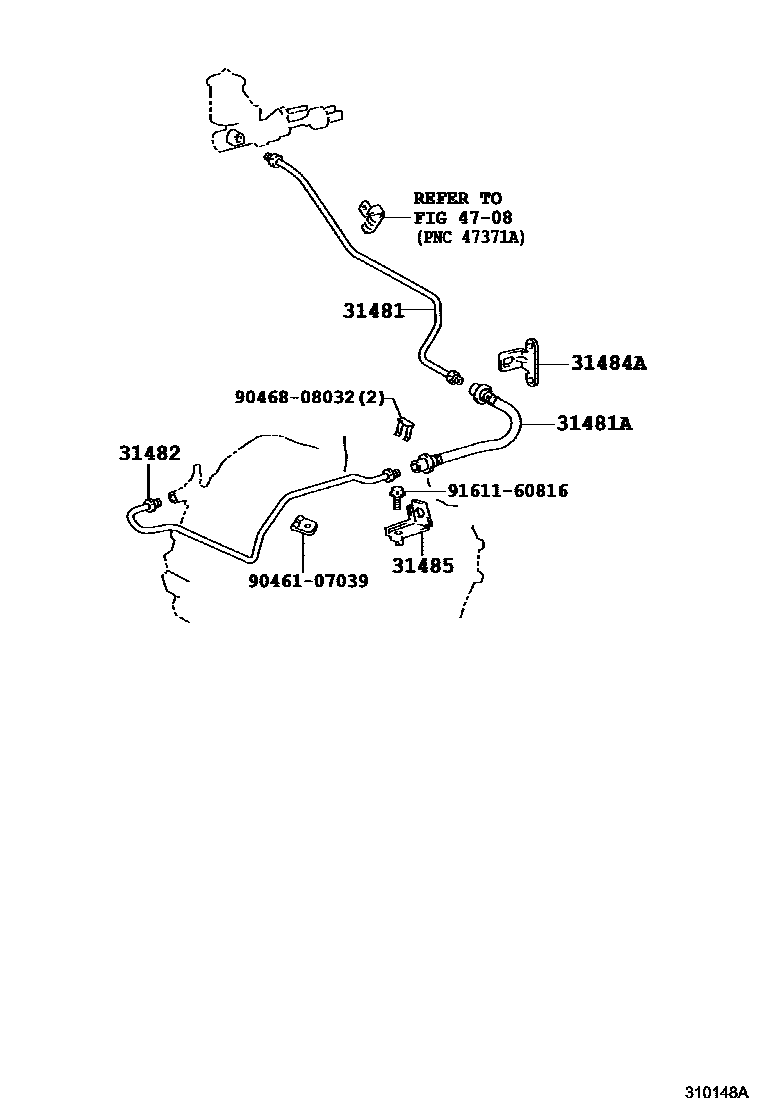

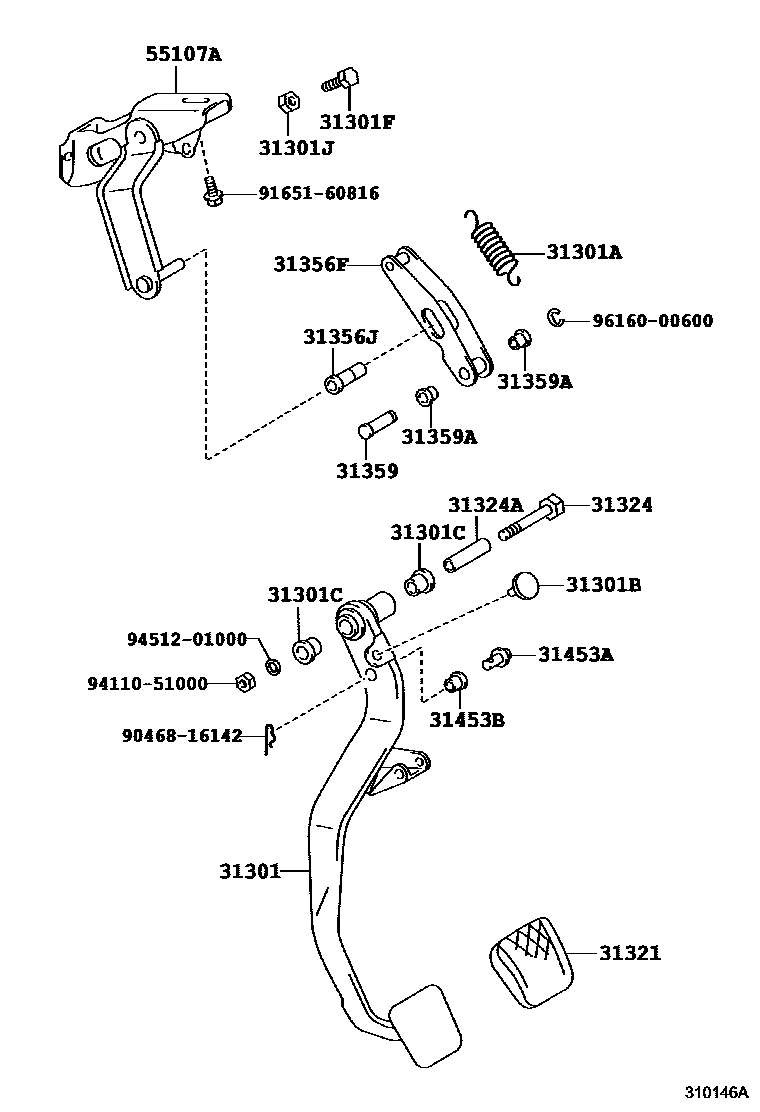

Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102
Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 8 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-12370 · 31301-12371 · 31301-12490 · 31310-12030 |
| 31301A | Spring (for clutch pedal) | 90506-14052 · 90506-26023 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301J | Nut (for clutch pedal stop) | 94120-41000 |
| 31321 | clutch pedal pad | 31321-12040 |
| 31324 | clutch pedal shaft | 90101-10015 · 90101-10081 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31356F | No. 1 clutch pedal center plate | 31356-12010 |
| 31356J | Collar (for No. 1 clutch pedal center plate) | 90386-08055 |
| 31359 | Clutch pedal center spring pin | 31359-12010 |
| 31359A | Bushing (for clutch pedal center spring pin) | 90386-08002 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 47148-12010 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-12210 |
| 31481A | No. 1 clutch hose | 90931-01060 · 90931-01061 · 90931-01062 · 90931-01097 · 90931-01121 · 90931-01124 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-12052 · 31482-12060 · 31482-12090 · 31482-12101 · 31482-12102 · 31482-12110 · 31482-32020 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-12160 |
| 31484C | No. 1 clutch tube bracket | 31484-12110 · 31484-20320 · 31484-32050 |
| 31484D | No. 2 clutch tube bracket | 31484-20460 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-12180 · 31484-12190 · 31484-12200 · 31484-12220 · 31484-12230 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-12170 · 55107-12180 |
