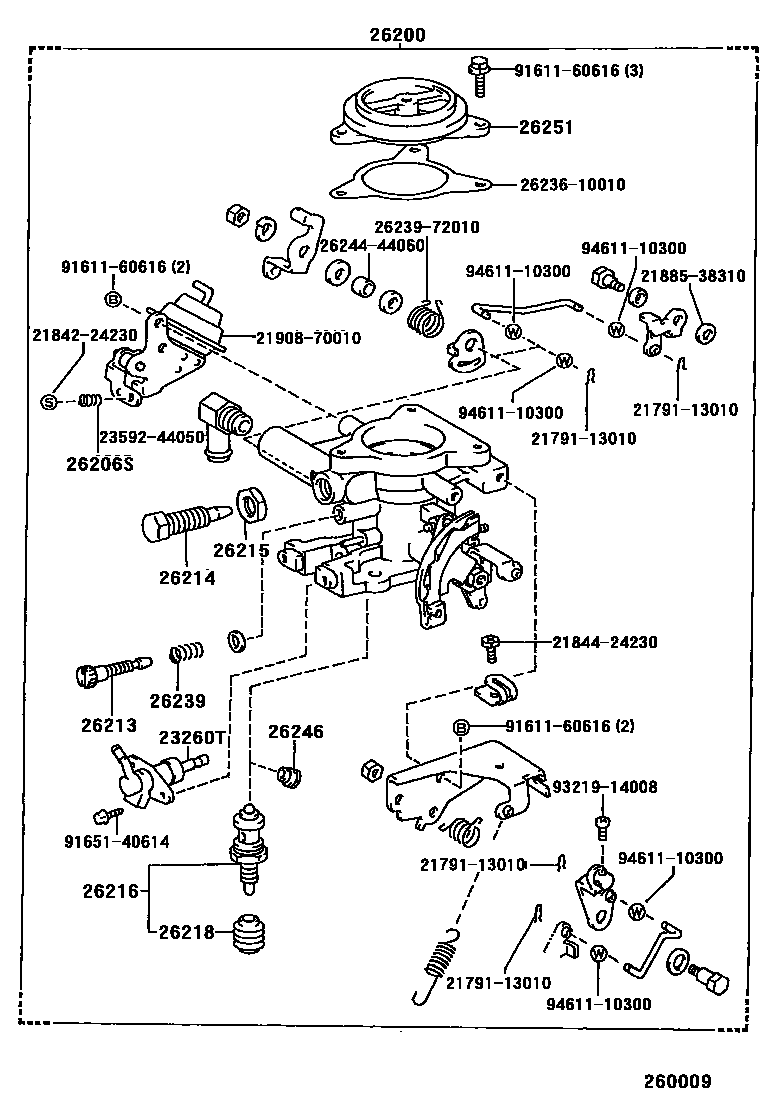

Toyota COROLLA LPG化油器 — Figure 2602
Toyota COROLLA EPC diagram 2602, LPG化油器, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23260T | LPG injector assembly | 23260-11020 |
| 26200 | LPG carburetor assembly | 26200-10011 |
| 26206S | Idle speed adjustment screw spring (for LPG) | 21723-21030 |
| 26213 | Adjustment screw | 26214-44060 |
| 26214 | Power adjustment screw | 26214-72010 |
| 26215 | Power adjustment nut | 26215-41010 |
| 26216 | enrichment valve | 26216-10010 |
| 26218 | Dust boot (for enrichment valve) | 26218-44061 |
| 26239 | spring | 26239-44060 |
| 26246 | measuring hole | 26246-41030 |
| 26251 | Air intake bell mouth | 26251-10010 |
