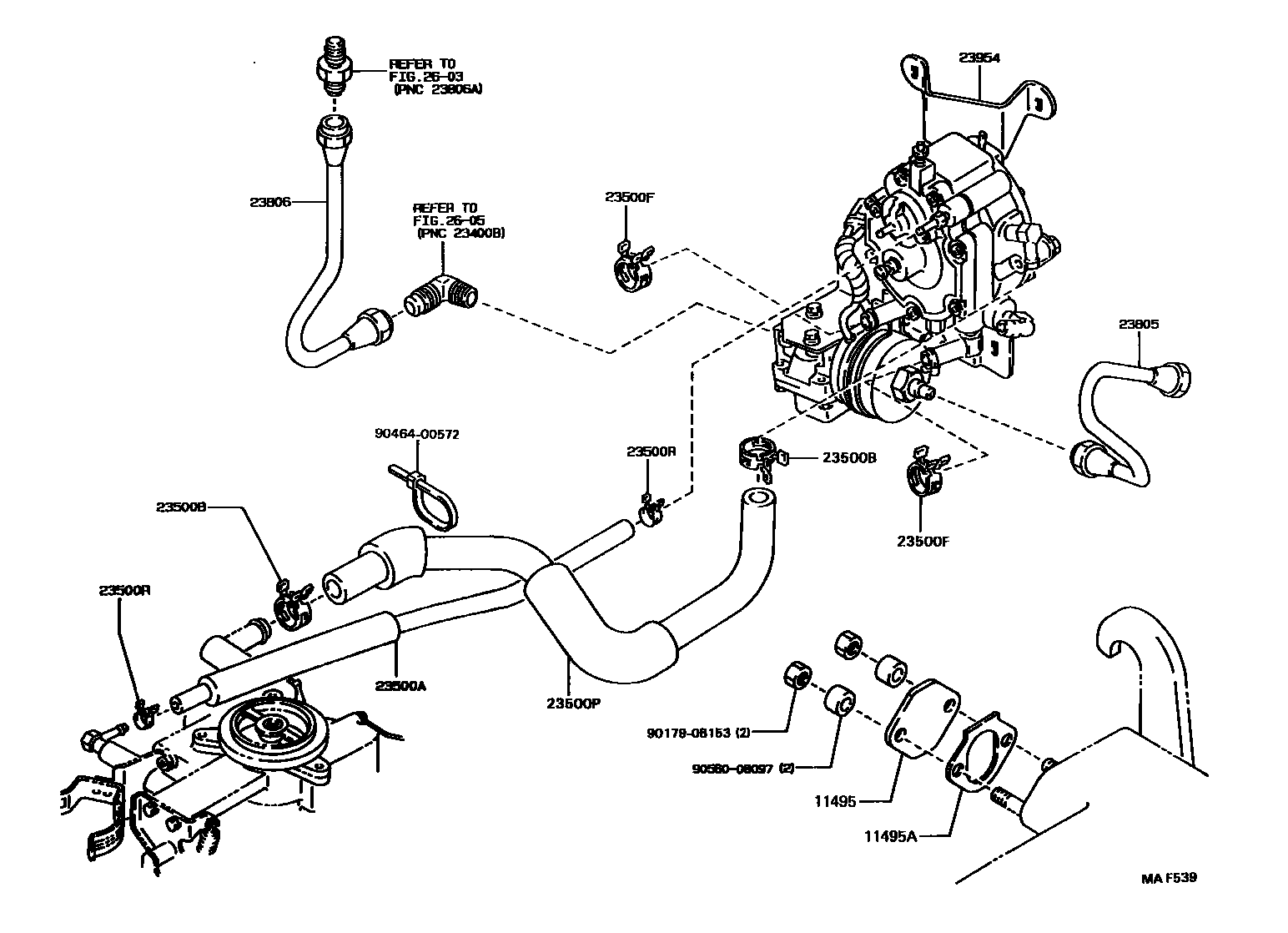

Toyota COROLLA LPG(化油器)燃油管 — Figure 2601
Toyota COROLLA EPC diagram 2601, LPG(化油器)燃油管, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11495 | Plate screw plug (for cylinder block) | 11495-10010 |
| 11495A | Fuel pump gasket (for cylinder block plate plug) | 90923-05024 |
| 23500A | No. 1 hose (for LPG regulator to LPG carburetor) | 90447-14065 |
| 23500B | No. 1 clip or clip (for LPG regulator to LPG carburetor) | 90467-20134 |
| 23500F | Clip or clip (for LPG regulator water inlet hose) | 90467-22003 |
| 23500P | No. 2 hose (for LPG regulator to LPG carburetor) | 23271-11100 |
| 23500R | No. 2 clip or clip (for LPG regulator to LPG carburetor) | 96132-30800 |
| 23805 | LPG regulator pipe assembly | 23805-10020 |
| 23806 | No. 2 LPG regulator pipe assembly | 23806-10011 |
| 23954 | LPG regulator bracket | 23954-10020 |
