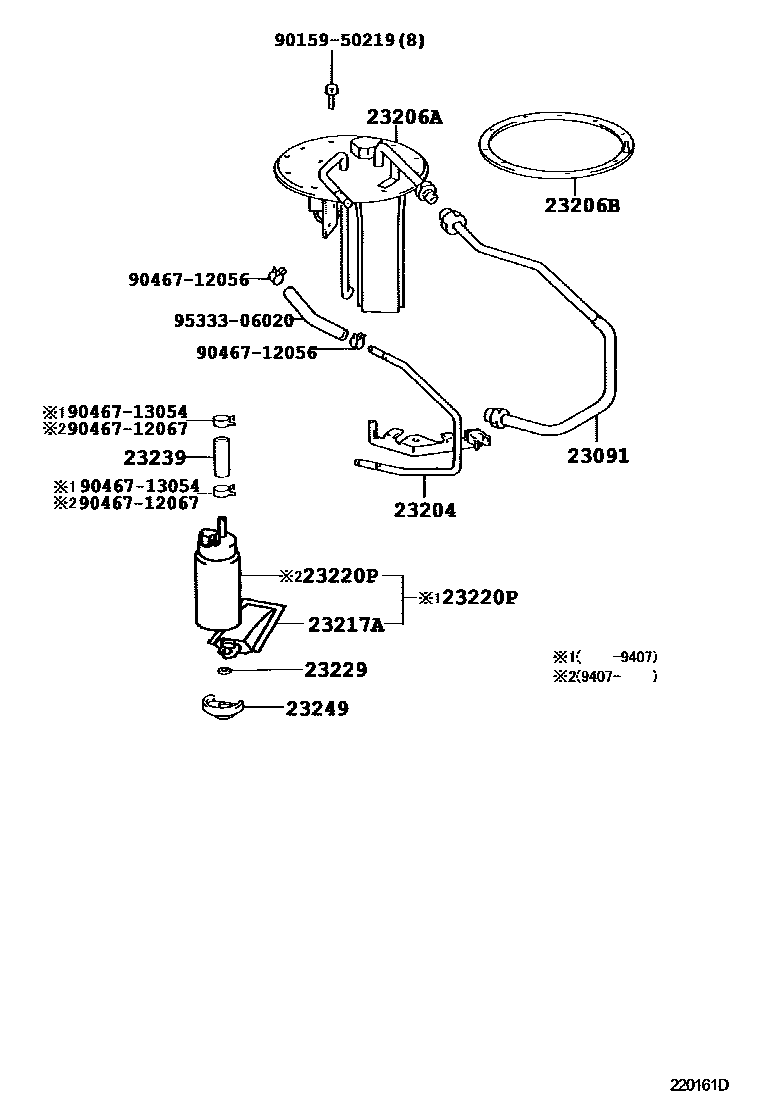

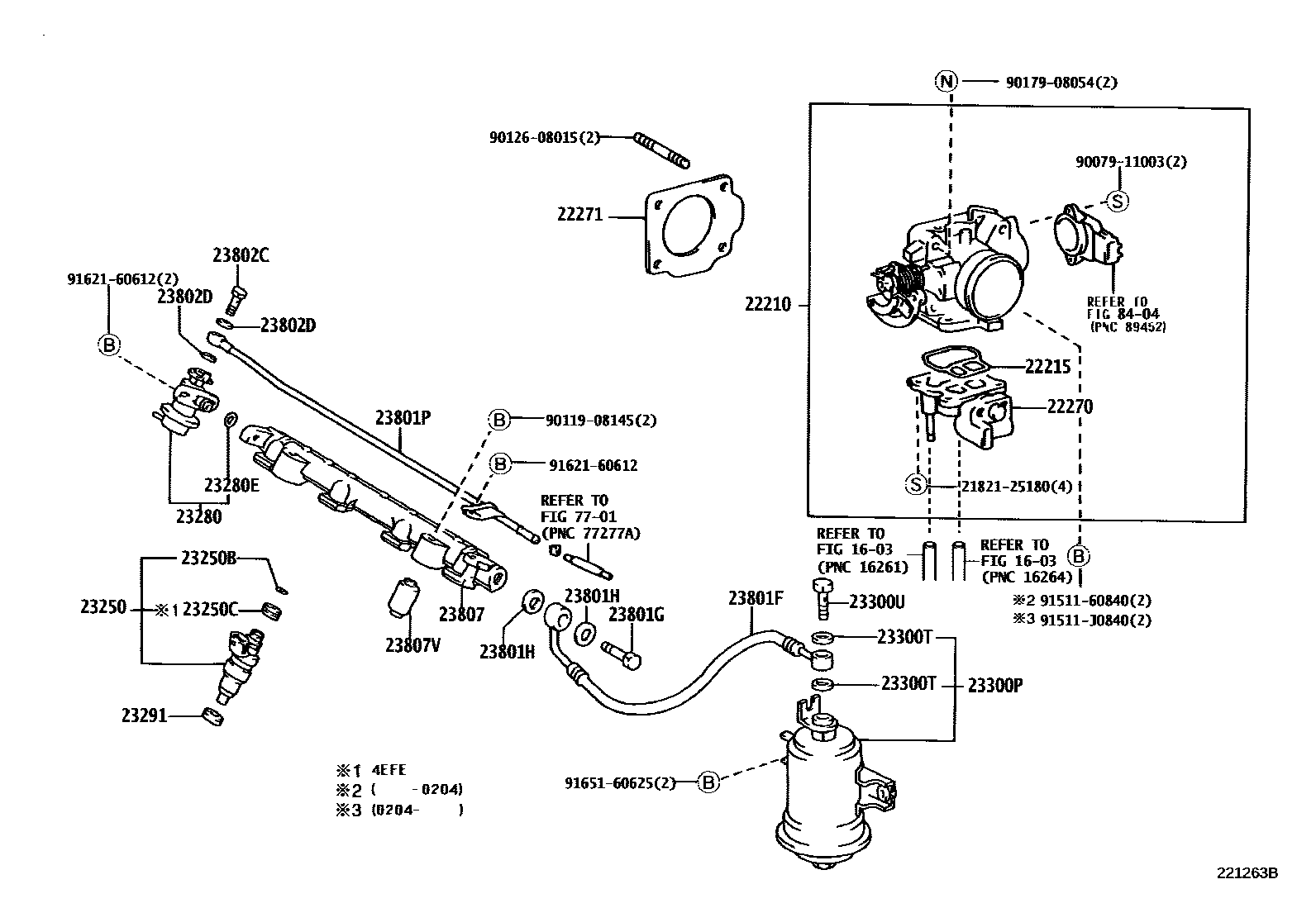

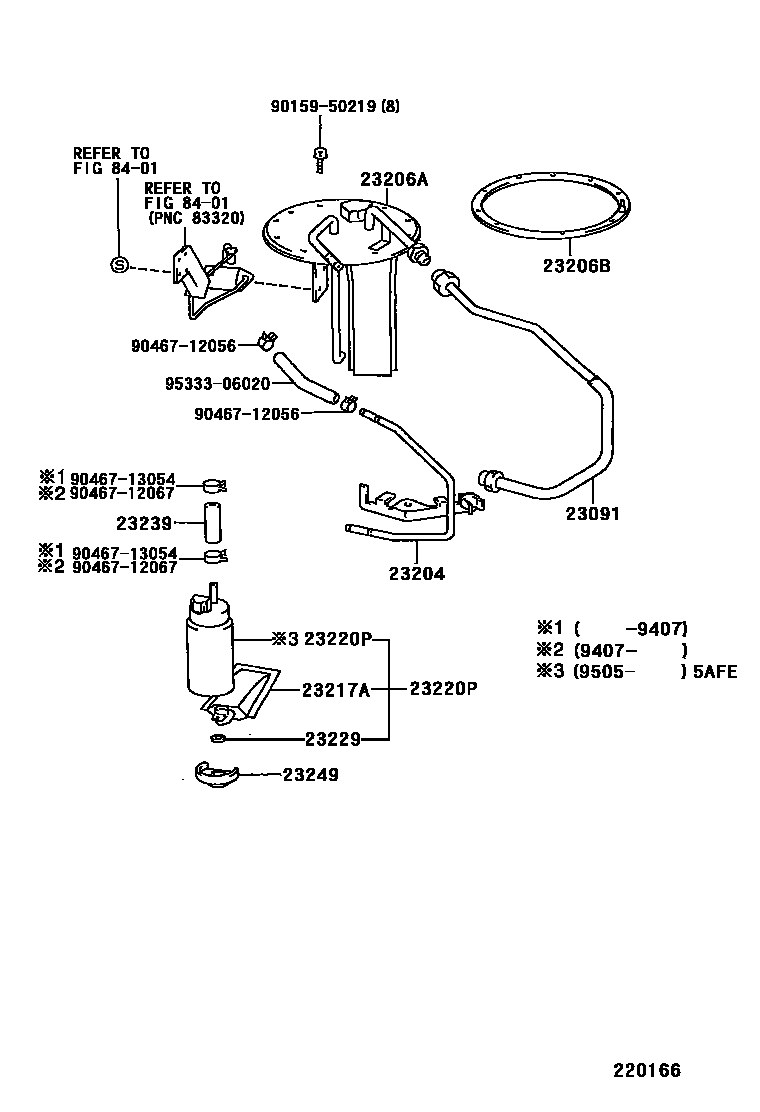

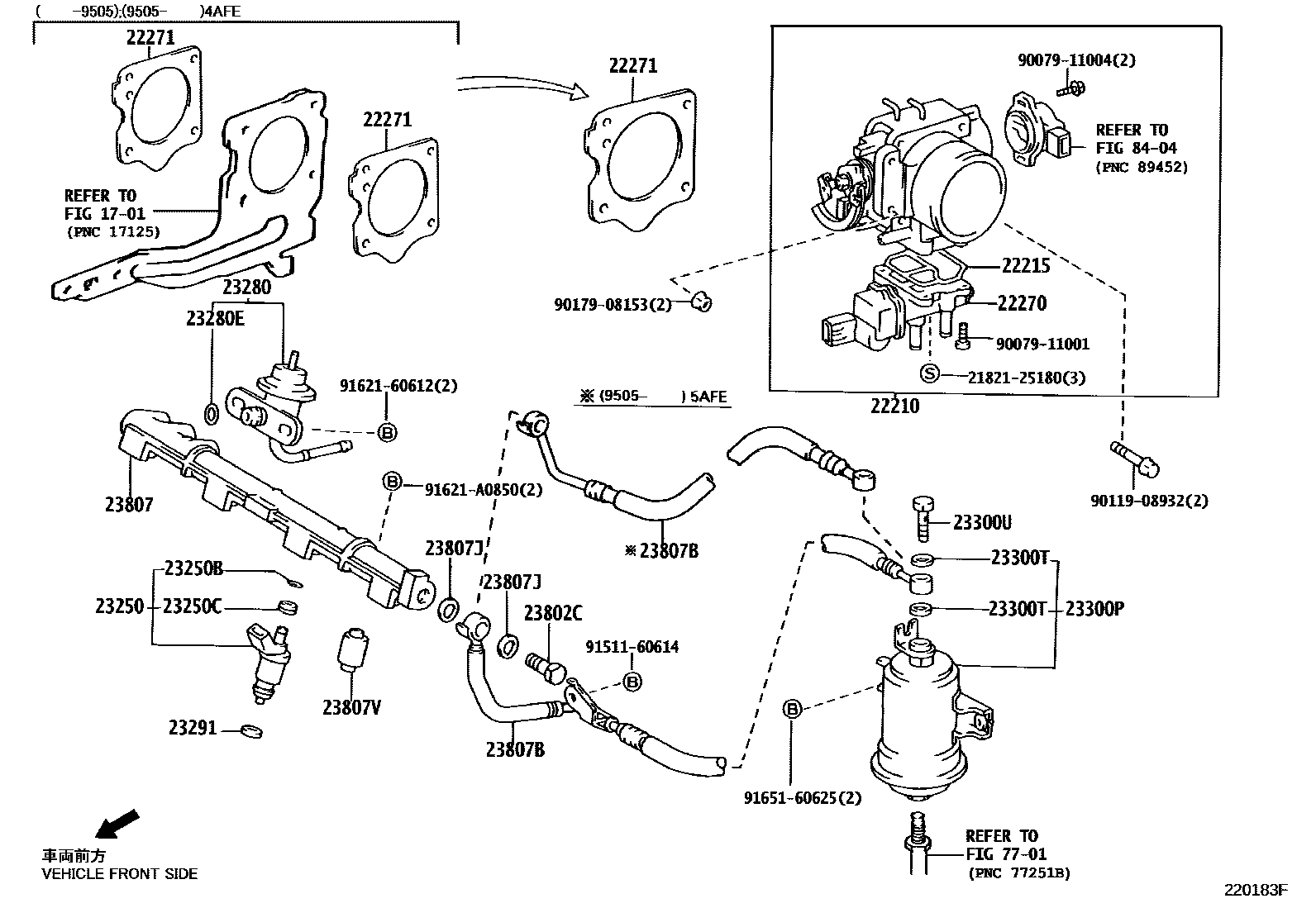

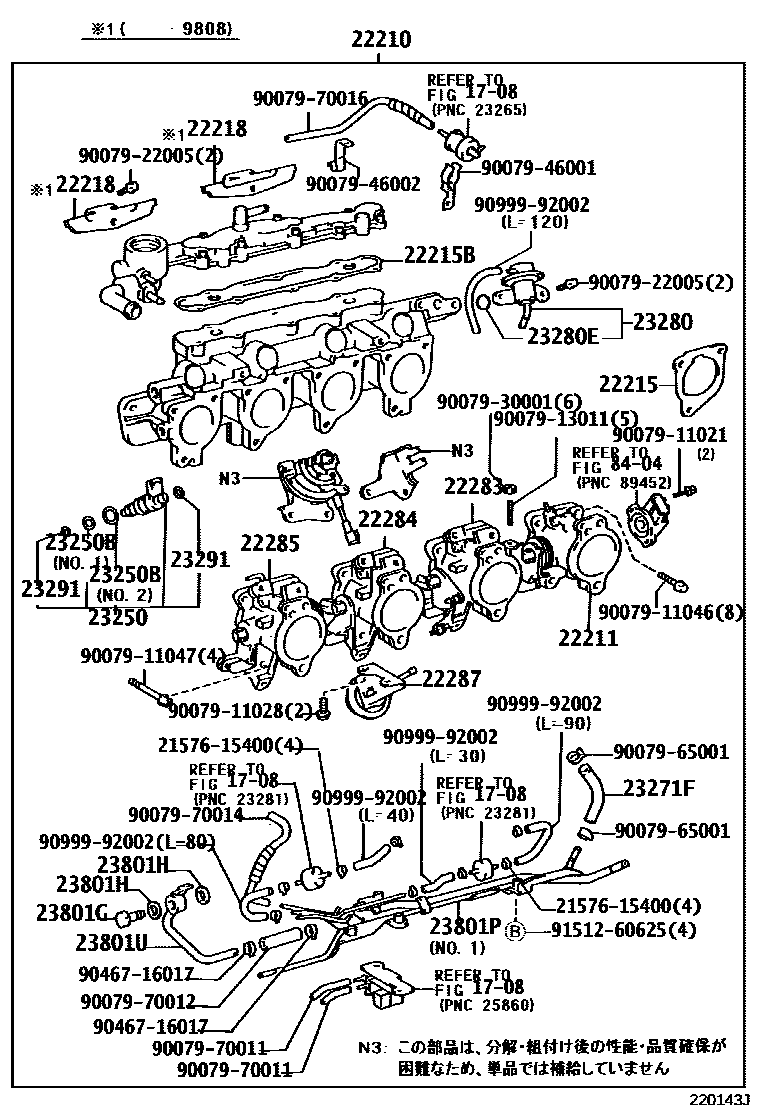

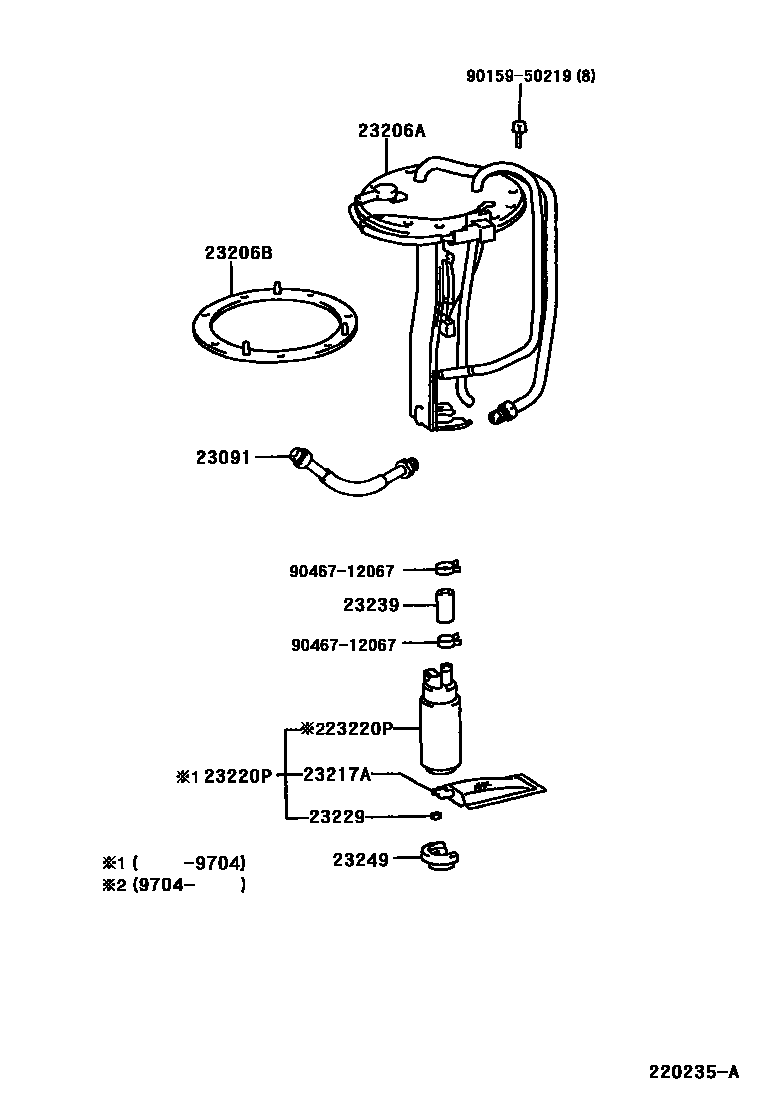

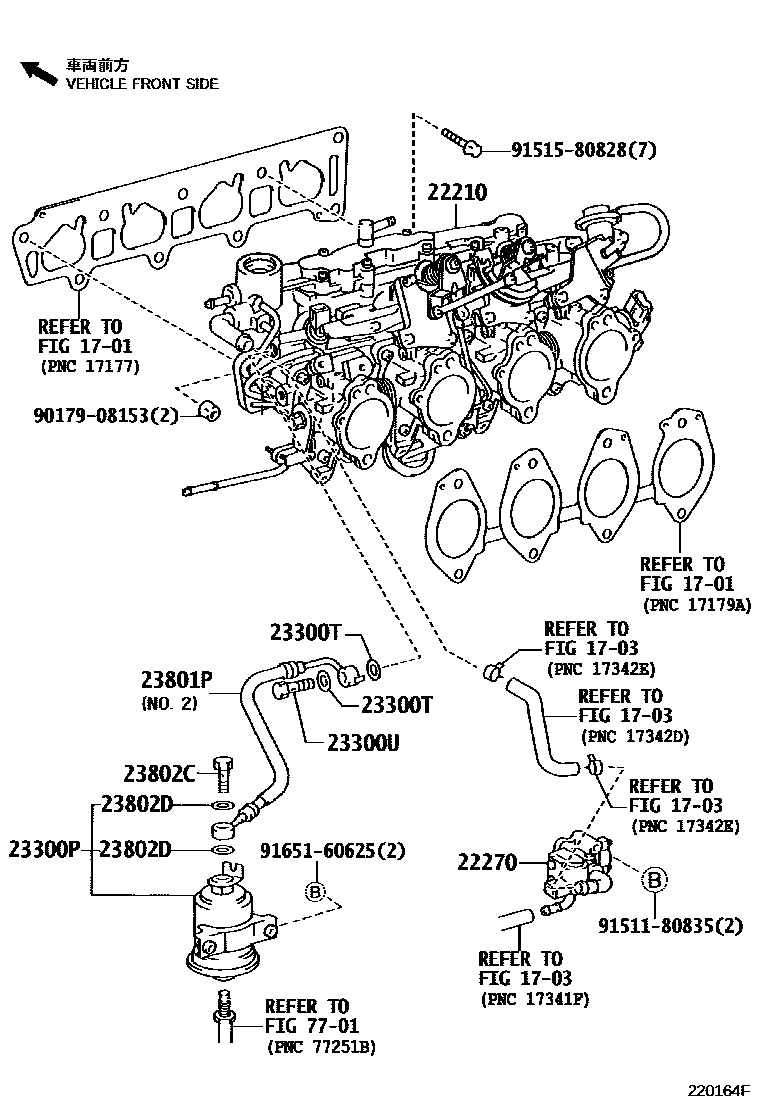

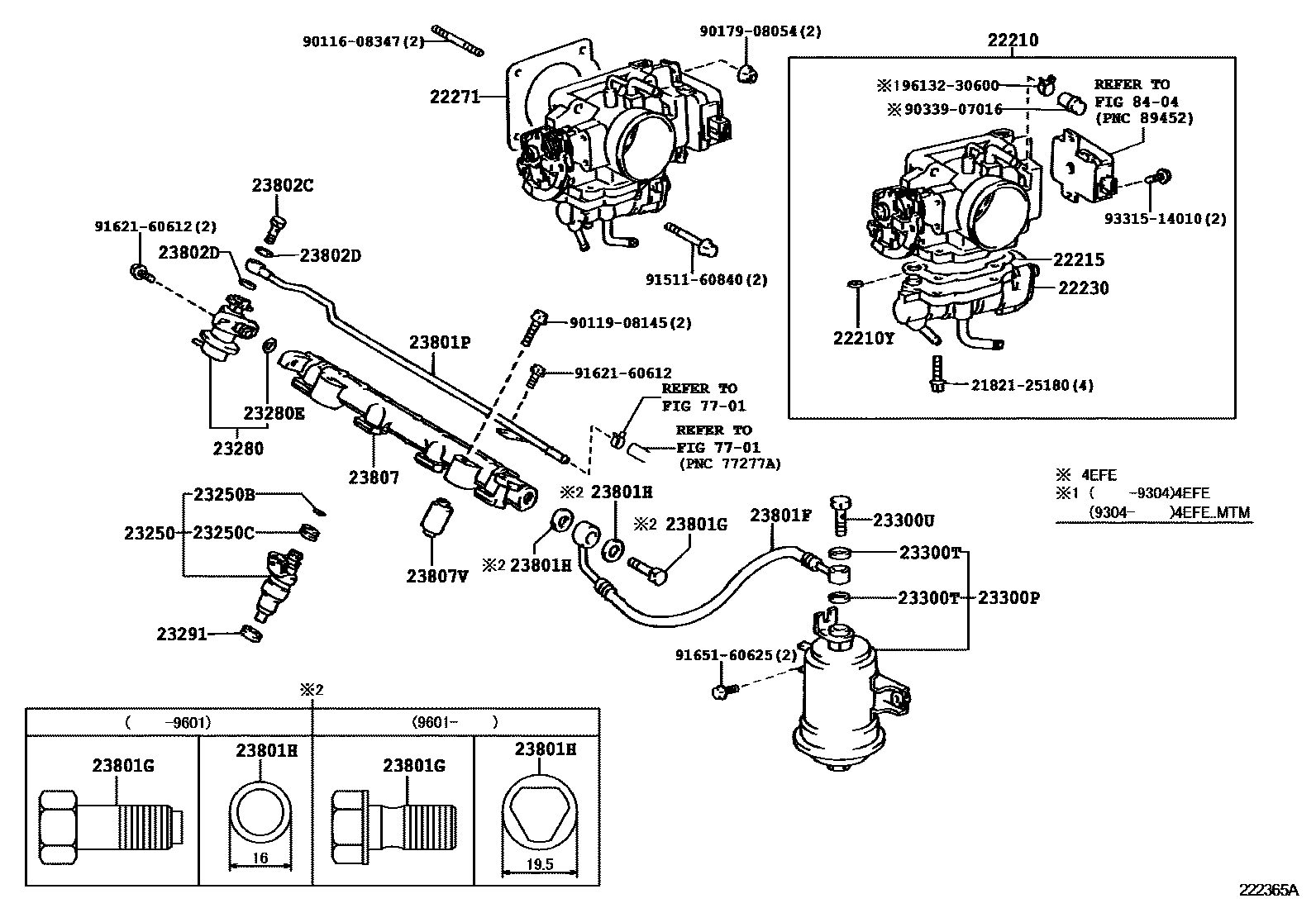

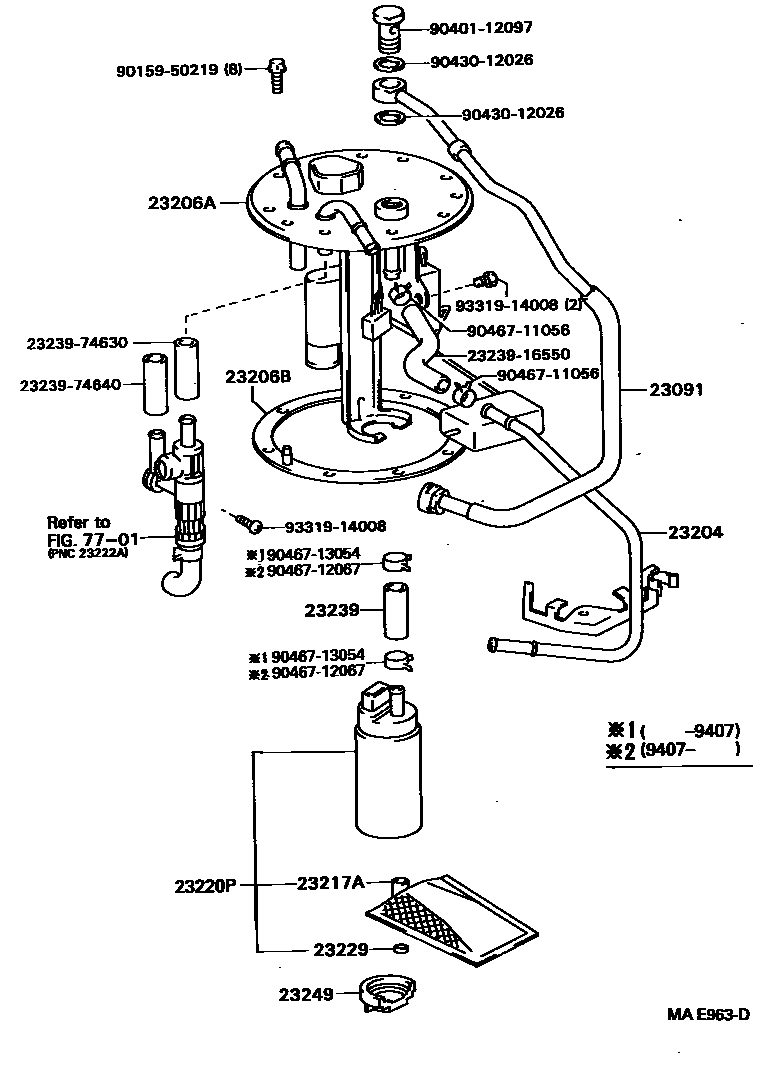

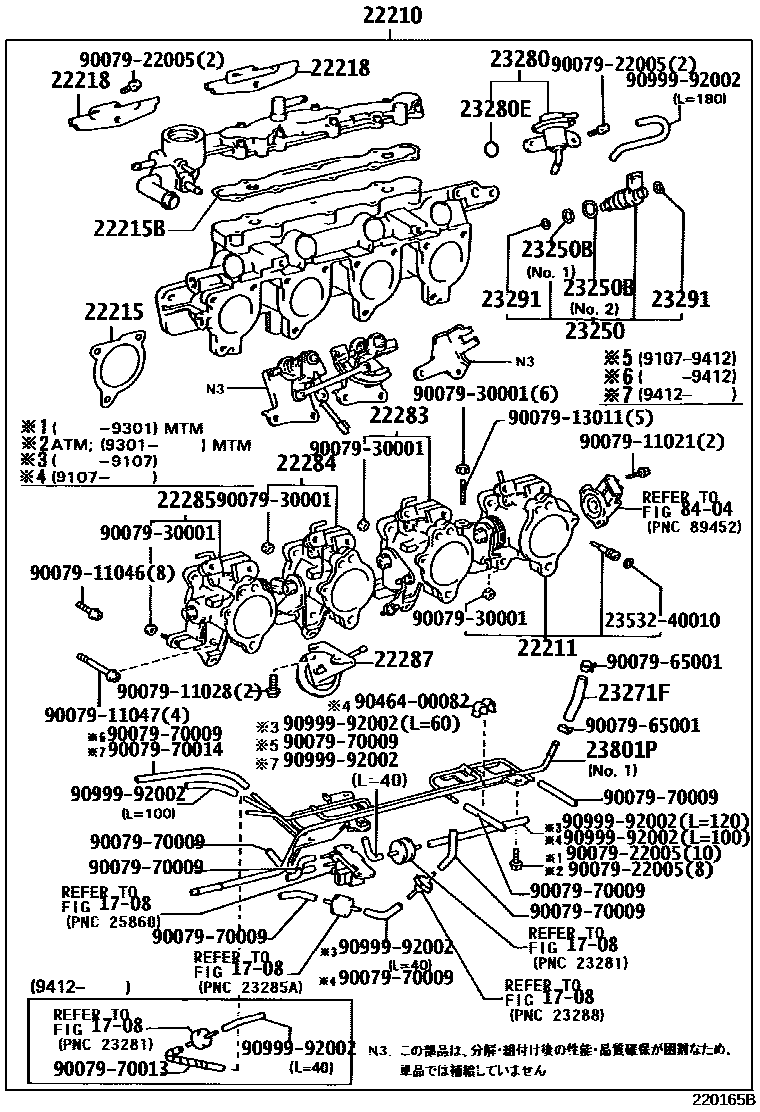

Toyota COROLLA 燃油喷射系统 — Figure 2211
Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 10 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22210-11270 · 22210-11280 · 22210-11360 · 22210-11370 · 22210-11590 · 22210-11600 · 22210-11640 · 22210-11650 · 22210-15070 · 22210-15090 · 22210-16570 · 22210-16571 · 22210-16572 · 22210-16620 · 22210-16621 · 22210-16761 · 22210-16762 · 22210-16763 · 22210-1A010 |
| 22210Y | O-ring (for air pipe) | 96711-19009 |
| 22211 | throttle body | 22211-16570 · 22211-16571 · 22211-16760 |
| 22215 | Throttle body cover gasket | 22215-11110 · 22215-16571 · 22215-16572 · 22215-16760 · 22215-74400 |
| 22215B | No. 2 throttle body cover gasket | 22224-16760 |
| 22218 | Cover (for throttle body) | 22218-16571 |
| 22230 | Auxiliary air valve assembly | 22230-11080 · 22230-11100 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-11020 · 22270-15010 · 22270-16030 · 22270-16060 · 22270-16070 · 22270-16090 |
| 22271 | Throttle body gasket | 22271-11020 · 22271-11030 · 22271-15020 |
| 22283 | No. 2 throttle body | 22283-16570 · 22283-16571 · 22283-16760 |
| 22284 | No. 3 throttle body | 22284-16570 · 22284-16571 · 22284-16760 |
| 22285 | No. 4 throttle body | 22285-16570 · 22285-16571 · 22285-16572 · 22285-16760 |
| 22287 | opener | 22287-16570 · 22287-16760 |
| 23091 | Fuel pump pipe sub-assembly | 23091-16060 · 23091-16080 · 77209-12080 · 77209-12100 · 77209-12120 · 77209-13030 |
| 23204 | Fuel pump return pipe sub-assembly | 23204-16510 · 23204-16550 · 77204-12020 · 77204-12030 |
| 23206A | fuel pump bracket | 23206-16550 · 23206-16560 · 23206-16590 · 77203-12170 · 77203-12190 · 77203-12240 · 77203-13120 |
| 23206B | fuel pump bracket gasket | 77169-12020 · 77169-12030 |
| 23217A | fuel pump filter | 23217-15050 · 23217-16450 · 23217-16451 · 23217-74020 · 23217-74021 |
| 23220P | fuel pump assembly | 23220-74020 · 23220-74021 · 23221-11060 · 23221-15010 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23239 | hose | 23239-11010 · 23239-63010 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74610 |
| 23250 | Fuel injector assembly | 23209-11050 · 23209-11120 · 23209-11130 · 23209-15030 · 23209-15040 · 23209-16150 · 23209-19015 |
| 23250B | O-ring (for fuel injector) | 90301-07001 · 90301-07024 · 90301-14006 · 90301-17007 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23271F | fuel hose | 95333-06010 · 95333-06020 |
| 23280 | Fuel pressure regulator assembly | 23280-11040 · 23280-15020 · 23280-15030 · 23280-16140 · 23280-16160 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07001 · 90301-07024 · 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-41010 · 23291-75010 |
| 23300P | Fuel filter (for EFI) | 23300-19295 |
| 23300T | Gasket (for fuel filter) | 90430-12026 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 · 96341-11200 |
| 23801F | No. 1 fuel hose | 23271-11130 |
| 23801G | Connector bolt (for fuel pipe) | 90079-20002 · 90401-12029 · 90401-12033 |
| 23801H | Gasket (for fuel lines) | 23279-74010 · 90430-10015 · 90430-12026 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-11050 · 23801-11080 · 23801-11120 · 23801-16060 · 23801-16061 · 23801-16070 · 90923-01380 |
| 23801U | Connector | 90079-74002 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-08004 · 90401-08010 · 90401-12097 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-08012 · 90430-08014 · 90430-12026 |
| 23807 | Oil pipe sub-assembly | 23814-11030 · 23814-15040 |
| 23807B | Fuel line hose | 23271-15240 · 23271-15260 |
| 23807J | Oil pipe inlet gasket | 90430-12026 |
| 23807V | No. 1 spacer (for oil pipe) | 23890-11010 · 23891-11020 · 90561-08020 |
