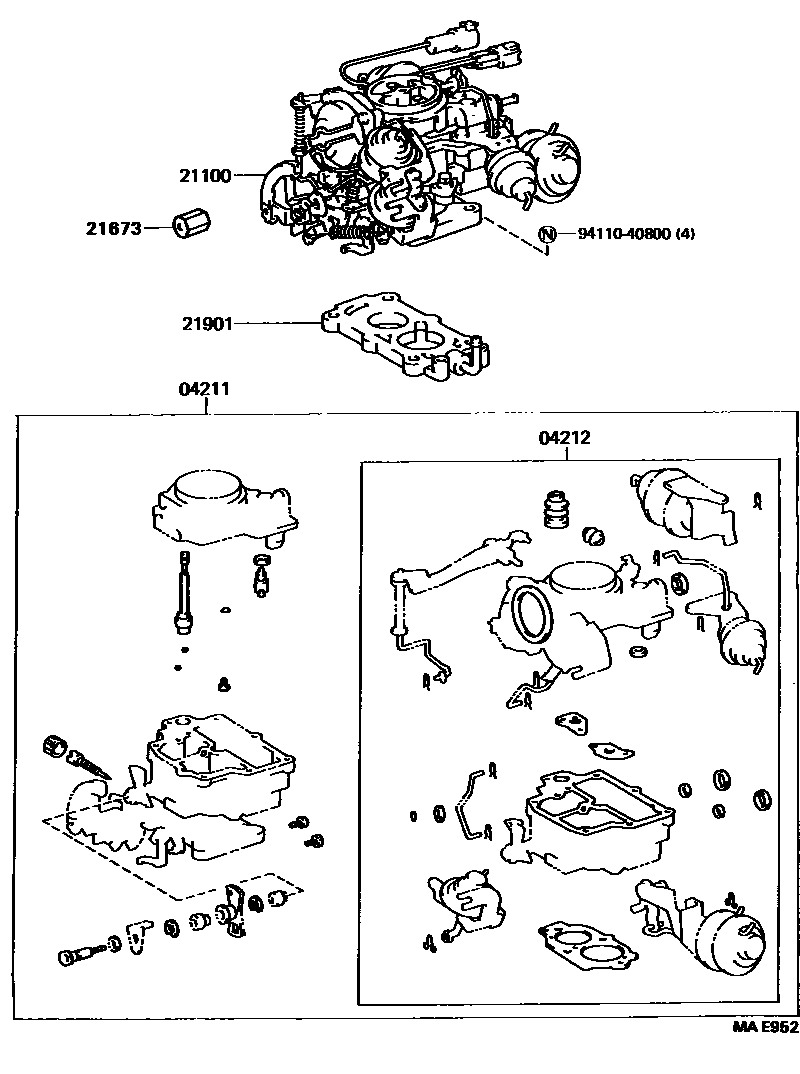

Toyota COROLLA carburetor assembly — Figure 2102
Toyota COROLLA EPC diagram 2102, carburetor assembly, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04211 | carburetor components | 04211-11190 |
| 04212 | carburetor gasket assembly | 04212-11071 |
| 21100 | carburetor assembly | 21100-11700 · 21100-11810 · 21100-11820 · 21100-11830 |
| 21673 | Idle speed limit cap | 21673-13280 |
| 21901 | No. 1 carburetor heat insulation pad sub-assembly | 21901-11060 |
