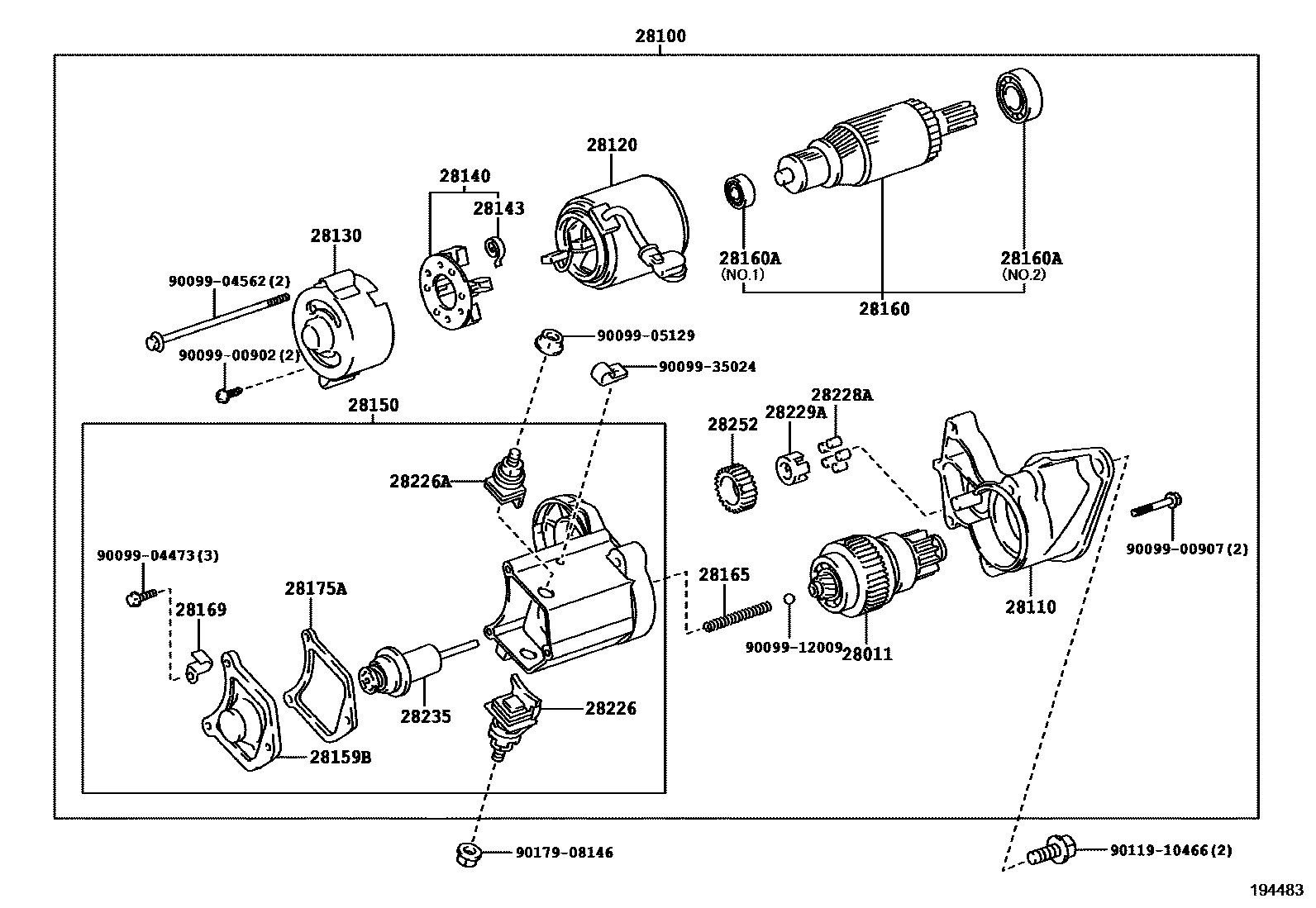

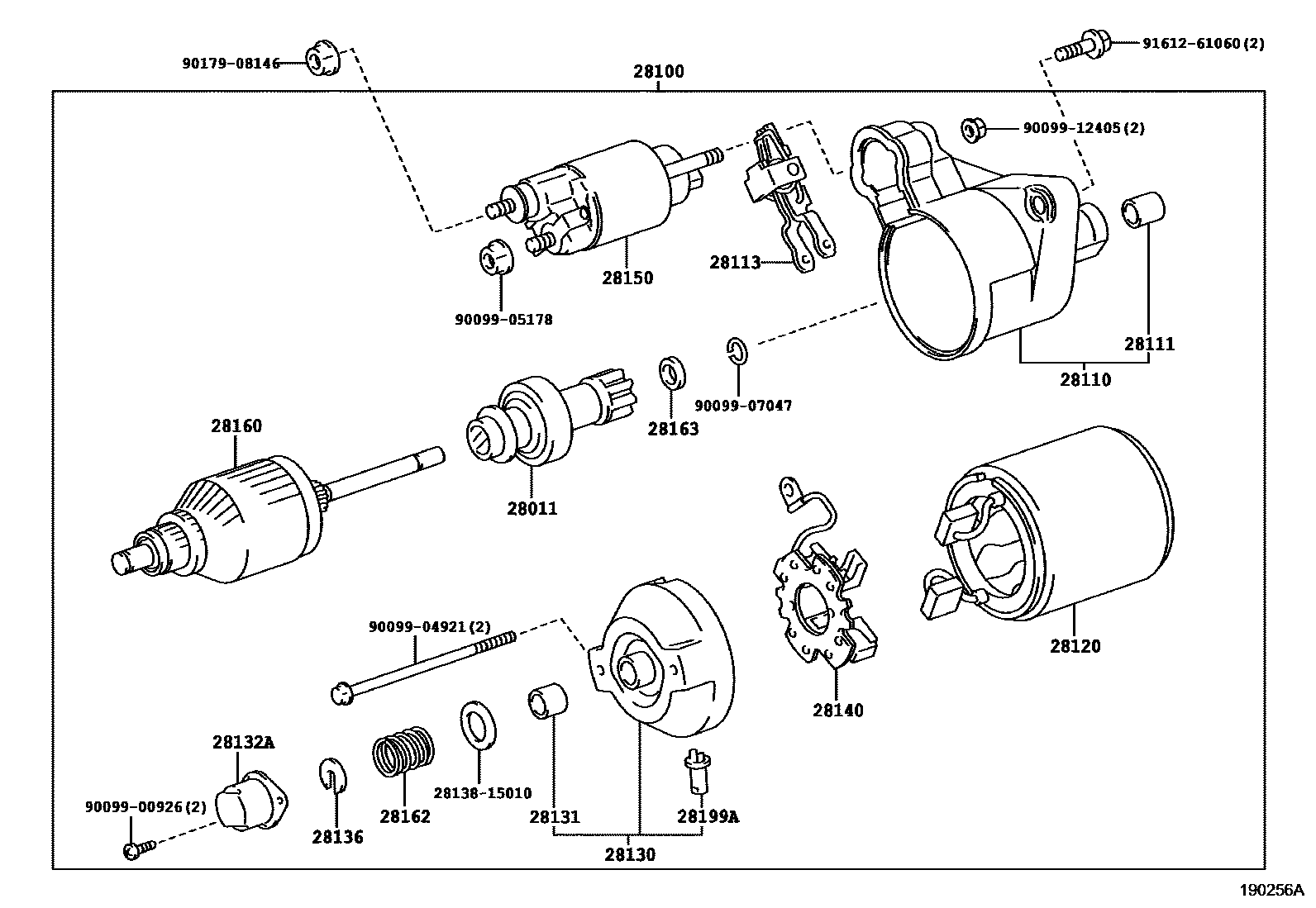

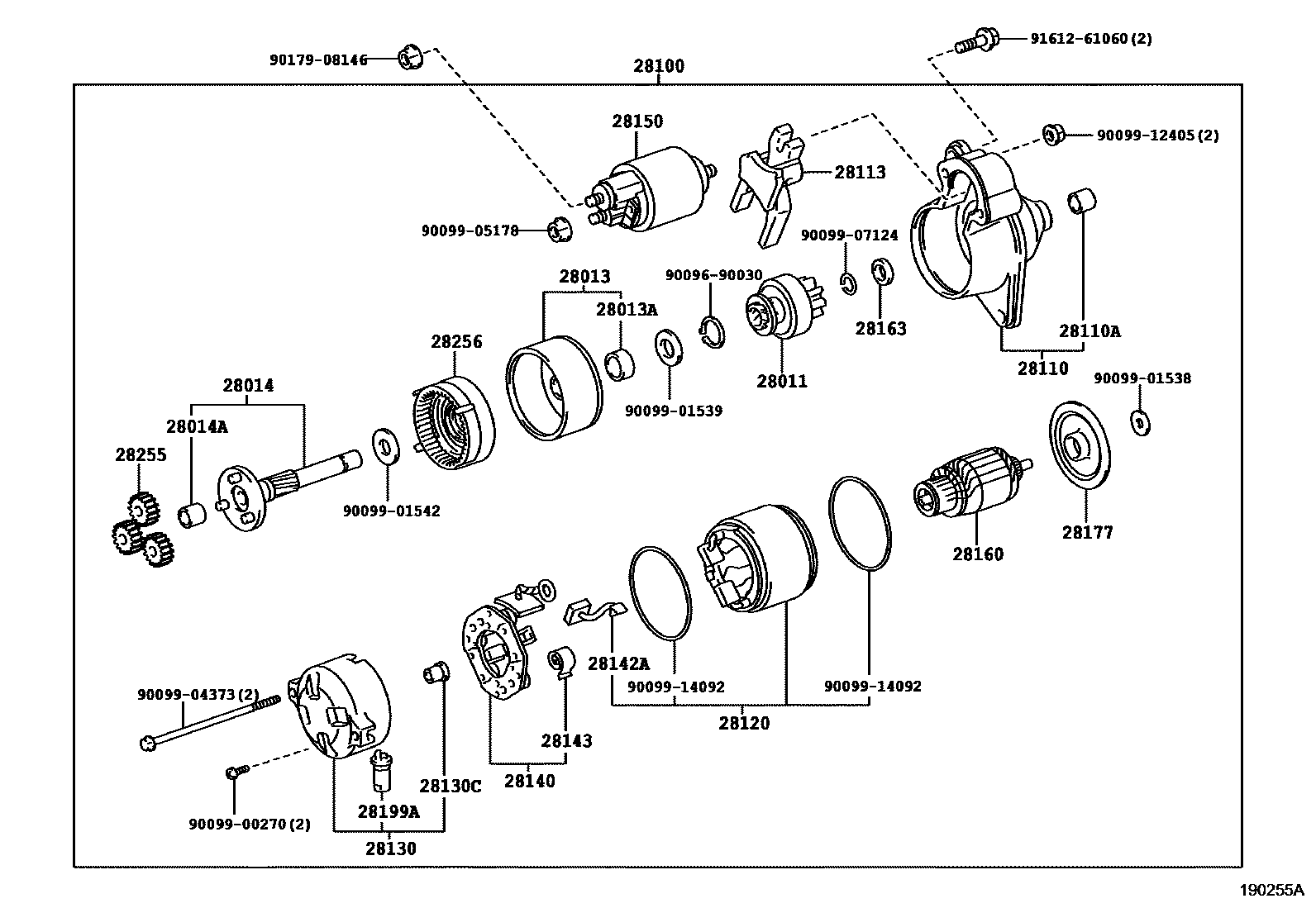

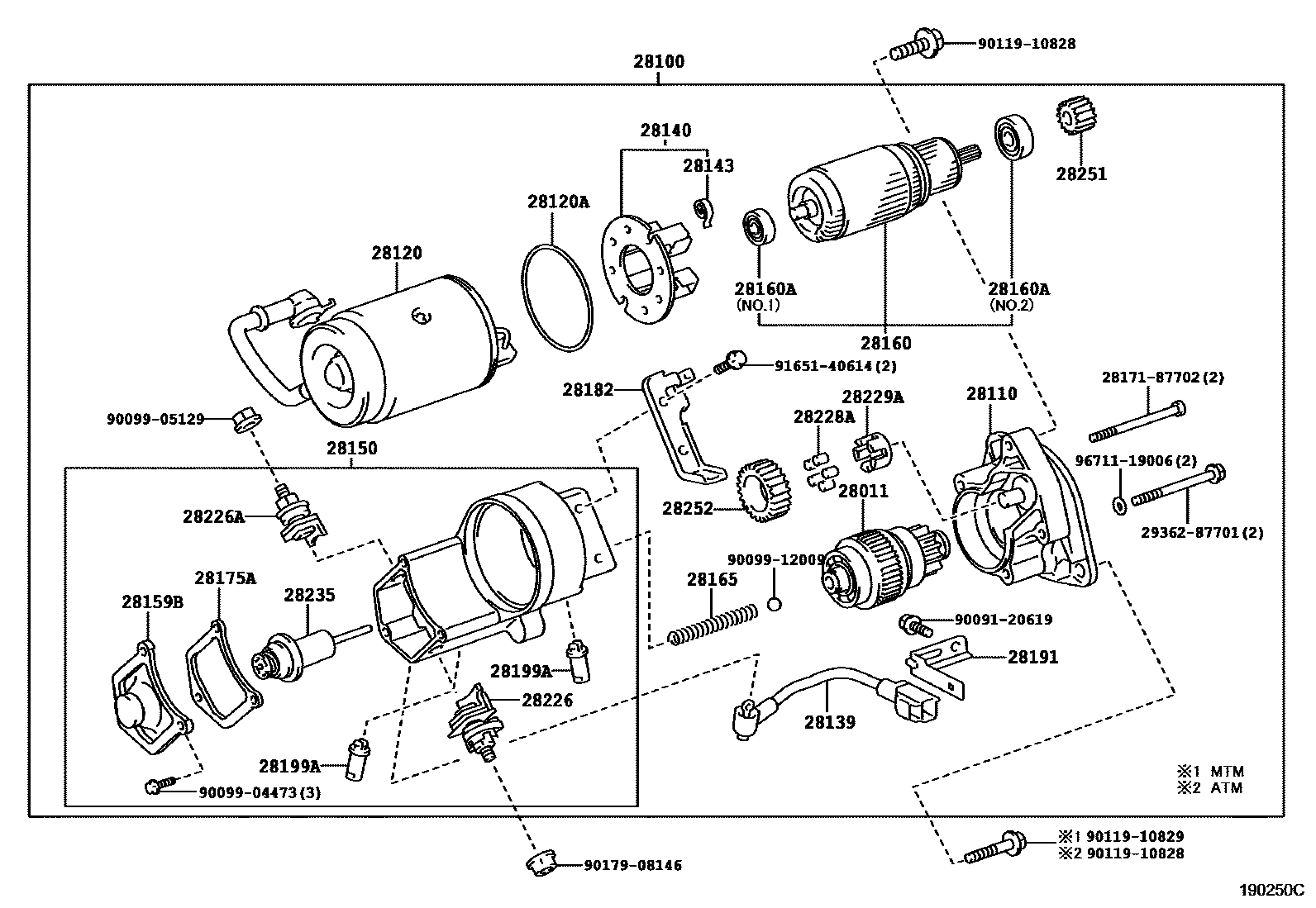

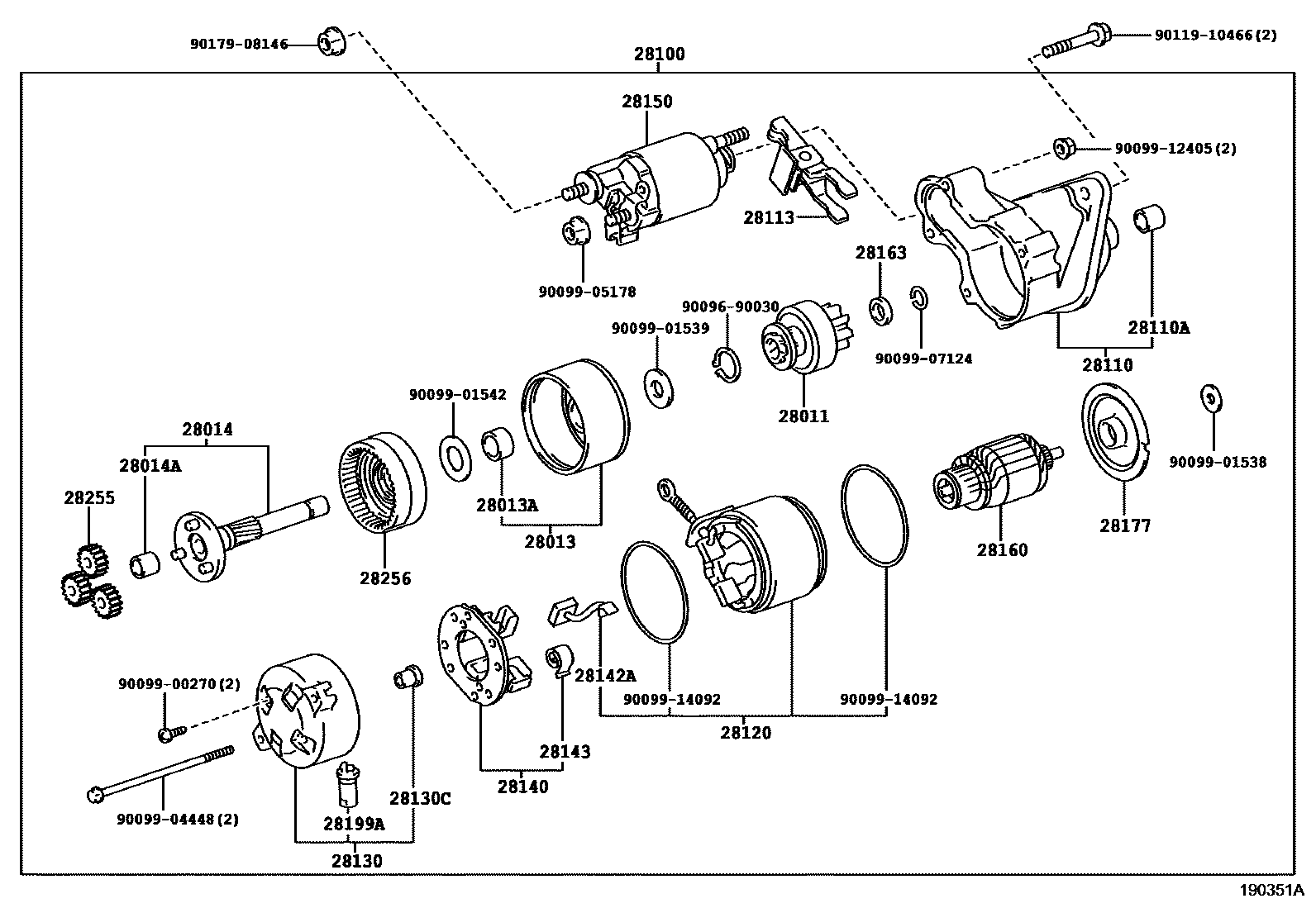

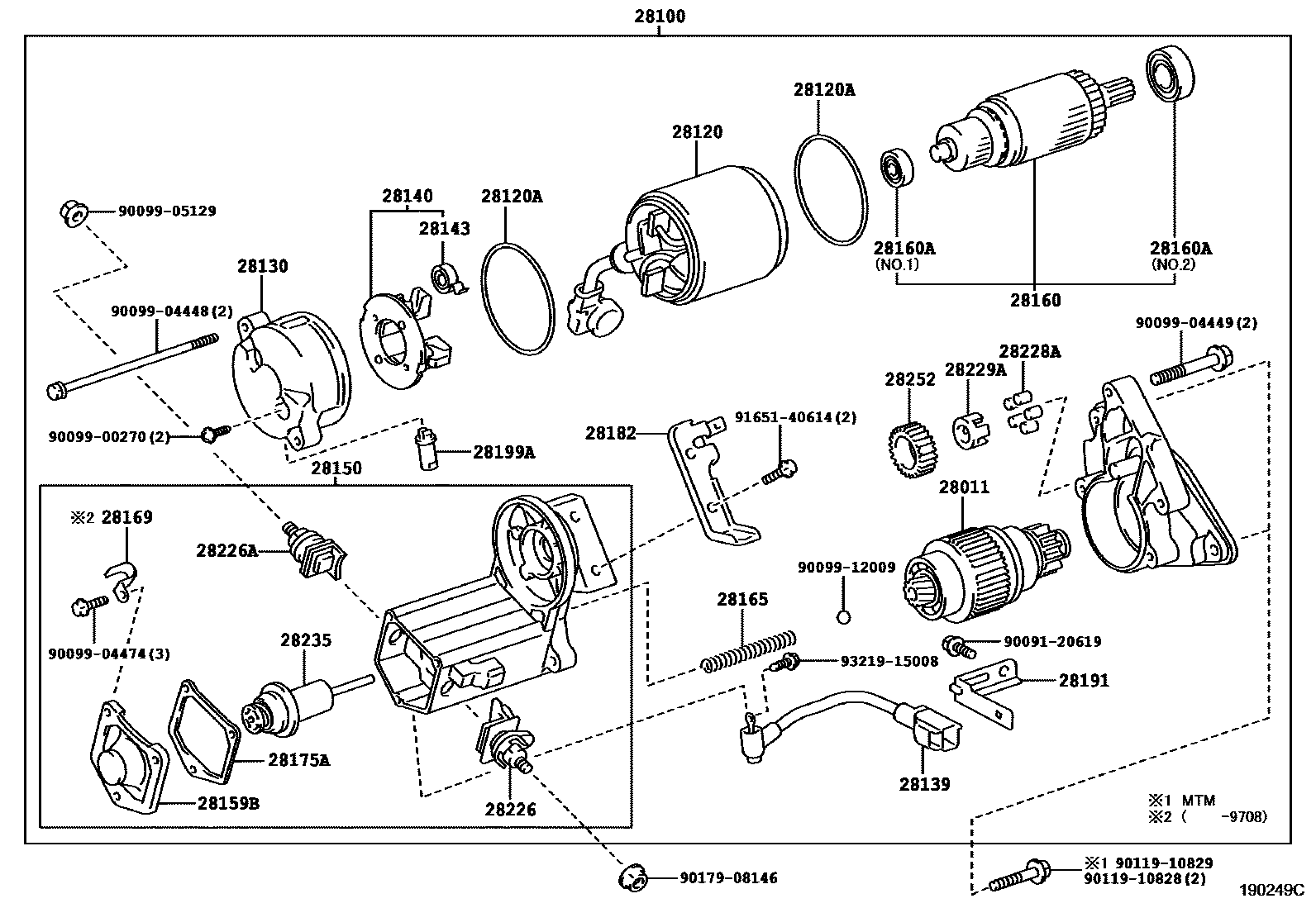

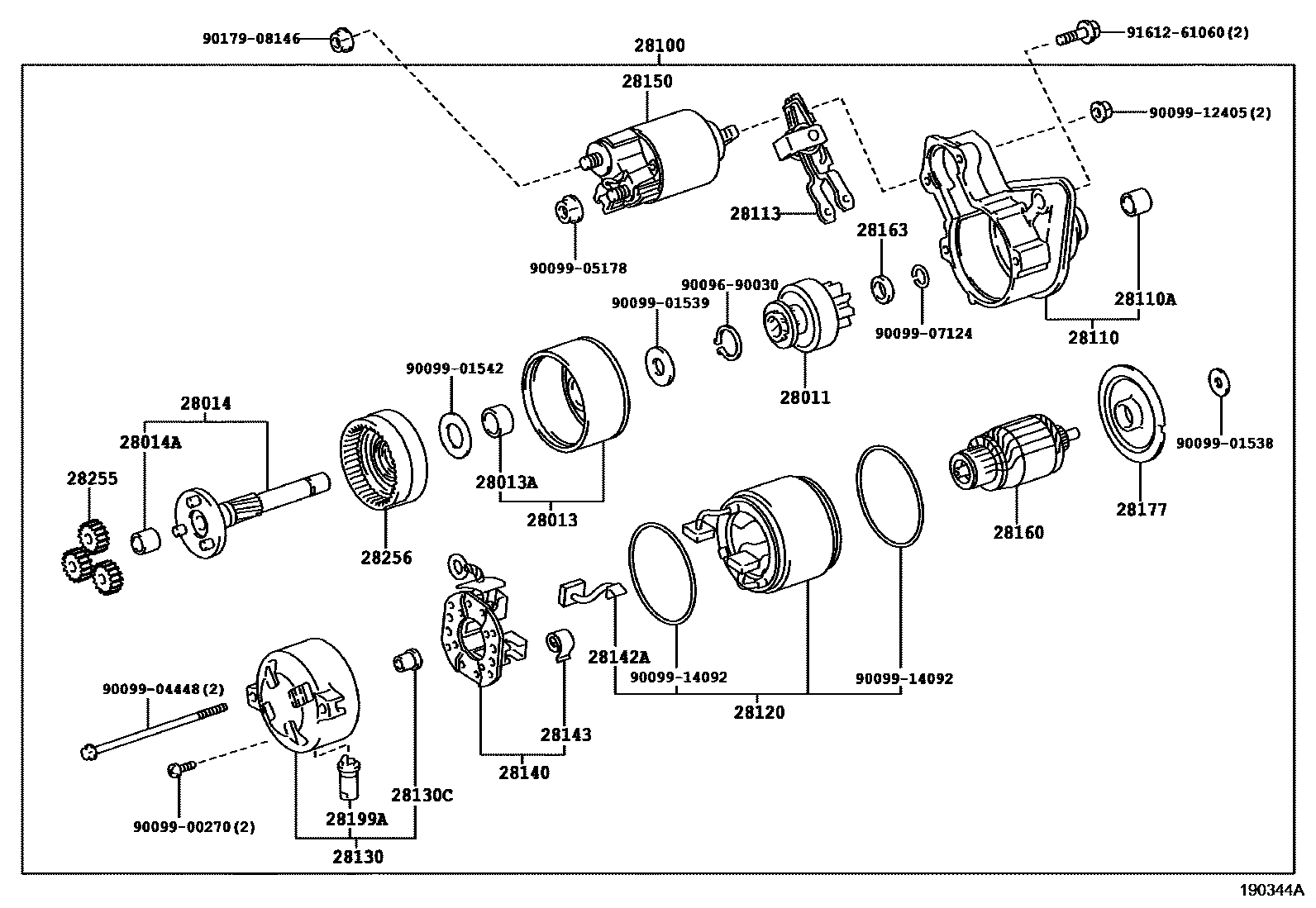

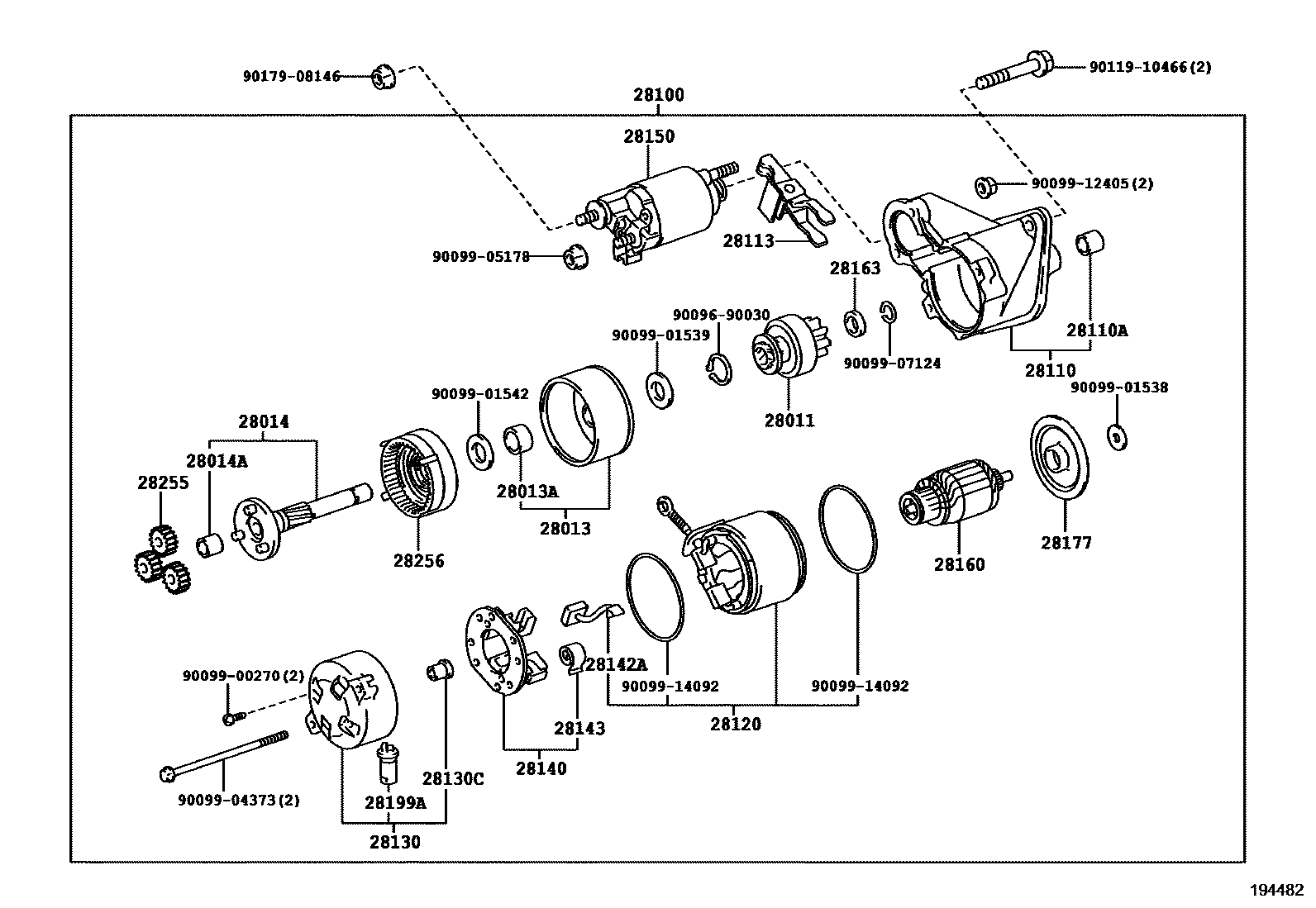

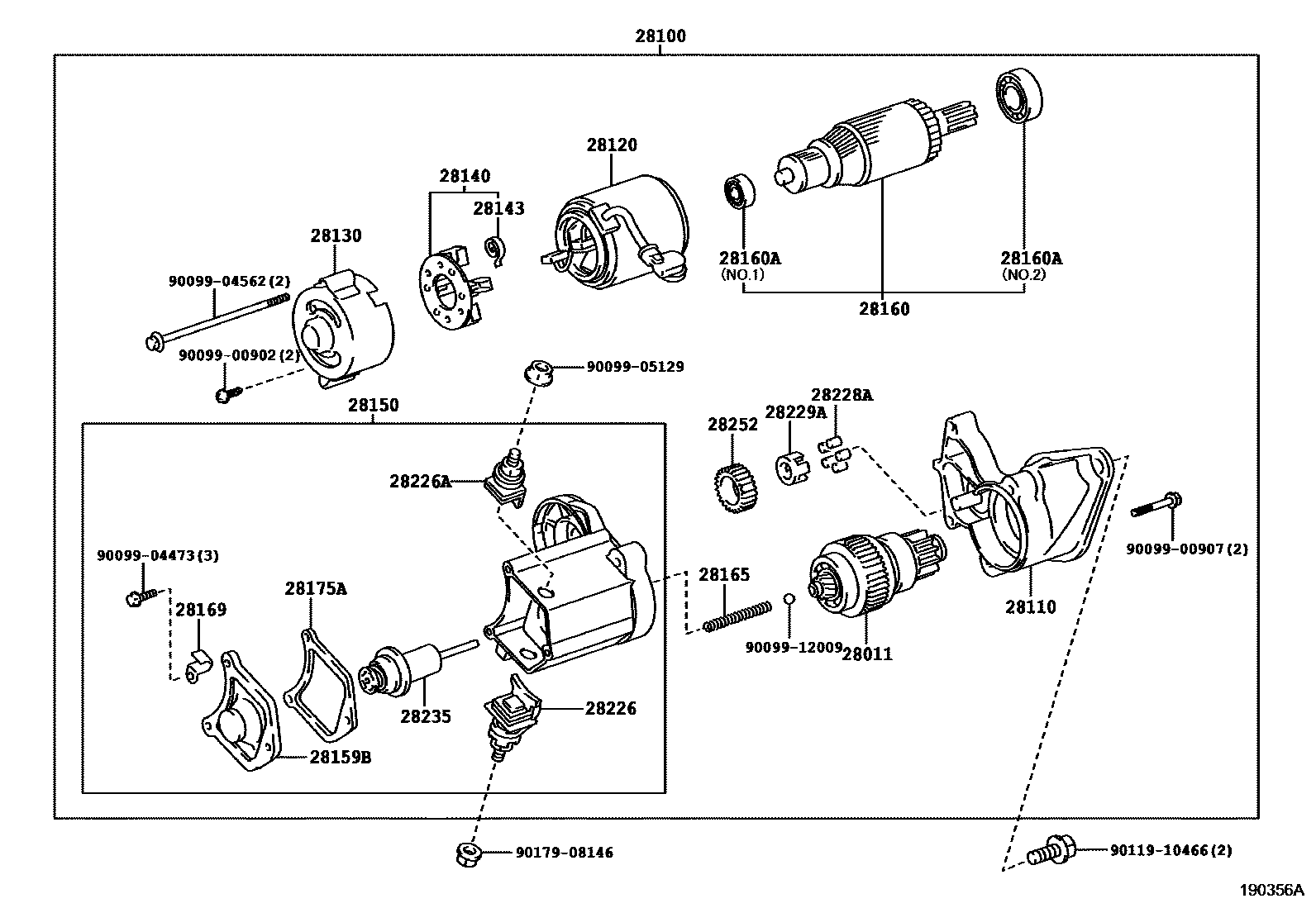

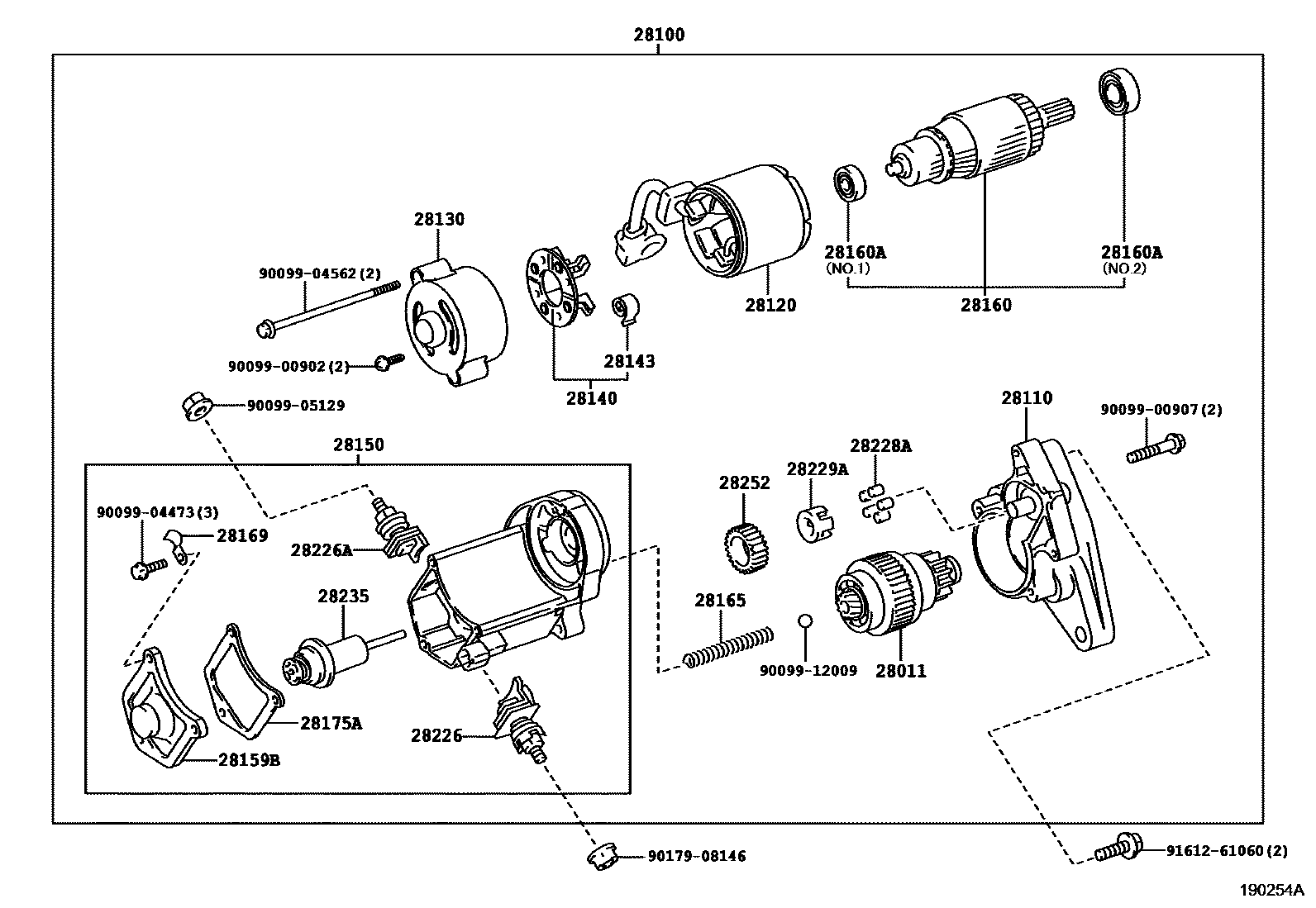

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 10 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-10030 · 28011-16040 · 28011-26042 · 28011-64010 · 28011-64130 · 28011-70020 |
| 28013 | No. 1 starter intermediate bearing and shock absorber | 28013-70020 · 28013-70030 |
| 28013A | No. 2 starter intermediate bearing and shock absorber | 90099-10181 |
| 28014 | Planetary gear carrier shaft sub-assembly | 28014-70020 |
| 28014A | Planet gear carrier shaft bushing or bearing | 90099-10180 |
| 28100 | Starter assembly | 28100-10030 · 28100-10040 · 28100-11010 · 28100-11080 · 28100-11100 · 28100-11140 · 28100-11160 · 28100-16041 · 28100-16071 · 28100-16080 · 28100-16110 · 28100-16140 · 28100-16150 · 28100-16170 · 28100-16190 · 28100-16210 · 28100-16230 · 28100-16260 · 28100-64130 · 28100-64140 · 28100-64340 · 28100-64350 |
| 28110 | Starter drive end housing assembly | 28110-10030 · 28110-10040 · 28110-11010 · 28110-16020 · 28110-16041 · 28110-16071 · 28110-16080 · 28110-16150 · 28110-64130 · 28110-64340 · 28115-26040 · 28115-64140 · 28115-64350 |
| 28110A | Bearings (for starter housing) | 90099-10171 |
| 28111 | Bushing (for starter housing) | 90099-10200 |
| 28113 | starter pinion drive rod | 28113-15011 · 28113-16070 |
| 28120 | Starter yoke assembly | 28120-15010 · 28120-26071 · 28120-55050 · 28120-64040 · 28120-64130 · 28120-70020 · 28120-70050 |
| 28120A | O-ring (for starter yoke) | 90099-14064 · 90099-64040 |
| 28130 | Starter commutator end frame assembly | 28130-10040 · 28130-10050 · 28130-11010 · 28130-16070 · 28130-16080 · 28130-64130 · 28130-72010 |
| 28130C | Starter flange bearing | 90099-10183 |
| 28131 | Commutator end frame bushing | 90099-10134 |
| 28132A | Starter commutator end frame cover | 28132-15010 |
| 28136 | starter lock plate | 28136-15010 |
| 28139 | Lead No. 1 (for starter) | 28139-64130 · 28139-64140 |
| 28140 | Starter brush holder assembly | 28140-15010 · 28140-26070 · 28140-64040 · 28140-64130 · 28140-70020 |
| 28142A | starter components | 28142-70020 |
| 28143 | starter brush spring | 28143-70020 · 90099-17112 · 90099-17115 |
| 28150 | Starter electromagnetic switch assembly | 28150-10021 · 28150-11080 · 28150-11100 · 28150-16080 · 28150-16110 · 28150-16140 · 28150-16150 · 28150-16160 · 28150-16170 · 28150-16210 · 28150-16260 · 28150-34080 · 28150-37011 · 28150-64041 · 28150-64130 · 28150-64300 · 28150-64310 · 28150-64341 · 28150-64390 |
| 28159B | Electromagnetic switch cover | 28159-10040 · 28159-55050 |
| 28160 | Starter armature assembly | 28160-15010 · 28160-26071 · 28160-64041 · 28160-70021 · 28160-70050 · 28160-74070 |
| 28160A | starter armature bearing | 28253-45020 · 28253-54070 · 90099-10113 · 90099-10143 · 90099-10196 · 90099-10197 |
| 28162 | starter brake spring | 28162-15010 |
| 28163 | Starter pinion snap nut or snap ring | 28163-40011 · 28163-70020 |
| 28165 | Starter solenoid switch return spring | 28165-26040 · 28165-76070 |
| 28169 | Starter motor lead clamp | 28169-10040 · 28169-55050 |
| 28175A | Electromagnetic switch cover gasket | 28175-10040 · 28175-55050 |
| 28177 | Plate (for starter armature) | 28177-70020 |
| 28182 | Starter commutator end frame bracket | 28183-64130 · 28183-64131 |
| 28191 | starter bracket | 28182-64130 · 28182-64140 |
| 28199A | Starter dust protection device | 28199-46080 · 28199-64150 · 28199-74110 |
| 28226 | battery terminal starter assembly | 28226-16130 · 28226-55050 · 28226-64020 · 28226-70040 · 28226-72080 · 28226-76100 |
| 28226A | Motor terminal starter assembly | 28226-72010 · 28226-74070 |
| 28228A | starter clutch roller | 28228-26040 |
| 28229A | Starter idler gear fixing | 28229-26040 · 28229-74070 |
| 28235 | Electromagnetic switch core | 28235-35080 · 28235-55050 |
| 28251 | Starter drive pinion | 28251-54070 |
| 28252 | starter idler gear | 28254-45020 · 28254-64040 · 28254-64130 |
| 28255 | Planetary gear | 28255-70020 |
| 28256 | Starter internal gear | 28256-70020 |
