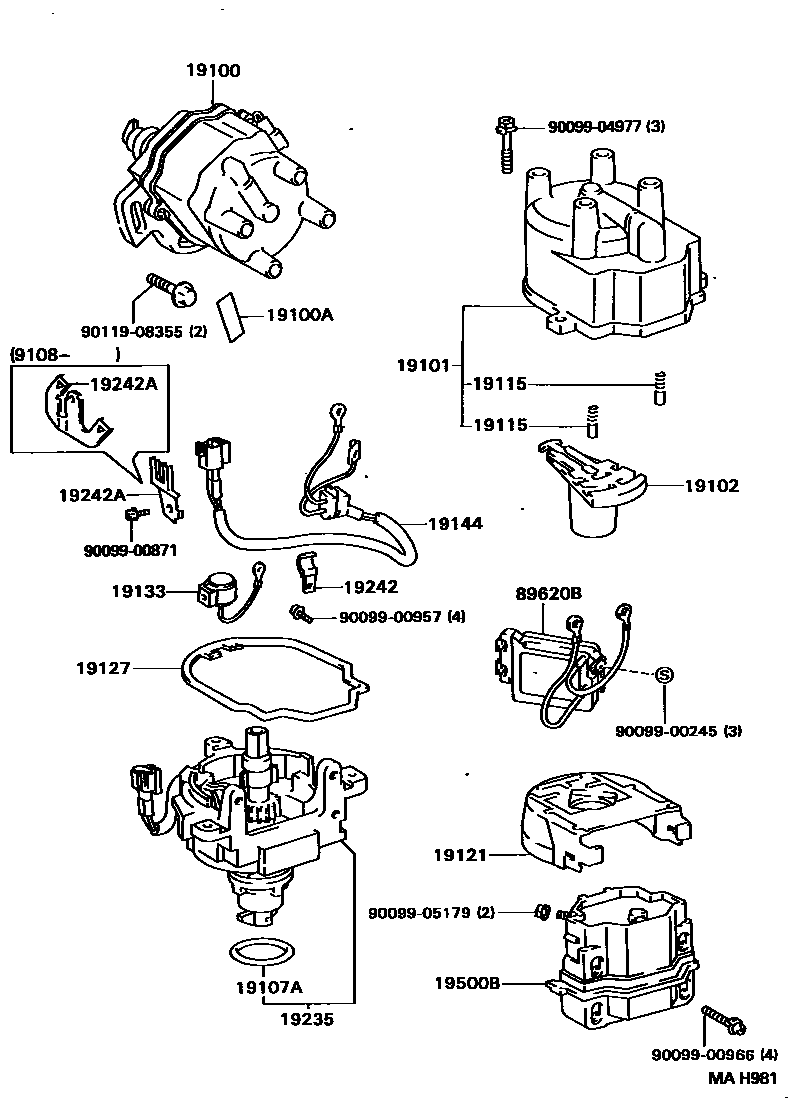

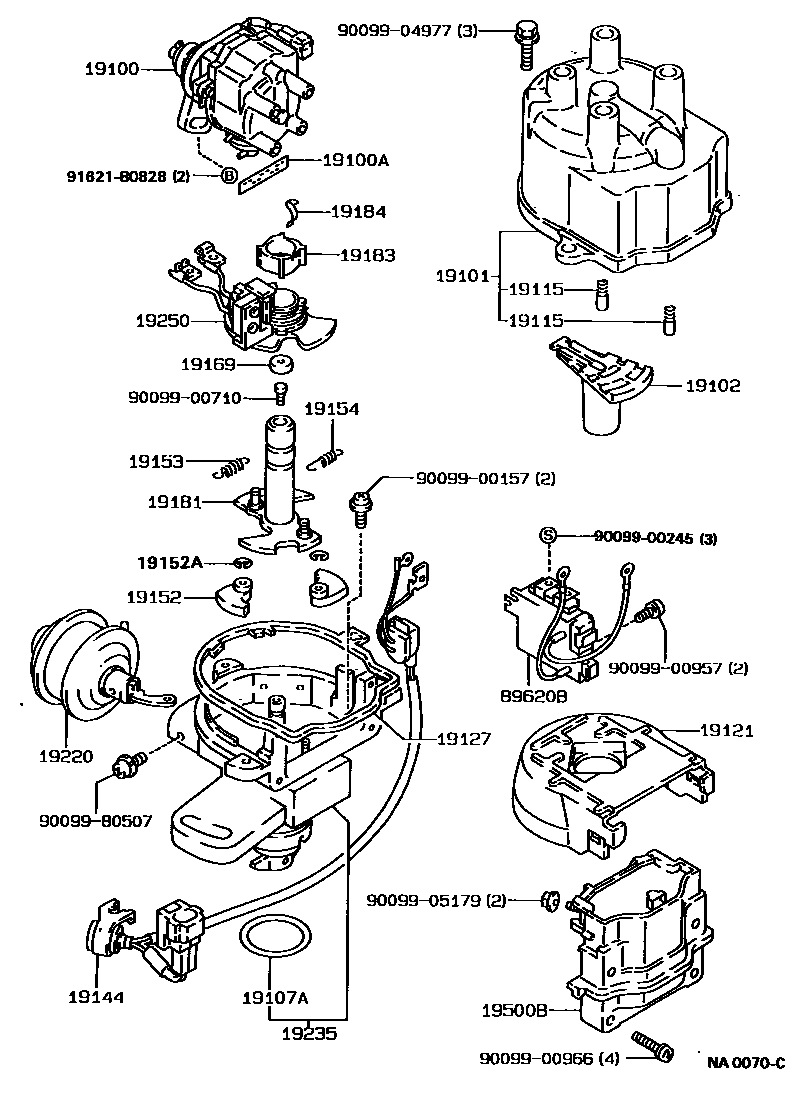

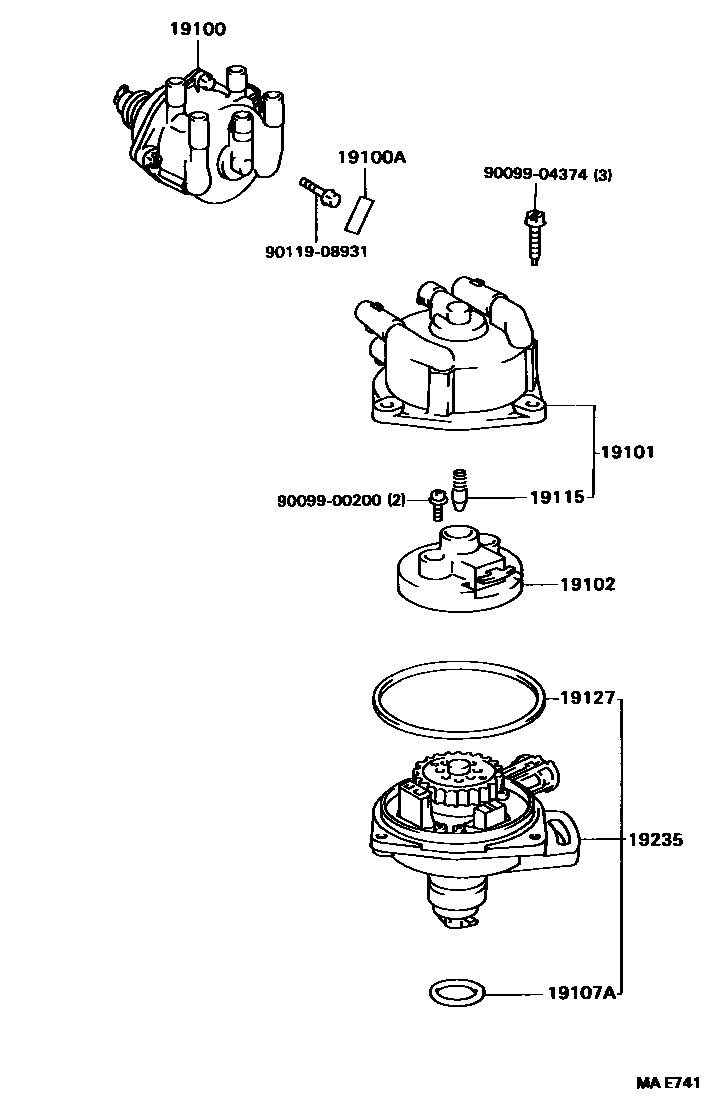

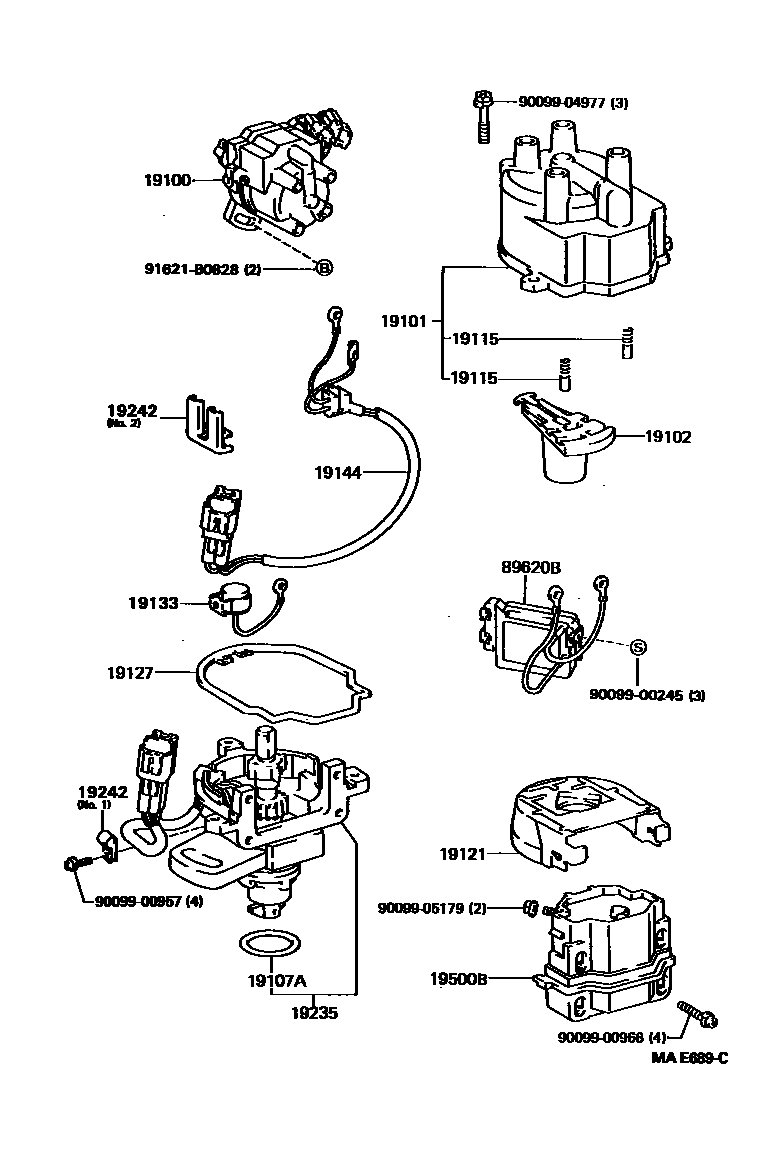

Toyota COROLLA 分电器 — Figure 1902
Toyota COROLLA EPC diagram 1902, 分电器, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19020-11300 · 19020-11310 · 19020-11340 · 19020-11380 · 19020-11390 · 19020-11400 · 19020-15180 · 19020-16250 · 19020-16260 · 19100-16270 |
| 19100A | sealing tape | 90919-24004 |
| 19101 | Distributor cover sub-assembly | 19101-11060 · 19101-11300 · 19101-16010 |
| 19102 | Distributor flame head sub-assembly | 19102-11031 · 19102-11370 · 19102-74040 |
| 19107A | Distributor housing O-ring | 90099-14088 · 90099-14091 · 90099-14127 · 96711-35030 |
| 19115 | Distributor cover center piece | 19115-63010 · 19115-88280 |
| 19121 | dust cover | 19121-11080 |
| 19127 | Dust seal | 19127-15120 · 19127-74040 |
| 19133 | Distributor capacitor | 19133-16240 |
| 19144 | Distributor breaker lead | 19144-11300 · 19144-11350 · 19144-16020 · 19144-16250 |
| 19152 | Speed regulator weight | 19152-15160 |
| 19152A | Snap ring (for governor weight) | 90099-07122 |
| 19153 | A governor spring | 19153-11080 · 19153-11220 |
| 19154 | B governor spring | 19154-11080 · 19154-11220 |
| 19169 | Cam grease stop | 19169-63011 |
| 19181 | Distributor signal distributor | 19181-11220 · 19181-11230 |
| 19183 | Signal splitter | 19183-15010 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19220 | Distributor vacuum advance device assembly | 19220-11070 · 19220-11230 |
| 19235 | Distributor housing | 19235-11080 · 19235-11170 · 19235-11340 · 19235-16060 · 19235-16120 · 19235-16240 · 19235-16270 |
| 19242 | Cable clip | 19242-11190 · 19242-11350 |
| 19242A | Cable No. 2 | 19242-15180 · 19242-16250 |
| 19250 | Signal generator assembly | 19251-16100 |
| 19500B | Ignition coil assembly | 90919-02164 |
| 89620B | Ignition assembly | 89620-12340 · 89620-12420 · 89620-12440 · 89620-16260 |
