Toyota COROLLA 点火线圈和火花塞 — Figure 1901

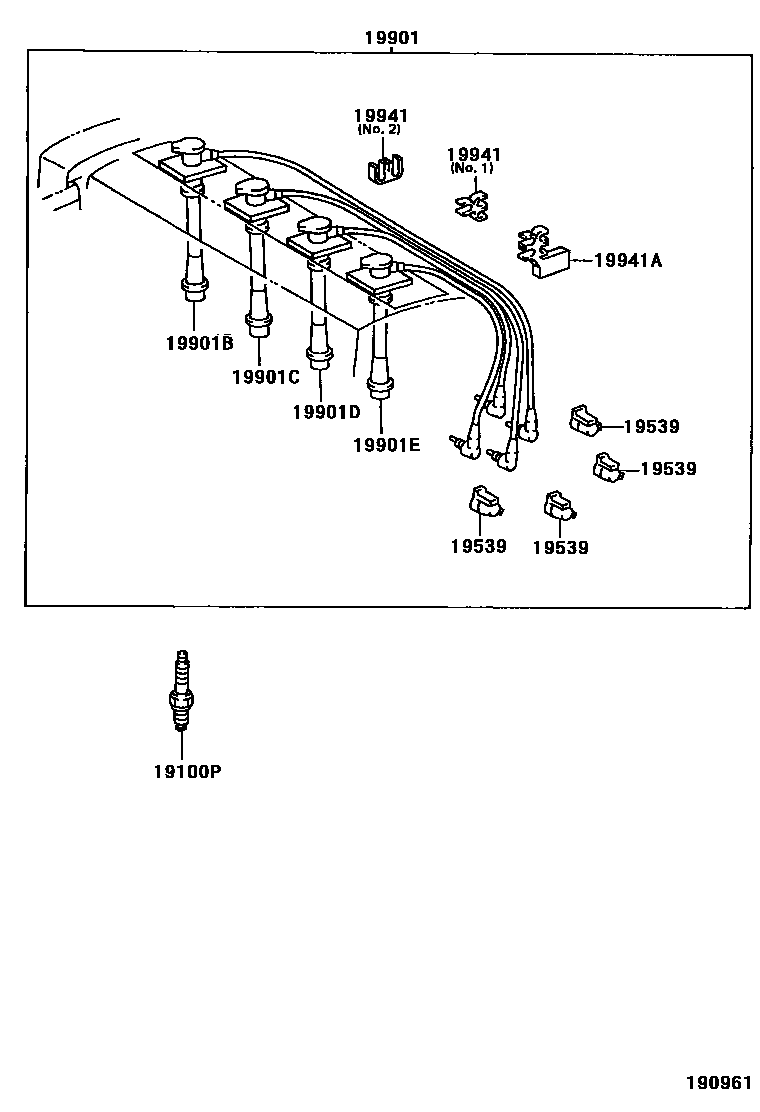

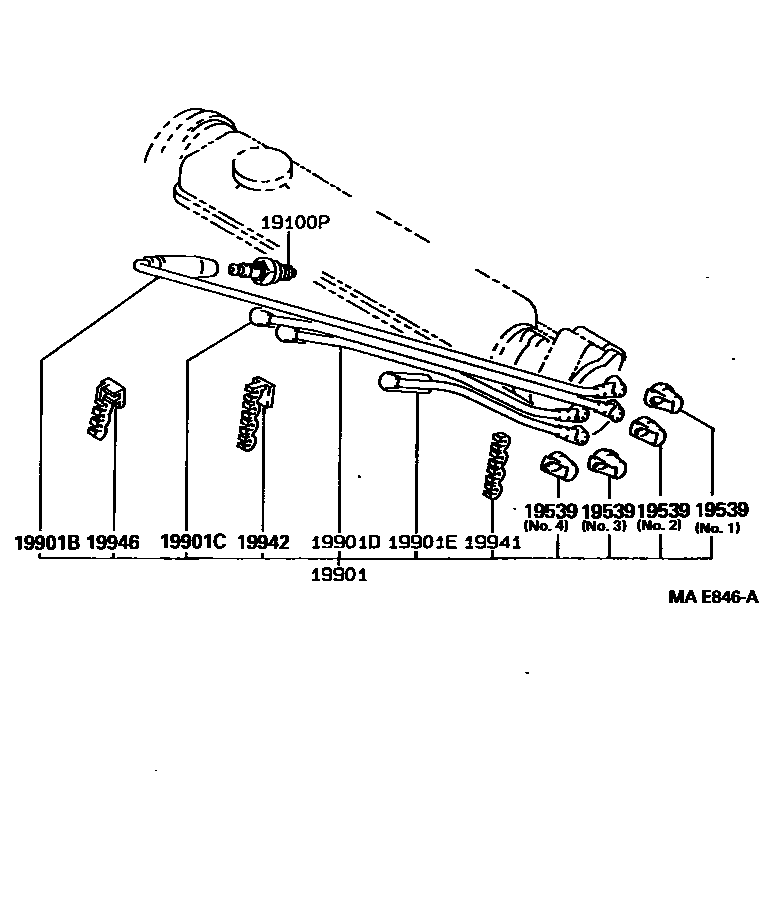

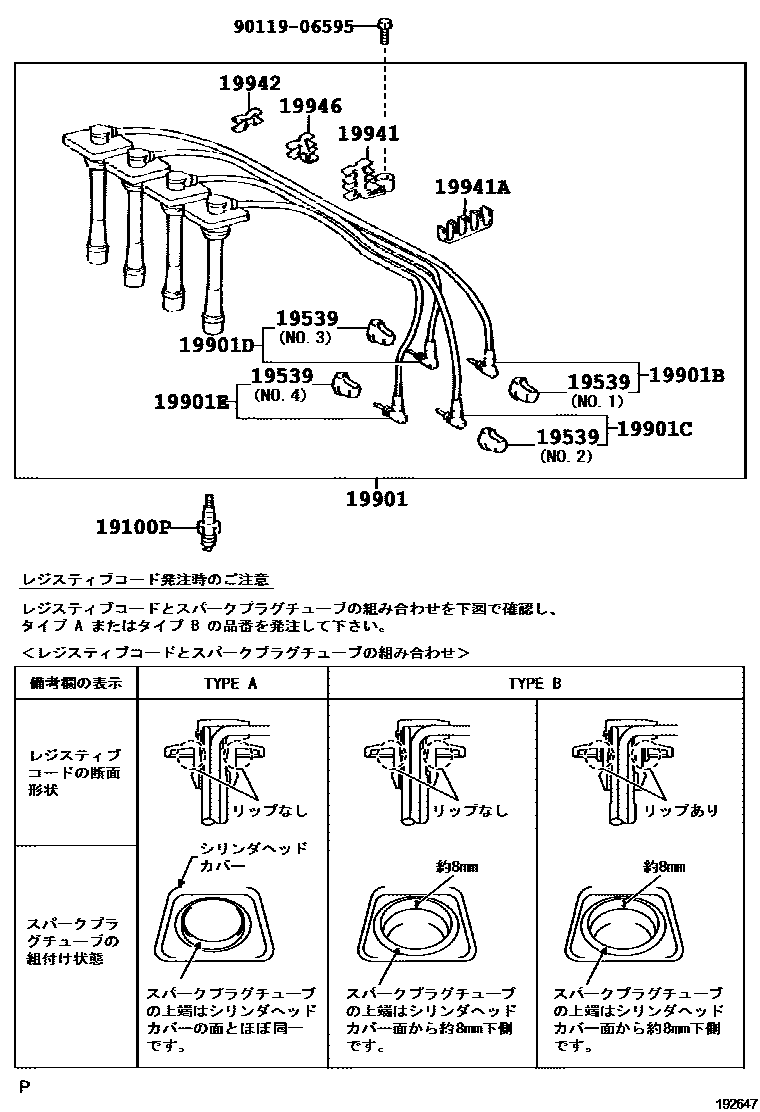

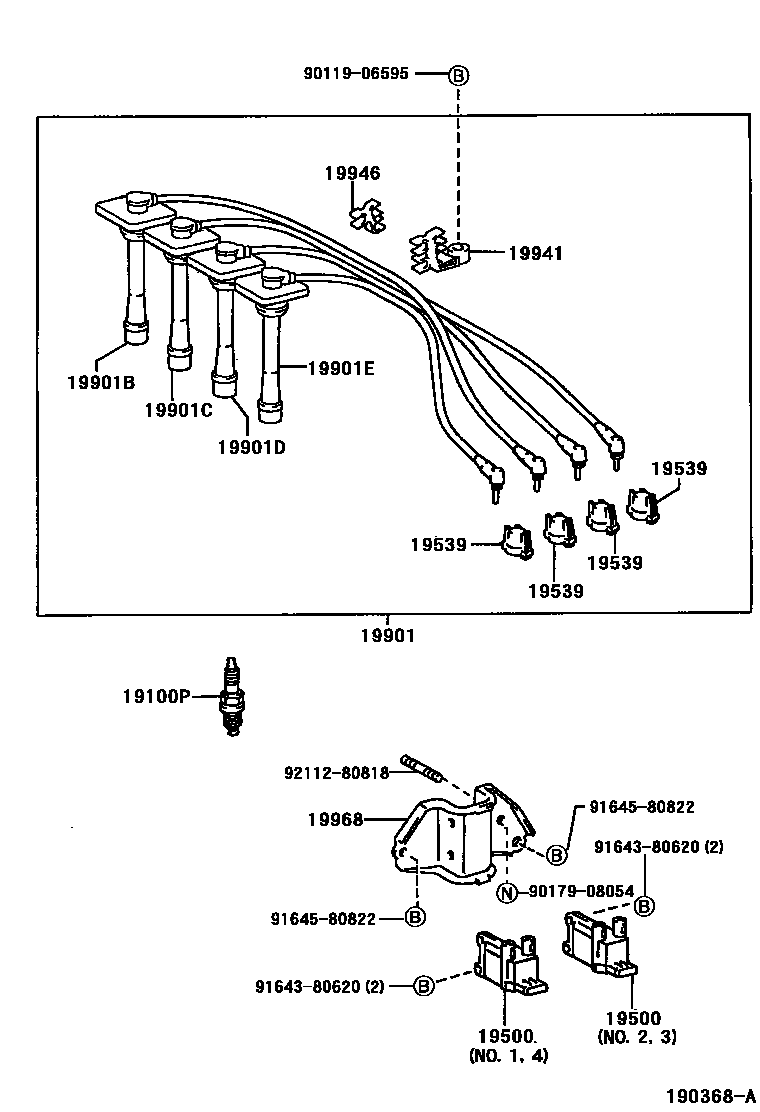

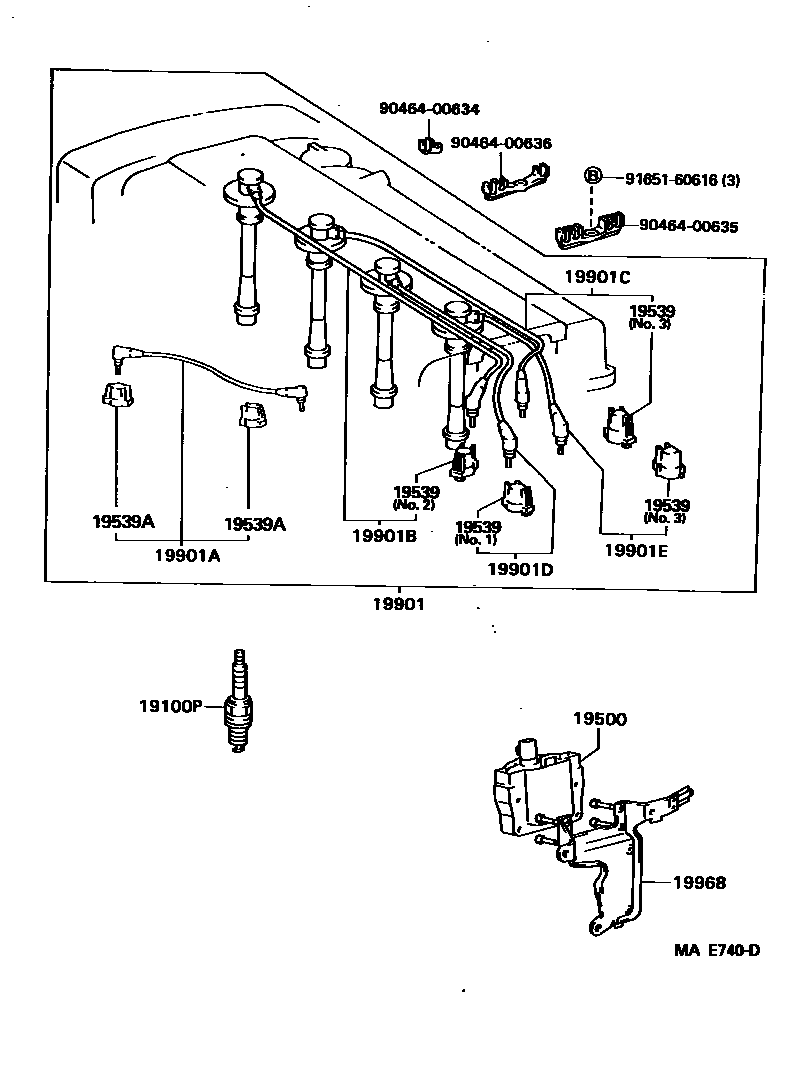

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 7 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01091 · 90919-01104 · 90919-01164 · 90919-01178 · 90919-01179 · 90919-01192 |
| 19500 | Ignition coil assembly | 90919-02197 · 90919-02220 · 90919-02226 |
| 19539 | No. 4 damping wire fixing piece | 19532-50010 · 19539-11010 · 19539-11020 · 19539-11030 · 19539-16010 · 19539-46010 · 19539-50010 · 19539-70010 |
| 19539A | No. 5 damping wire fixing piece | 19539-16010 · 19539-50010 |

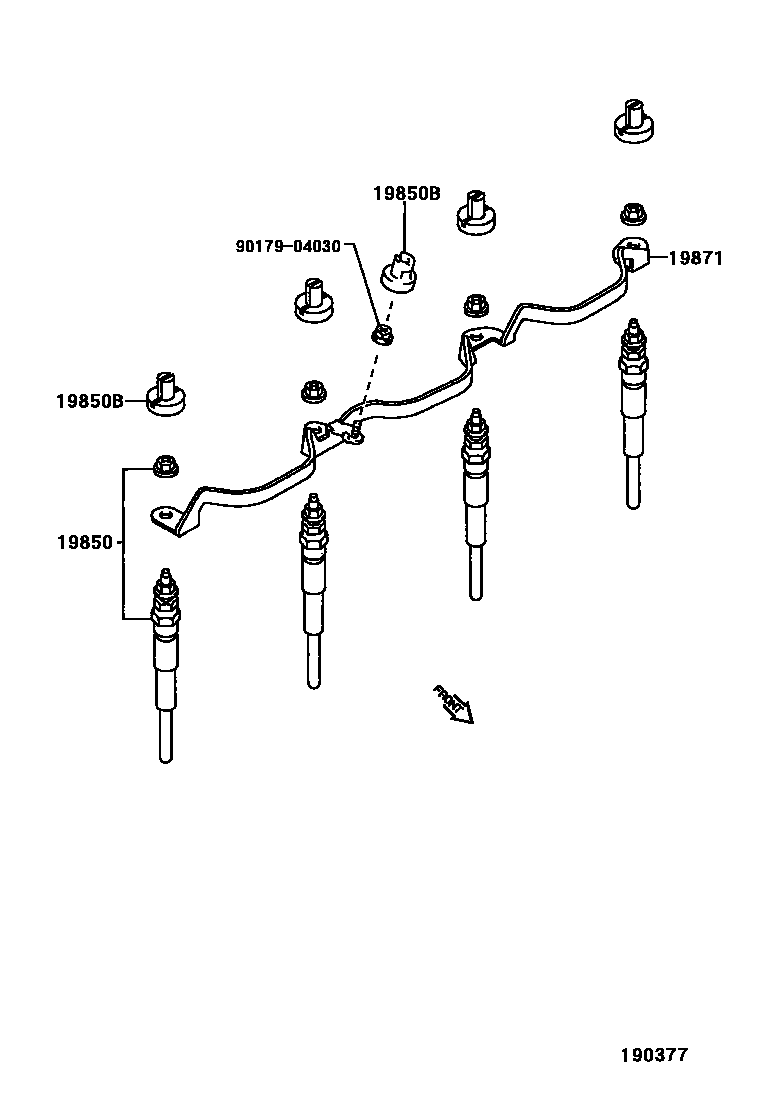

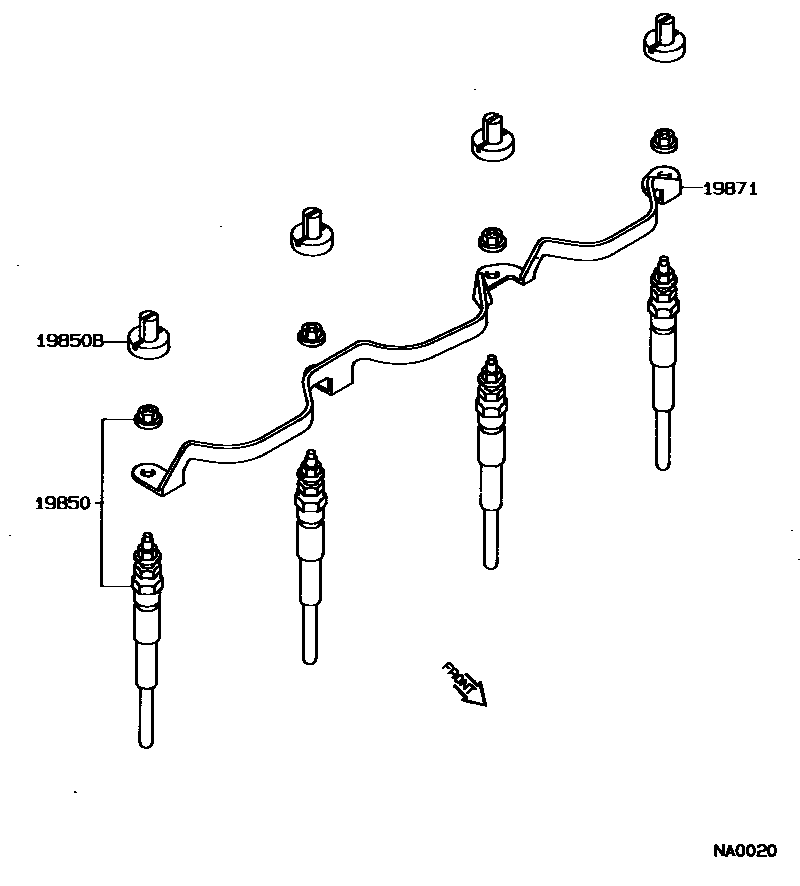

| 19850 | Glow plug assembly | 19850-64020 · 19850-64050 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-64022 · 19871-64023 · 19871-64024 · 19871-64040 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21520 · 90919-21592 · 90919-22325 · 90919-22327 · 90919-22329 · 90919-22373 · 90919-22395 · 90919-22399 |
| 19901A | coil damping line | 90919-13418 · 90919-13463 |
| 19901B | No. 1 spark plug damper wire | 90919-15199 · 90919-15207 · 90919-15211 · 90919-15216 · 90919-15423 · 90919-15510 · 90919-15543 |
| 19901C | No. 2 spark plug damper wire | 90919-15200 · 90919-15206 · 90919-15210 · 90919-15217 · 90919-15424 · 90919-15511 · 90919-15544 |
| 19901D | No. 3 spark plug damper wire | 90919-15201 · 90919-15205 · 90919-15209 · 90919-15218 · 90919-15425 · 90919-15512 · 90919-15545 |
| 19901E | No. 4 spark plug damper wire | 90919-15202 · 90919-15204 · 90919-15208 · 90919-15219 · 90919-15513 · 90919-15550 |
| 19941 | No. 1 damping wire clip | 90464-00561 · 90464-00637 · 90464-00655 · 90929-01258 |
| 19941A | Clamp (for damping wire) | 90464-00559 · 90929-01273 |
| 19942 | No. 2 damping wire clip | 90464-00560 · 90464-00639 |
| 19946 | No. 3 impedance wire clip | 90464-00561 · 90464-00638 |
| 19968 | Ignition coil bracket | 19968-11030 · 19968-16030 · 19968-16040 |
