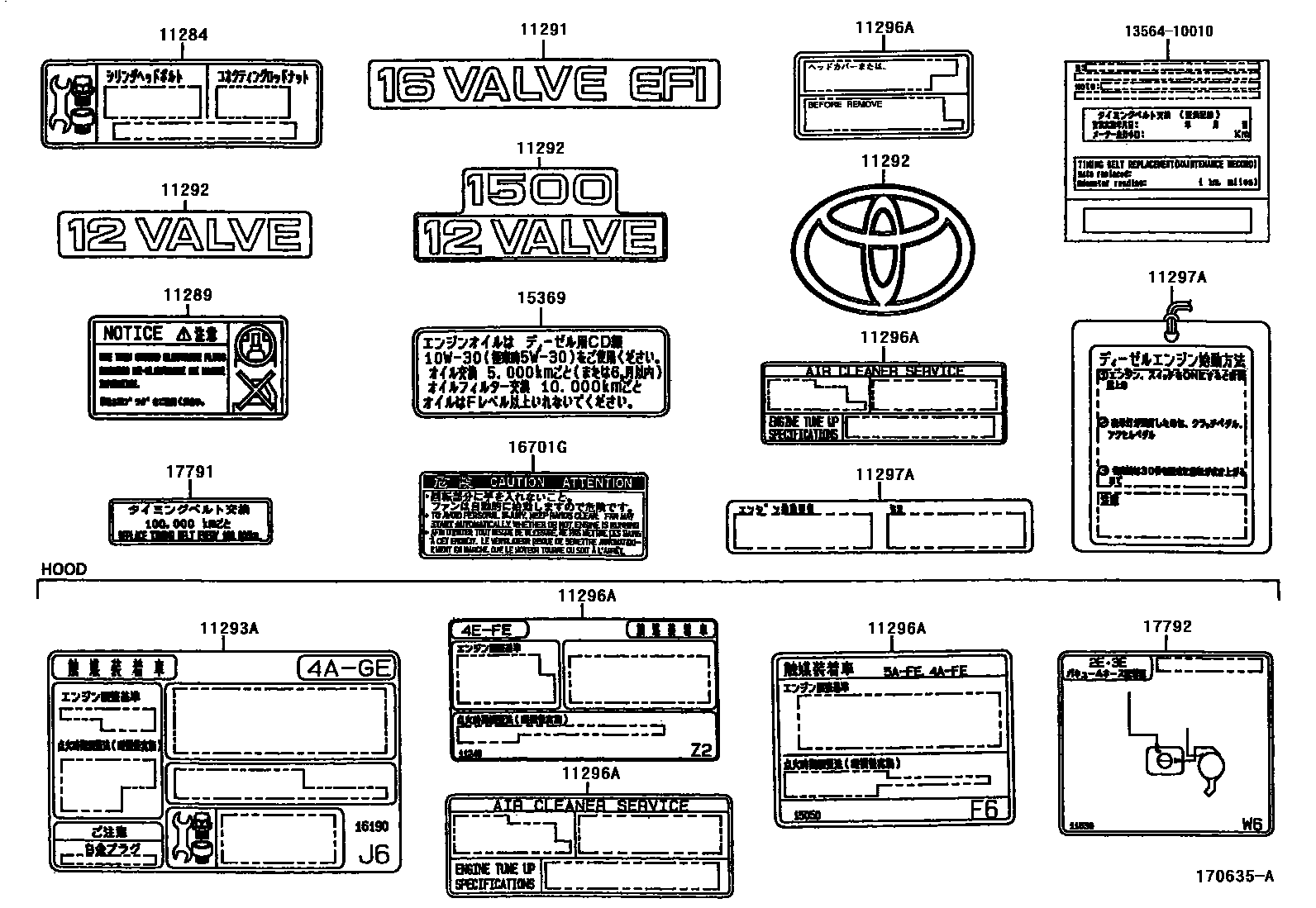

Toyota COROLLA 警示铭牌和名称铭牌(发动机) — Figure 1709
Toyota COROLLA EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11284 | Engine bolt information plate | 11284-16060 |
| 11289 | Spark plug warning nameplate | 11289-62020 |
| 11291 | Engine name plate | 11291-16080 · 11292-11080 |
| 11292 | Engine No. 2 name plate | 11292-10010 · 11292-11030 · 11292-15040 |
| 11293A | Engine warning plate | 11296-16190 · 11296-16191 · 11296-16250 · 11296-16350 |
| 11296A | Engine maintenance information label | 11296-10011 · 11296-11182 · 11296-11211 · 11296-11240 · 11296-11250 · 11296-11260 · 11296-11320 · 11296-11360 · 11296-11361 · 11296-15050 · 11296-15051 · 11296-15060 · 11296-16220 · 11296-16290 · 11296-16300 · 11296-16330 · 11296-16400 · 11296-55020 · 11296-64010 · 11296-64020 · 11296-64031 · 11296-64032 |
| 11297A | Engine start warning plate | 11297-10010 · 11297-64010 |
| 15369 | Engine oil warning plate | 15369-54010 · 15369-64010 |
| 16701G | warning label | 88723-12100 · 88723-20081 |
| 17791 | Maintenance information label | 17791-11080 · 17791-15010 · 17791-55010 · 17791-74040 |
| 17792 | Engine vacuum hose information plate | 17792-11630 |
