Toyota COROLLA vacuum tube — Figure 1708

Toyota COROLLA EPC diagram 1708, vacuum tube, with 14 images and 35 PNC and OE references.

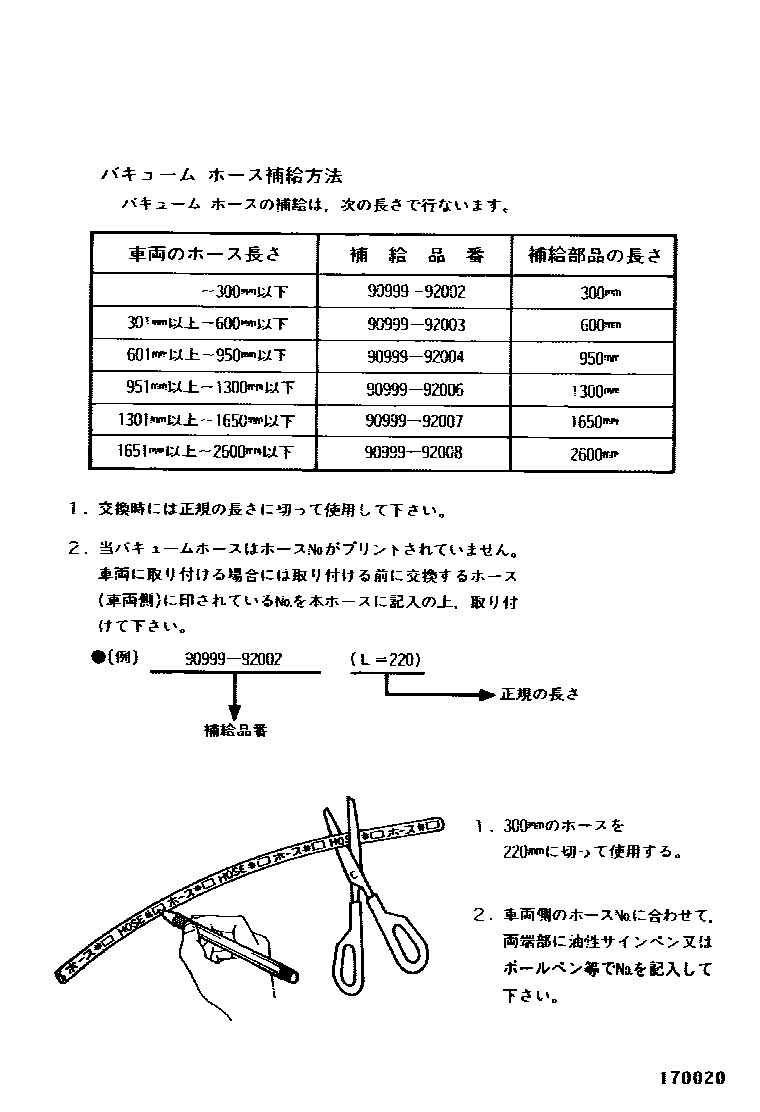

Toyota COROLLA vacuum tube EPC diagram — 170020 — vacuum tube — 170020 (199106 – 999999)

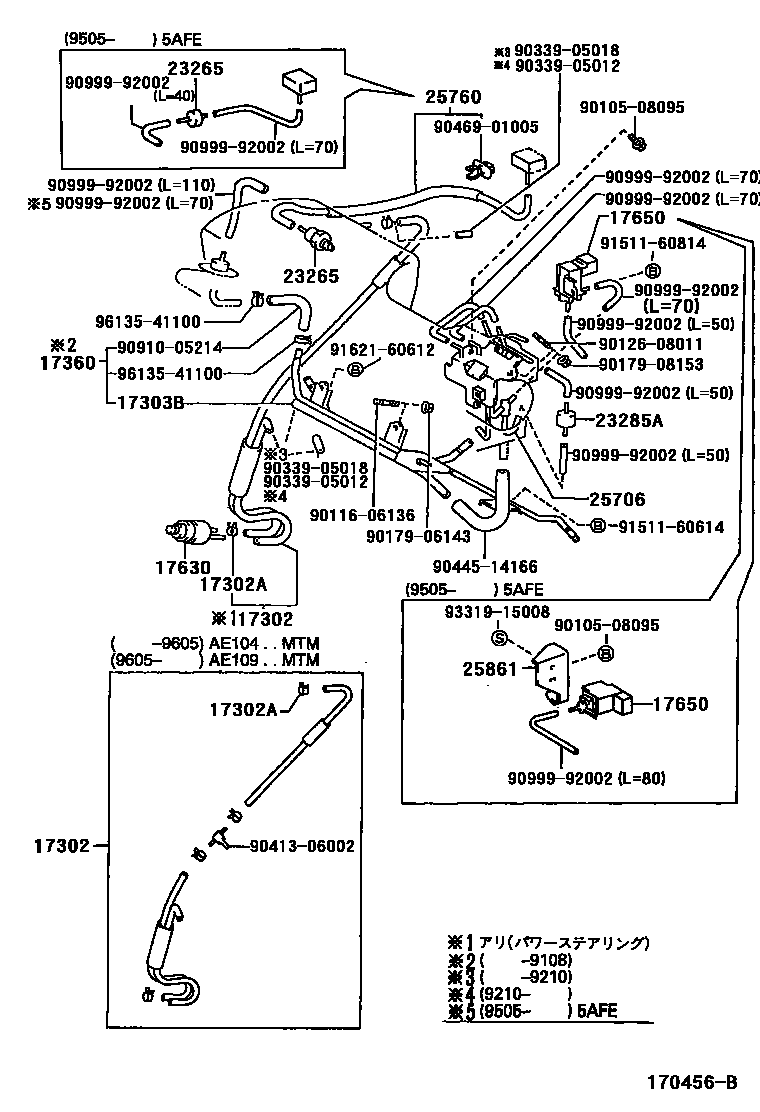

Toyota COROLLA vacuum tube EPC diagram — 170456B — vacuum tube — 170456B (199106 – 999999)

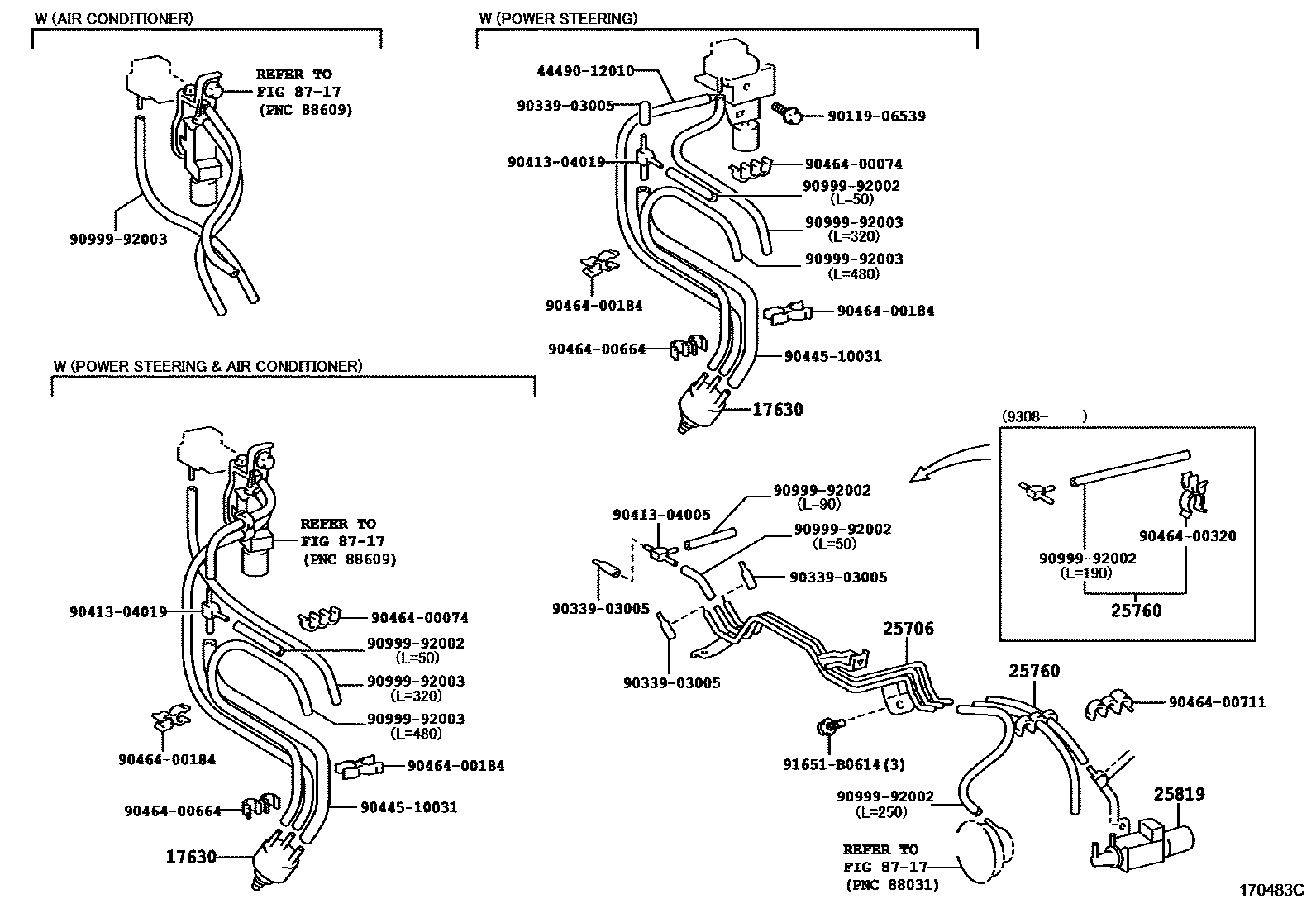

Toyota COROLLA vacuum tube EPC diagram — 170483C — vacuum tube — 170483C (199305 – 199804)

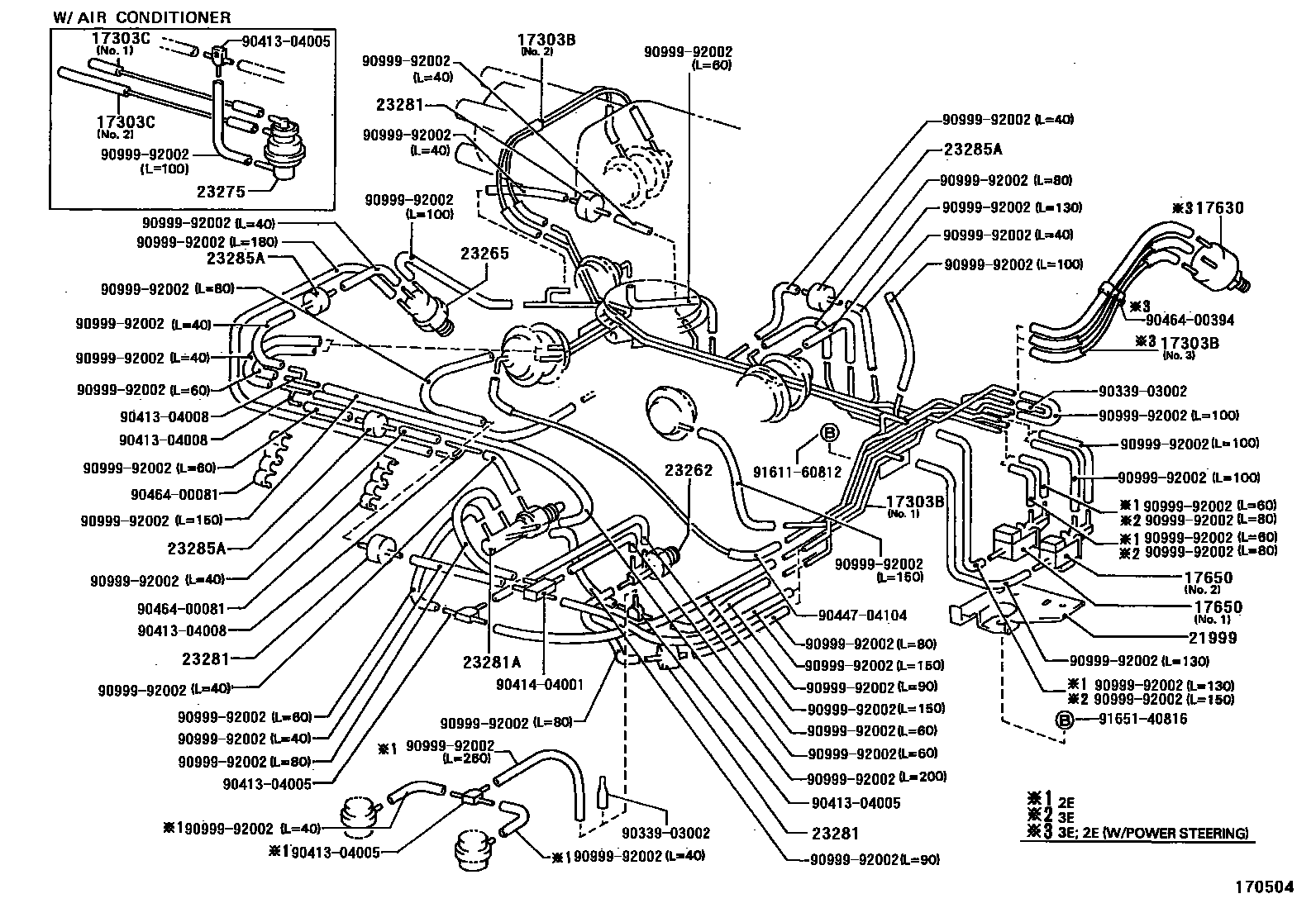

Toyota COROLLA vacuum tube EPC diagram — 170504 — vacuum tube — 170504 (199109 – 199401)

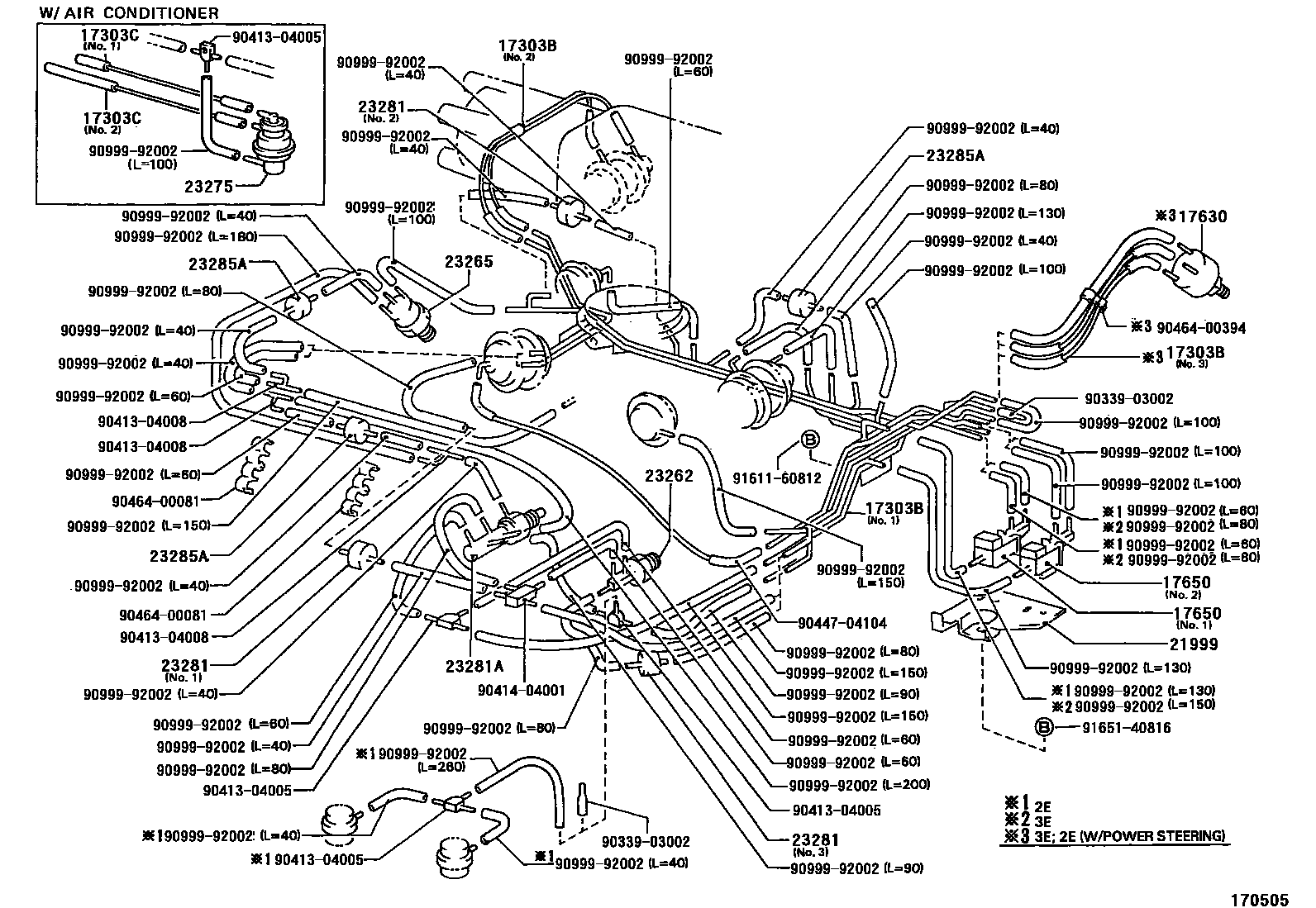

Toyota COROLLA vacuum tube EPC diagram — 170505 — vacuum tube — 170505 (199109 – 199401)

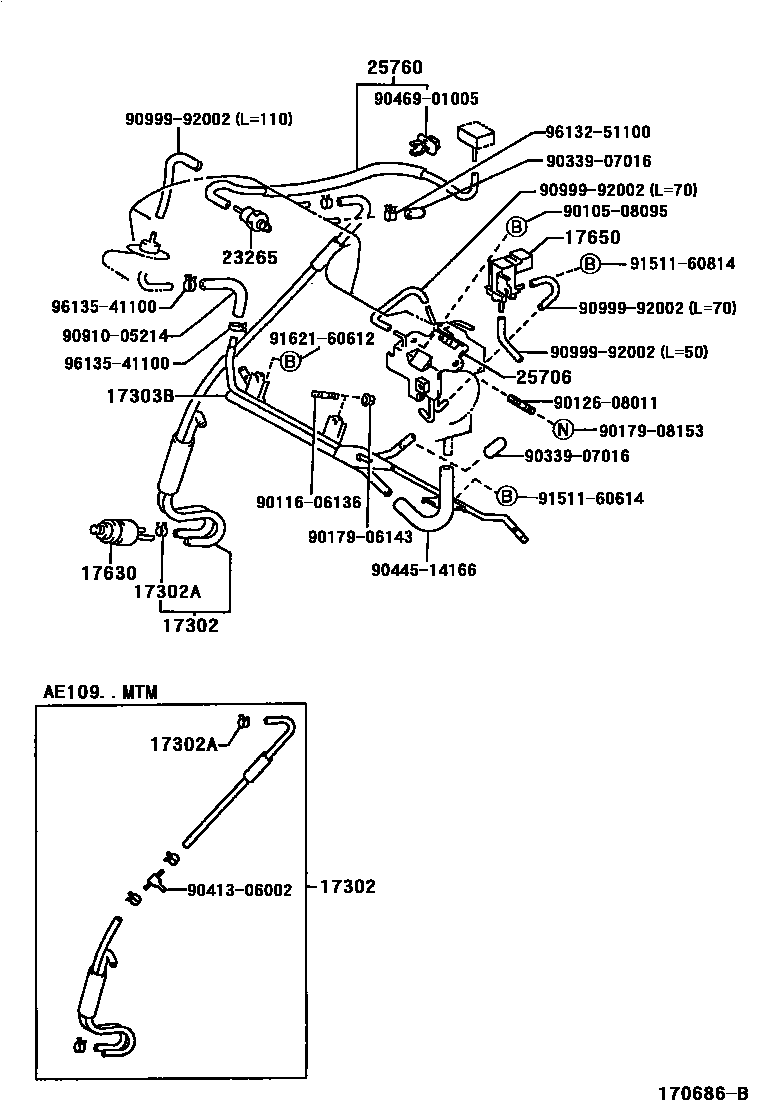

Toyota COROLLA vacuum tube EPC diagram — 170686B — vacuum tube — 170686B (199704 – 999999)

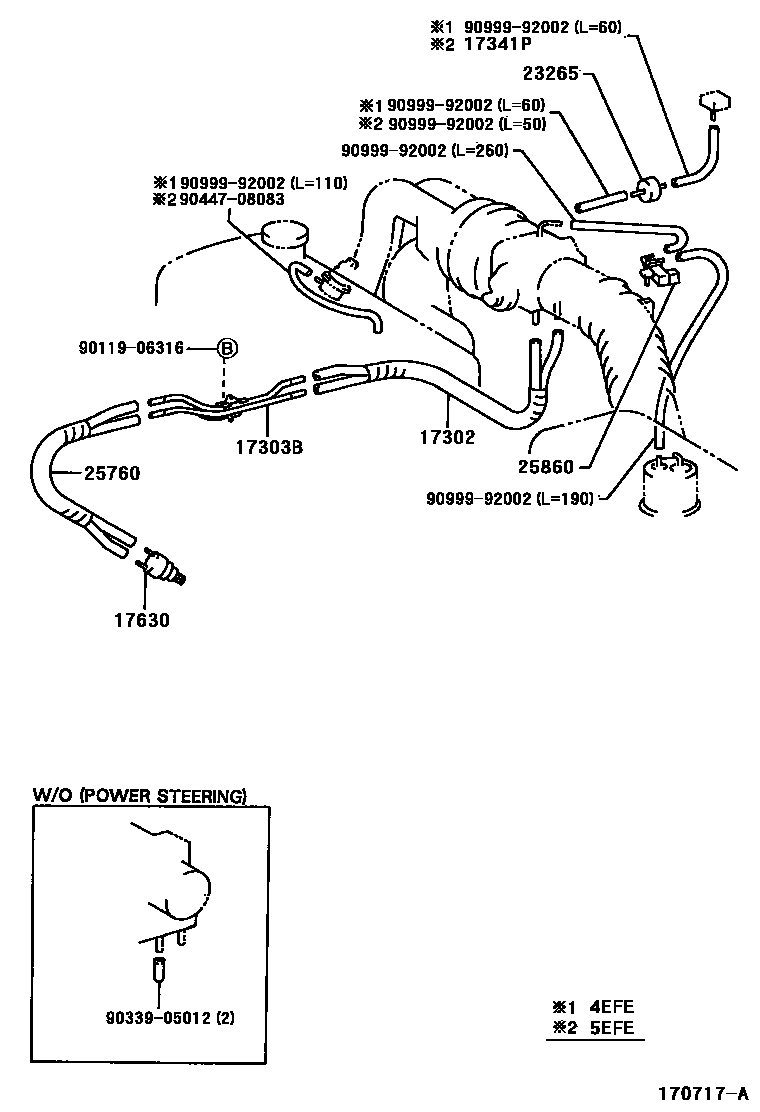

Toyota COROLLA vacuum tube EPC diagram — 170717A — vacuum tube — 170717A (199704 – 200008)

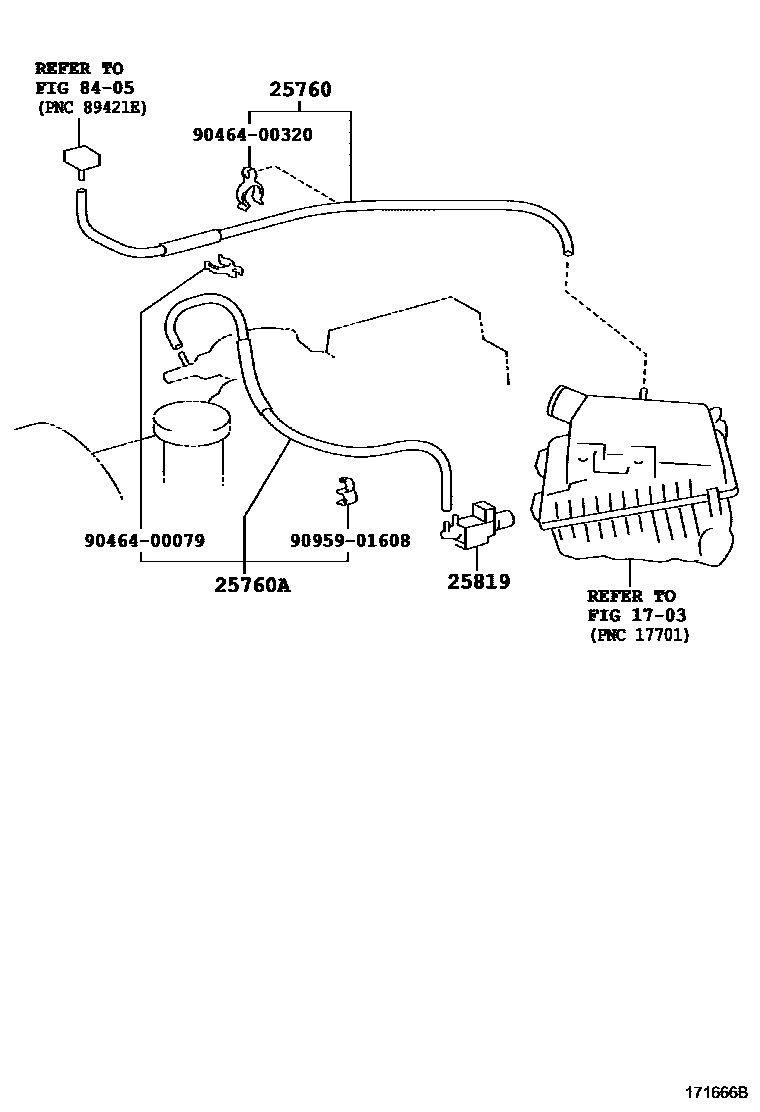

Toyota COROLLA vacuum tube EPC diagram — 171666B — vacuum tube — 171666B (199804 – 999999)

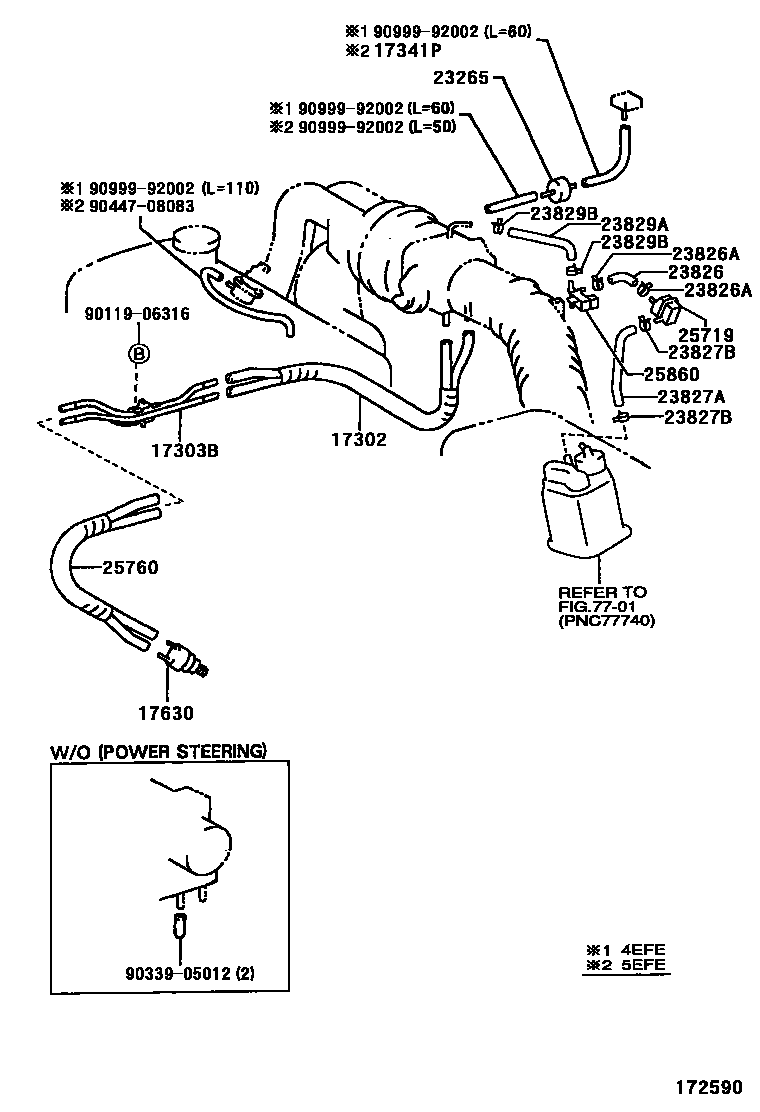

Toyota COROLLA vacuum tube EPC diagram — 172590 — vacuum tube — 172590 (200008 – 999999)

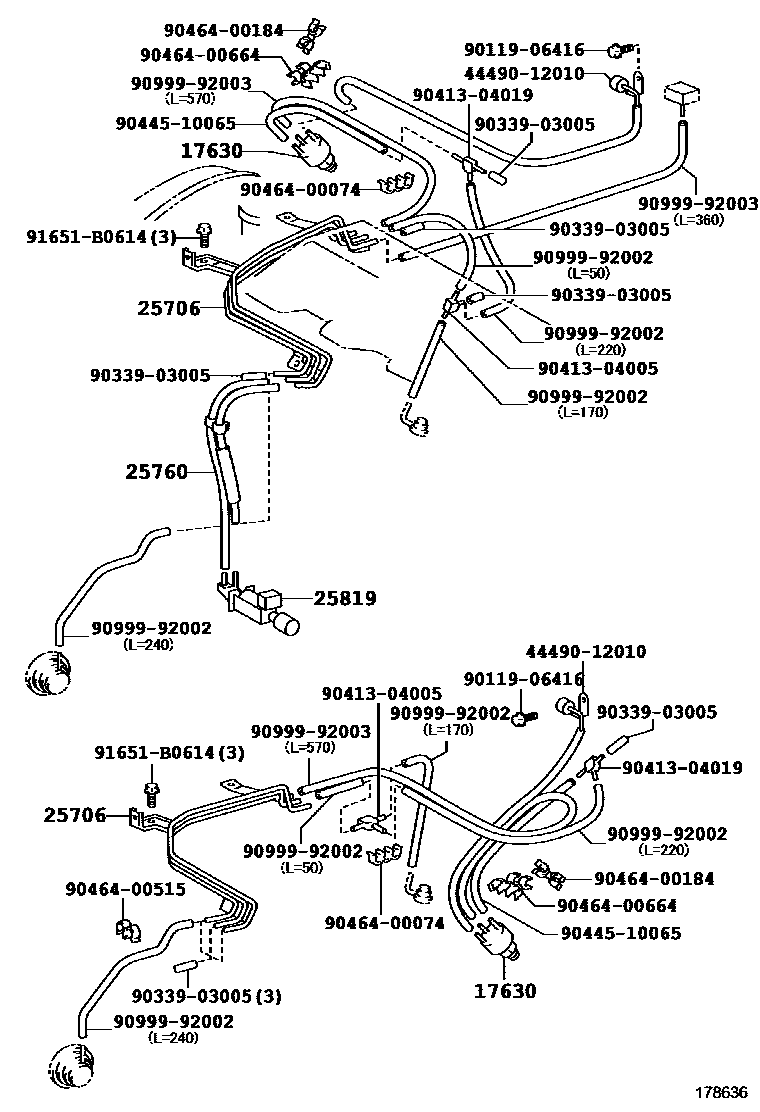

Toyota COROLLA vacuum tube EPC diagram — 178636 — vacuum tube — 178636 (199106 – 199401)

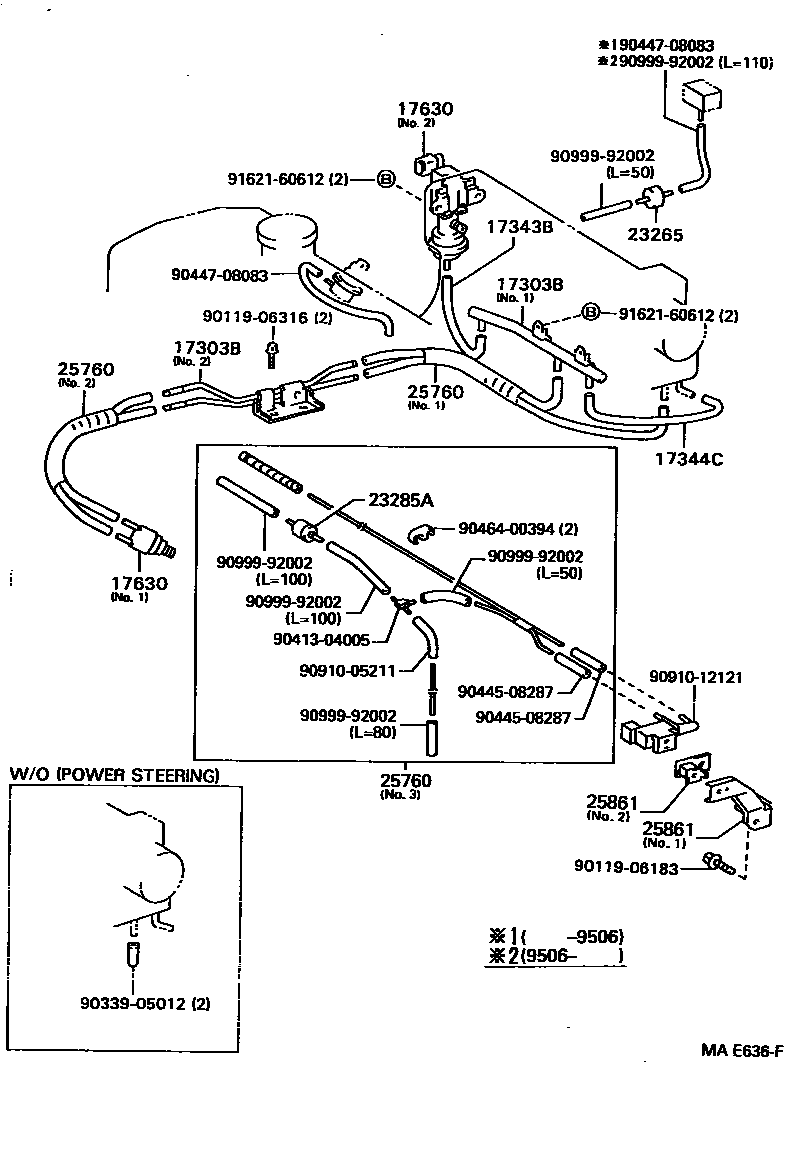

Toyota COROLLA vacuum tube EPC diagram — MAE636F — vacuum tube — MAE636F (199106 – 199704)

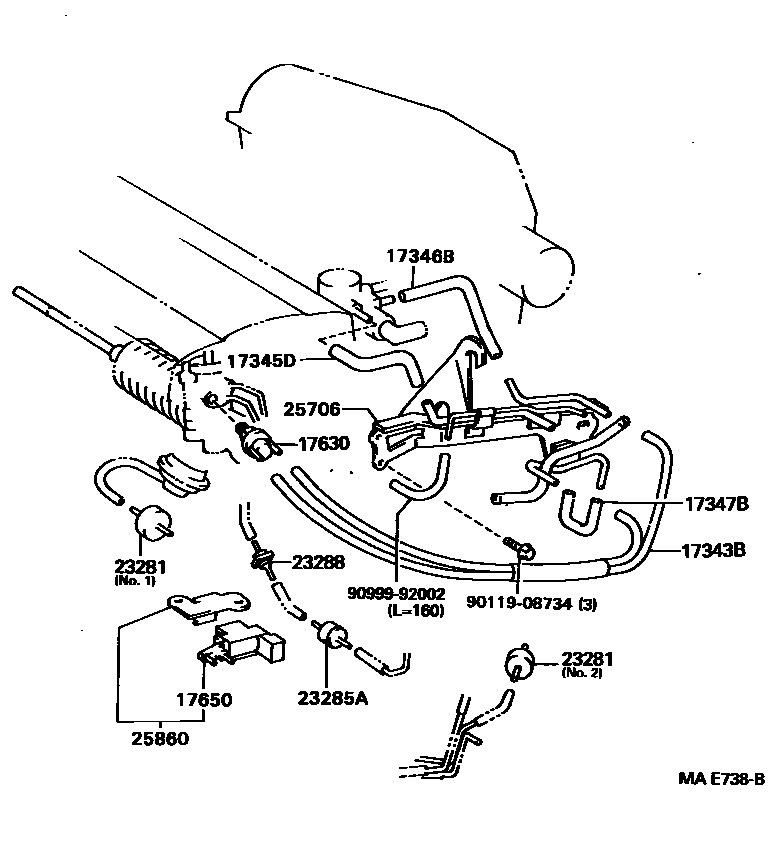

Toyota COROLLA vacuum tube EPC diagram — MAE738B — vacuum tube — MAE738B (199106 – 199505)

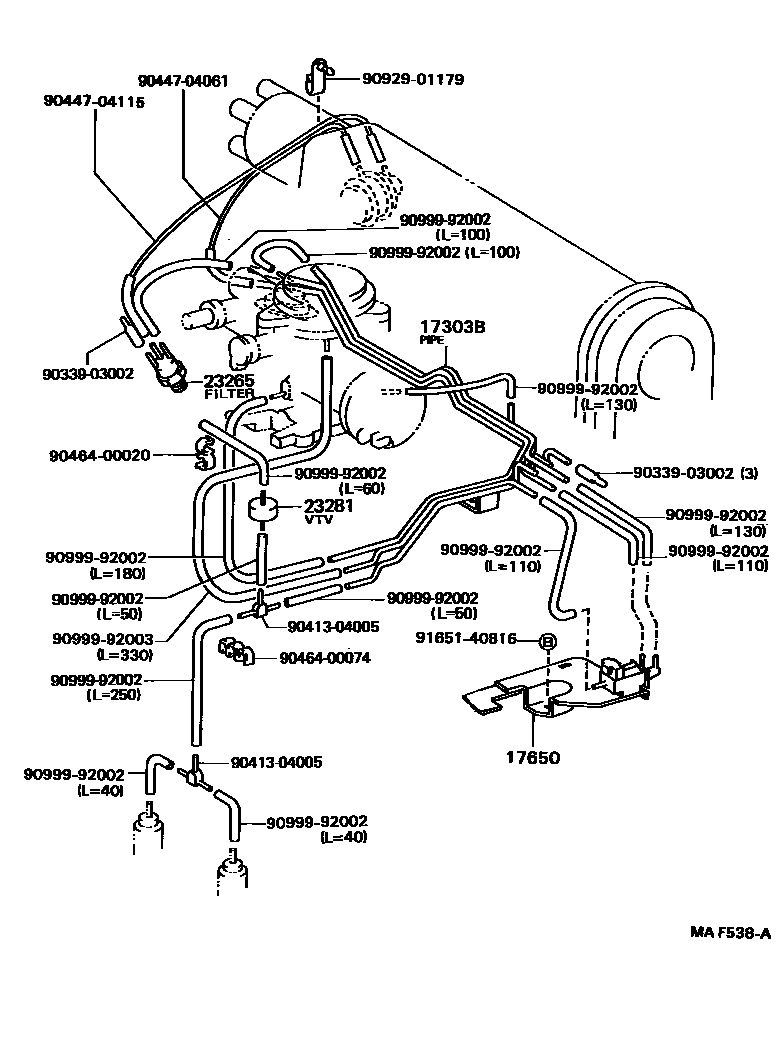

Toyota COROLLA vacuum tube EPC diagram — MAF538A — vacuum tube — MAF538A (199109 – 199401)

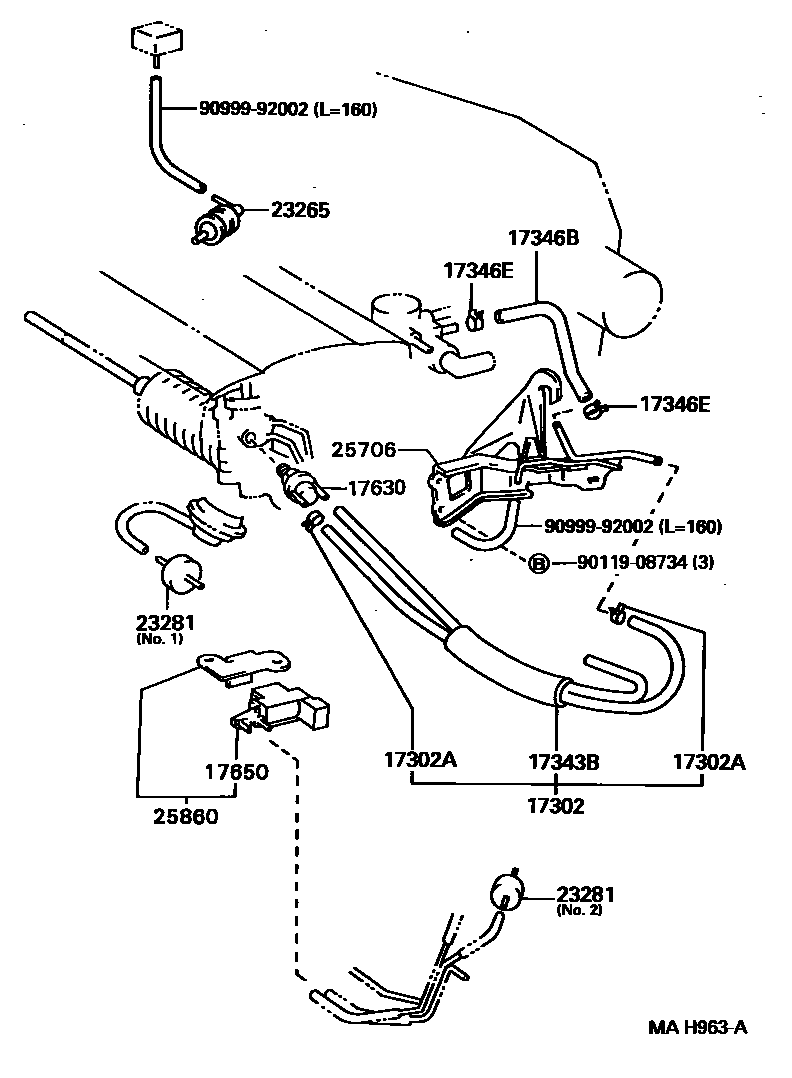

Toyota COROLLA vacuum tube EPC diagram — MAH963A — vacuum tube — MAH963A (199605 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17302	Air hose sub-assembly	17302-11100 · 17302-15010 · 17302-16040 · 17302-16050
17302A	Hose clip	90467-10099 · 96132-51000 · 96132-51100
17303B	No. 1 air pipe sub-assembly	17303-11310 · 17303-11350 · 17303-11401 · 17303-11510 · 17303-11540 · 17303-11541 · 17303-11700 · 17303-11880 · 17303-15060 · 17303-15070 · 17303-15090
17303C	No. 2 air pipe sub-assembly	17303-11680 · 17303-11770
17341P	air hose	17341-11440
17343B	No. 3 hose (for idle speed boost)	17308-16040 · 17343-11080
17344C	No. 4 hose (for idle speed boost)	17344-11030
17345D	No. 5 air hose	17345-16030
17346B	No. 6 air hose	17346-16020
17346E	Clamp (for No. 6 air hose)	90467-10099 · 96132-41000
17347B	No. 7 air hose	17347-16020
17360	air pipe assembly	17360-15060
17630	Air control valve assembly	17630-11050 · 17630-11060 · 17630-15080 · 17630-16040 · 17630-28020 · 17630-64010
17650	Vacuum switch valve assembly	89470-13020 · 90910-12047 · 90910-12109 · 90910-12110 · 90910-12119 · 90910-12143 · 90910-12144 · 90910-12169 · 90910-12218
21999	Vacuum switch valve bracket	21999-11120
23262	No. 1 bimetallic vacuum switch valve	25820-11040
23265	No. 1 gas filter	90917-11009 · 90917-11022 · 90917-11027 · 90917-11030
23275	Vacuum control valve No. 1	90925-03164 · 90925-03173
23281	Vacuum Transfer Valve No. 1	90925-01015 · 90925-01027 · 90925-01084 · 90925-01091 · 90925-01095 · 90925-01100 · 90925-01101
23281A	Vacuum Transfer Valve No. 2	90925-02088
23285A	No. 1 one-way valve	90917-10049 · 90917-10080
23288	Nozzle No. 1	90925-04034
23826	No. 1 fuel vapor supply hose	23826-22060
23826A	Clamp (for No. 1 fuel vapor supply hose)	96132-41100
23827A	No. 2 fuel vapor supply hose	23827-11030
23827B	Clamp (for No. 2 fuel vapor supply hose)	96132-41100
23829A	Fuel vapor supply hose	23829-11030
23829B	Clamp (for fuel vapor supply hose)	96132-41300
25706	No. 1 vacuum transfer tube sub-assembly	25706-15230 · 25706-16390 · 25706-16420 · 25706-16430 · 25706-64040 · 25706-64070
25719	Vacuum pressure tank	25719-62040
25760	Vacuum transfer hose assembly	25760-11200 · 25760-11230 · 25760-11250 · 25760-11260 · 25760-15020 · 25760-64060 · 25760-64120 · 25760-64250
25760A	Vacuum transfer hose assembly	25760-64280
25819	Vacuum regulating valve assembly	25819-64030 · 25819-64150 · 90910-12089
25860	No. 1 vacuum switch valve assembly	25860-11320 · 25860-11370 · 25860-16140 · 25860-16141 · 25860-16142
25861	Vacuum switch valve bracket	25861-11020 · 25861-15020 · 25862-11010
