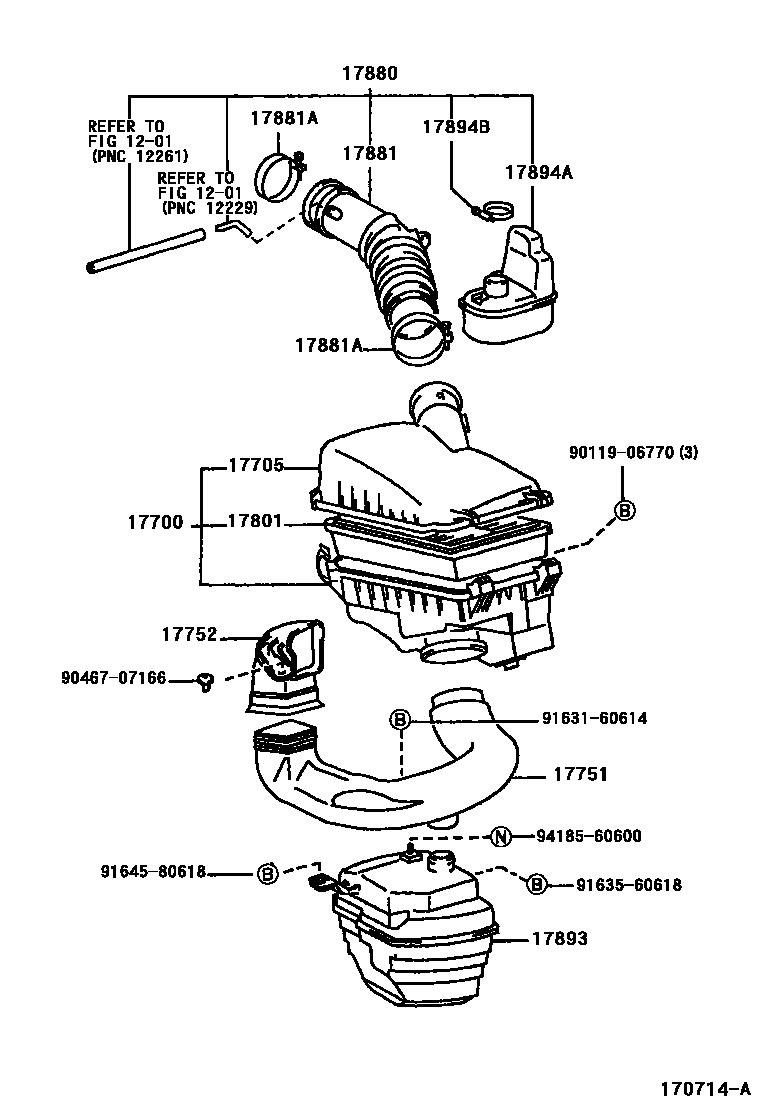

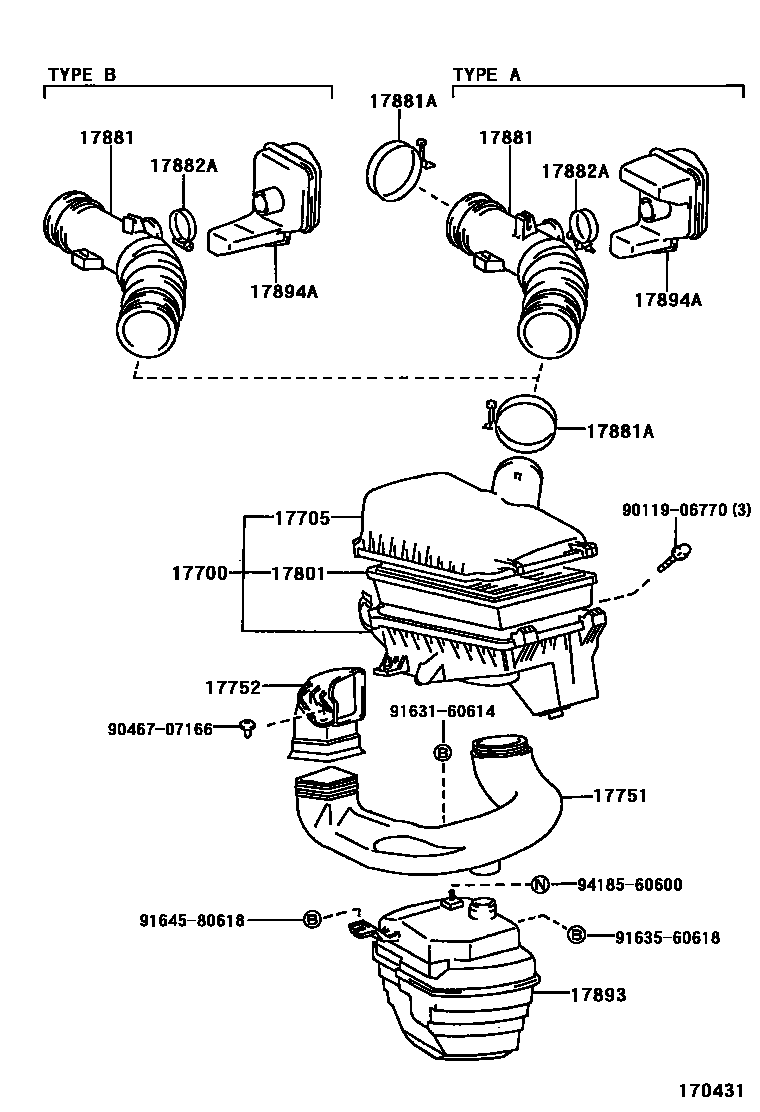

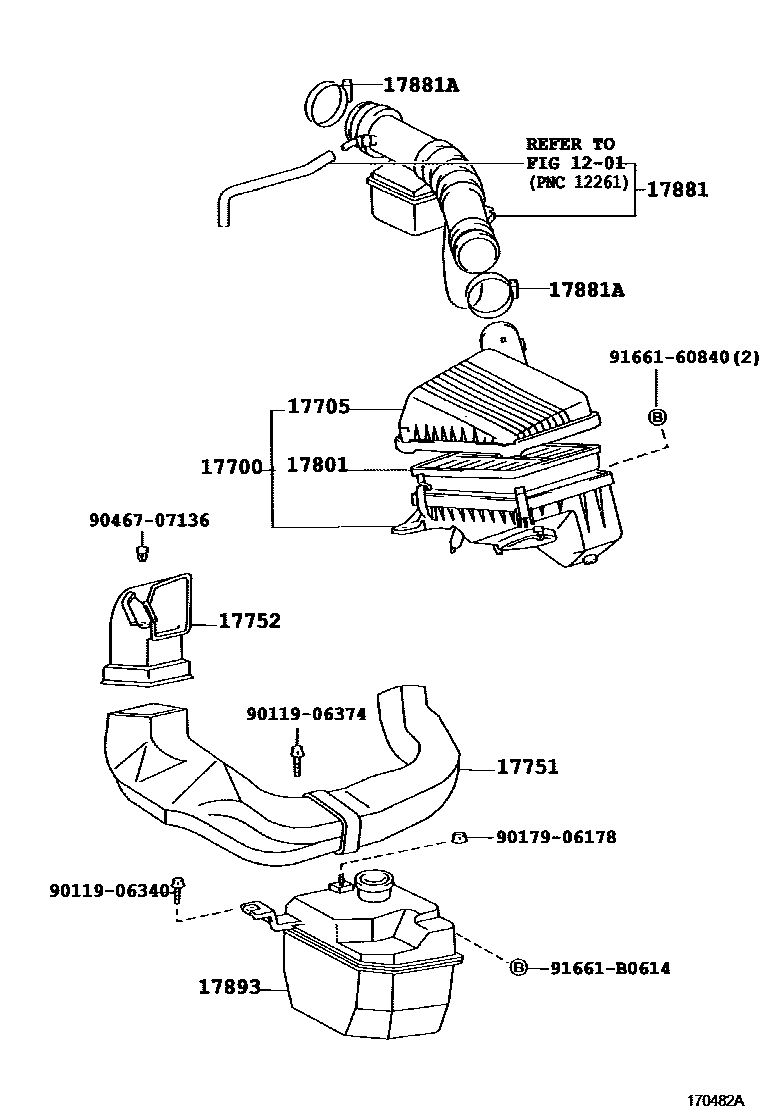

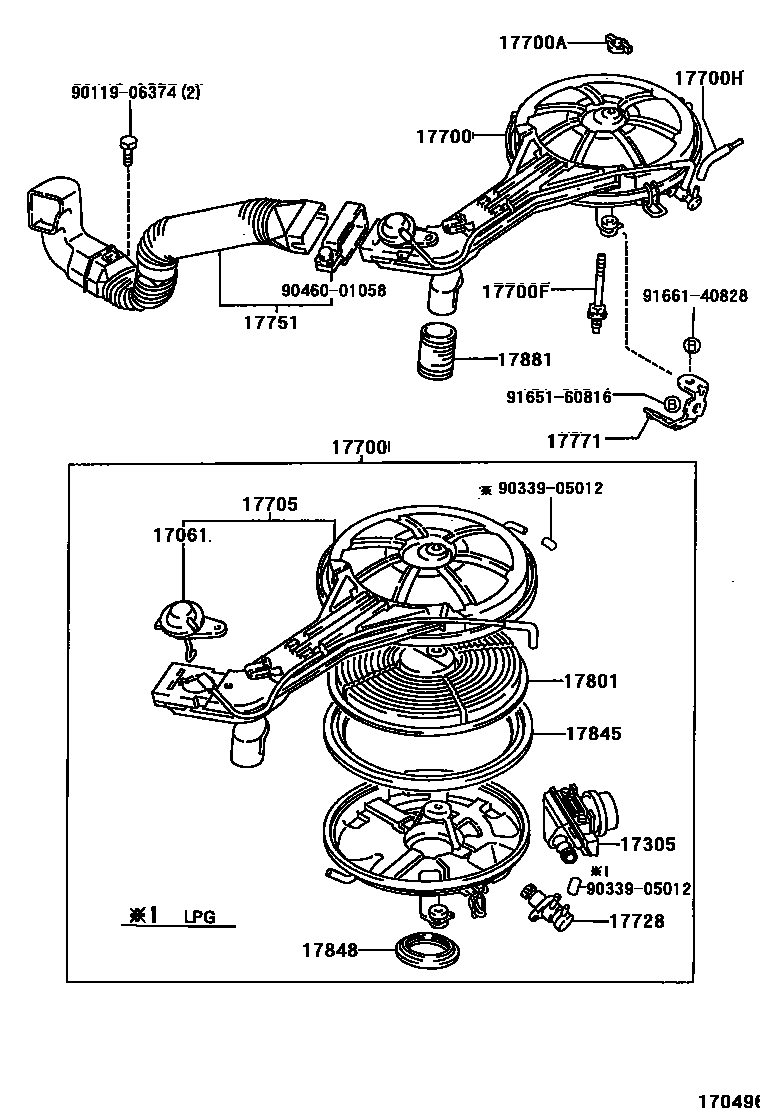

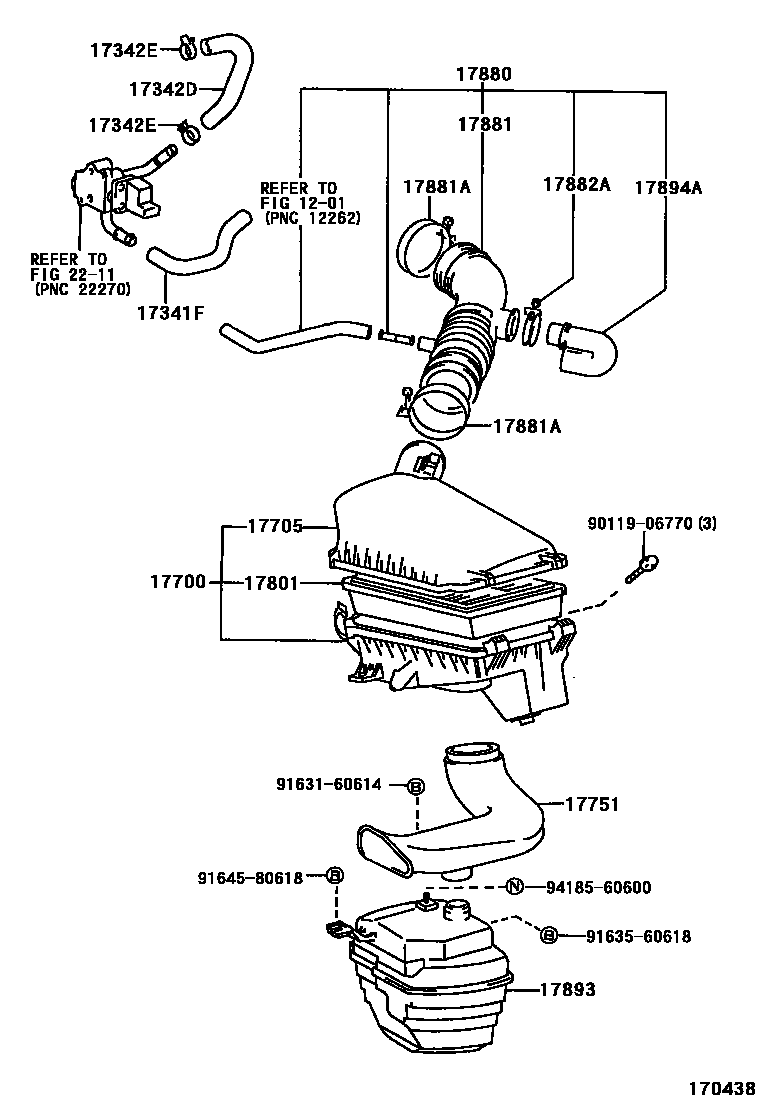

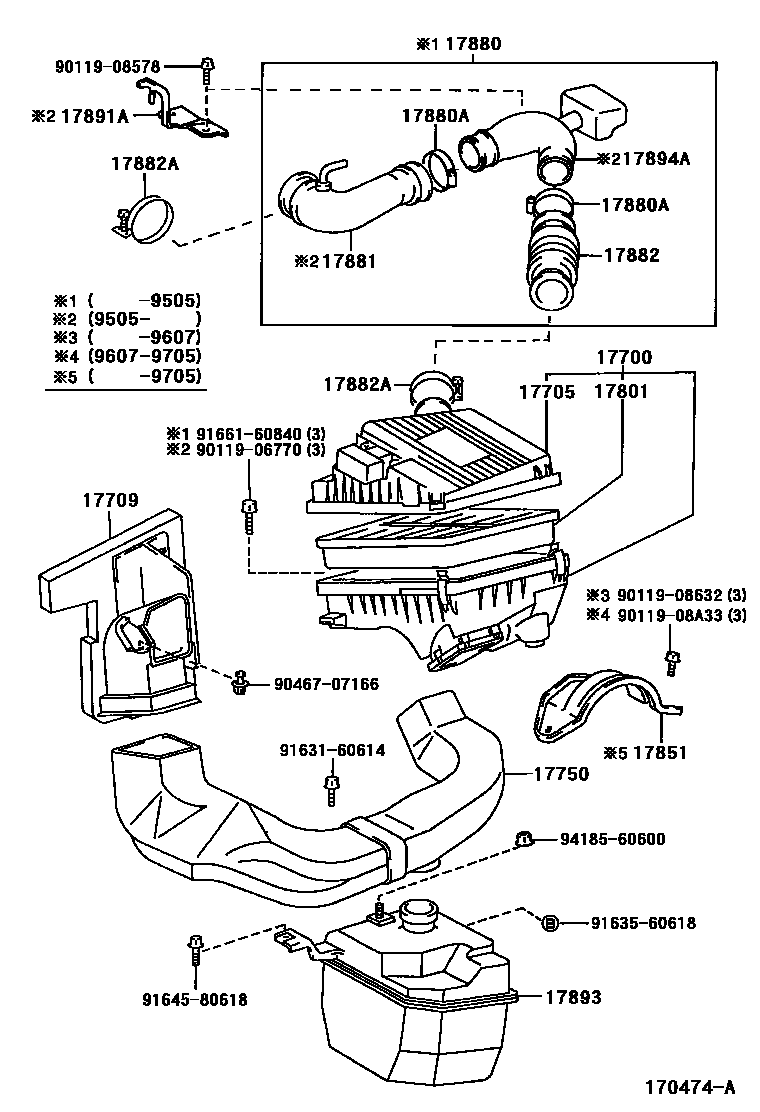

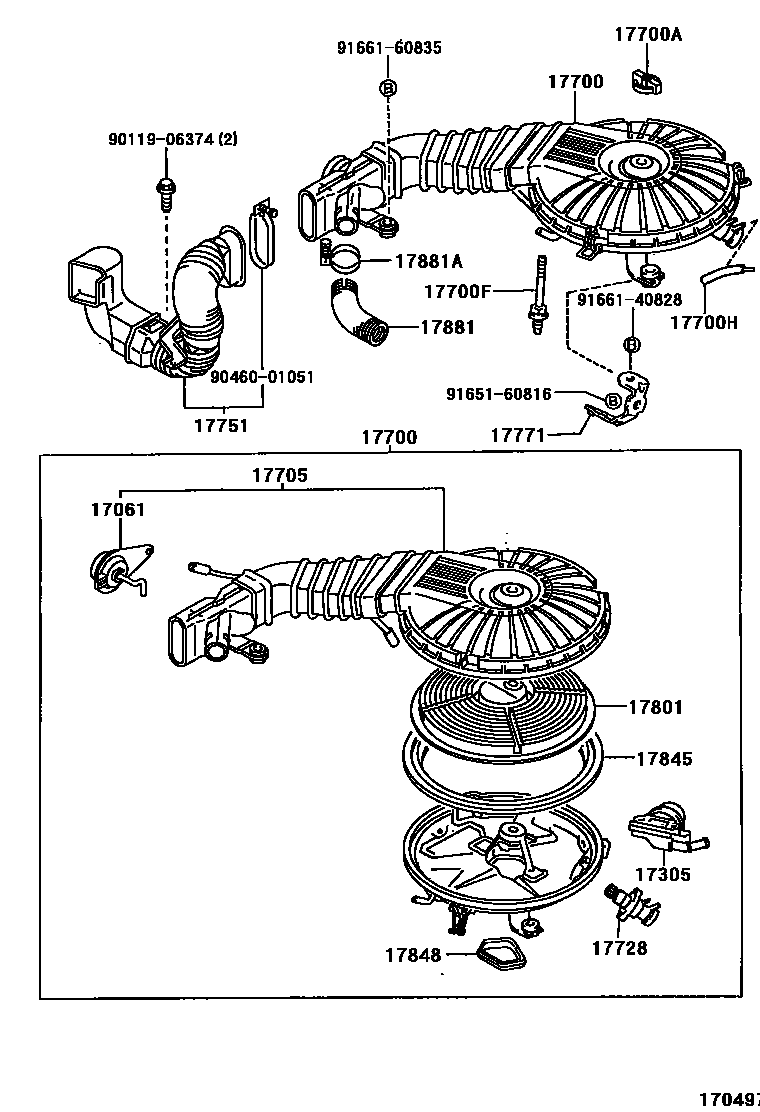

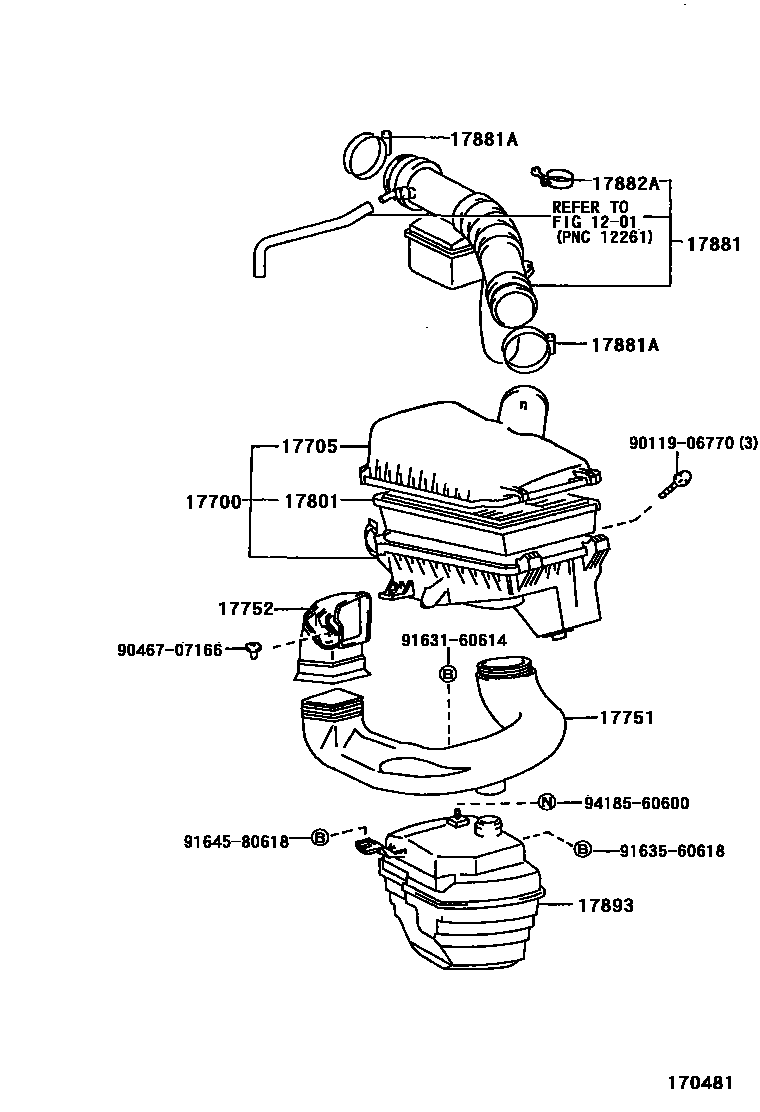

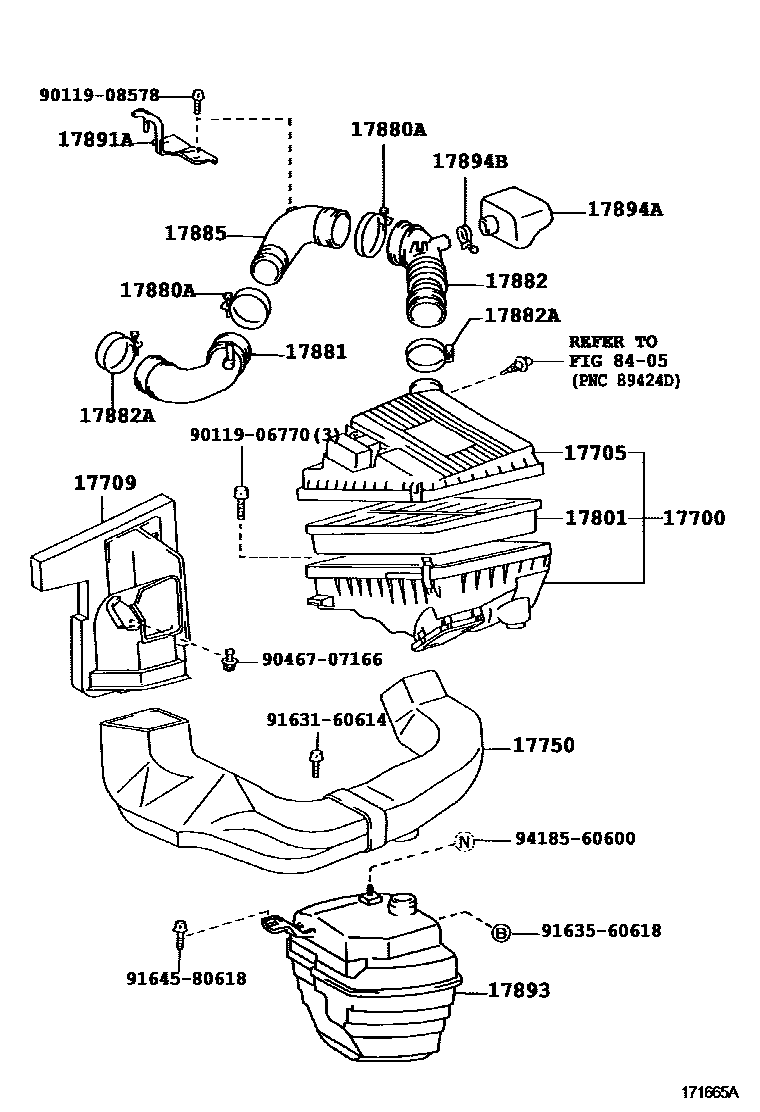

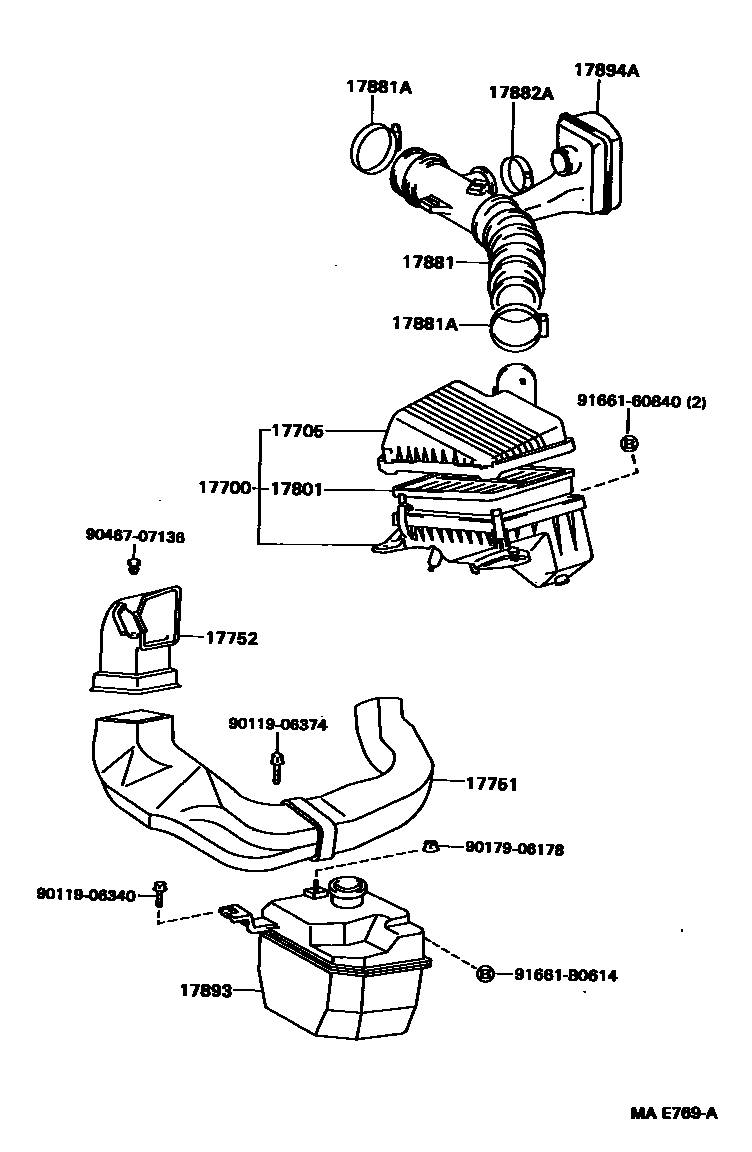

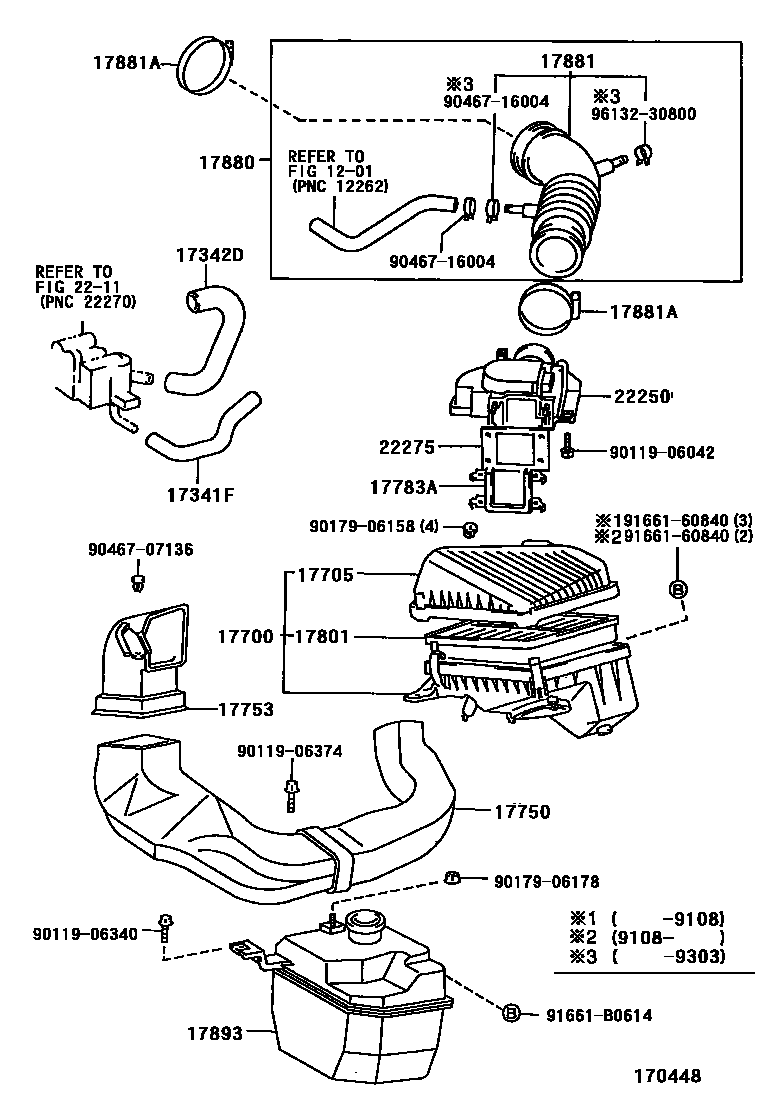

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 11 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-10010 · 17061-11030 |
| 17305 | Reed valve sub-assembly | 17350-11050 |
| 17341F | Air hose No. 1 | 17341-16200 |
| 17342D | Air hose No. 2 | 17342-16110 |
| 17342E | Clip or clip (for No. 2 air hose) | 96134-42300 |
| 17700 | air filter assembly | 17700-02040 · 17700-11750 · 17700-11760 · 17700-11770 · 17700-11890 · 17700-15270 · 17700-15340 · 17700-15360 · 17700-16750 · 17700-16880 · 17700-1A020 · 17700-1B040 · 17700-64270 · 17700-64340 · 17700-64390 · 17700-64391 · 17700-64440 |
| 17700A | Wing nut (for air cleaner) | 90175-06010 |
| 17700F | Stud bolt (for securing air filter) | 90116-06142 · 90116-06230 |
| 17700H | air hose | 17341-10010 |
| 17705 | Air filter cover sub-assembly | 17705-02040 · 17705-11510 · 17705-11520 · 17705-11530 · 17705-11550 · 17705-11600 · 17705-15160 · 17705-15180 · 17705-15190 · 17705-16420 · 17705-16490 · 17705-64160 · 17705-64270 · 17705-64271 · 17705-64310 |
| 17709 | Air filter air inlet sub-assembly | 17709-64010 · 17709-64011 |
| 17728 | thermostat valve | 17728-11080 |
| 17750 | Air filter air inlet cover seal assembly | 17750-16010 · 17750-64010 · 17750-64020 |
| 17751 | No. 1 air filter air inlet | 17750-02010 · 17750-11010 · 17750-11020 · 17750-15010 · 17751-15050 · 17751-15070 · 17751-16100 · 17751-16120 |
| 17752 | No. 2 air filter air inlet | 17752-15040 · 17753-02010 · 17753-15010 |
| 17753 | No. 3 air filter air inlet | 17753-16010 |
| 17771 | Air filter inlet pipe bracket | 17771-11020 · 17771-11080 |
| 17783A | Air filter air inlet retaining ring | 17783-16020 |
| 17801 | Air filter element sub-assembly | 17801-02030 · 17801-11090 · 17801-11100 · 17801-11110 · 17801-15070 · 17801-64070 |
| 17845 | air cleaner cover gasket | 17845-10020 |
| 17848 | Gasket from air cleaner to carburetor | 17848-10021 |
| 17851 | air filter bracket | 17851-64030 · 17851-64040 · 17851-64041 |
| 17880 | Air cleaner hose assembly | 17880-11350 · 17880-16180 · 17880-16251 · 17880-64190 · 17880-64191 |
| 17880A | hose clamp | 90460-65007 · 96111-10630 · 96111-10650 |
| 17881 | No. 1 air cleaner hose | 17880-11160 · 17880-11210 · 17881-02030 · 17881-02040 · 17881-10032 · 17881-10033 · 17881-11560 · 17881-15150 · 17881-15170 · 17881-15180 · 17881-15190 · 17881-15200 · 17881-16300 · 17881-16371 · 17881-64300 · 17881-64360 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-70003 · 90460-73001 · 90460-80001 · 96111-10460 · 96111-10690 · 96111-10730 · 96111-10900 |
| 17882 | No. 2 air cleaner hose | 17882-64070 · 17882-64110 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90080-46097 · 90080-46146 · 90460-42002 · 90460-55012 · 96111-10380 · 96111-10480 · 96111-10490 · 96111-10630 · 96111-10650 |
| 17885 | air cleaner tube | 17885-64010 |
| 17891A | Air filter hose clamp | 17891-64010 |
| 17893 | Intake resonator | 17893-02010 · 17893-15040 · 17893-15050 |
| 17894A | No. 2 intake resonator | 17894-02010 · 17894-02020 · 17894-11050 · 17894-11130 · 17894-15020 · 17894-15030 · 17894-15040 · 17894-15050 · 17894-64040 · 17894-64070 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10330 · 96111-10480 |
| 22250 | Intake air flow meter assembly | 22250-16110 |
| 22275 | air flow meter gasket | 22275-41010 |
