Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 25 images and 49 PNC and OE references.

Toyota COROLLA Exhaust Pipe EPC diagram — 170414A — Exhaust Pipe — 170414A (199106 – 199505)

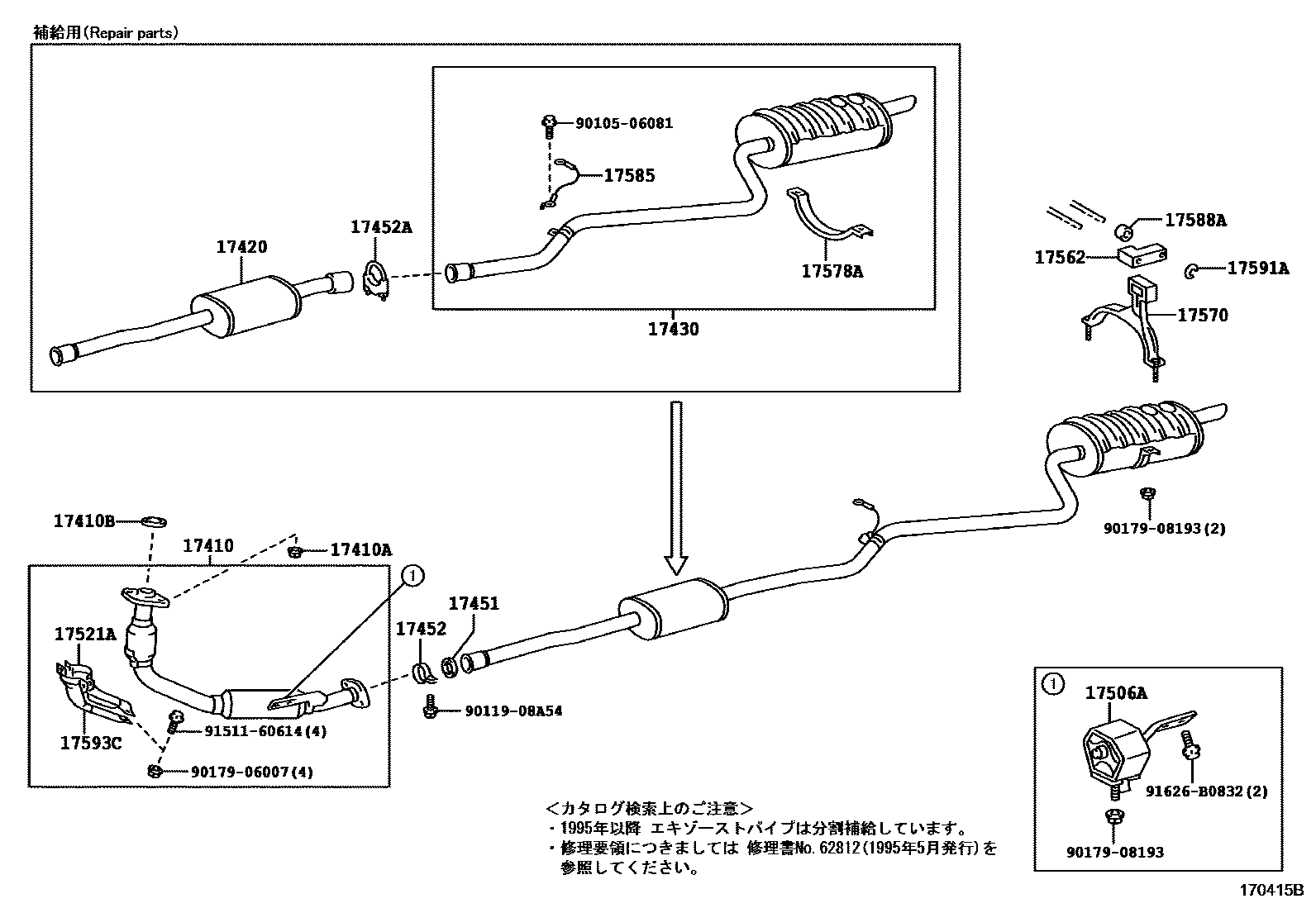

Toyota COROLLA Exhaust Pipe EPC diagram — 170415B — Exhaust Pipe — 170415B (199505 – 199705)

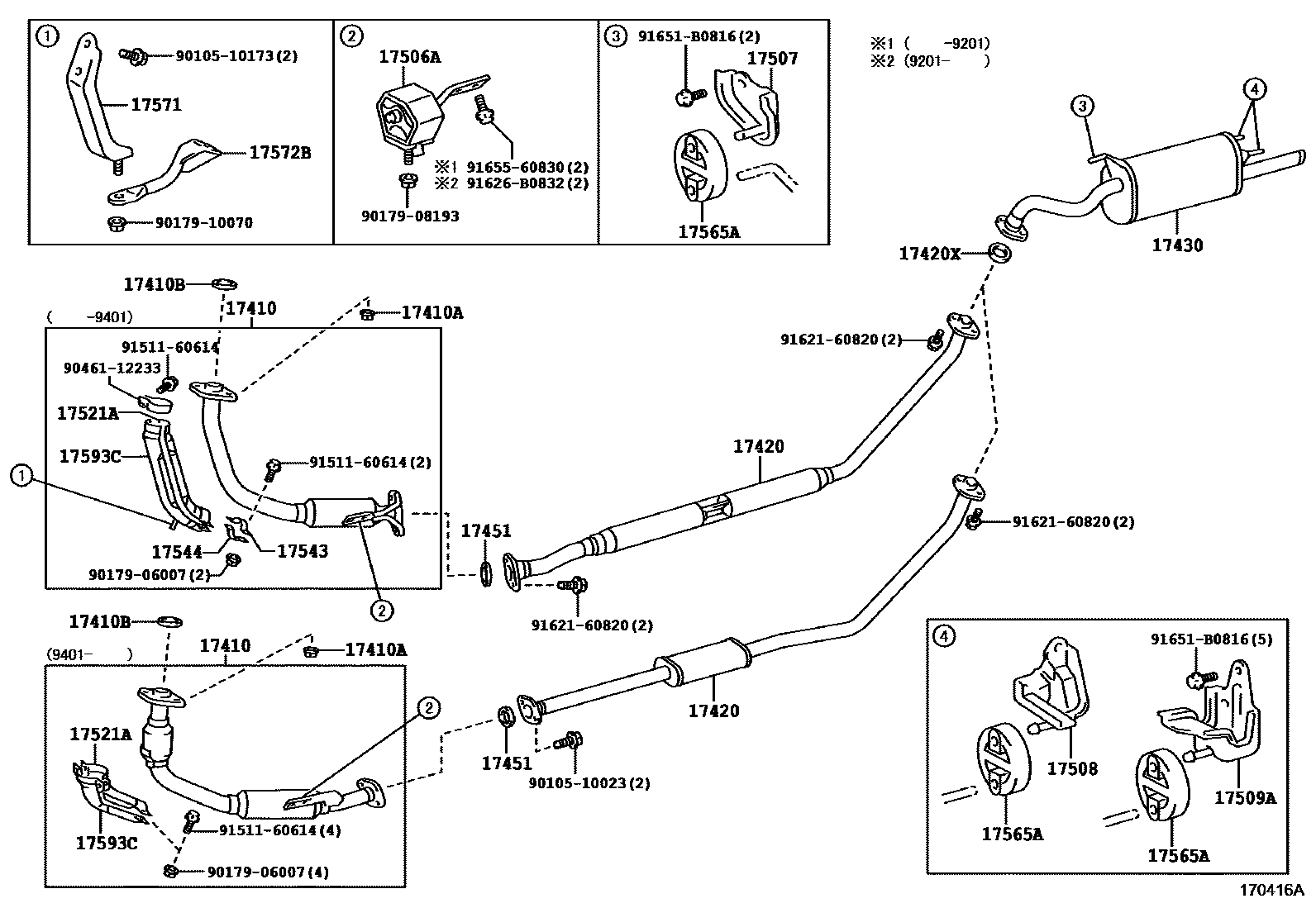

Toyota COROLLA Exhaust Pipe EPC diagram — 170416A — Exhaust Pipe — 170416A (199109 – 199704)

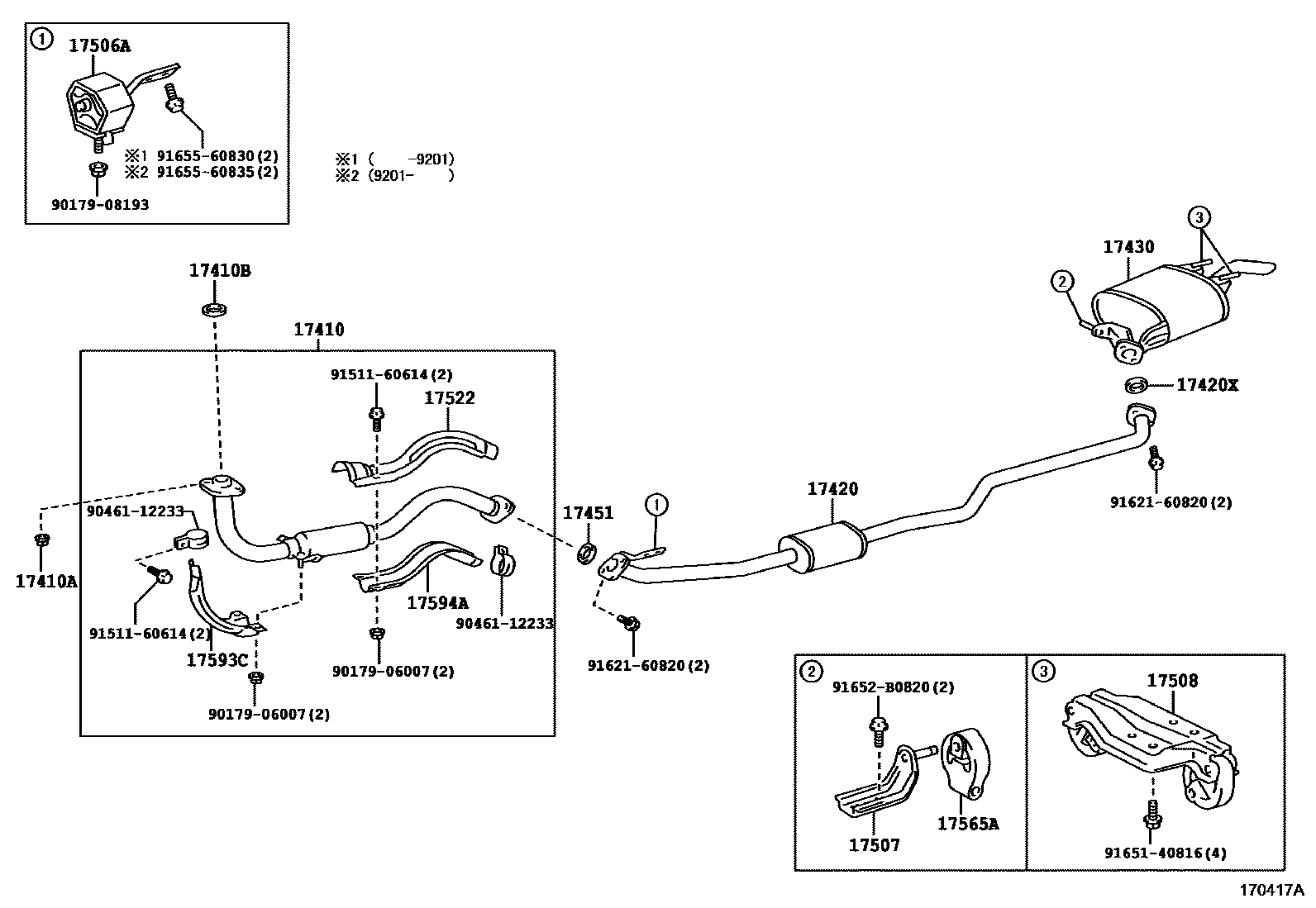

Toyota COROLLA Exhaust Pipe EPC diagram — 170417A — Exhaust Pipe — 170417A (199106 – 199305)

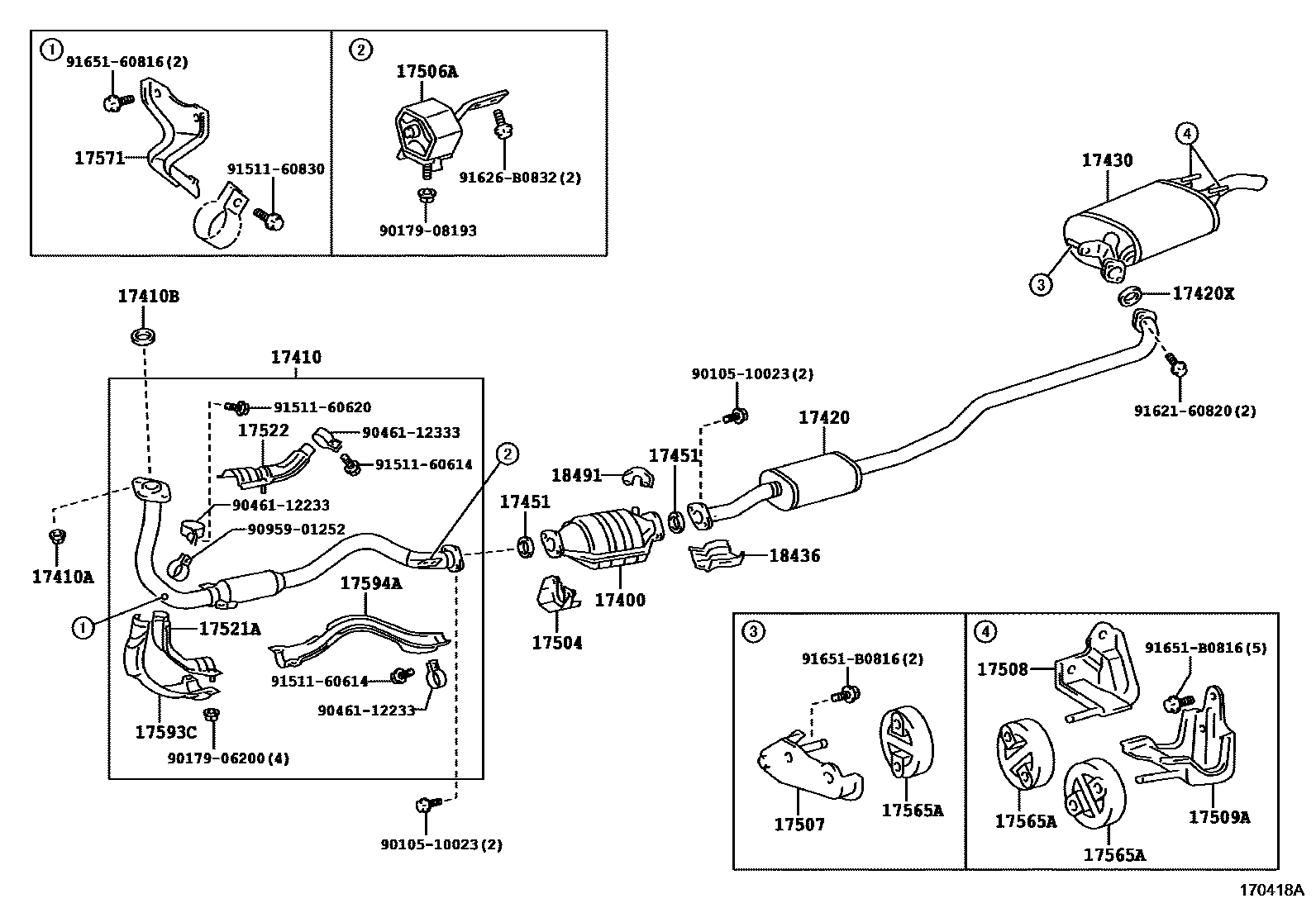

Toyota COROLLA Exhaust Pipe EPC diagram — 170418A — Exhaust Pipe — 170418A (199401 – 199704)

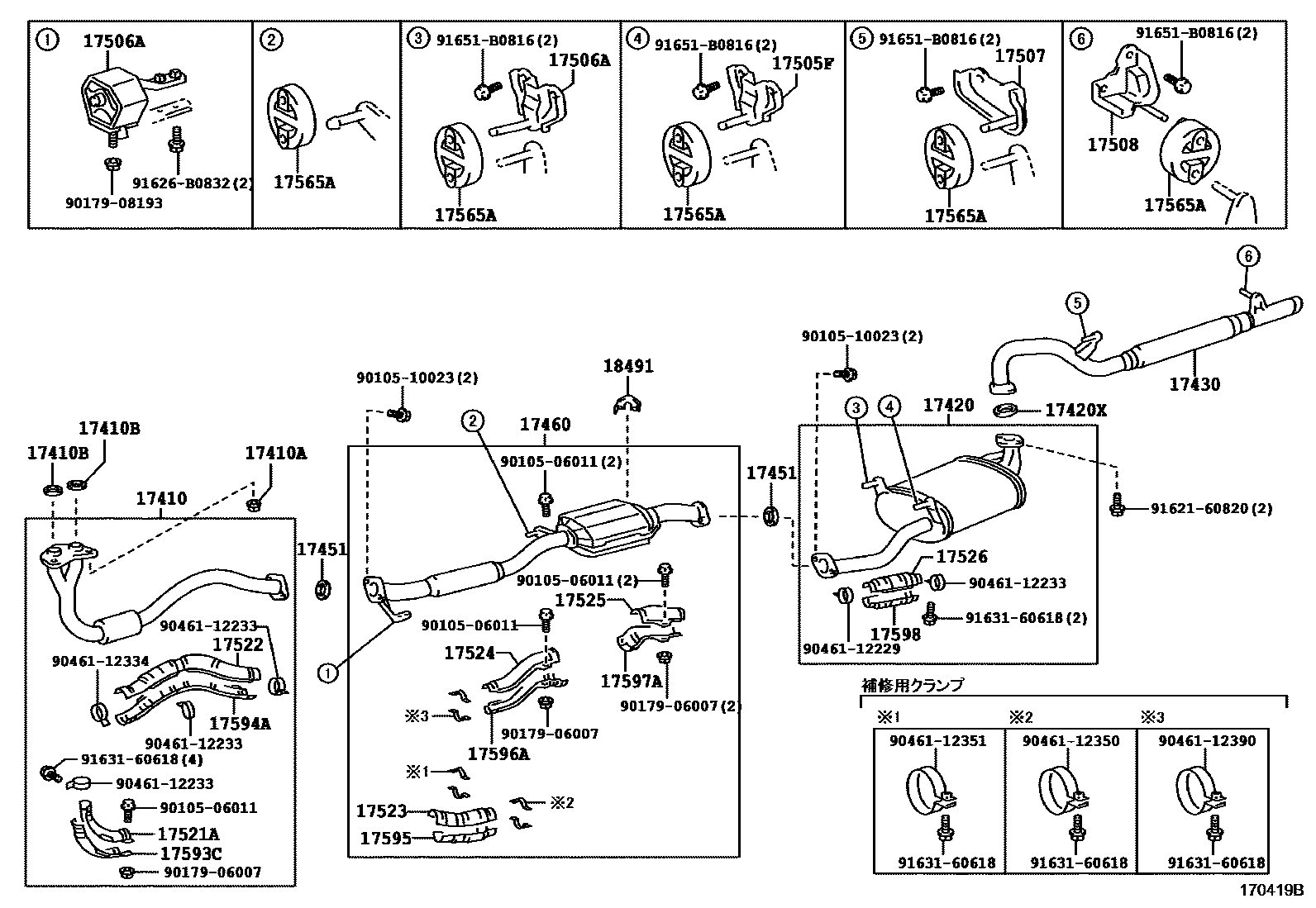

Toyota COROLLA Exhaust Pipe EPC diagram — 170419B — Exhaust Pipe — 170419B (199605 – 199704)

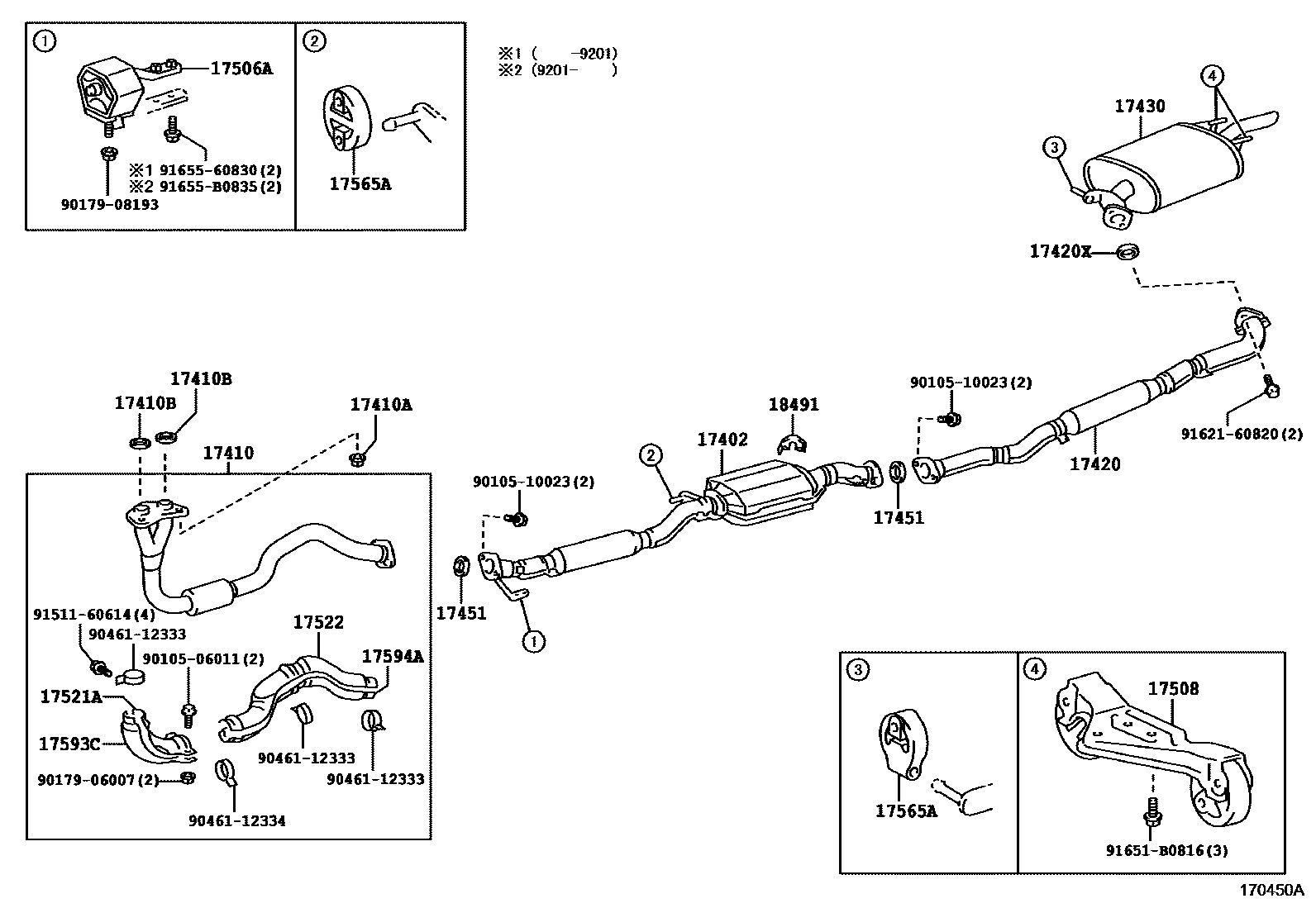

Toyota COROLLA Exhaust Pipe EPC diagram — 170450A — Exhaust Pipe — 170450A (199109 – 199505)

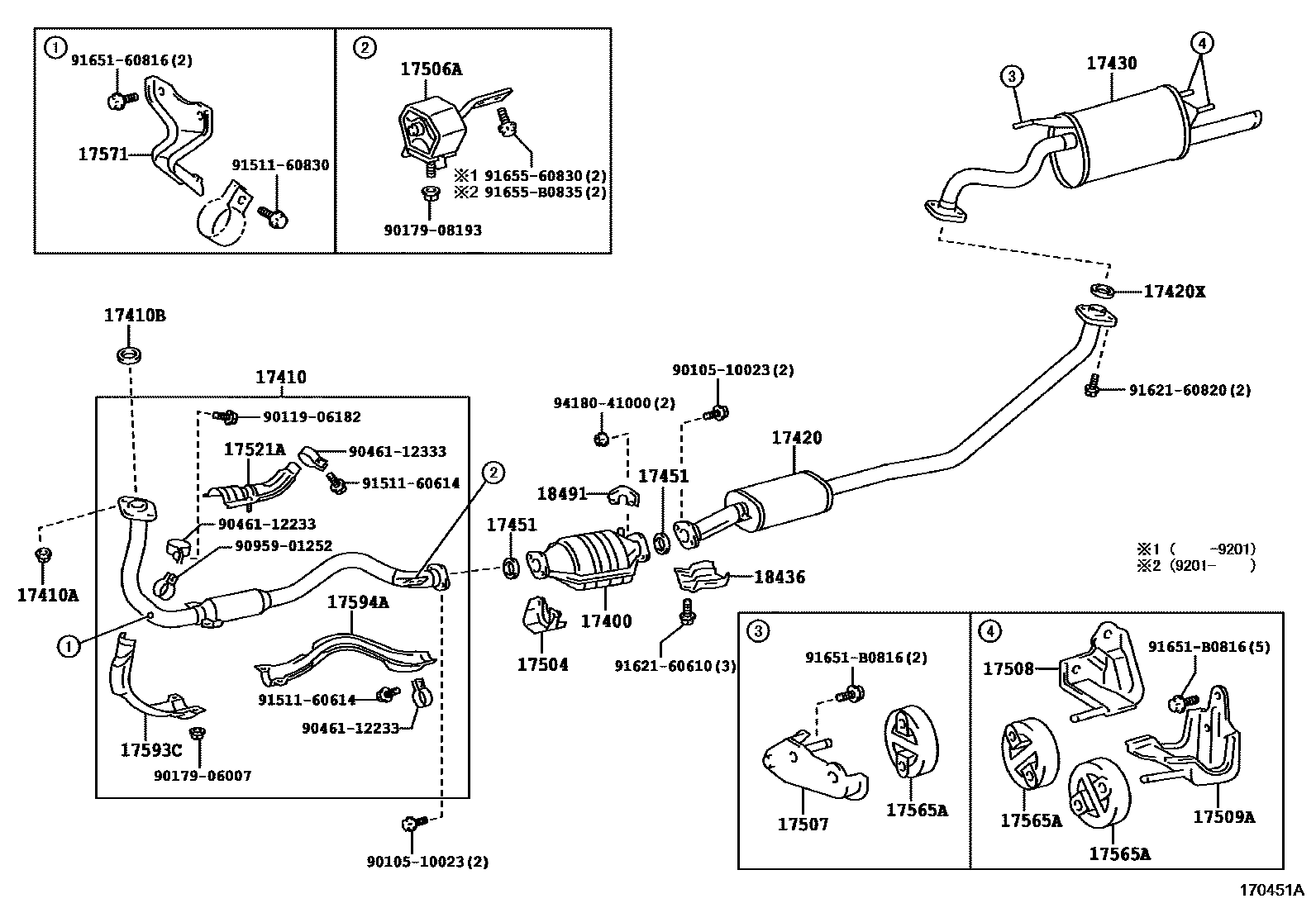

Toyota COROLLA Exhaust Pipe EPC diagram — 170451A — Exhaust Pipe — 170451A (199109 – 199401)

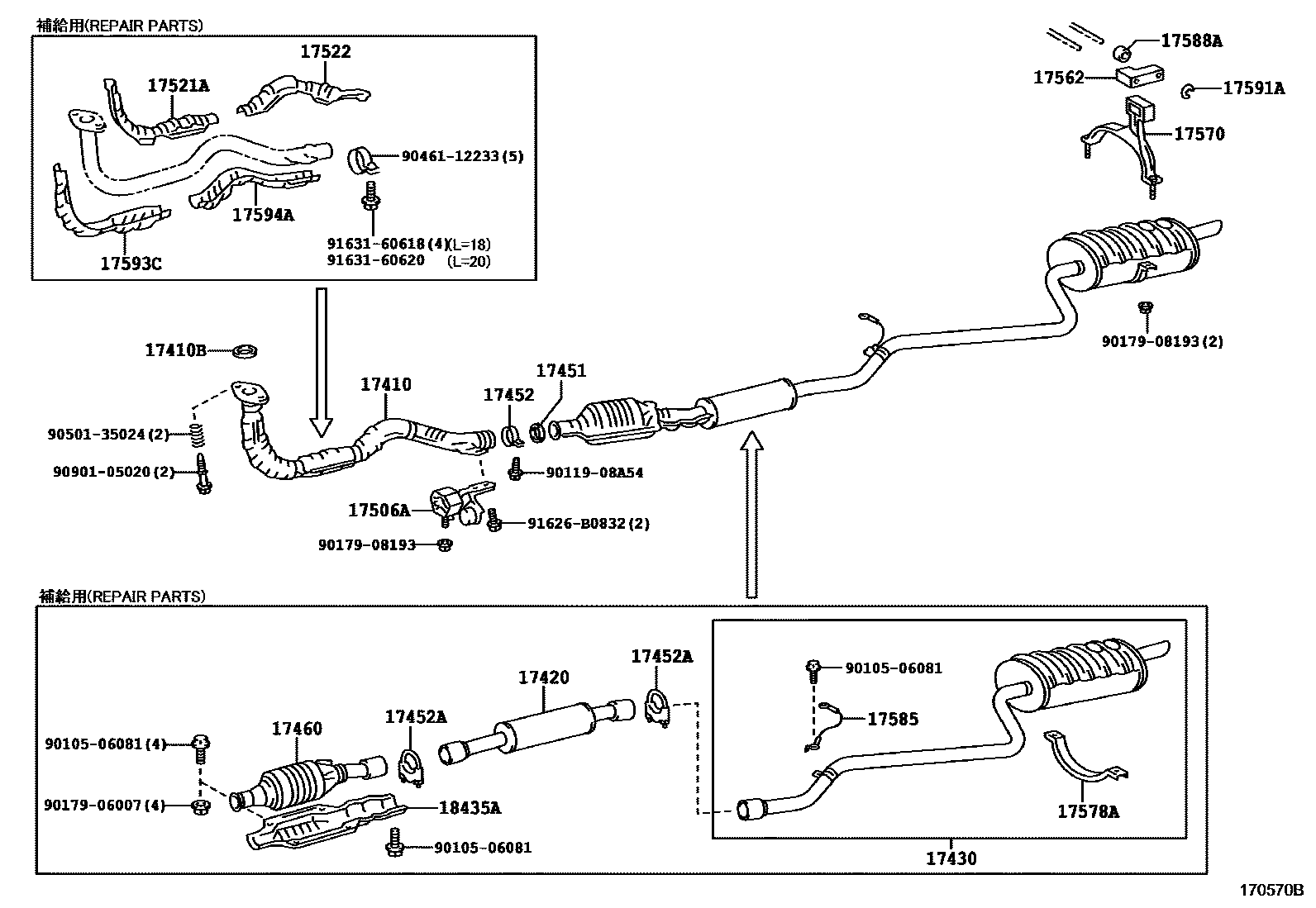

Toyota COROLLA Exhaust Pipe EPC diagram — 170570B — Exhaust Pipe — 170570B (199505 – 200008)

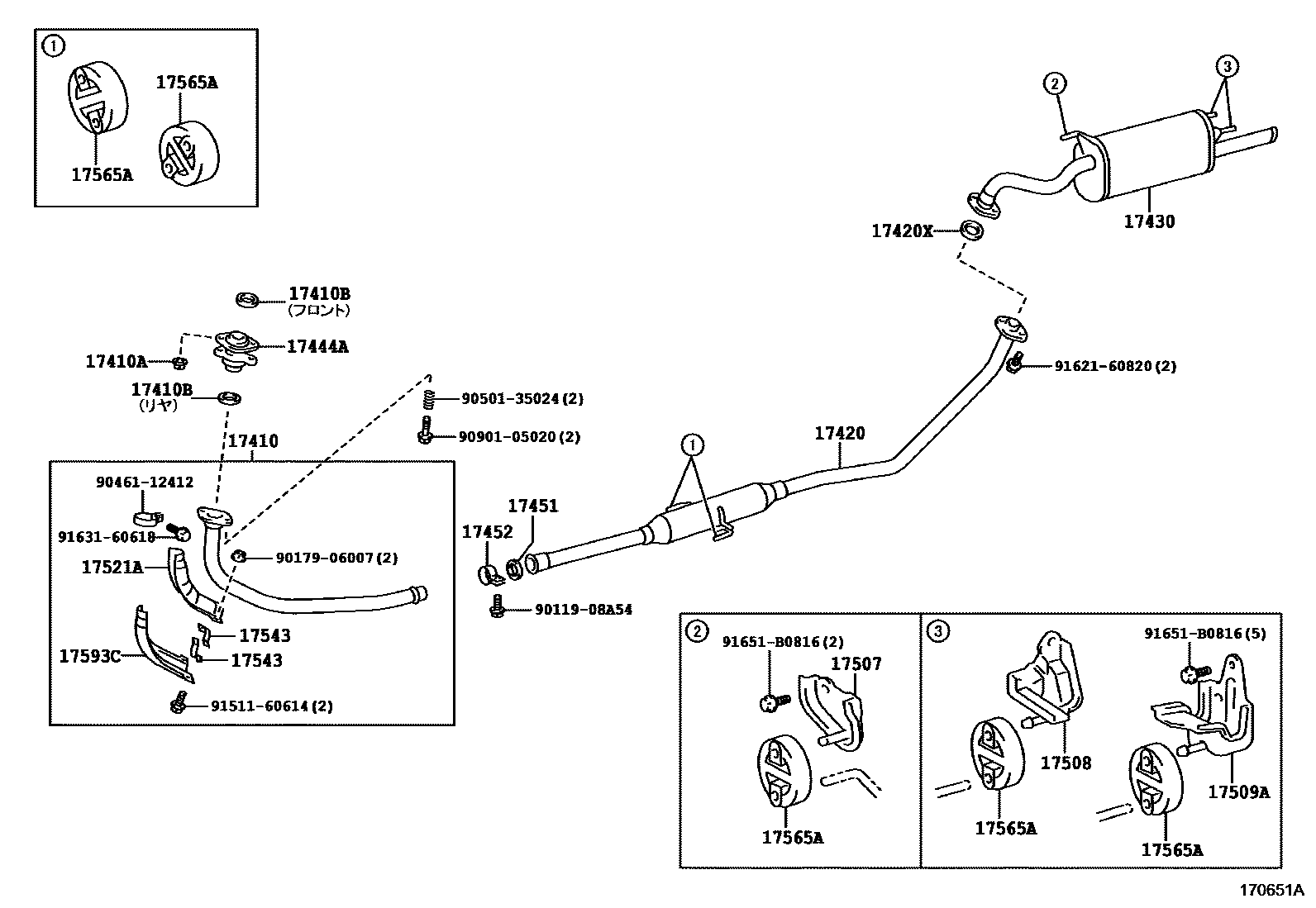

Toyota COROLLA Exhaust Pipe EPC diagram — 170651A — Exhaust Pipe — 170651A (199704 – 199804)

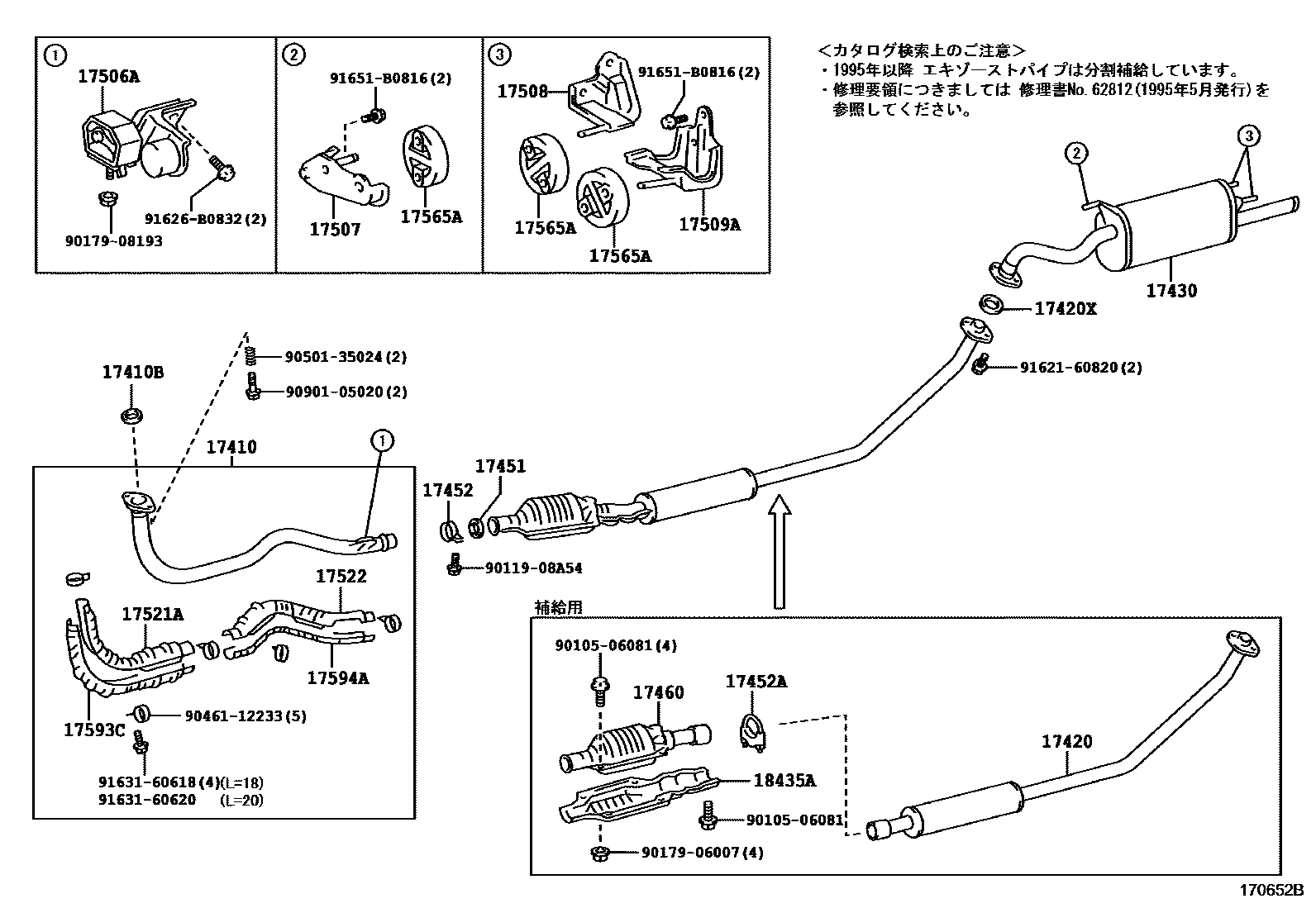

Toyota COROLLA Exhaust Pipe EPC diagram — 170652B — Exhaust Pipe — 170652B (199704 – 200008)

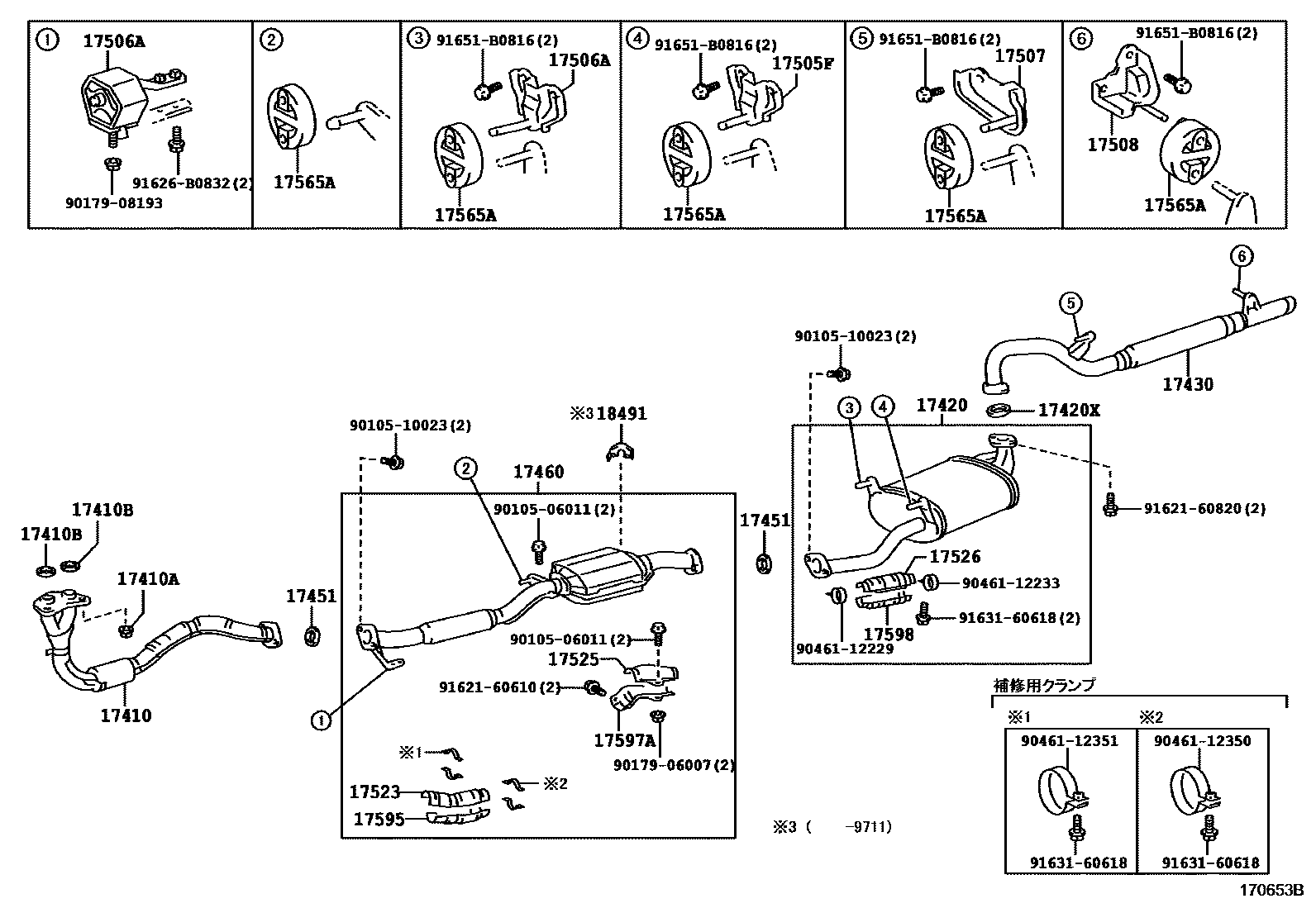

Toyota COROLLA Exhaust Pipe EPC diagram — 170653B — Exhaust Pipe — 170653B (199704 – 999999)

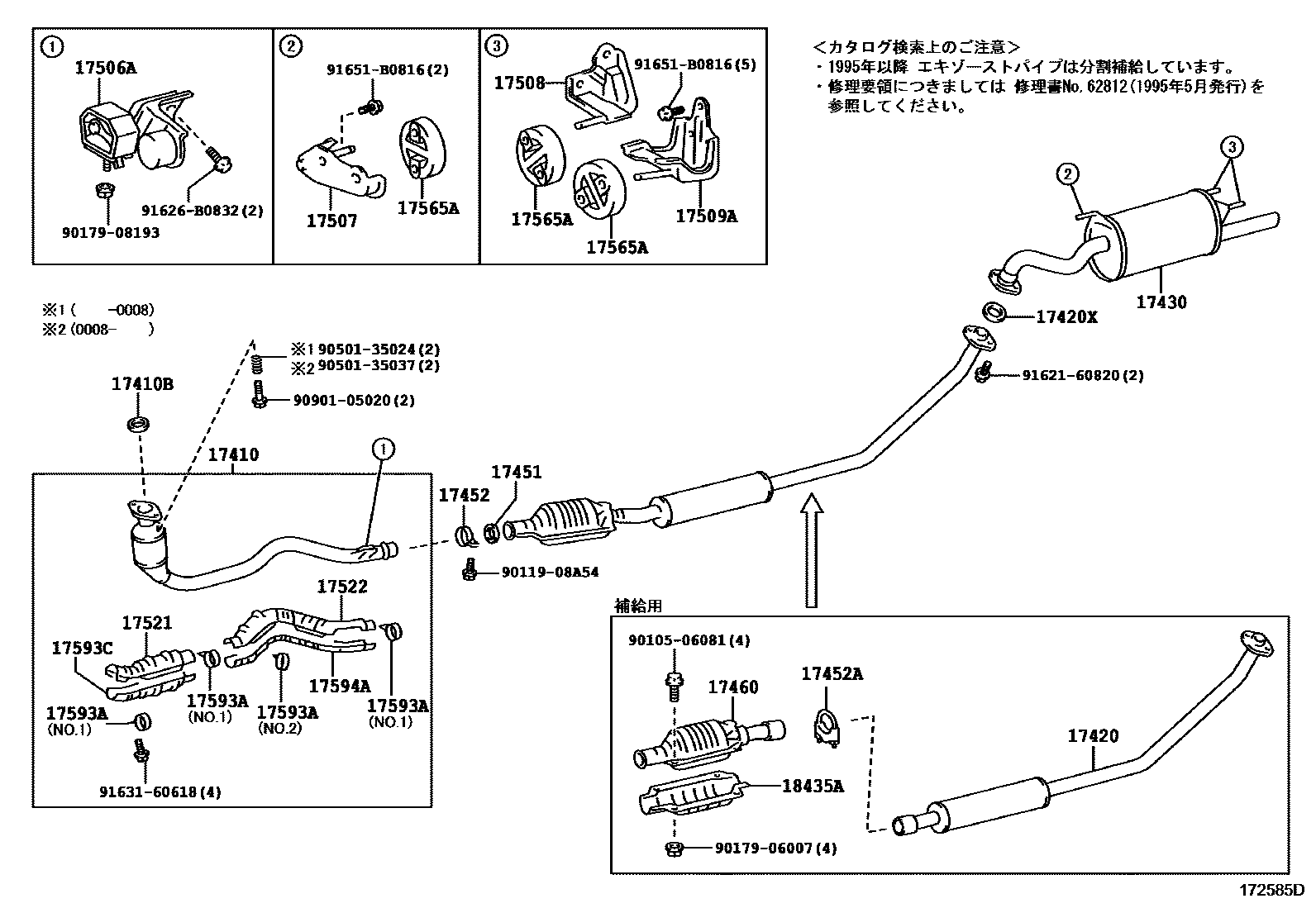

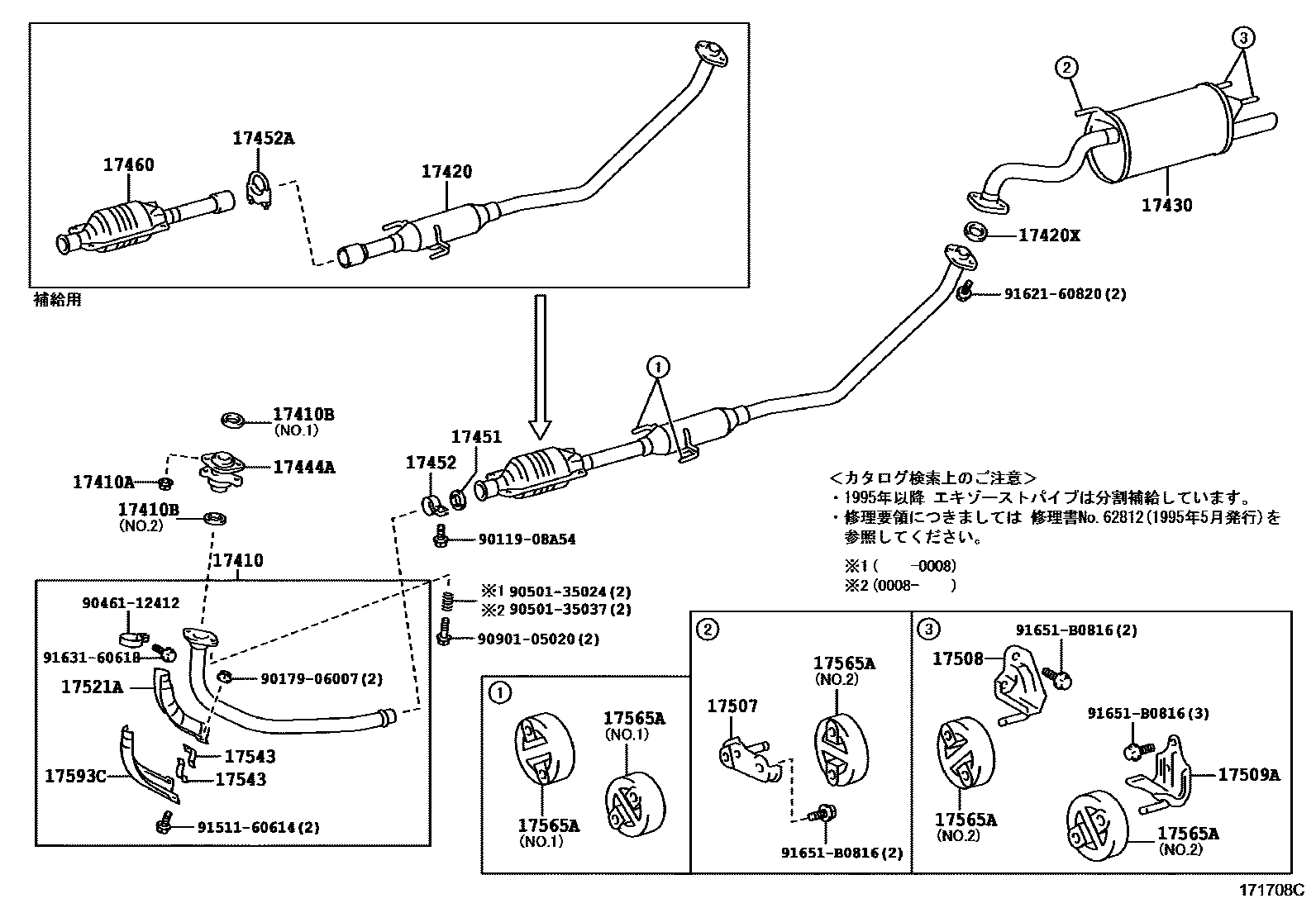

Toyota COROLLA Exhaust Pipe EPC diagram — 171708C — Exhaust Pipe — 171708C (199804 – 999999)

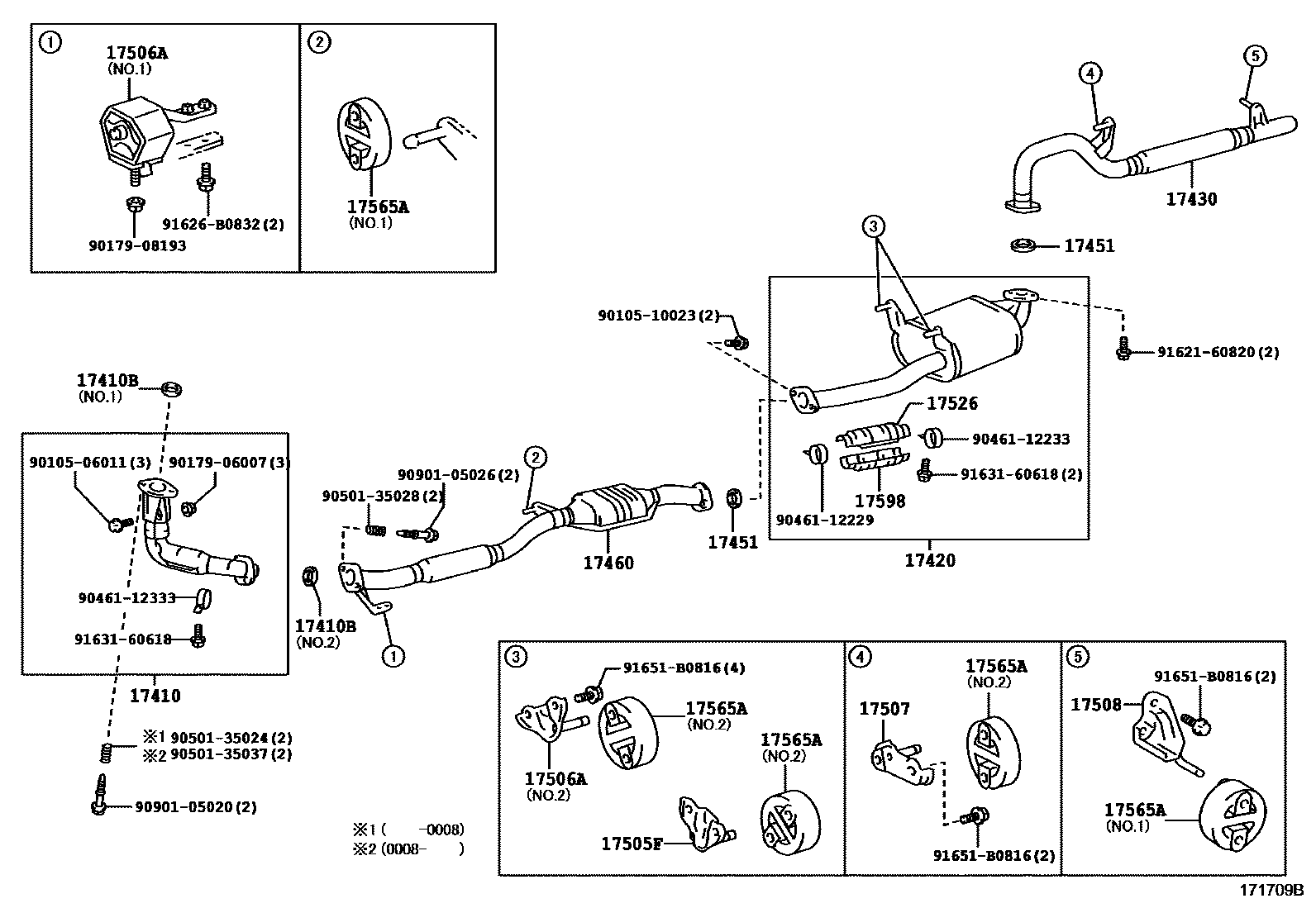

Toyota COROLLA Exhaust Pipe EPC diagram — 171709B — Exhaust Pipe — 171709B (199804 – 999999)

Toyota COROLLA Exhaust Pipe EPC diagram — 172585D — Exhaust Pipe — 172585D (200008 – 999999)

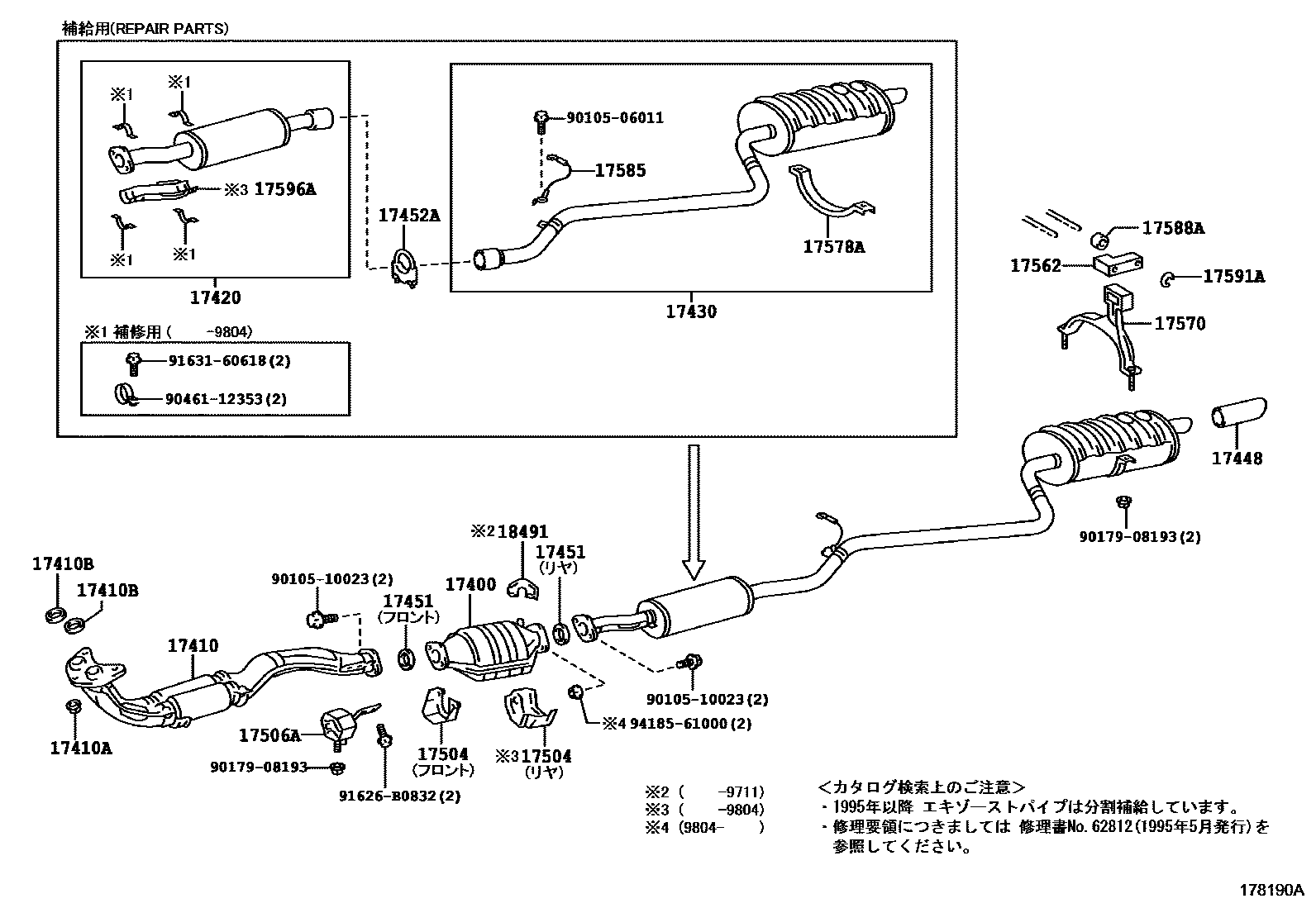

Toyota COROLLA Exhaust Pipe EPC diagram — 178190A — Exhaust Pipe — 178190A (199605 – 200008)

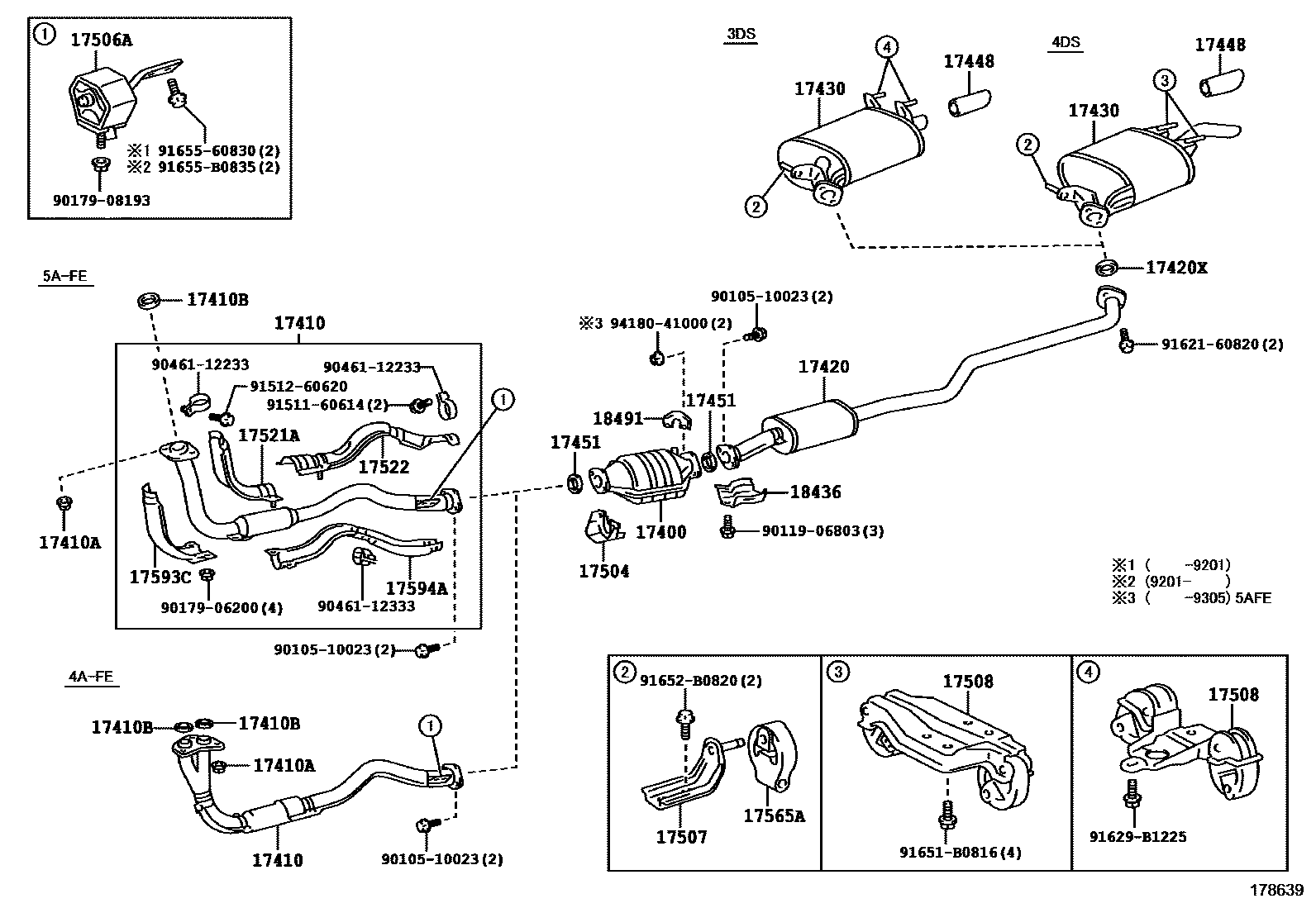

Toyota COROLLA Exhaust Pipe EPC diagram — 178639 — Exhaust Pipe — 178639 (199106 – 199505)

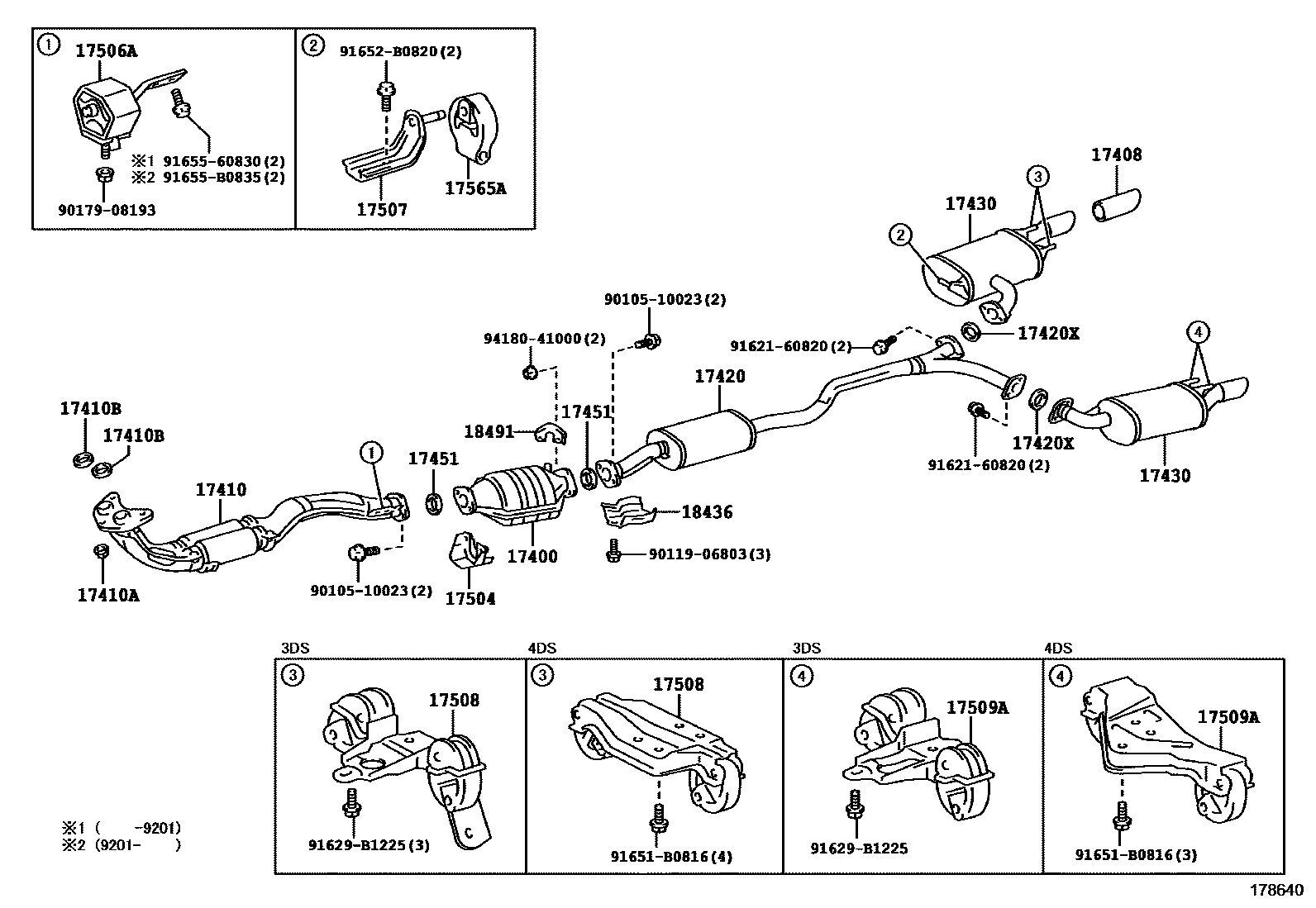

Toyota COROLLA Exhaust Pipe EPC diagram — 178640 — Exhaust Pipe — 178640 (199106 – 199505)

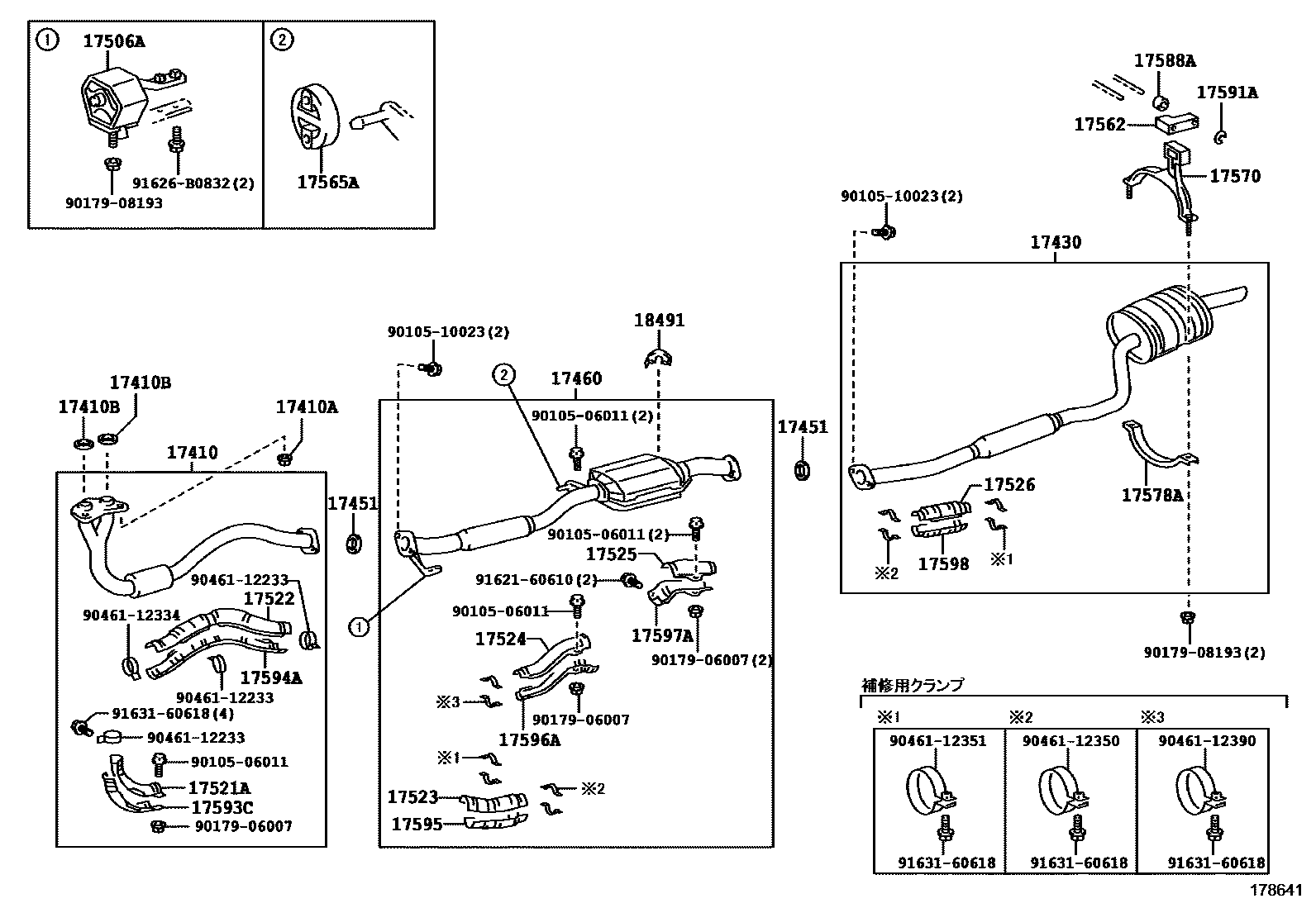

Toyota COROLLA Exhaust Pipe EPC diagram — 178641 — Exhaust Pipe — 178641 (199505 – 199705)

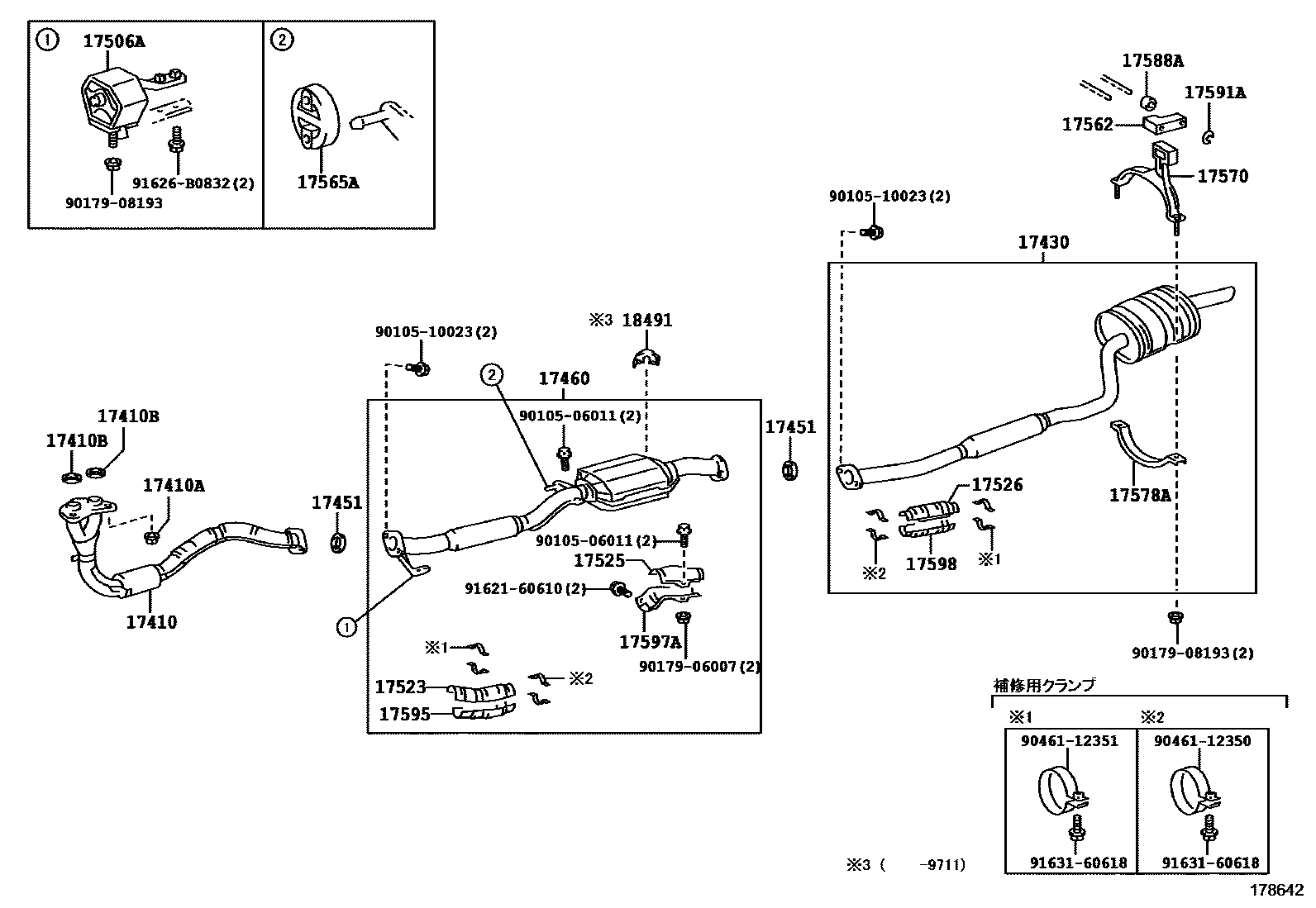

Toyota COROLLA Exhaust Pipe EPC diagram — 178642 — Exhaust Pipe — 178642 (199705 – 999999)

Toyota COROLLA Exhaust Pipe EPC diagram — 178643 — Exhaust Pipe — 178643 (199705 – 199804)

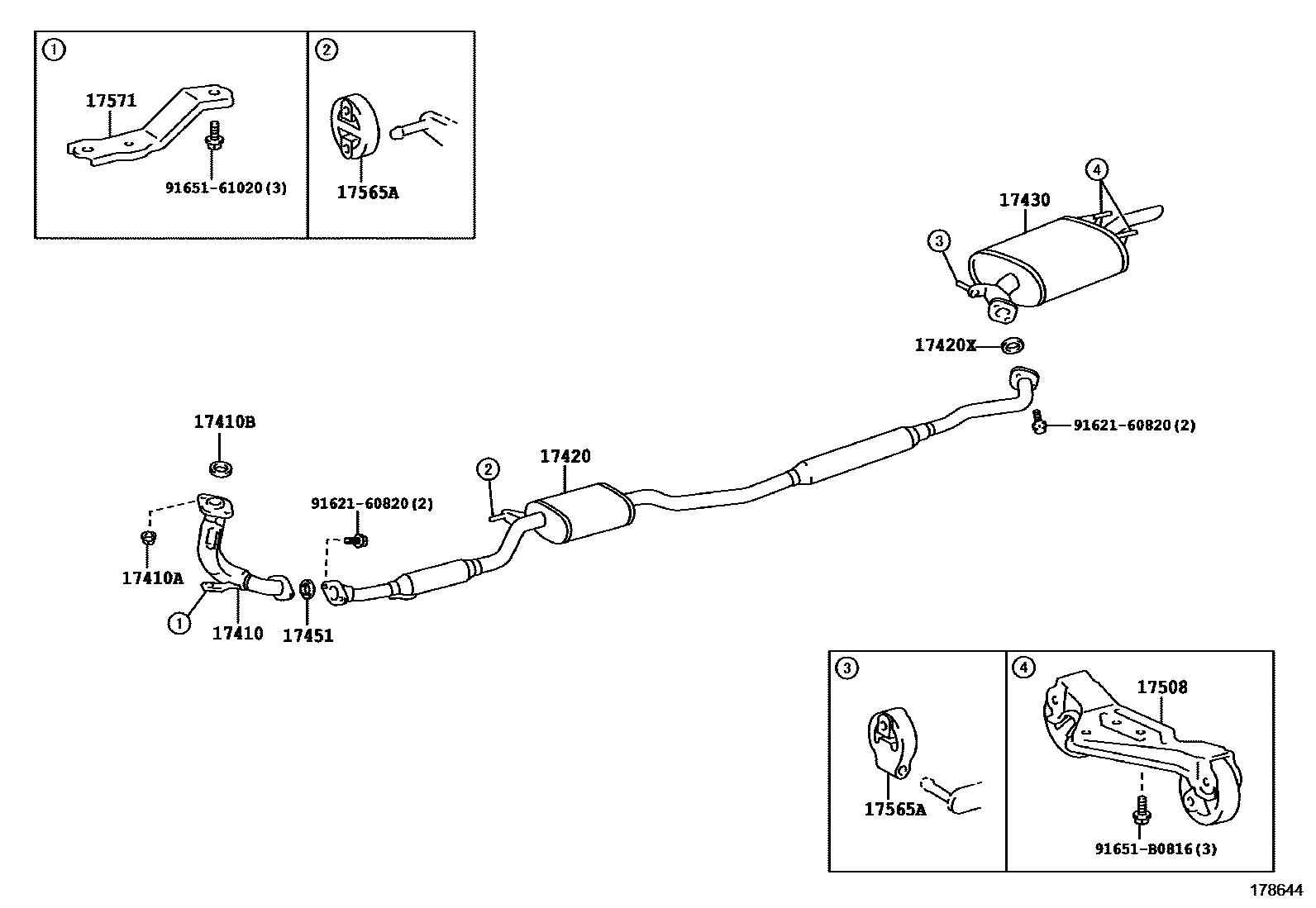

Toyota COROLLA Exhaust Pipe EPC diagram — 178644 — Exhaust Pipe — 178644 (199109 – 199505)

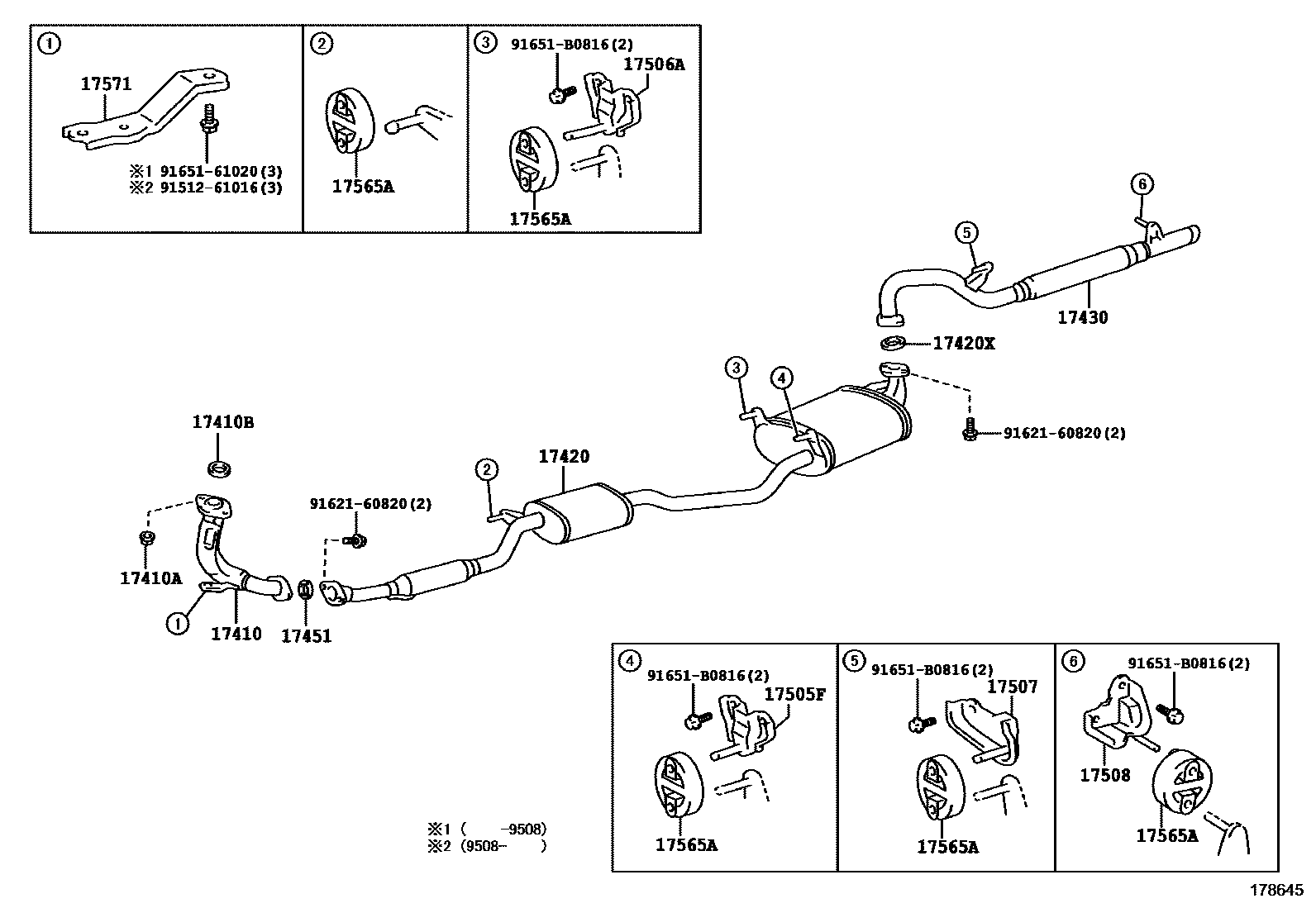

Toyota COROLLA Exhaust Pipe EPC diagram — 178645 — Exhaust Pipe — 178645 (199109 – 199804)

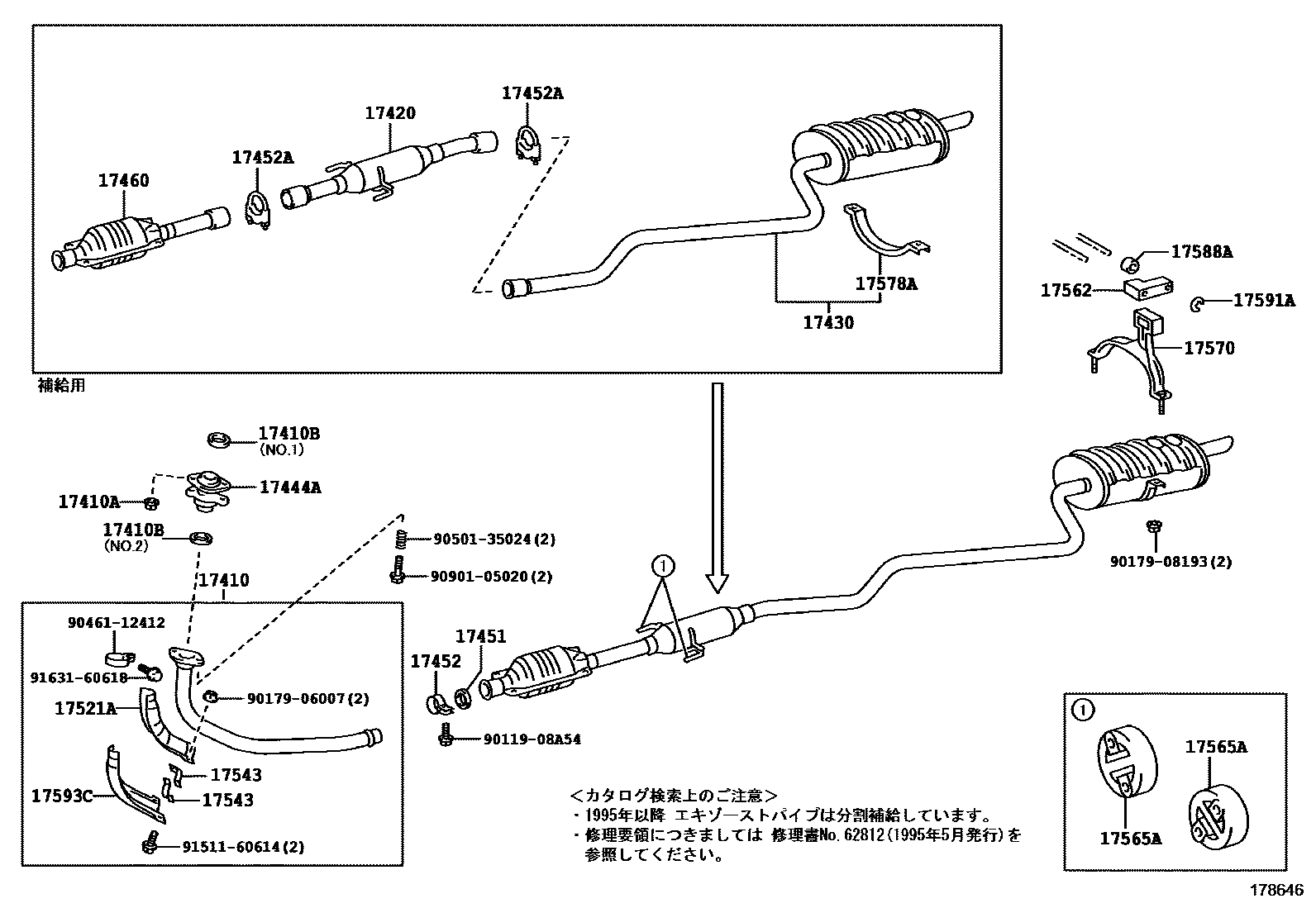

Toyota COROLLA Exhaust Pipe EPC diagram — 178646 — Exhaust Pipe — 178646 (199804 – 999999)

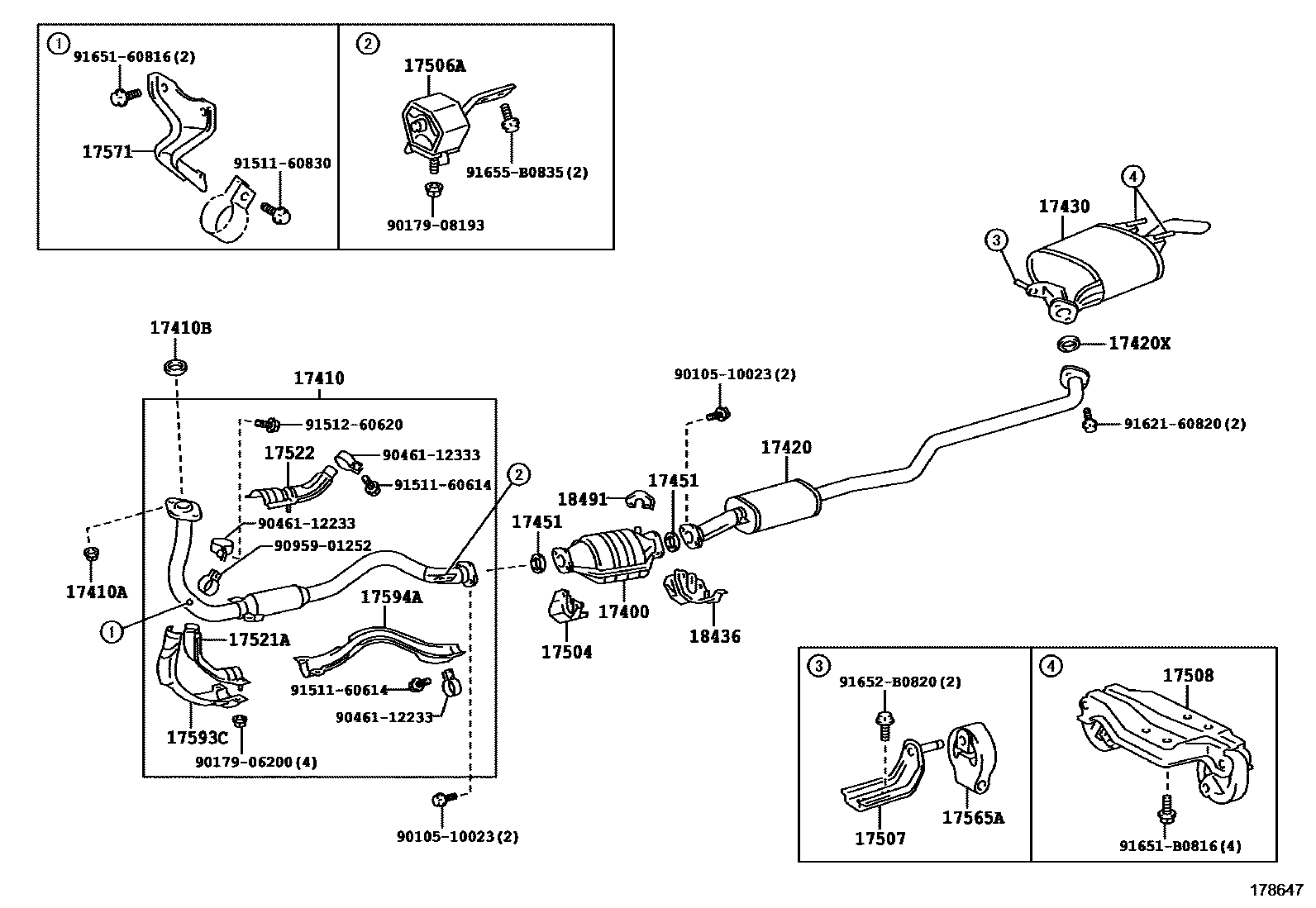

Toyota COROLLA Exhaust Pipe EPC diagram — 178647 — Exhaust Pipe — 178647 (199305 – 199505)

PNC and OE references

PNC	Part name	OE numbers
17400	Three-way catalytic converter assembly with catalyst	18450-11150 · 18450-11170 · 18450-15140 · 18450-16540 · 18450-16550 · 18450-16640 · 18450-16650 · 18450-16700 · 18450-1A020
17402	No. 2 front exhaust pipe sub-assembly	17402-16170 · 17402-16200
17408	Exhaust pipe tail throat sub-assembly	17408-16010 · 17408-50010 · 17408-74040
17410	Front exhaust pipe assembly	17410-11560 · 17410-11570 · 17410-11650 · 17410-11660 · 17410-11790 · 17410-11860 · 17410-15241 · 17410-15260 · 17410-16780 · 17410-16810 · 17410-16820 · 17410-1A120 · 17410-1A230 · 17410-1A240 · 17410-1A520 · 17410-1B120 · 17410-1B280 · 17410-1B290 · 17410-64401 · 17410-64530 · 17410-64532 · 17410-64550 · 17410-64551 · 17410-64600 · 17410-64601 · 17410-64691 · 17410-64700 · 17410-64780 · 17410-64830 · 17410-64840
17410A	Exhaust pipe fixing studs and nuts	90179-10070
17410B	Exhaust pipe gasket	17451-64030 · 90917-06061 · 90917-06064 · 90917-06065 · 90917-06077 · 90917-06080
17420	Central exhaust pipe assembly	17420-11210 · 17420-11220 · 17420-11300 · 17420-11430 · 17420-11510 · 17420-15150 · 17420-15160 · 17420-16350 · 17420-16540 · 17420-16560 · 17420-16650 · 17420-16651 · 17420-16700 · 17420-64130 · 17420-64131 · 17420-64140 · 17420-64150 · 17420-64151 · 17420-64160 · 17420-64200 · 17420-64220 · 17420-64270 · 17420-64290 · 17420-64300 · 17420-64330 · 17420-64340
17420X	Center exhaust pipe liner	90917-06039 · 90917-06045 · 90917-06060 · 90917-06074
17430	Exhaust tailpipe assembly	17430-11620 · 17430-11630 · 17430-11631 · 17430-15540 · 17430-15590 · 17430-15591 · 17430-15620 · 17430-1A010 · 17430-1A070 · 17430-1A080 · 17430-1A270 · 17430-1A280 · 17430-1A530 · 17430-1A531 · 17430-1A730 · 17430-1A780 · 17430-1A781 · 17430-1B230 · 17430-64680 · 17430-64690 · 17430-64691 · 17430-64700 · 17430-64701 · 17430-6A120 · 17430-6A230 · 17430-6A350 · 17430-6A360 · 17430-6A361 · 17440-16010 · 17440-16020
17444A	front exhaust pipe spacer	17444-64030
17448	Exhaust pipe tail throat	17408-16020 · 17448-43010 · 17448-70020
17451	Exhaust pipe gasket	90917-06039 · 90917-06043 · 90917-06044 · 90917-06045 · 90917-06054 · 90917-06057 · 90917-06074 · 90917-06082
17452	Exhaust pipe clamp	17452-16110 · 90461-15013
17452A	Exhaust pipe clamp	17452-15020 · 17452-16120 · 17452-16140
17460	Three-way catalytic converter assembly with tube	17460-11060 · 17460-15040 · 17460-15060 · 17460-16100 · 17460-16140 · 17460-16160 · 17460-16210 · 17460-64010 · 17460-64020
17504	Three-way catalytic converter bracket sub-assembly	17504-16020 · 17504-16030 · 17504-16040
17505F	Exhaust pipe bracket sub-assembly	17505-64060
17506A	No. 1 exhaust pipe bracket sub-assembly	17506-11100 · 17506-15070 · 17506-15080 · 17506-16080 · 17506-16100 · 17506-16110 · 17506-16120 · 17506-16130 · 17506-16150 · 17506-64020
17507	No. 2 exhaust pipe bracket sub-assembly	17507-11050 · 17507-15040
17508	No. 3 exhaust pipe bracket sub-assembly	17508-11060 · 17508-11080 · 17508-15050 · 17508-16050 · 17508-16060 · 17508-16070 · 17508-64040
17509A	No. 4 exhaust pipe bracket sub-assembly	17509-11070 · 17509-11080 · 17509-16040 · 17509-16050
17521	No. 1 front exhaust pipe protection device	17521-11230
17521A	No. 1 upper exhaust pipe protection device	17521-11110 · 17521-11140 · 17521-11150 · 17521-11180 · 17521-15130 · 17521-16350 · 17521-64040 · 17521-64100 · 17521-64120 · 17521-64170
17522	No. 2 upper exhaust pipe protection device	17521-11110 · 17522-11120 · 17522-15130 · 17522-15140 · 17522-16190 · 17522-16260
17523	No. 3 upper exhaust pipe protection device	17523-16210 · 17523-16220
17524	No. 4 upper exhaust pipe protection device	17524-16050
17525	No. 5 upper exhaust pipe protection device	17525-16020
17526	No. 6 upper exhaust pipe protection device	17526-16050
17543	No. 3 exhaust pipe protection device stay	17543-26010 · 17543-64010
17544	No. 4 exhaust pipe protection device stay	17544-64010
17562	No. 2 exhaust pipe lifting lug	17562-16240
17565A	No. 4 exhaust pipe lifting lug	17565-11160 · 17565-15140 · 17565-16230
17570	Exhaust pipe bracket assembly	17570-16010 · 17570-16020
17571	No. 1 exhaust pipe bracket	17571-11110 · 17571-11200 · 17571-64130 · 17571-64170
17572B	No. 2 exhaust pipe bracket	17572-64120
17578A	muffler clip	17578-11020 · 17578-11030 · 17578-16030 · 17578-16050 · 17578-64010
17585	Exhaust pipe hanger	17585-16060
17588A	Exhaust pipe hanger spacer	17588-16020
17591A	Exhaust pipe bracket block	17591-16020
17593A	card holder	90461-12233 · 90461-12251
17593C	No. 1 lower exhaust pipe protection device	17593-11150 · 17593-11200 · 17593-11210 · 17593-11260 · 17593-11290 · 17593-15090 · 17593-15140 · 17593-16310 · 17593-64040 · 17593-64090 · 17593-64110 · 17593-64140
17594A	No. 2 lower exhaust pipe protection device	17594-11260 · 17594-11300 · 17594-15140 · 17594-15160 · 17594-16240 · 17594-16320
17595	No. 3 lower exhaust pipe protection device	17595-16350 · 17595-16380
17596A	No. 4 lower exhaust pipe protection device	17596-16150 · 17596-16160
17597A	No. 5 lower exhaust pipe protection device	17597-16060
17598	No. 6 lower exhaust pipe protection device	17598-16040
18435A	Integrated three-way catalytic converter protection device	18435-11040 · 18435-15060
18436	No. 1 integrated three-way catalytic converter protection device	17504-11010 · 18436-16030 · 18436-63010
18491	Thermal sensor air inlet flange	18491-16010 · 18491-16020 · 18491-63010
