Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 11 images and 27 PNC and OE references.

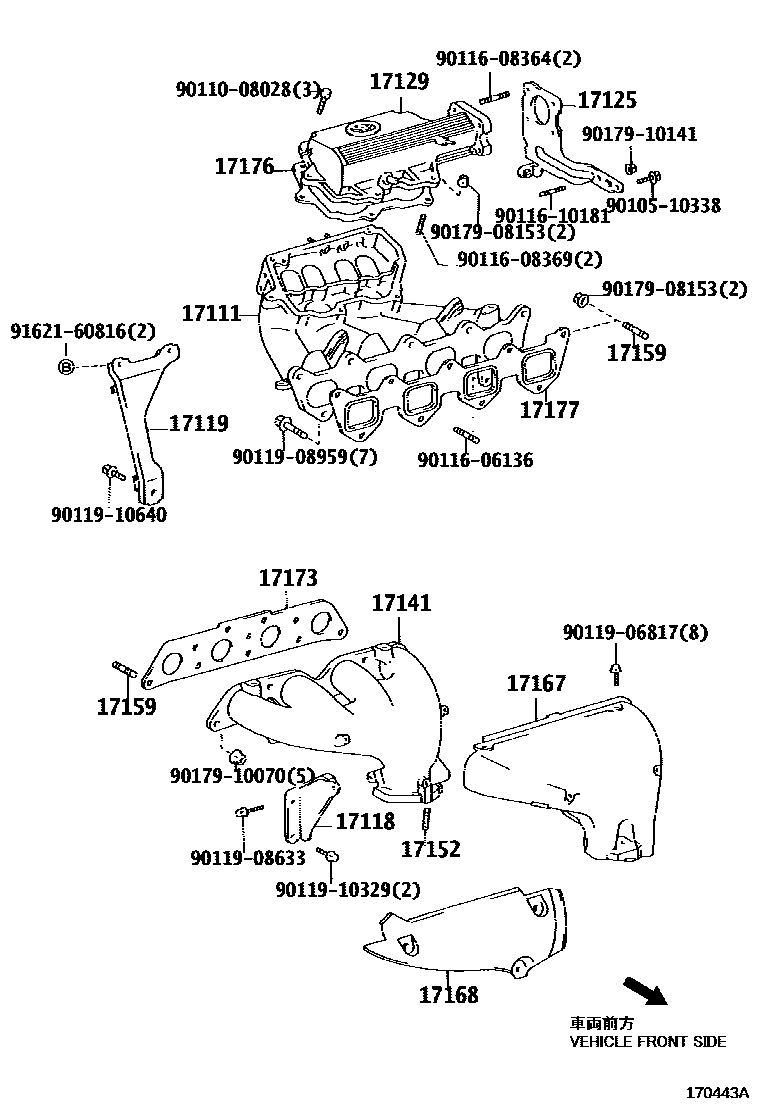

Toyota COROLLA Manifold EPC diagram — 170443A — Manifold — 170443A (199106 – 199505)

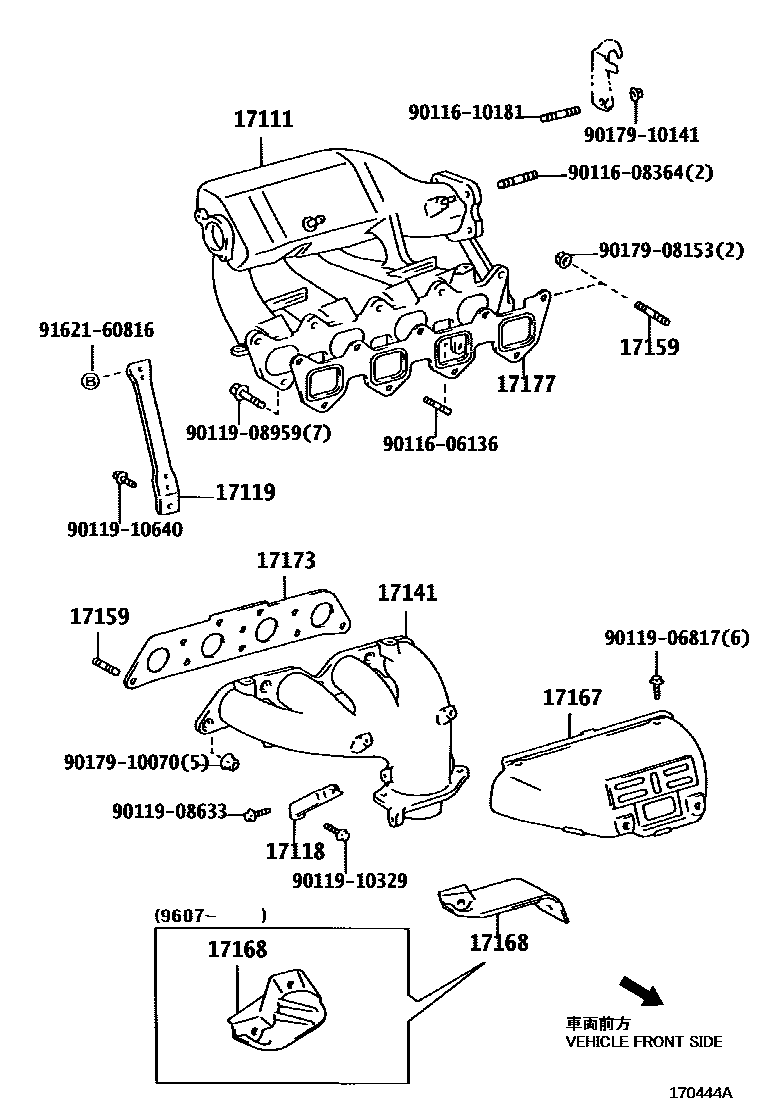

Toyota COROLLA Manifold EPC diagram — 170444A — Manifold — 170444A (199505 – 999999)

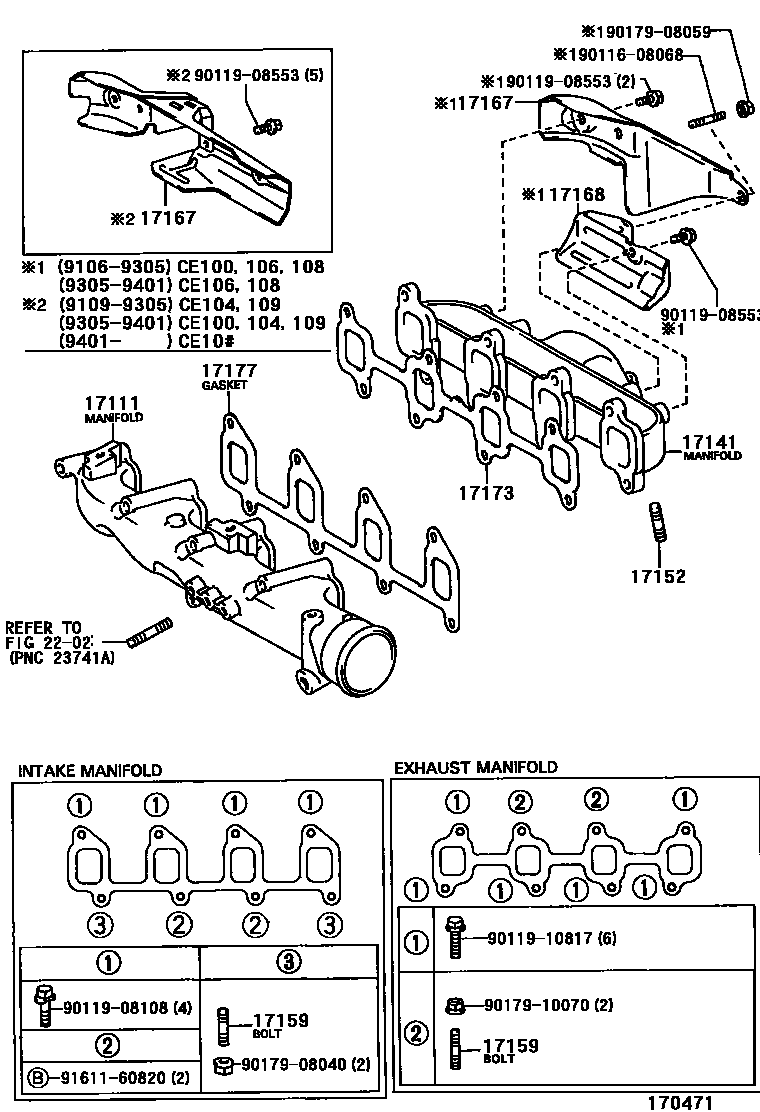

Toyota COROLLA Manifold EPC diagram — 170471 — Manifold — 170471 (199106 – 199804)

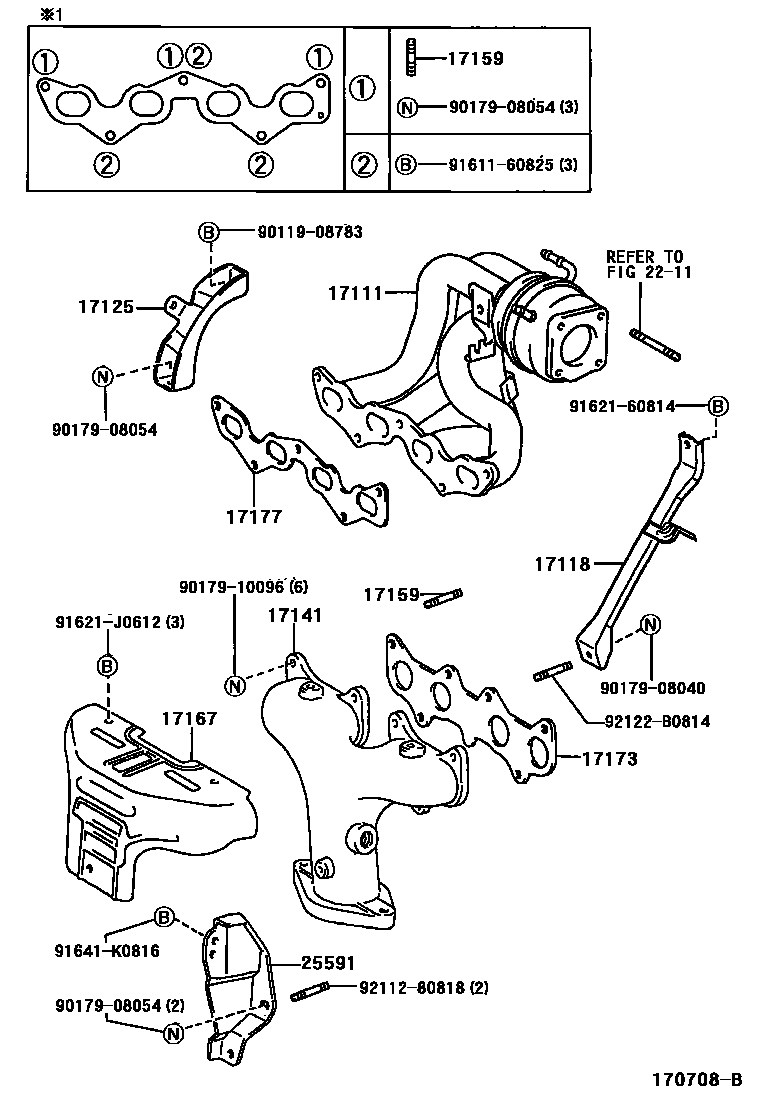

Toyota COROLLA Manifold EPC diagram — 170708B — Manifold — 170708B (199704 – 999999)

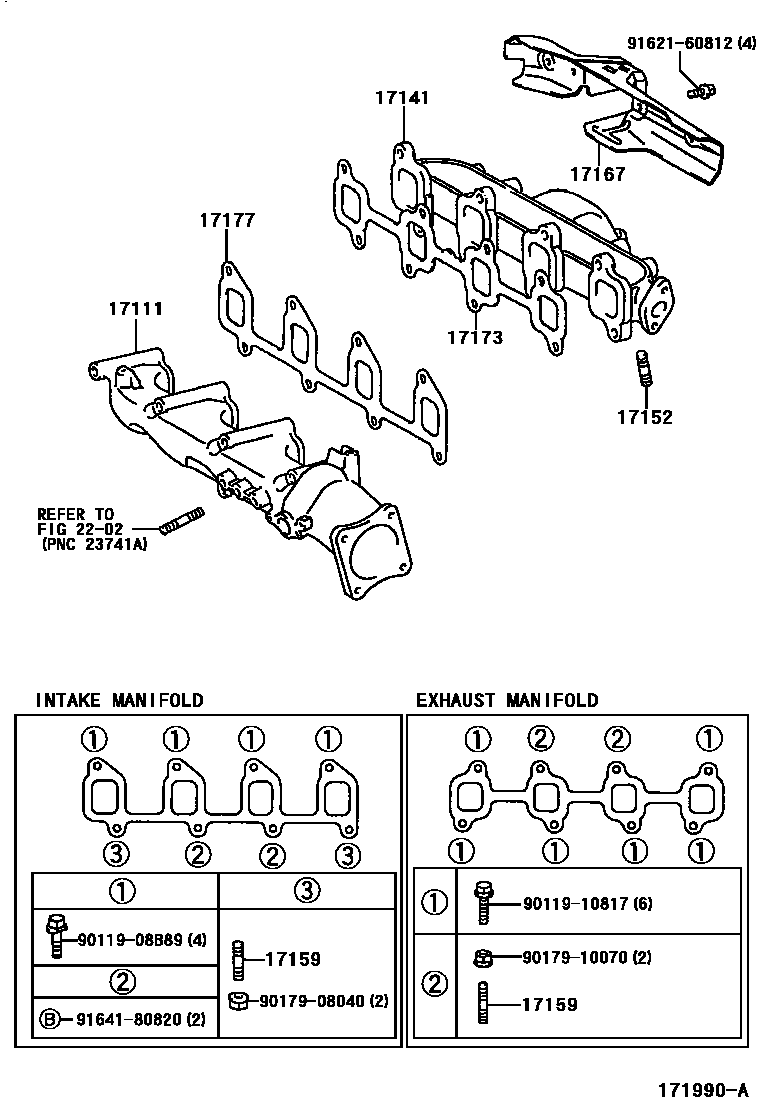

Toyota COROLLA Manifold EPC diagram — 171990A — Manifold — 171990A (199804 – 999999)

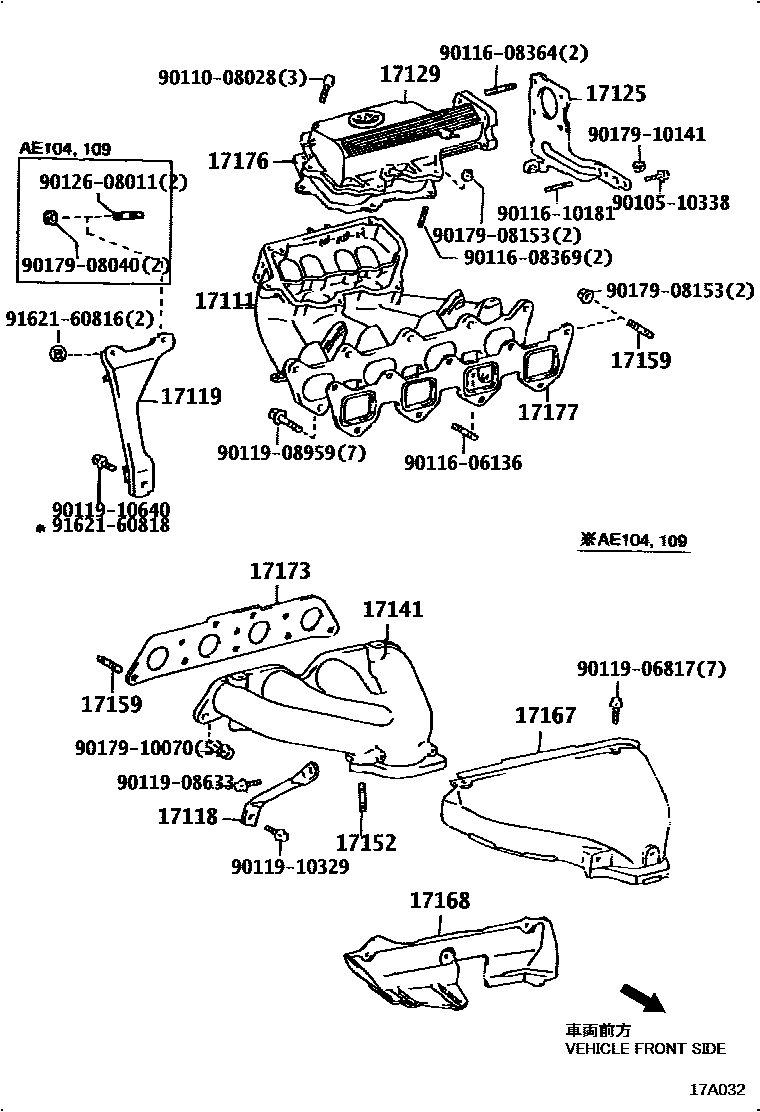

Toyota COROLLA Manifold EPC diagram — 17A032 — Manifold — 17A032 (199106 – 999999)

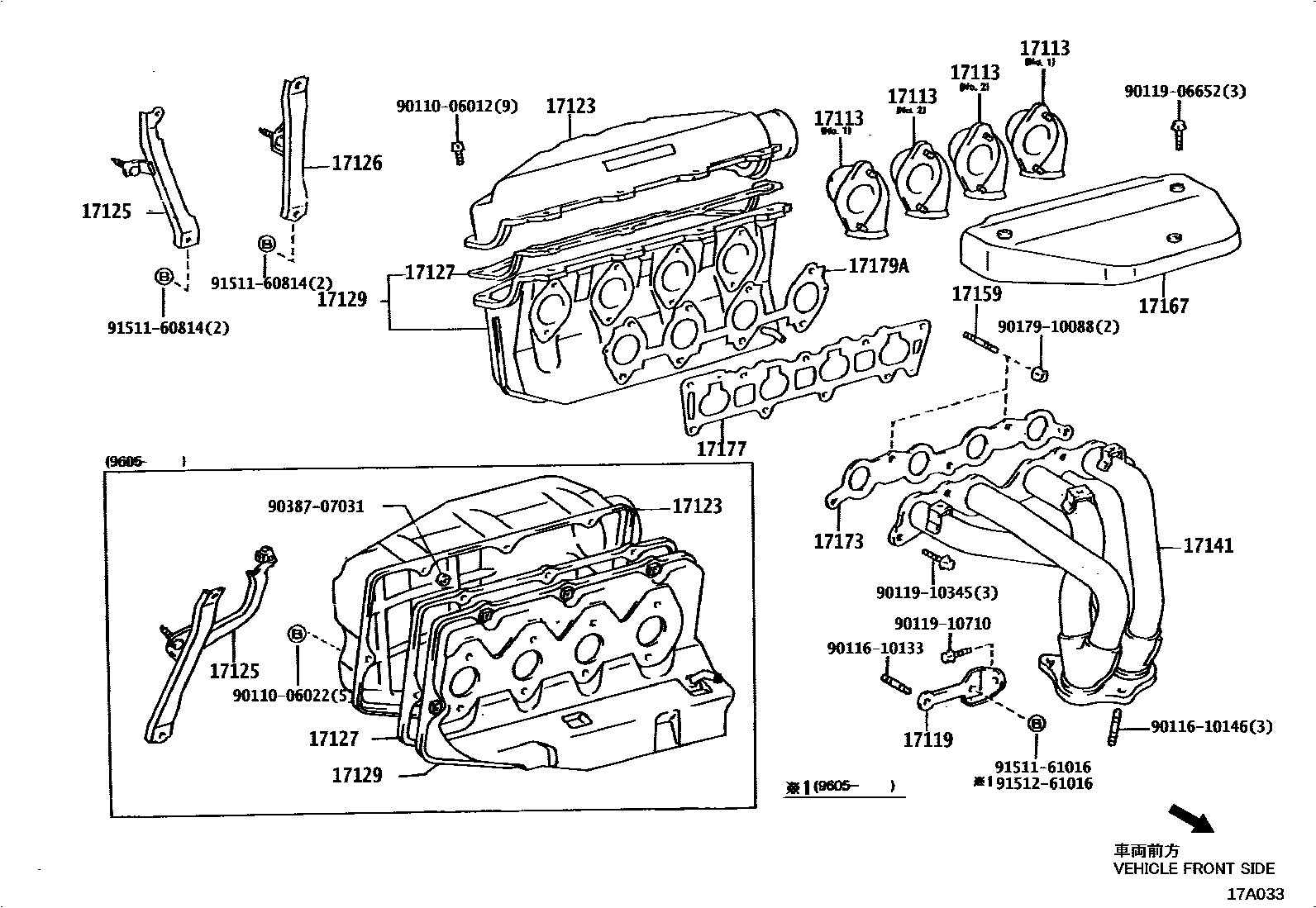

Toyota COROLLA Manifold EPC diagram — 17A033 — Manifold — 17A033 (199106 – 999999)

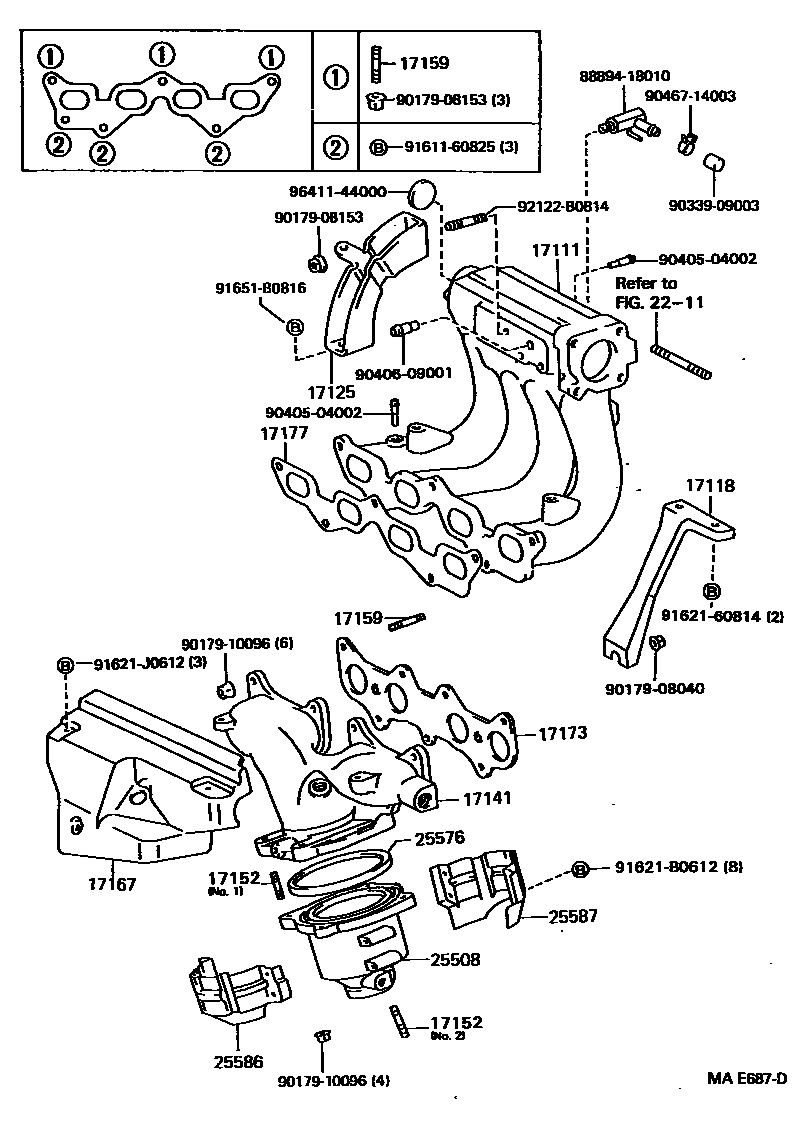

Toyota COROLLA Manifold EPC diagram — MAE687D — Manifold — MAE687D (199106 – 199305)

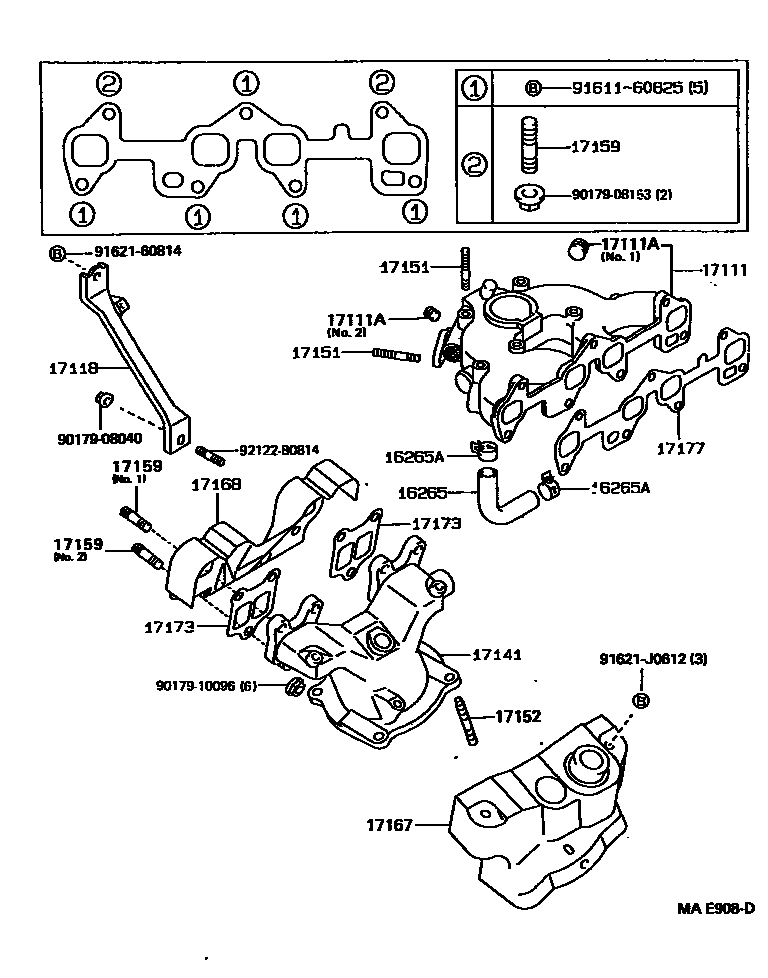

Toyota COROLLA Manifold EPC diagram — MAE908D — Manifold — MAE908D (199109 – 199401)

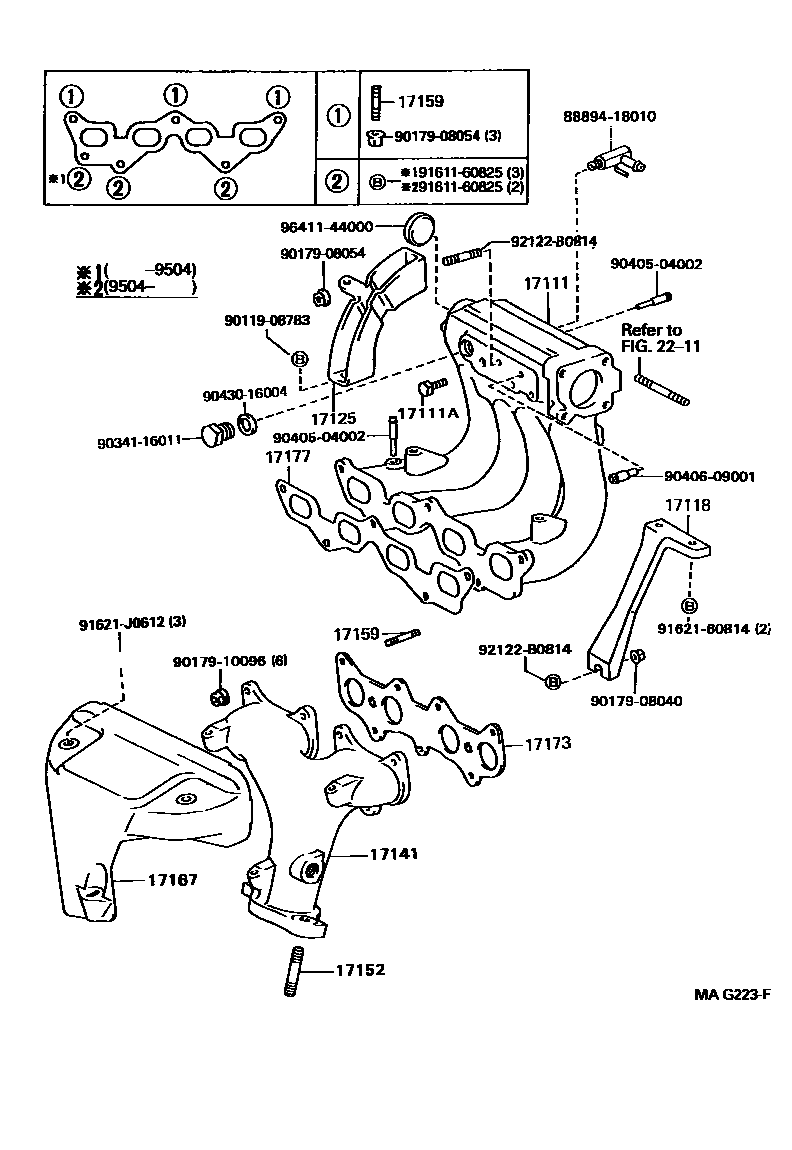

Toyota COROLLA Manifold EPC diagram — MAG223F — Manifold — MAG223F (199401 – 199704)

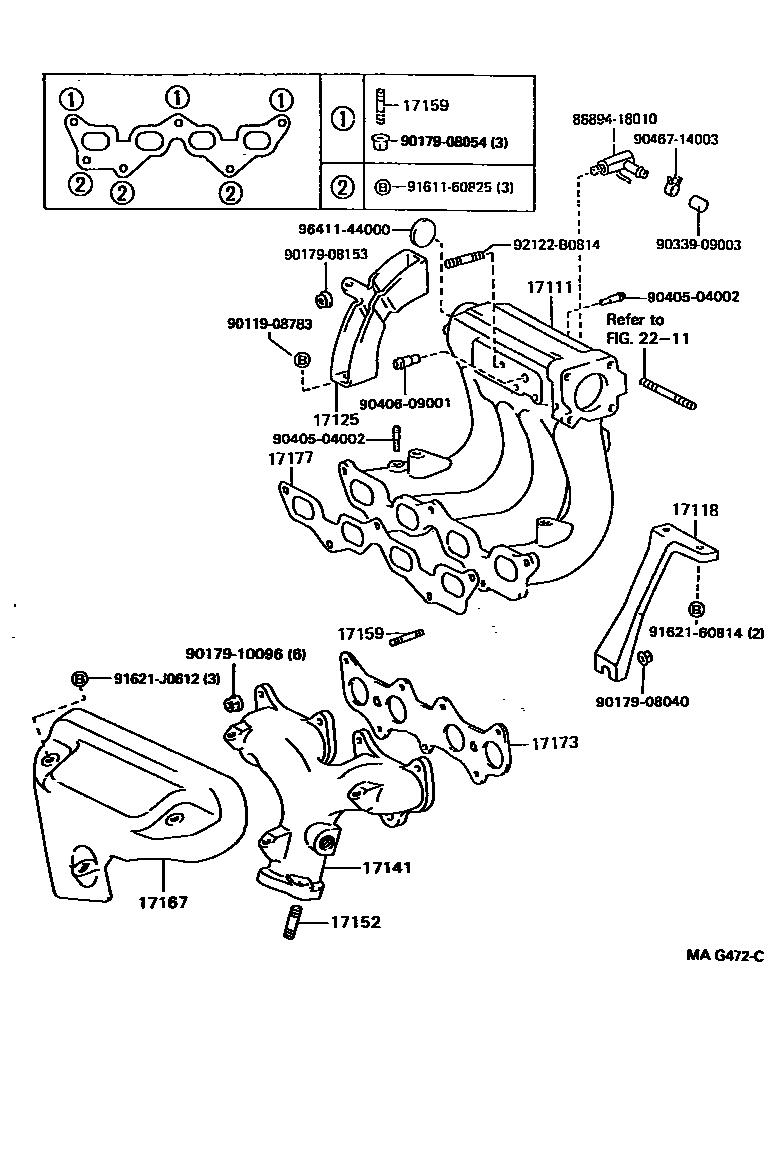

Toyota COROLLA Manifold EPC diagram — MAG472C — Manifold — MAG472C (199305 – 199704)

PNC and OE references

PNC	Part name	OE numbers
16265	Intake manifold water hose	16265-11010 · 16265-11020
16265A	Hose clamp or clip (for intake manifold water hose)	90467-21001
17111	Intake Manifold	17101-11190 · 17101-11210 · 17101-11231 · 17101-11232 · 17101-11261 · 17101-11262 · 17101-11370 · 17101-11380 · 17101-15060 · 17101-15070 · 17101-16190 · 17111-64150 · 17111-64180 · 17111-64290
17111A	No. 1 screw plug	90344-52004 · 90344-53015 · 90345-51006
17113	intake pipe	17113-16010 · 17113-16020 · 17115-16010
17118	Manifold stays	17118-11110 · 17118-11130 · 17118-11160 · 17118-11180 · 17118-11290 · 17118-11340 · 17118-15080 · 17118-15081 · 17118-16050 · 17118-16071
17119	No. 2 manifold stay	17012-15010 · 17012-16010 · 17118-16090 · 17139-15050
17123	Pressure tank cover	17123-16010 · 17123-16030
17125	No. 1 pressure tank stay	17125-11030 · 17125-11060 · 17125-15020 · 17125-16060 · 17125-16070 · 17125-16080
17126	No. 2 pressure tank stay	17126-16010
17127	Pressure tank cover gasket	17127-16010 · 17127-16020
17129	Intake pressure tank	17109-15010 · 17129-16020 · 17129-16030
17141	exhaust manifold	17141-11170 · 17141-11250 · 17141-11260 · 17141-11280 · 17141-11300 · 17141-11340 · 17141-15140 · 17141-15150 · 17141-15151 · 17141-16280 · 17141-16300 · 17141-16360 · 17141-64091 · 17141-64101 · 17141-64150 · 17141-64151 · 17141-64180 · 17141-64181 · 17141-64200 · 17141-64210 · 17141-64280
17151	Studs (for manifold to carburetor)	92122-40828
17152	Studs (for manifold to exhaust)	90116-10017 · 90116-10058 · 90116-10087 · 90116-10146 · 90116-10179 · 90126-10003
17159	Studs (for manifold to cylinder head)	90116-10037 · 90116-10095 · 90116-10131 · 90116-10132 · 90116-10196 · 90126-10017 · 92112-60825 · 92112-61028 · 92122-60820 · 92122-61025 · 92122-61028 · 92132-60825
17167	Exhaust manifold No. 1 heat shield	17107-11140 · 17107-11150 · 17167-11210 · 17167-11220 · 17167-11310 · 17167-11320 · 17167-15060 · 17167-15080 · 17167-15090 · 17167-16150 · 17167-16160 · 17167-16190 · 17167-64060 · 17167-64070 · 17167-64090 · 17167-64120
17168	Exhaust manifold No.2 insulation pad	17168-10011 · 17168-11031 · 17168-15030 · 17168-15031 · 17168-16070 · 17168-16071 · 17168-16100 · 17168-64050
17173	Gasket (exhaust manifold to cylinder head)	17173-10021 · 17173-11021 · 17173-11040 · 17173-11050 · 17173-15040 · 17173-16020 · 17173-16030 · 17173-64060
17176	Gasket (intake surge tank to intake manifold)	17176-15010
17177	No. 1 gasket (intake manifold to cylinder head)	17171-15030 · 17177-10020 · 17177-11020 · 17177-11021 · 17177-11040 · 17177-11070 · 17177-16020 · 17177-16030 · 17177-64020
17179A	No. 2 intake manifold gasket	17179-16010 · 17179-16030
25508	Manifold three-way catalytic converter sub-assembly	25508-11100
25576	Manifold three-way catalytic converter gasket	25576-11020 · 25576-15020
25586	No. 1 manifold three-way catalytic converter vibration isolation pad	25586-11022
25587	No. 2 manifold three-way catalytic converter vibration isolation pad	25587-11022
25591	Manifold bracket	25591-11080 · 25591-11090
