Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 5 images and 12 PNC and OE references.

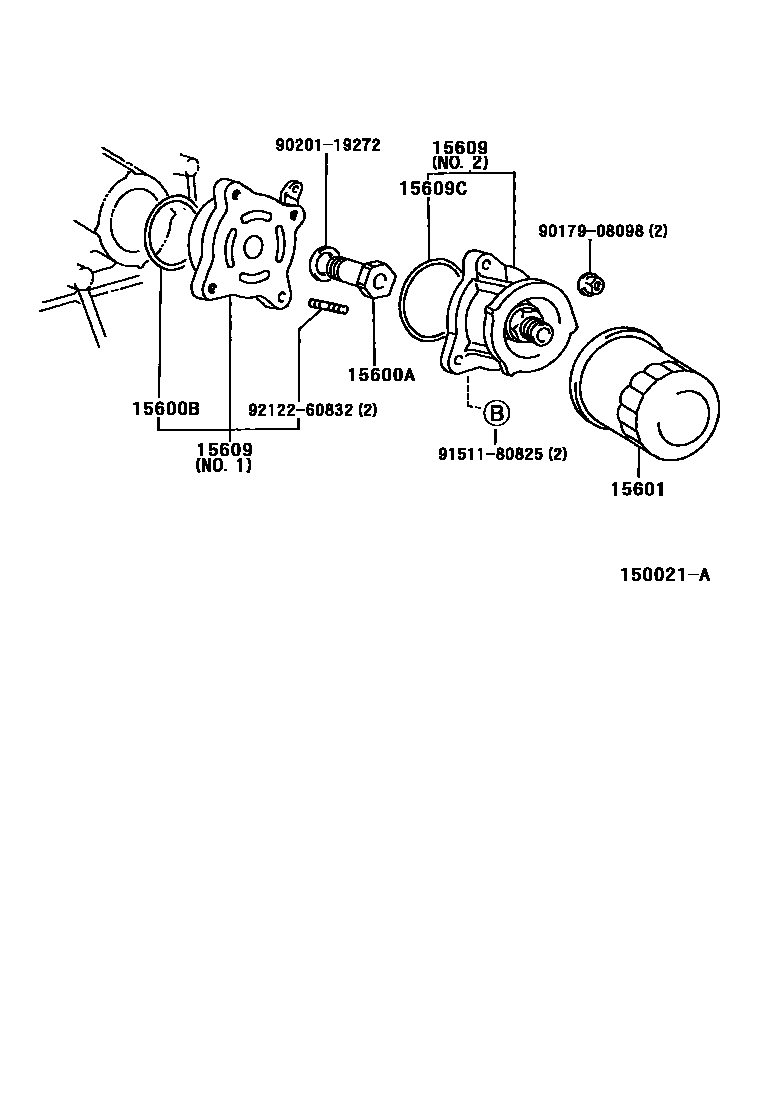

Toyota COROLLA Oil Filter EPC diagram — 150021A
Oil Filter — 150021A (199106 – 999999)

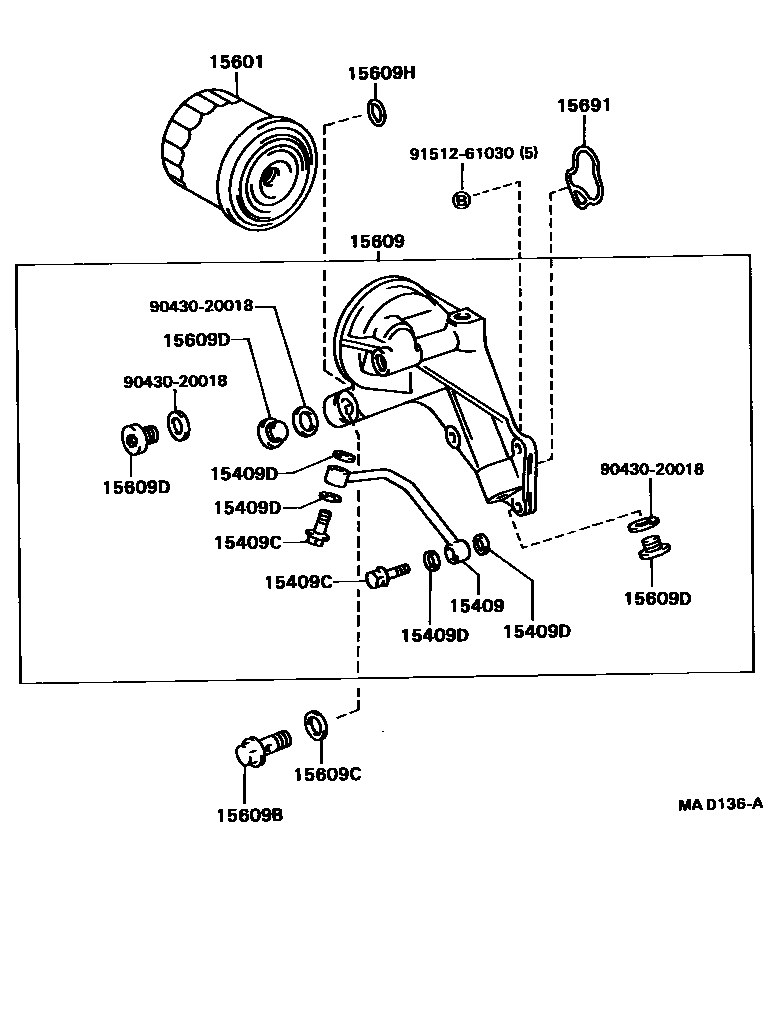

Toyota COROLLA Oil Filter EPC diagram — MAD136A
Oil Filter — MAD136A (199109 – 999999)
Toyota COROLLA Oil Filter EPC diagram — MAE685
Oil Filter — MAE685 (199106 – 999999)

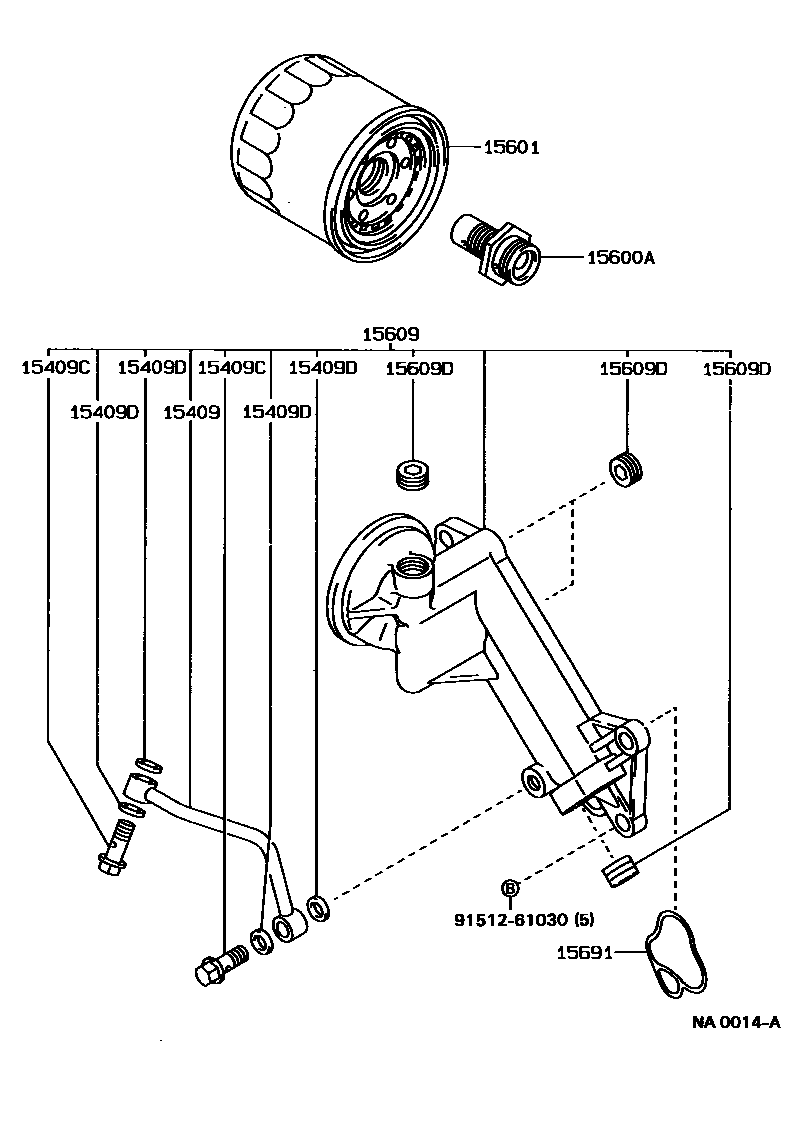

Toyota COROLLA Oil Filter EPC diagram — NA0014A
Oil Filter — NA0014A (199106 – 999999)
Toyota COROLLA Oil Filter EPC diagram — NA0088
Oil Filter — NA0088 (199106 – 999999)

PNC and OE references

PNCPart nameOE numbers
15409Oil filter outlet pipe or oil outlet hose15431-64030 · 15431-64040
15409CJoint bolt (for oil filter outlet pipe)90401-10031
15409DGasket (for oil filter outlet pipe)90430-10035
15600AConnector (for oil filter)15116-54021 · 90404-19001 · 90404-19006 · 90404-19007
15600BNo. 1 O-ring (for oil filter)15188-11010 · 15188-11011
15601Oil filter sub-assembly90080-91058 · 90915-03001 · 90915-03004 · 90915-10001 · 90915-10002 · 90915-10003 · 90915-10004 · 90915-30001 · 90915-30003
15609Oil filter bracket sub-assembly15607-16020 · 15607-16021 · 15608-64040 · 15608-64041 · 15608-64042 · 15609-16010 · 15609-16011 · 15609-64010
15609BConnector (for oil filter bracket)90401-18020
15609CGasket (for oil filter holder connector)15188-11012 · 90029-20039 · 90430-20014
15609DStraight threaded plug with head (for oil filter bracket)90341-20002 · 90344-53002
15609HO-ring (for oil filter bracket)90301-22004
15691oil filter gasket15691-64040 · 15691-64041
