Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 7 images and 8 PNC and OE references.

Toyota COROLLA Ventilation Hose EPC diagram — 120081C
Ventilation Hose — 120081C (199106 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — 120082
Ventilation Hose — 120082 (199804 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — 120085
Ventilation Hose — 120085 (199106 – 999999)

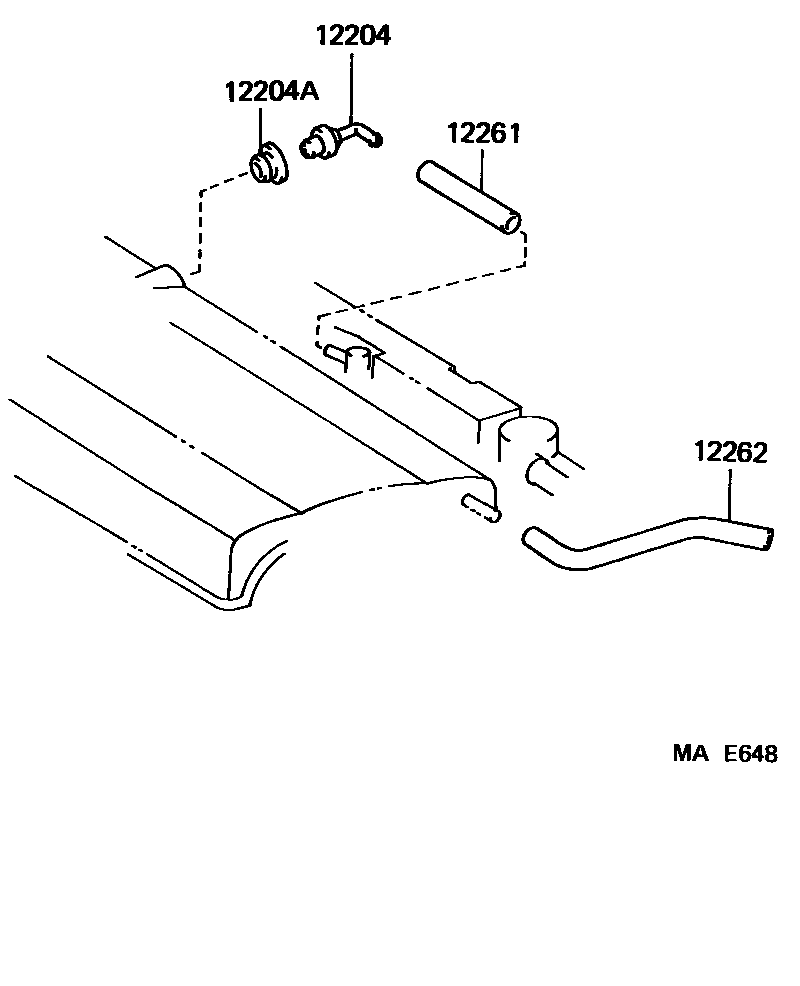

Toyota COROLLA Ventilation Hose EPC diagram — MAE648
Ventilation Hose — MAE648 (199106 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — MAE858
Ventilation Hose — MAE858 (199109 – 199401)
Toyota COROLLA Ventilation Hose EPC diagram — MAF550
Ventilation Hose — MAF550 (199106 – 199401)
Toyota COROLLA Ventilation Hose EPC diagram — MAG245
Ventilation Hose — MAG245 (199305 – 199804)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-10020 · 12204-10030 · 12204-10040 · 12204-11040 · 12204-11050 · 12204-15050
12204AGasket (for ventilation system)90480-18001 · 90480-18006
12229ventilation duct12229-11020
12251Ventilation duct clamp12251-64010
12261Ventilation Hose12261-11020 · 12261-11050 · 12261-11160 · 12261-11180 · 12261-11200 · 12261-16070 · 12261-64090 · 12261-64110 · 12261-64120 · 12261-64190 · 12261-64280 · 90445-10064 · 90910-05222
12261AClip or clip (for vent hose)90467-10099 · 90467-15120 · 90467-18003 · 96132-51000
12262Ventilation hose No. 212262-10020 · 12262-11050 · 12262-16050 · 12262-16060 · 90445-15063 · 90445-15068
12262AClamp (for vent hose No. 2)90467-14001 · 90467-14017 · 90467-14043 · 90467-15022 · 90467-15027
