Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 5 images and 33 PNC and OE references.

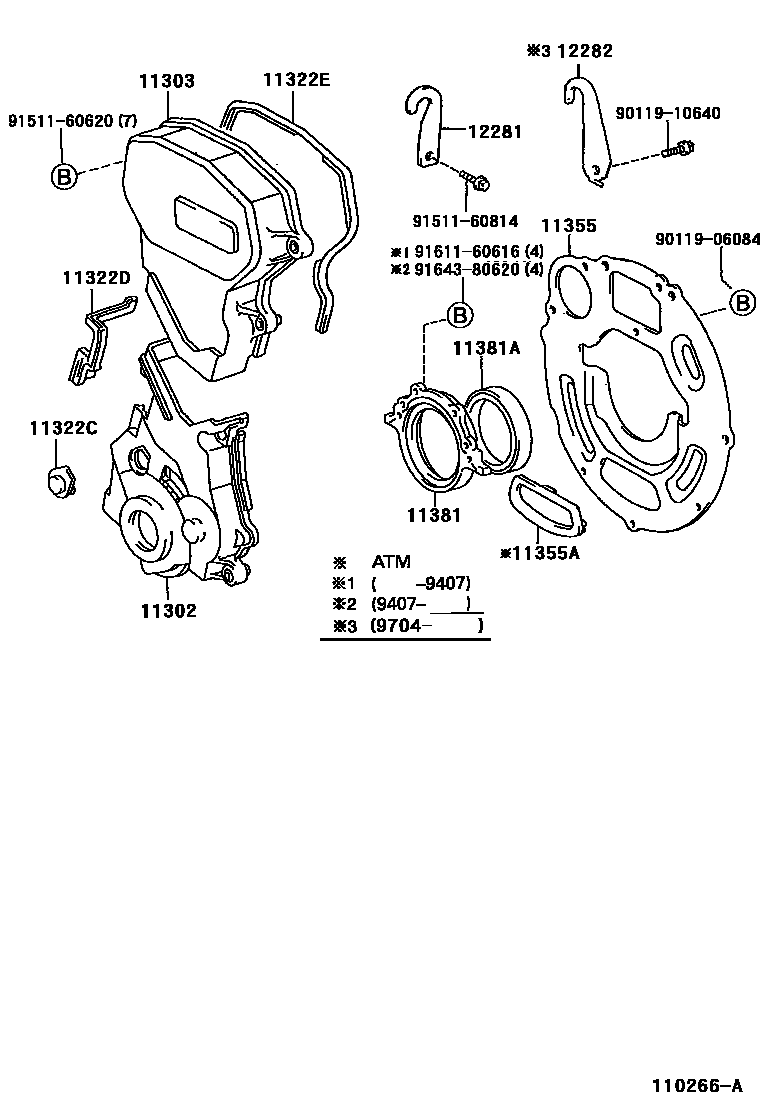

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 110266A
Timing Gear Cover & Rear End Plate — 110266A (199106 – 999999)

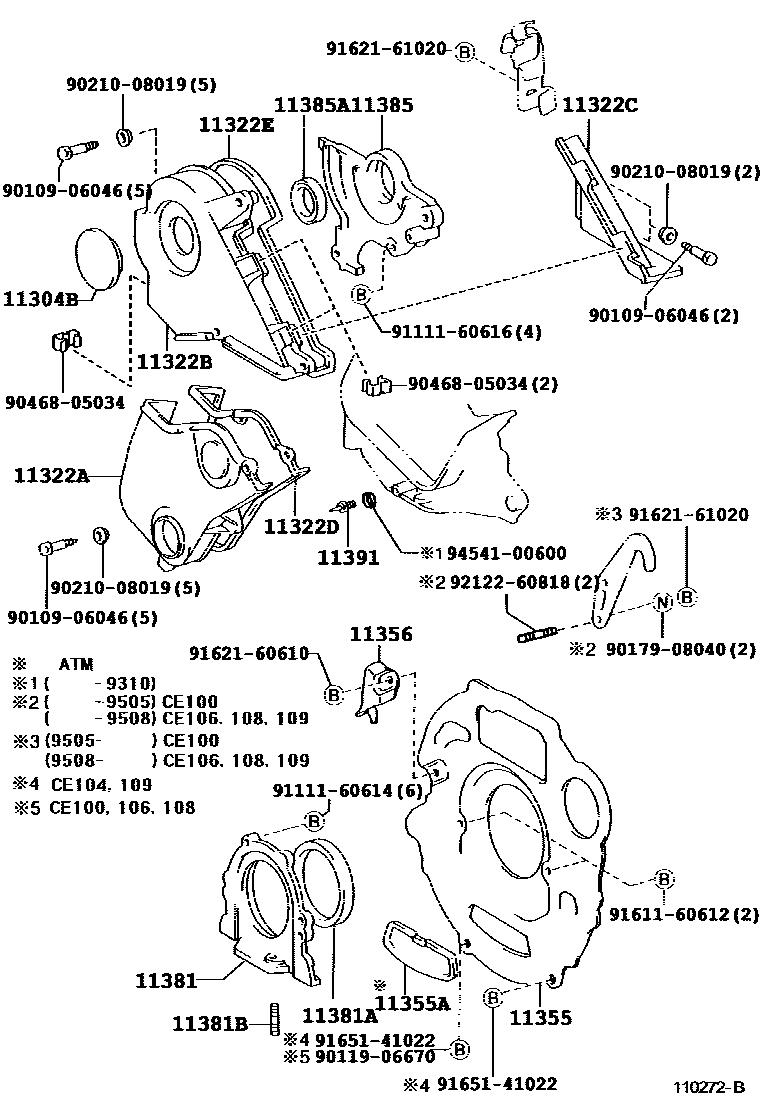

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 110272B
Timing Gear Cover & Rear End Plate — 110272B (199106 – 999999)

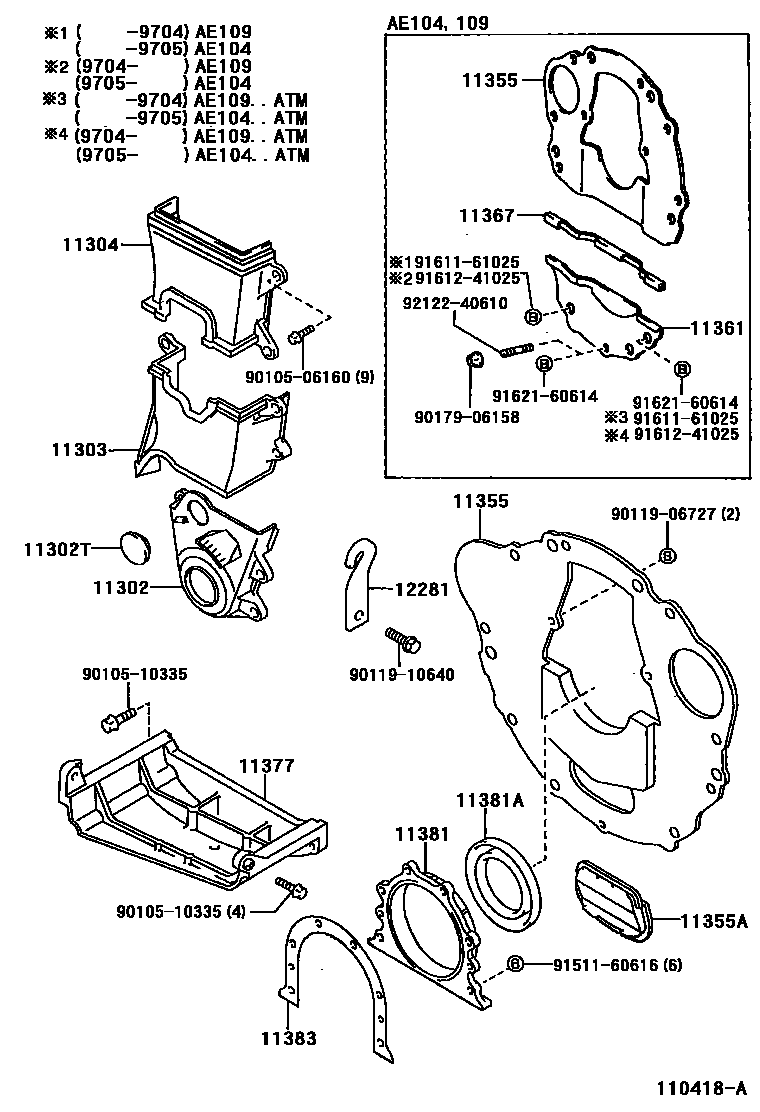

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 110418A
Timing Gear Cover & Rear End Plate — 110418A (199106 – 999999)

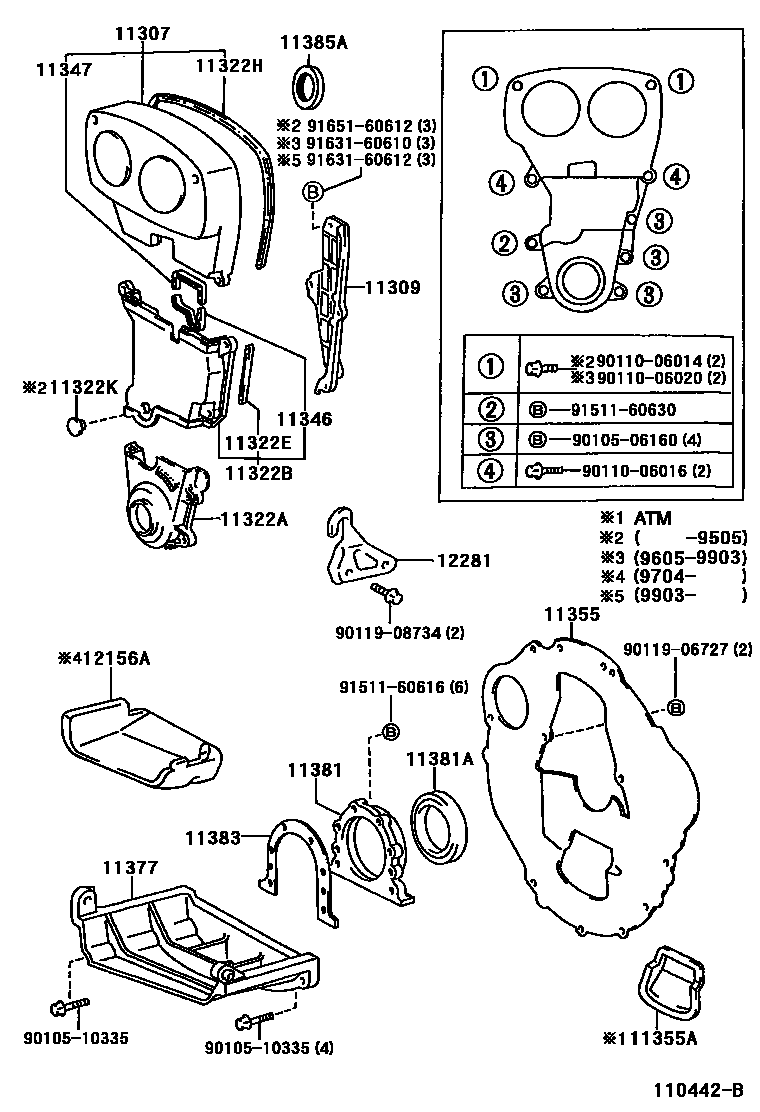

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 110442B
Timing Gear Cover & Rear End Plate — 110442B (199106 – 999999)

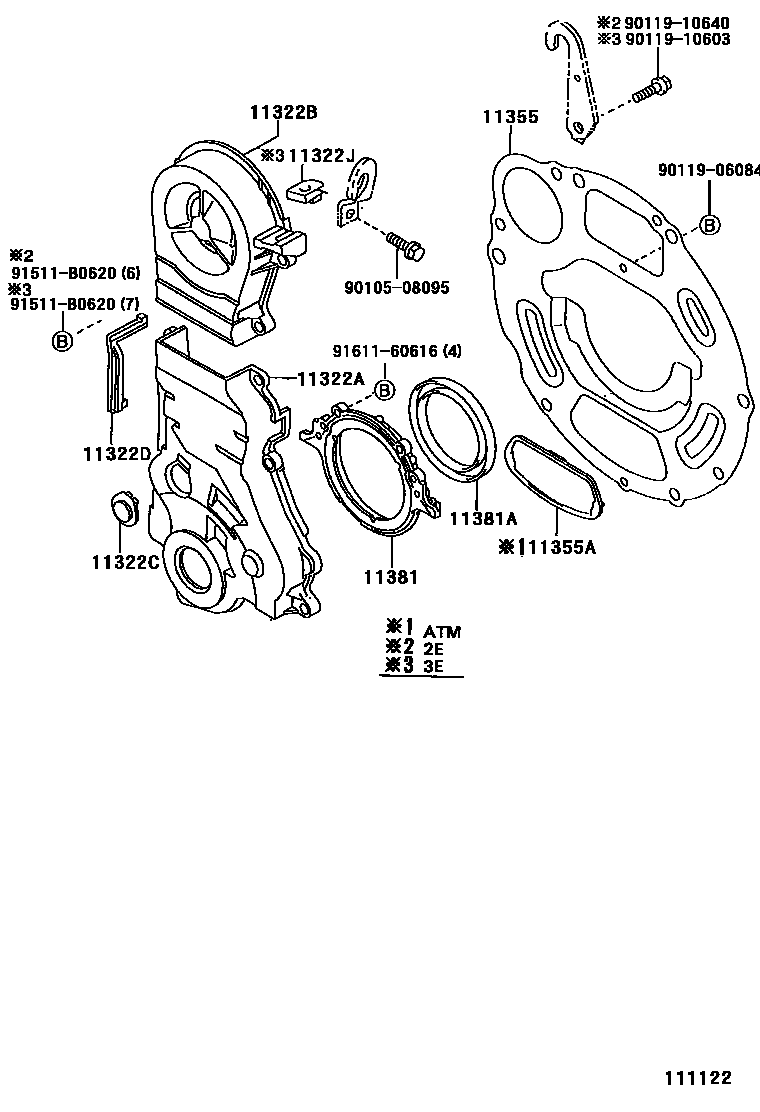

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 111122
Timing Gear Cover & Rear End Plate — 111122 (199109 – 199401)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-11060 · 11302-11062 · 11302-11080 · 11302-11082 · 11302-11100 · 11302-11110 · 11302-15050
11302Thole plug90950-01783
11303Crankshaft gear or crankshaft pulley cover sub-assembly11303-11030 · 11303-11031 · 11303-15050
11304No. 2 timing chain or timing belt cover11304-15030
11304BHalf-round plug (for No. 2 timing chain cover)90950-01357
11307No. 3 timing belt cover sub-assembly11304-16050 · 11304-16090
11309No. 4 timing belt cover sub-assembly11325-16030
11322ANo. 1 timing belt cover11302-11070 · 11302-11090 · 11302-16011 · 11302-16020 · 11321-64020 · 11321-64070
11322BNo. 2 timing belt cover11303-10022 · 11303-11021 · 11303-16030 · 11303-16080 · 11322-64010
11322CNo. 3 timing belt cover11323-10011 · 11323-64011
11322DNo. 1 timing belt cover gasket11328-11040 · 11328-11041 · 11328-11060 · 11328-11061 · 11328-64040 · 11328-64070
11322ENo. 2 timing belt cover gasket11329-11010 · 11329-16020 · 11329-64020
11322HNo. 3 timing belt cover gasket11319-16020
11322JFastener (for timing belt cover)52565-16020
11322Khole plug90950-01535
11346No. 4 timing belt cover gasket11346-16030 · 11346-16040
11347No. 5 timing belt cover gasket11347-16020 · 11347-16030
11355rear end plate11355-10011 · 11355-10012 · 11355-11011 · 11355-11012 · 11355-15070 · 11355-15080 · 11355-16010 · 11355-64050 · 11355-64051 · 11355-64052 · 11355-64060 · 11355-64061 · 11355-64062
11355AHole plug (for rear end plate)90950-01264 · 90950-01548 · 90950-01738
11356No. 2 rear end plate11356-64040
11361Flywheel housing bottom cover11361-16040
11367Flywheel housing lower gasket11367-15030
11377Rear end plate reinforcement11377-15010 · 11377-15011 · 11377-15012
11381RETAINER, ENGINE REAR OIL SEAL11381-10020 · 11381-10021 · 11381-15010 · 11381-64012 · 11381-64020
11381ASEAL, ENGINE REAR OIL90311-70007 · 90311-75009 · 90311-80012 · 90311-90008
11381BStud bolts (for engine rear oil seal race)90116-06033 · 90116-06134
11383Engine rear oil seal seat gasket11383-15011 · 11383-16010
11385Camshaft oil seal race11382-64011
11385AOil seal (for camshaft)90311-35013 · 90311-35022 · 90311-38044 · 90311-38061 · 90311-38081 · 90311-40015 · 90311-40016
11391Timing pointer11391-64010
12156AOil pan vibration isolation pad12156-16010
12281Engine No. 1 hanger12281-11031 · 12281-15050 · 12281-16040 · 12281-16041
12282ENGINE HANGER, NO.212282-11021 · 12282-11022 · 12282-11061 · 12282-11062
