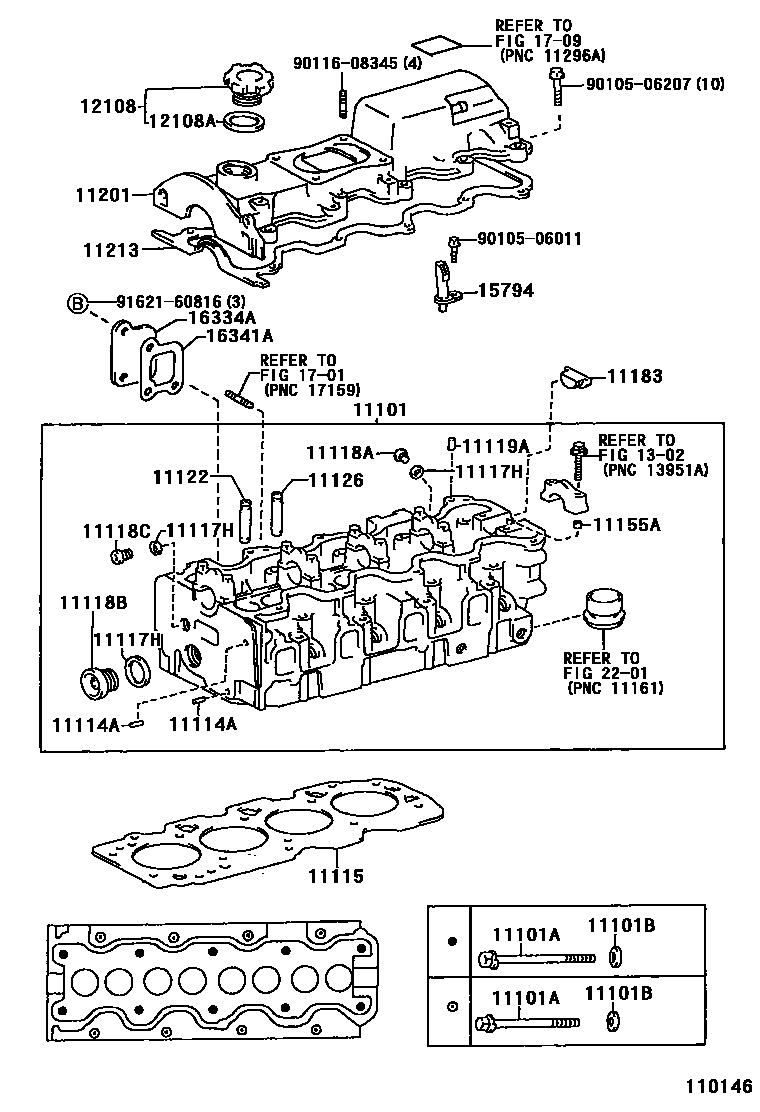

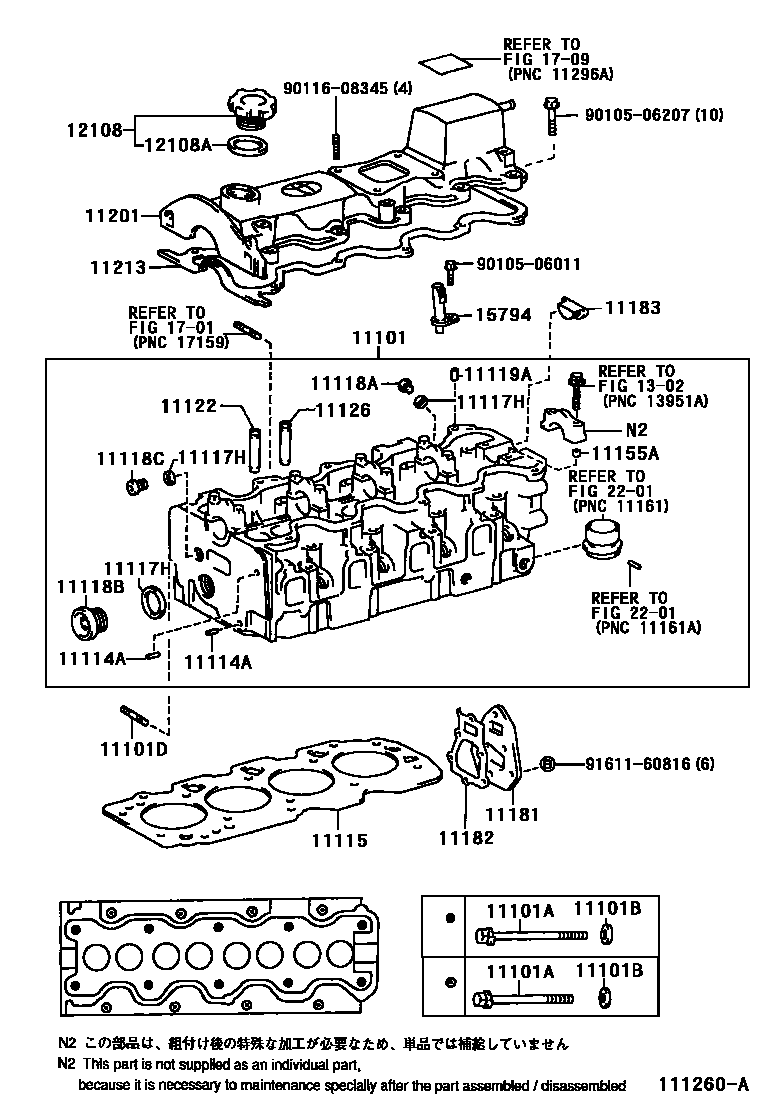

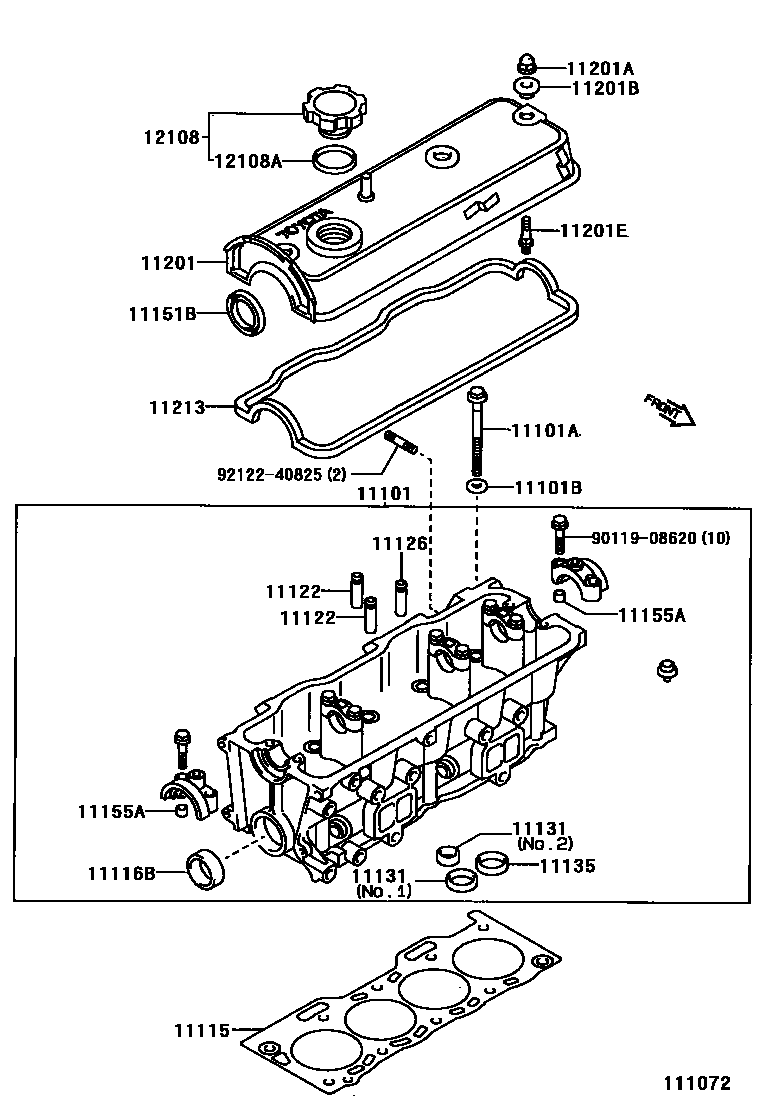

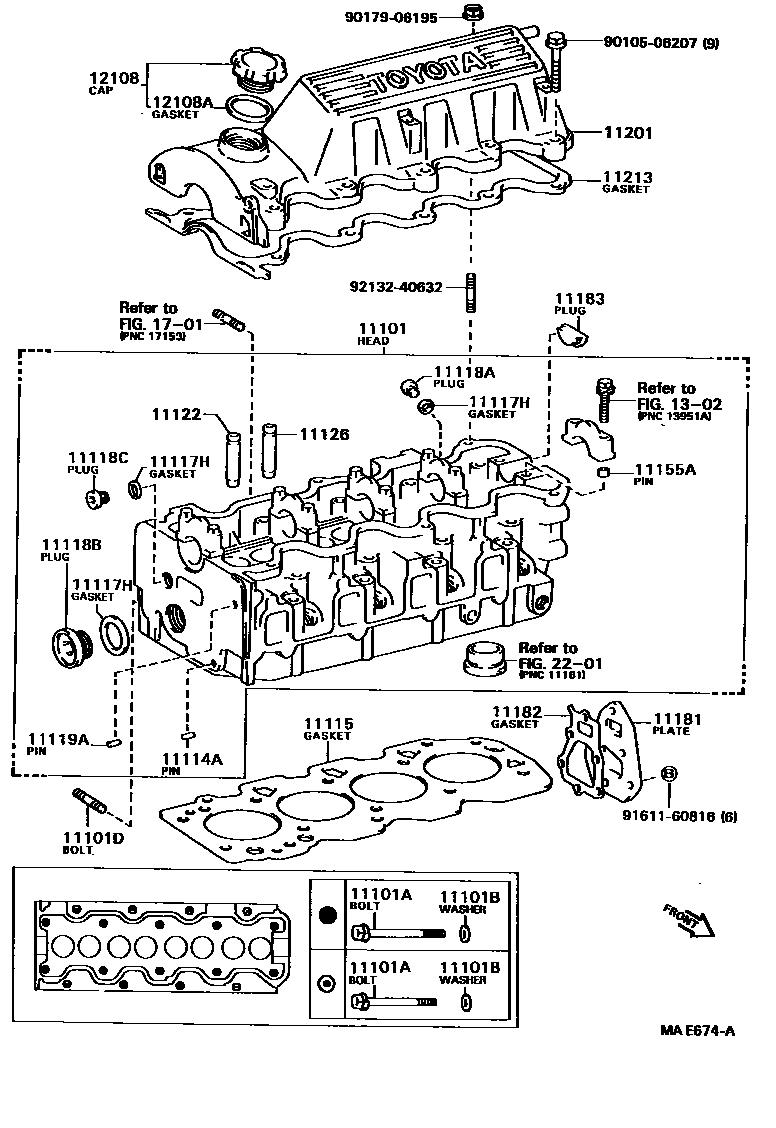

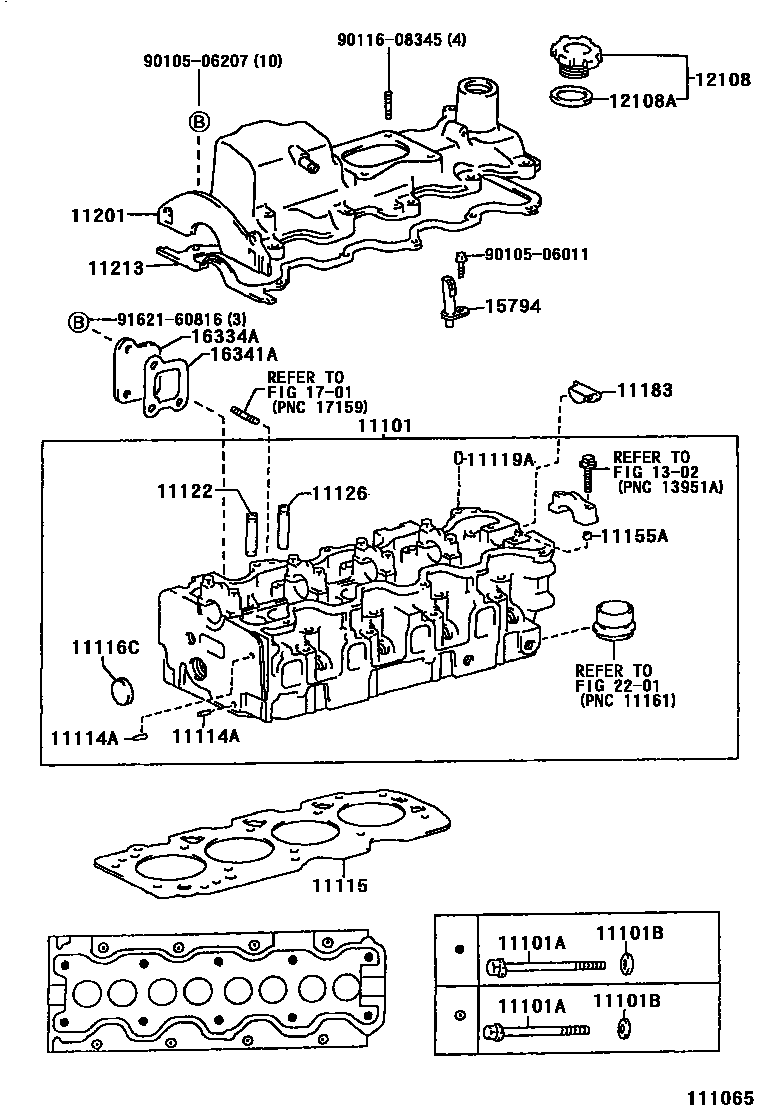

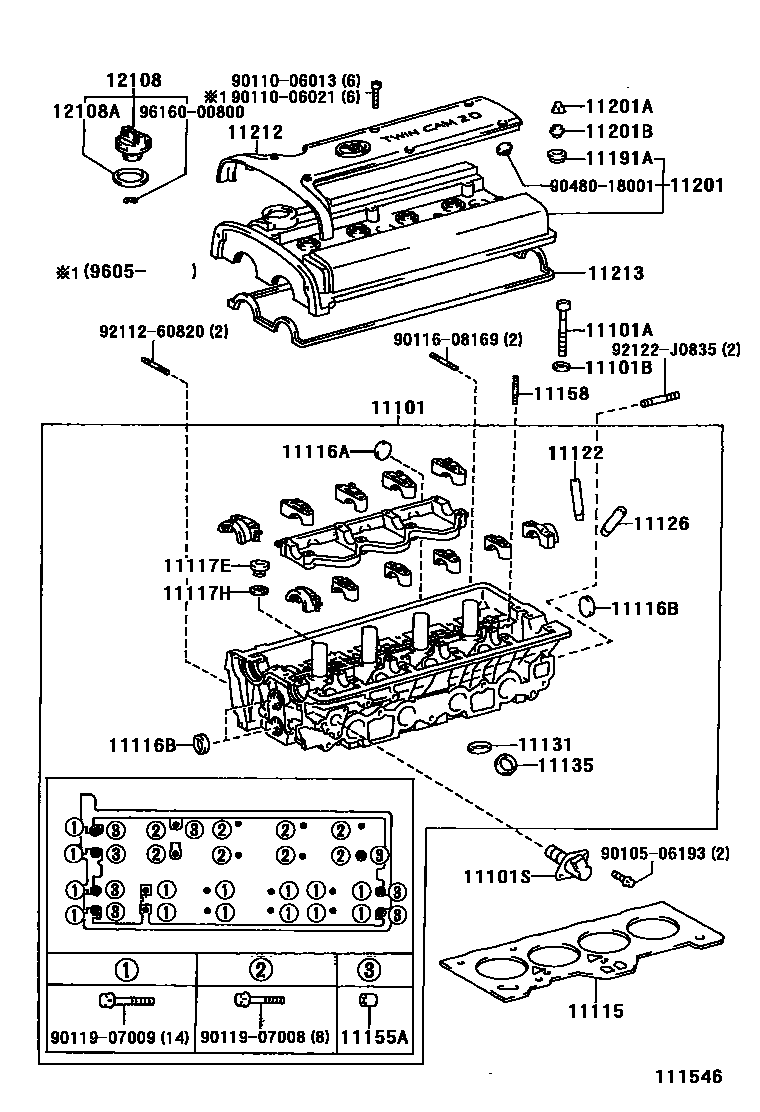

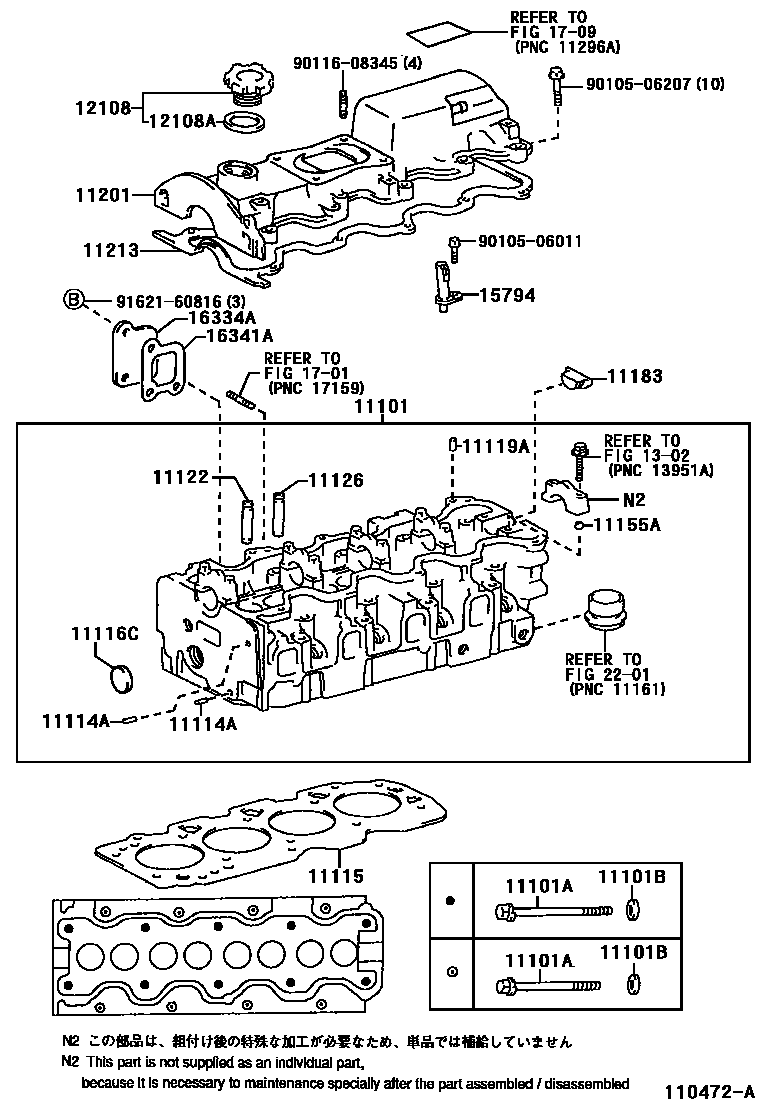

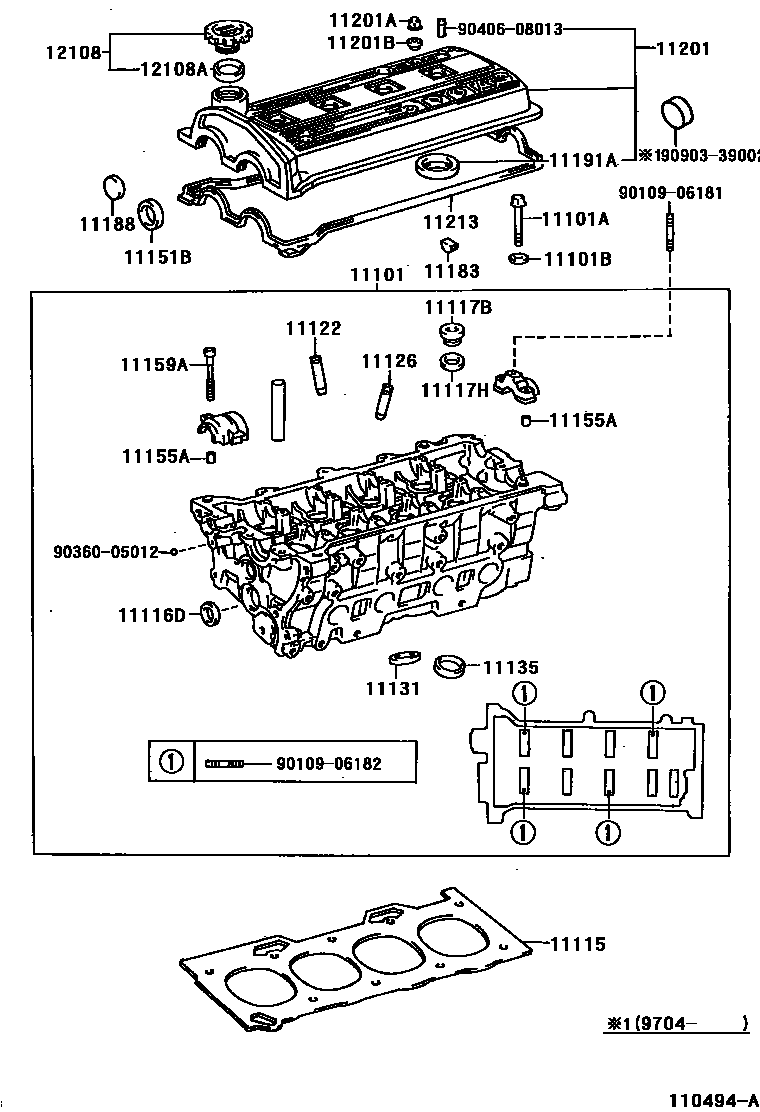

Toyota COROLLA Cylinder Head — Figure 1104
Toyota COROLLA EPC diagram 1104, Cylinder Head, with 9 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09120 · 11101-19156 · 11101-19196 · 11101-19335 · 11101-19365 · 11101-19375 · 11101-19435 · 11101-19436 · 11101-19475 · 11101-19485 · 11101-64121 · 11101-64160 · 11101-64161 · 11101-64162 · 11101-64163 · 11101-64350 · 11101-64351 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90105-09002 · 90109-10058 · 90109-10059 · 90910-02097 · 90910-02099 · 90910-02100 · 90910-02101 · 90910-02106 · 90910-02120 · 90910-02121 · 90910-02130 · 90910-02131 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-09015 · 90201-09024 · 90201-10344 · 90201-12222 |
| 11101D | Stud bolts (for water outlet) | 92122-60820 |
| 11101S | Camshaft timing oil changeover valve assembly | 15330-16010 · 15330-16020 |
| 11114A | direct selling | 90250-06068 |
| 11115 | GASKET, CYLINDER HEAD | 11115-11010 · 11115-11070 · 11115-11071 · 11115-15090 · 11115-16110 · 11115-16111 · 11115-16130 · 11115-16150 · 11115-64121 · 11115-64122 · 11115-64140 |
| 11116A | No. 1 sealing plug | 96411-42500 |
| 11116B | No. 2 sealing plug | 96411-42500 · 96411-42800 · 96411-44000 |
| 11116C | No. 3 sealing plug | 96411-63000 |
| 11116D | No. 4 sealing plug | 96411-42800 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-20002 |
| 11117H | Gasket (for coolant hole) | 90430-10204 · 90430-12010 · 90430-20004 · 90430-33133 |
| 11118A | No. 1 straight screw plug | 90341-10005 |
| 11118B | No. 2 straight screw plug | 90341-32070 |
| 11118C | No. 3 straight screw plug | 90341-12013 |
| 11119A | No. 1 direct sales | 90250-06013 · 90250-06068 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-10040 · 11122-15030 · 11122-16030 · 11122-16040 · 11122-64010 · 11123-10040 · 11123-15030 · 11123-16030 · 11123-16040 · 11123-64010 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-10040 · 11122-15030 · 11123-10040 · 11123-15030 · 11126-16010 · 11126-16020 · 11126-64010 · 11126-64030 · 11127-16010 · 11127-16020 · 11127-64010 · 11127-64030 |
| 11131 | intake valve seat | 11131-10020 · 11131-11010 · 11131-11020 · 11131-16040 · 11132-10020 · 11132-11010 · 11132-11020 · 11132-16030 · 11132-16040 · 11137-10010 · 11137-11020 · 11138-10010 · 11138-11020 · 11147-16030 |
| 11135 | Exhaust valve seat | 11135-11010 · 11135-11020 · 11135-15030 · 11135-16030 · 11135-16040 · 11136-11010 · 11136-11020 · 11136-15030 · 11136-16030 · 11136-16040 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90311-35013 · 90311-35022 · 90311-35035 |
| 11155A | PIN, RING W/HEAD | 90253-08003 · 90253-09001 · 90253-10004 · 90253-11021 |
| 11158 | STUD (FOR CYLINDER HEAD TO HEAD COVER) | 90116-08363 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90109-06080 · 90109-06222 |
| 11181 | cylinder head rear plate | 11181-64010 |
| 11182 | Rear cylinder head gasket | 11182-64020 |
| 11183 | PLUG, SEMICIRCULAR | 11183-11010 · 11183-15020 · 11183-64010 |
| 11188 | Camshaft housing screw plug | 11188-11010 |
| 11191A | Gasket (for spark plug bushing) | 11193-15010 · 11193-16010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-10010 · 11201-11030 · 11201-16020 · 11201-16030 · 11201-64080 · 11201-64110 · 11201-64111 · 11201-64160 · 11210-15070 · 11210-15071 |
| 11201A | Cap nut (for cylinder head cover) | 90176-06012 · 90176-06028 · 90176-08007 · 90176-08047 |
| 11201B | Gasket (for cylinder head cover) | 90210-06008 · 90210-06010 · 90210-06013 · 90210-09001 · 90210-09016 · 90210-09019 |
| 11201E | Studs (for cylinder head cover assembly) | 90116-08190 |
| 11212 | No. 2 cylinder head cover | 11212-16060 · 11212-16080 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-10011 · 11213-11040 · 11213-11041 · 11213-15070 · 11213-15071 · 11213-16020 · 11213-16021 · 11213-64050 · 11213-64060 · 11213-64061 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-11021 · 12180-13030 · 12180-46010 · 12180-55010 · 12180-62010 · 12180-62011 · 12180-73011 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 12195-46010 · 12195-46011 · 12195-71020 · 90430-37004 · 90430-37140 |
| 15794 | Cylinder head oil nozzle | 15794-64011 |
| 16334A | Water outlet shell cover | 16334-64010 |
| 16341A | GASKET, WATER OUTLET | 16341-64021 · 16341-64030 |
