Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 16 images and 2 PNC and OE references.

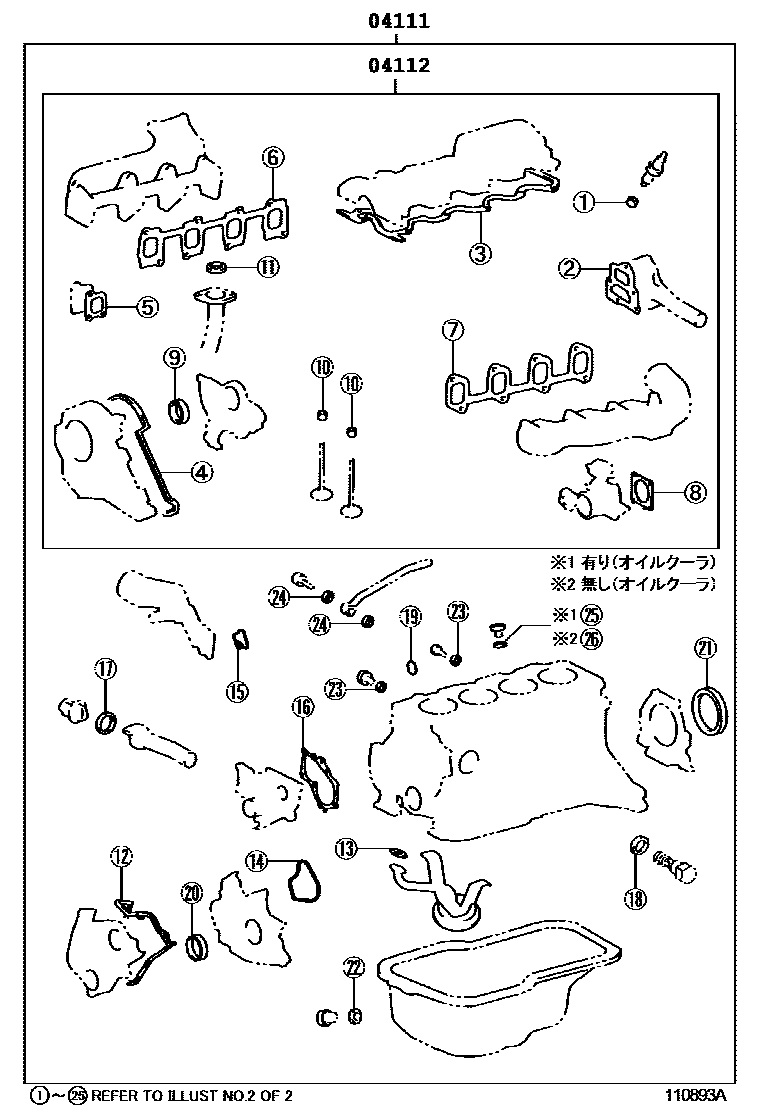

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 110893A
Engine Overhaul Gasket Kit — 110893A (199804 – 999999)

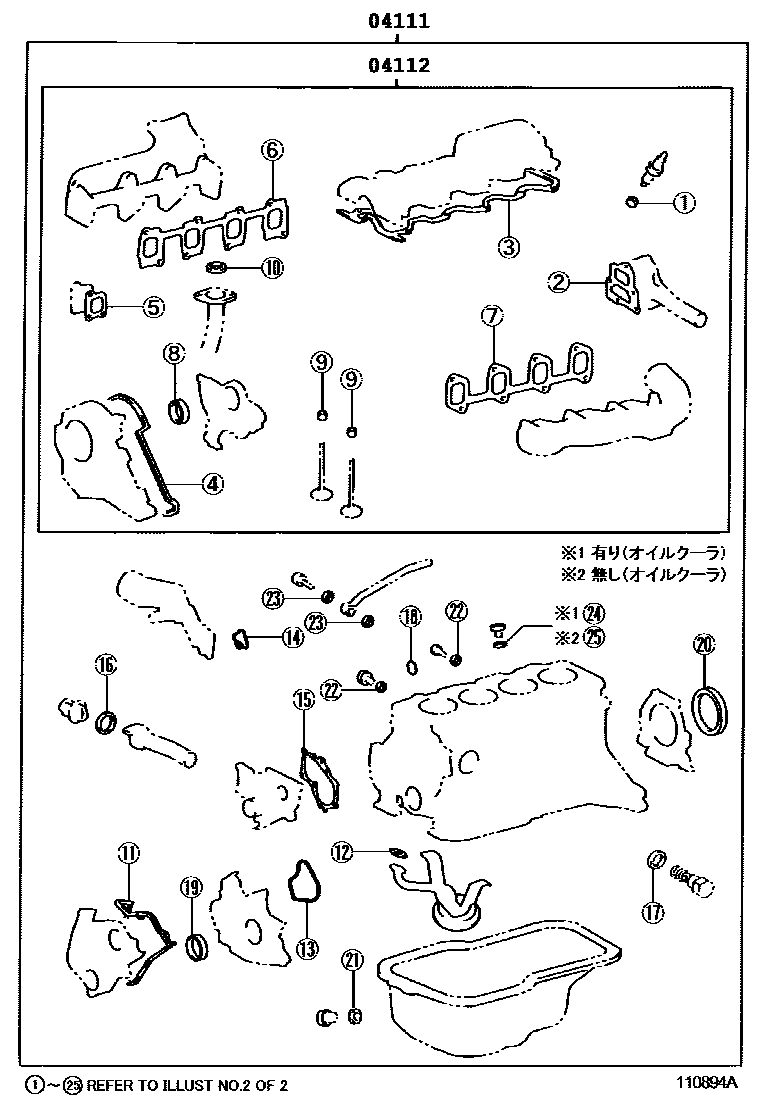

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 110894A
Engine Overhaul Gasket Kit — 110894A (199708 – 199804)

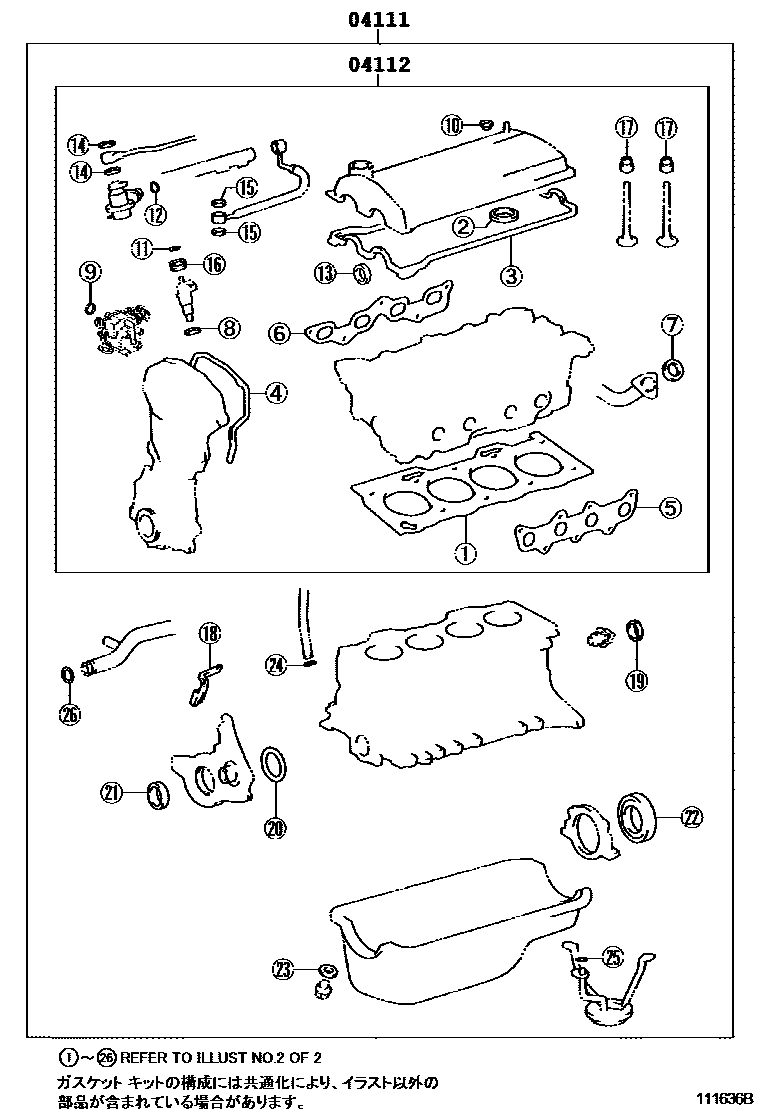

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 111636B
Engine Overhaul Gasket Kit — 111636B (199106 – 999999)

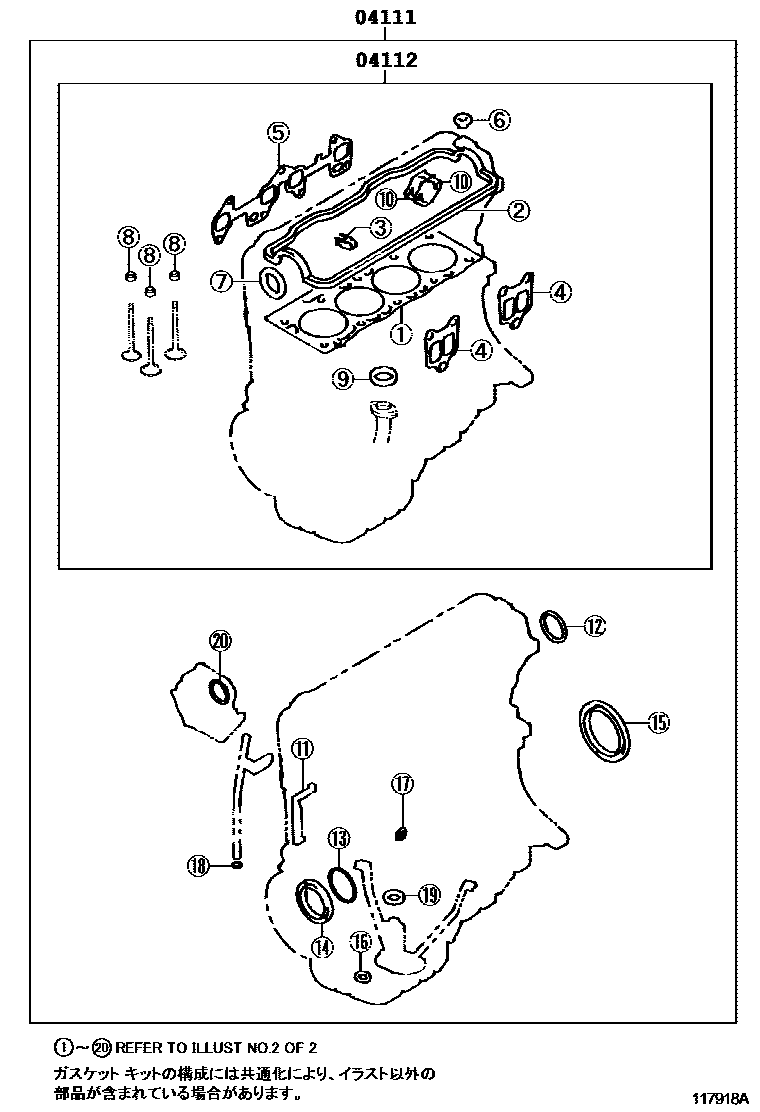

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 117918A
Engine Overhaul Gasket Kit — 117918A (199109 – 999999)

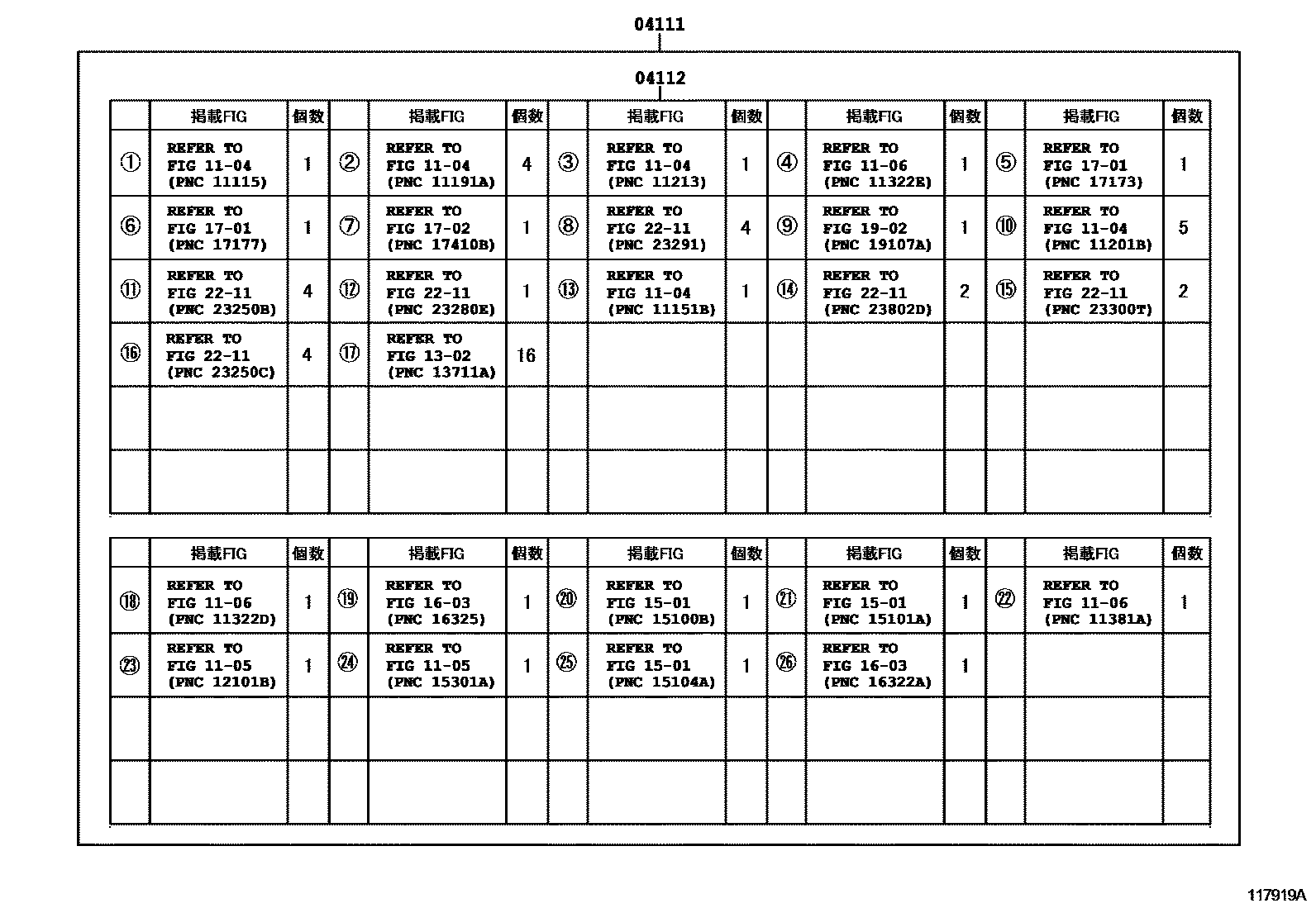

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 117919A
Engine Overhaul Gasket Kit — 117919A (199106 – 999999)

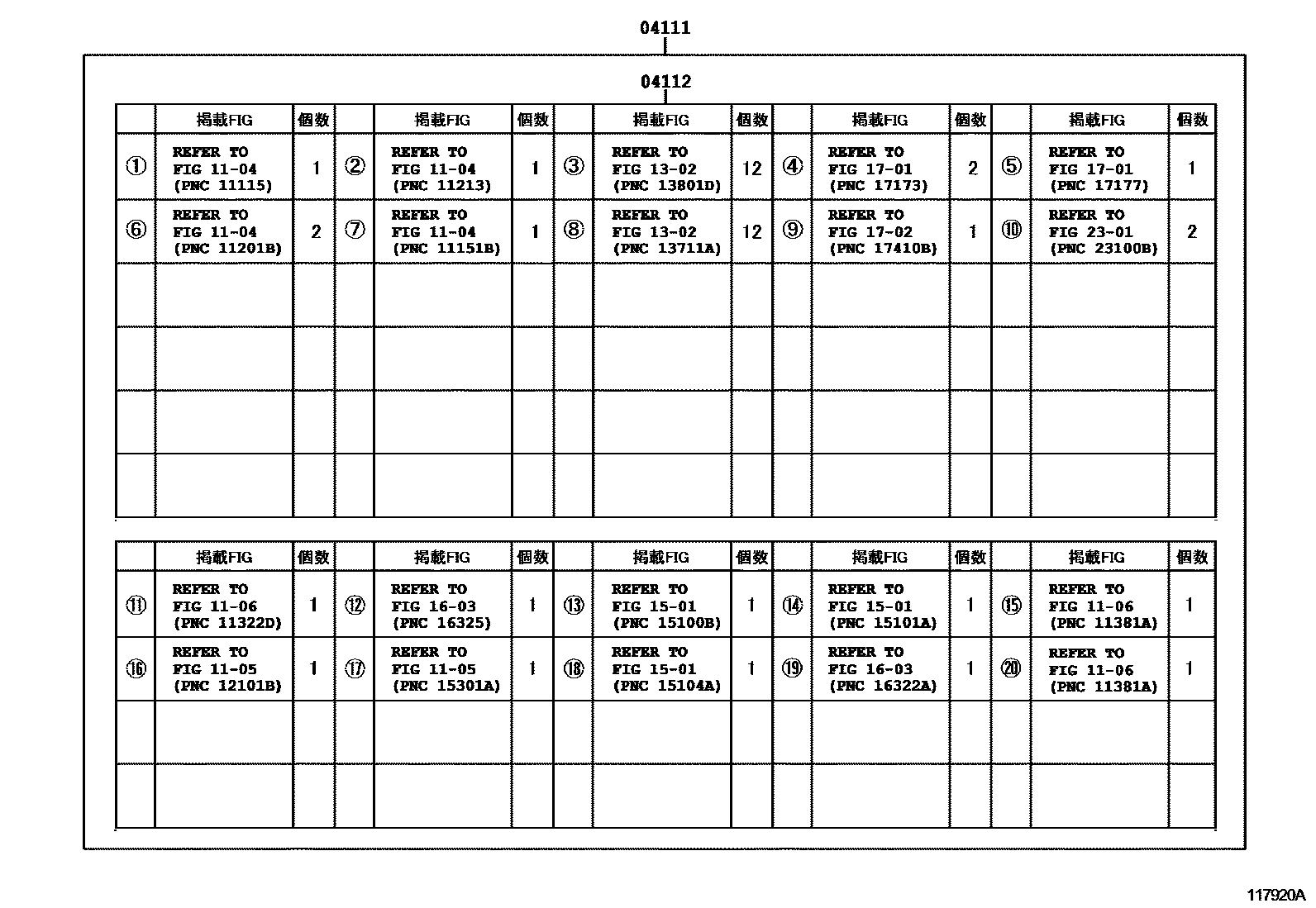

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 117920A
Engine Overhaul Gasket Kit — 117920A (199109 – 999999)

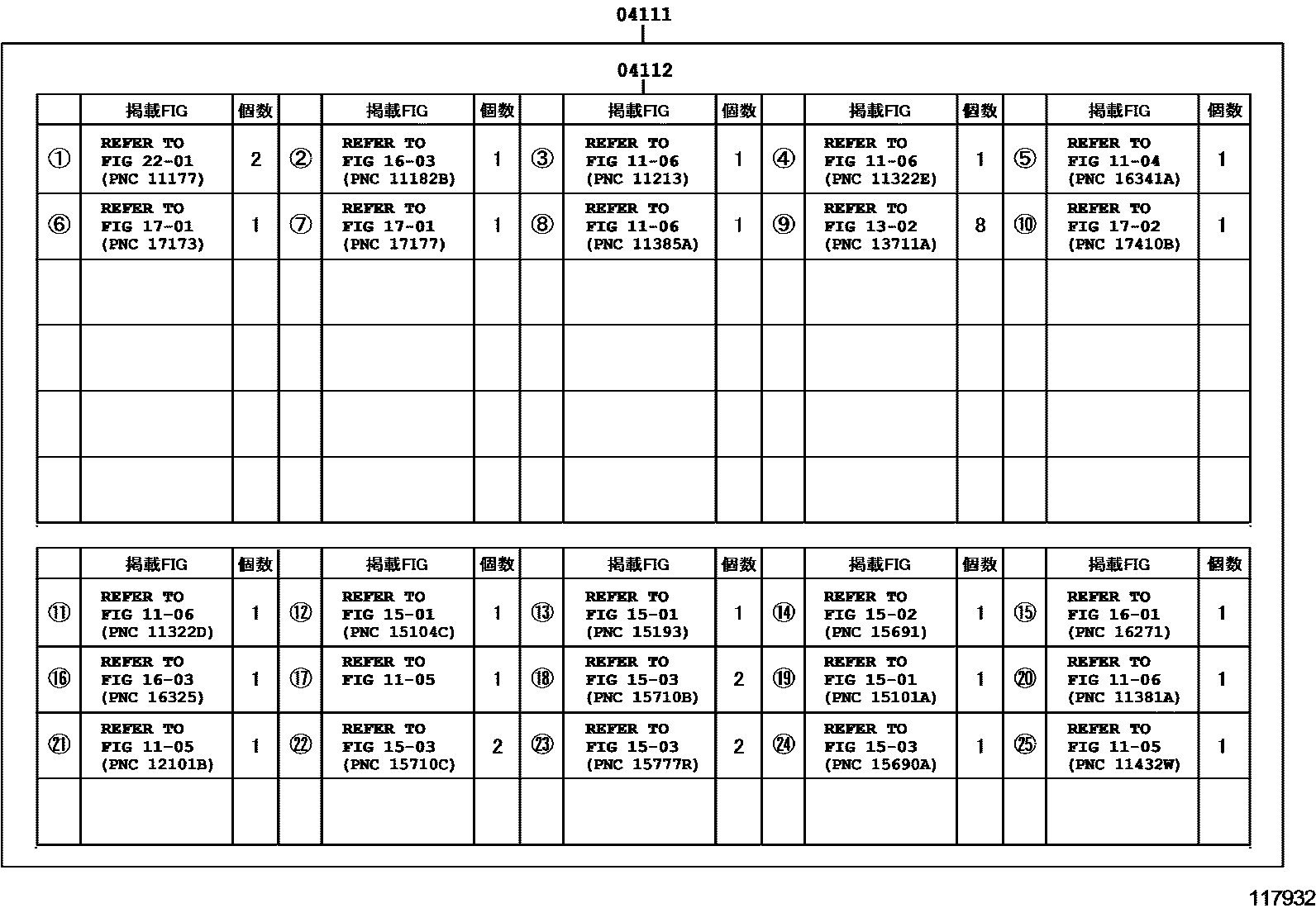

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 117932
Engine Overhaul Gasket Kit — 117932 (199708 – 199804)

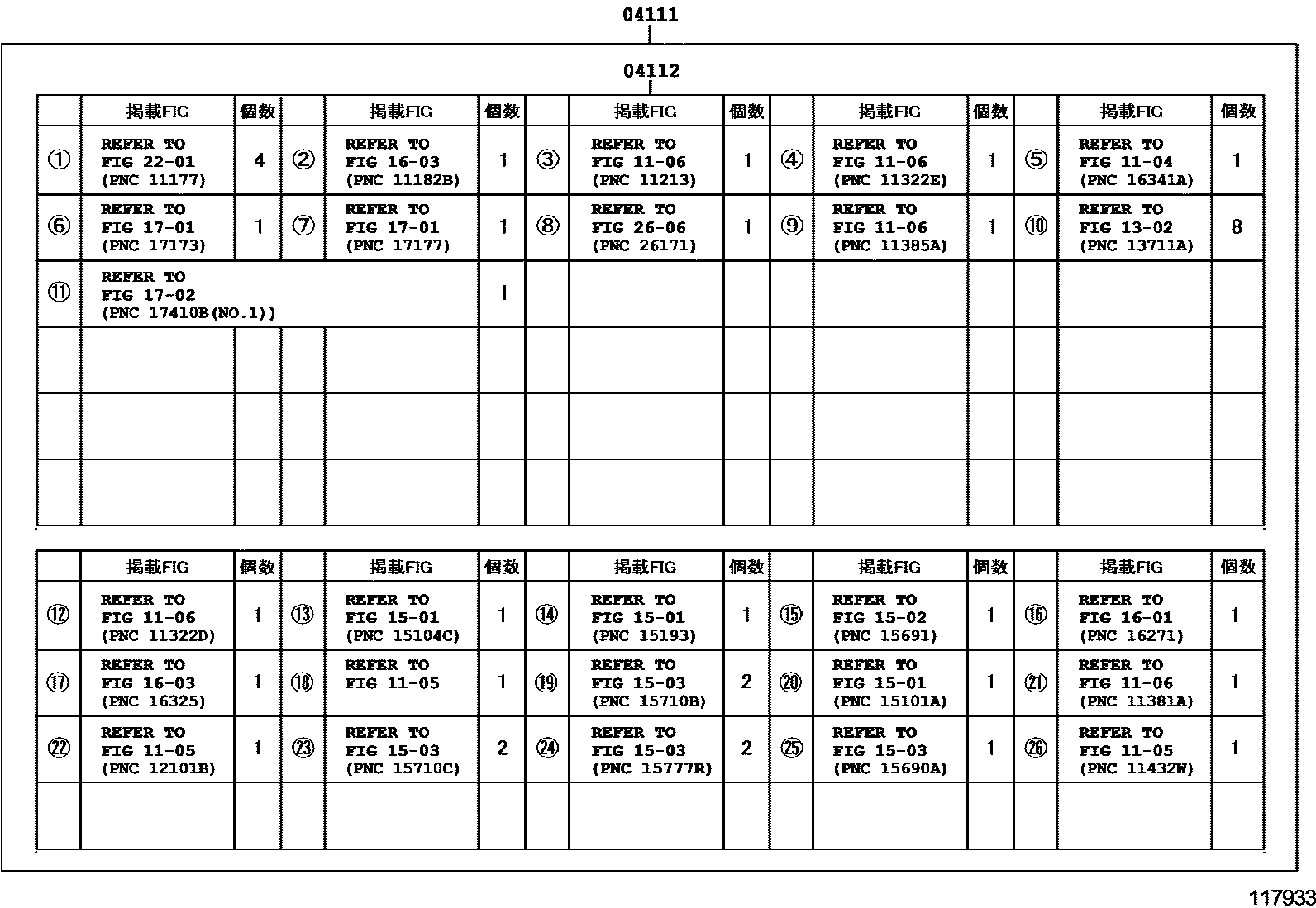

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 117933
Engine Overhaul Gasket Kit — 117933 (199804 – 999999)

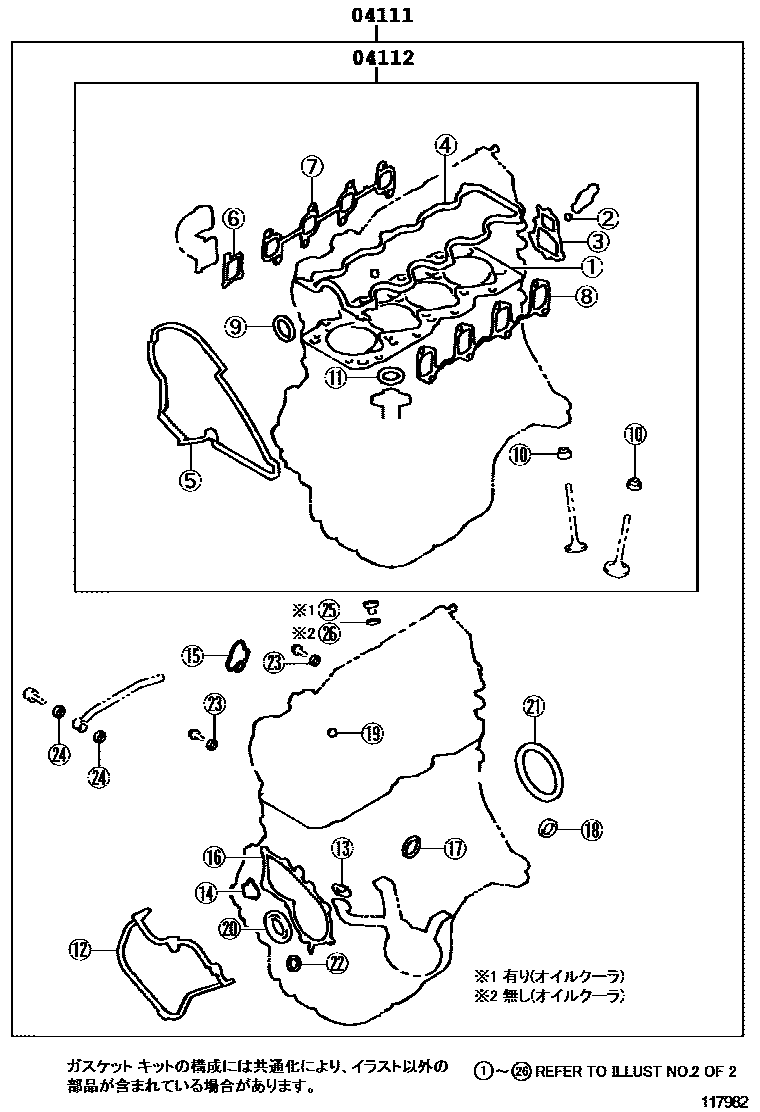

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 117982
Engine Overhaul Gasket Kit — 117982 (199106 – 199708)

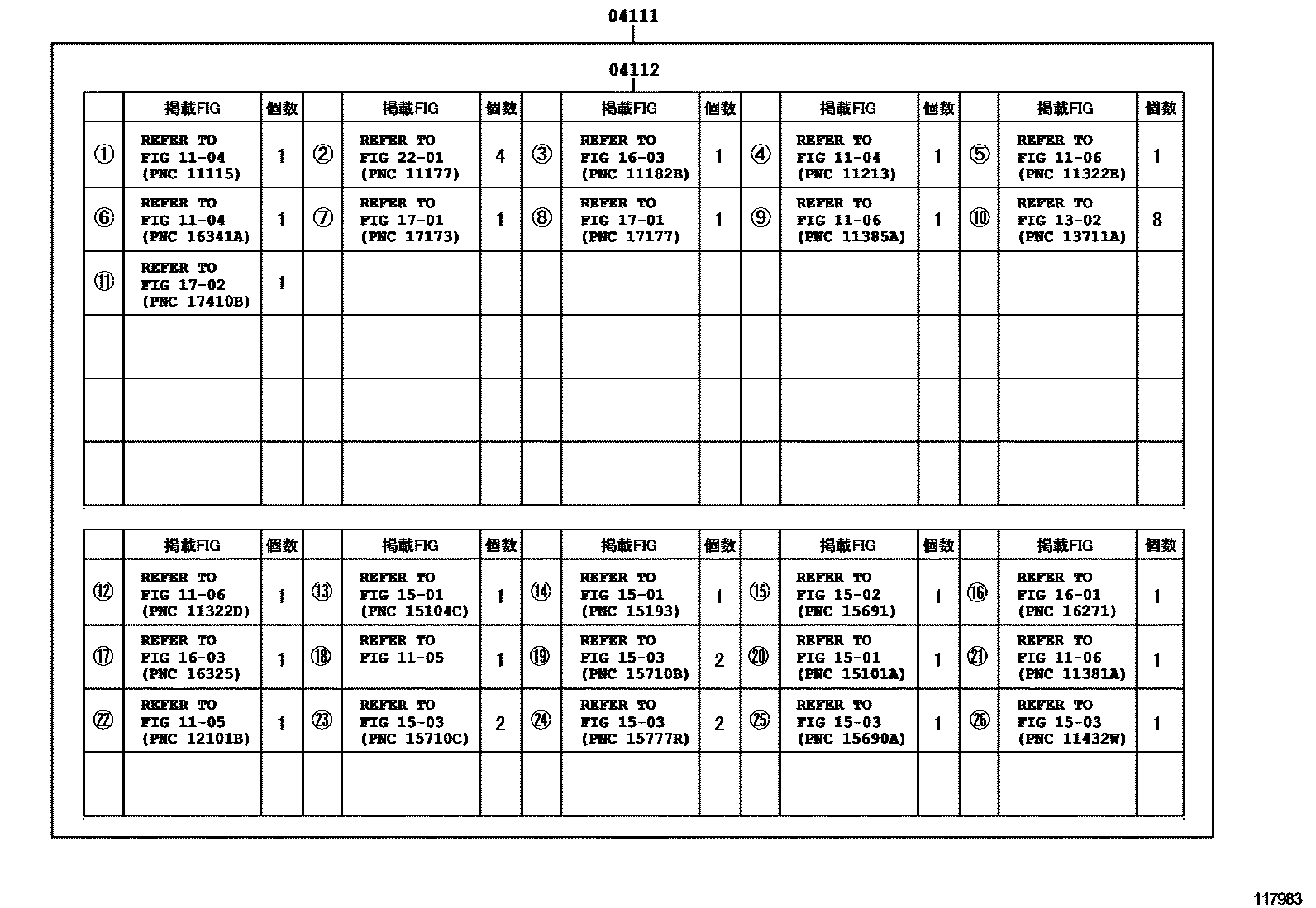

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 117983
Engine Overhaul Gasket Kit — 117983 (199106 – 199708)

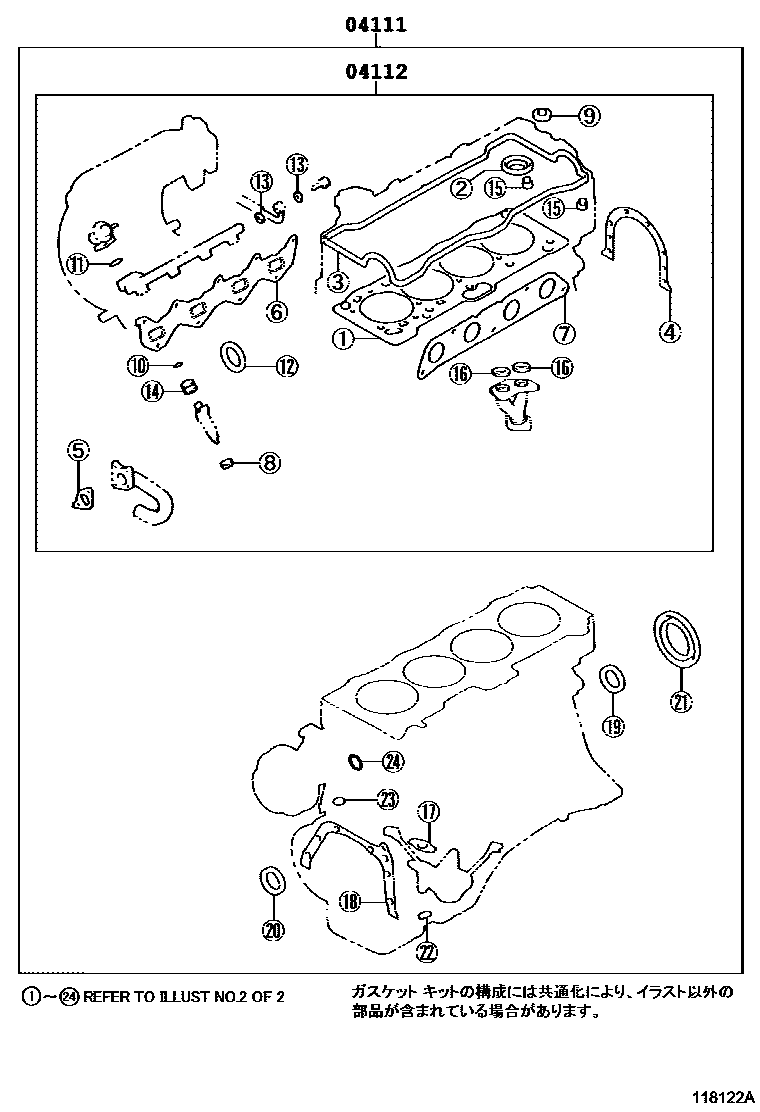

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118122B
Engine Overhaul Gasket Kit — 118122B (199106 – 999999)

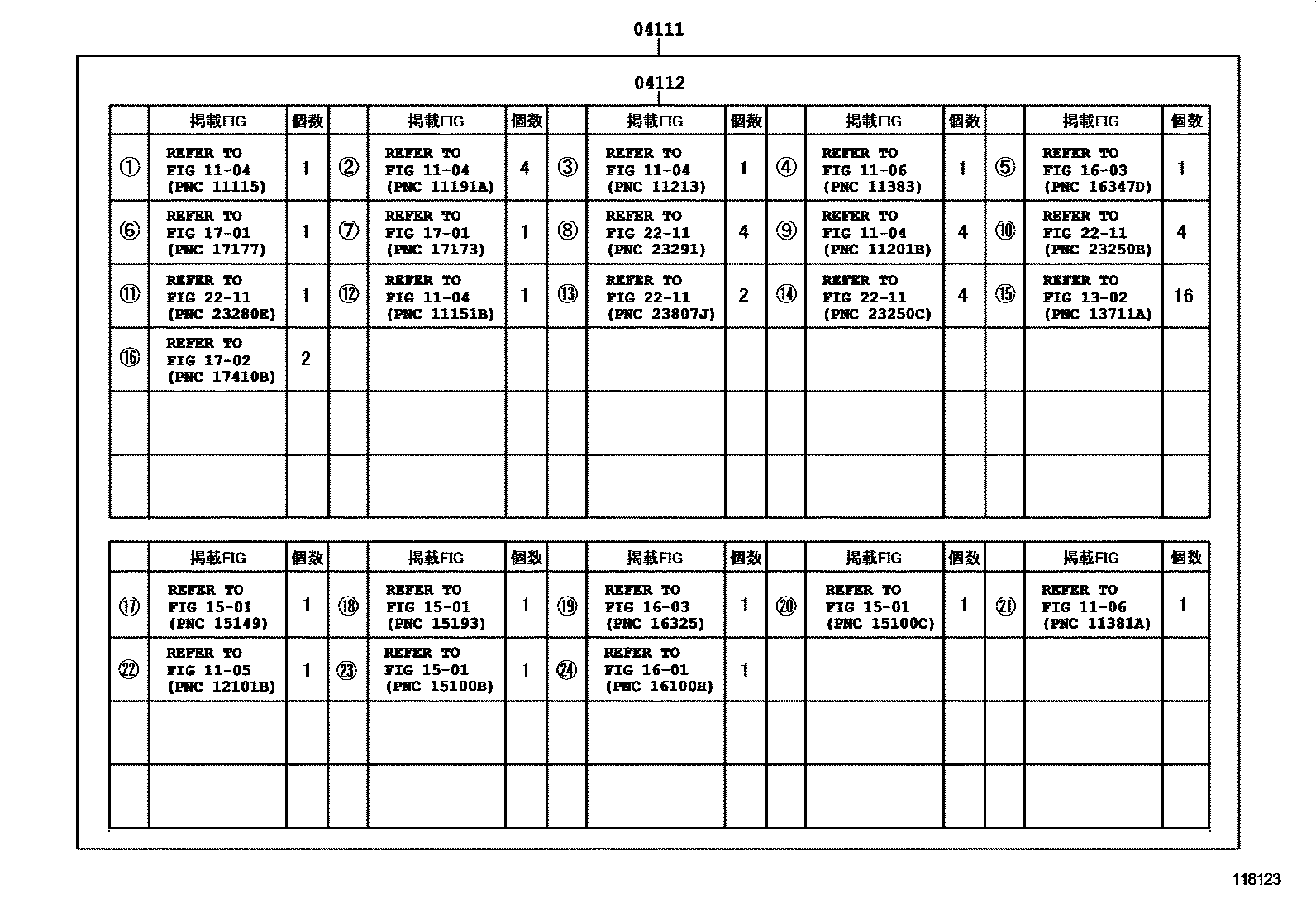

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118123
Engine Overhaul Gasket Kit — 118123 (199106 – 999999)

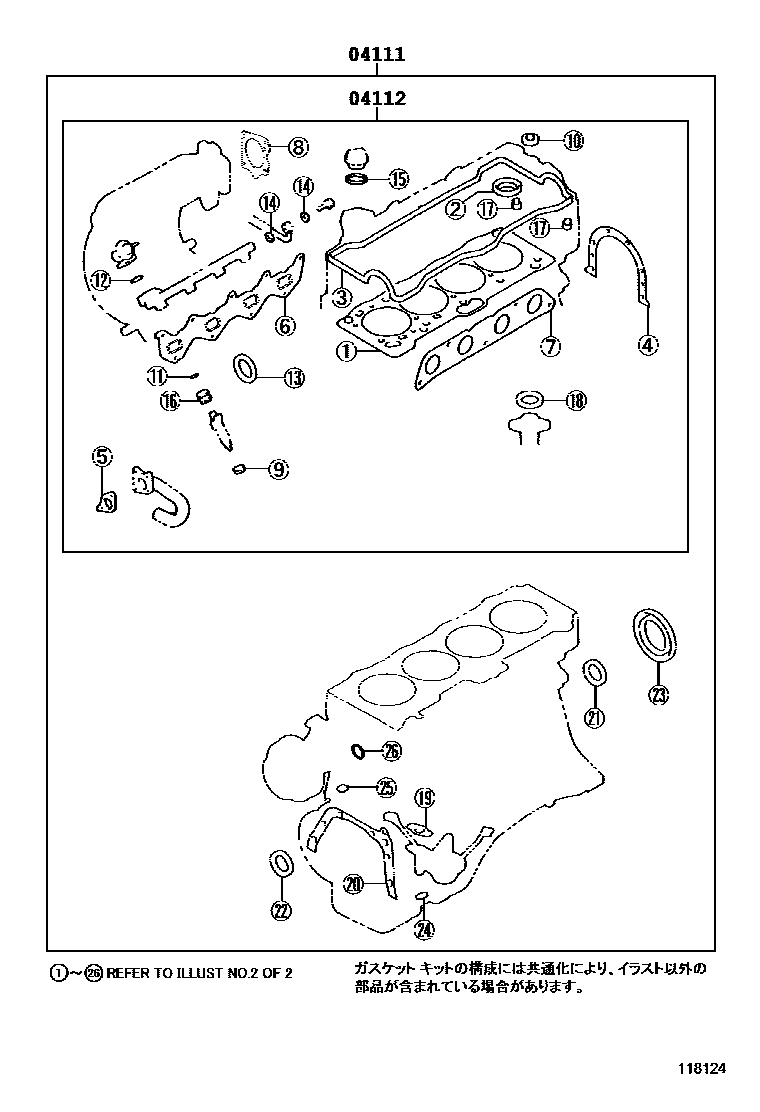

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118124A
Engine Overhaul Gasket Kit — 118124A (199106 – 999999)

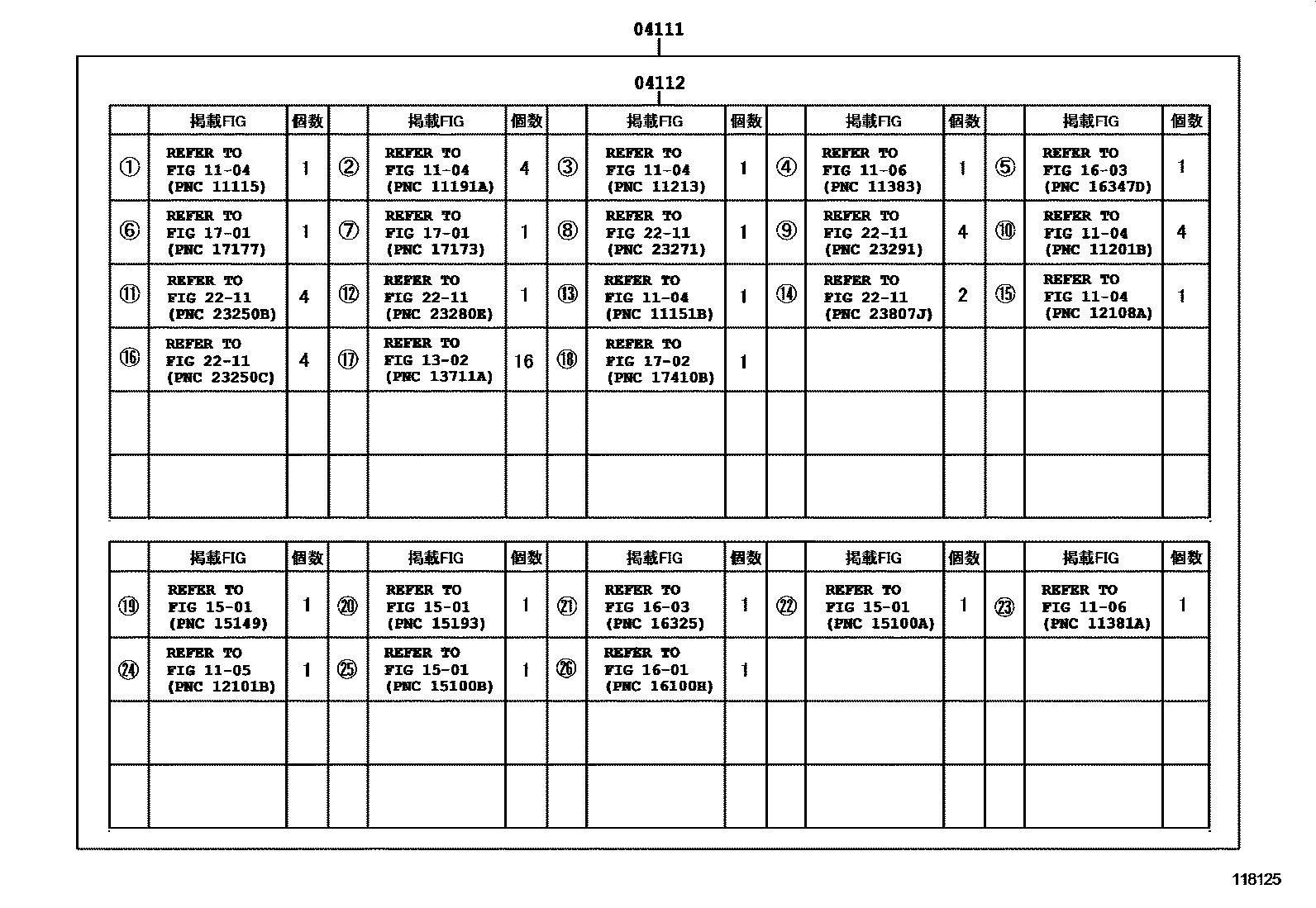

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118125
Engine Overhaul Gasket Kit — 118125 (199106 – 999999)

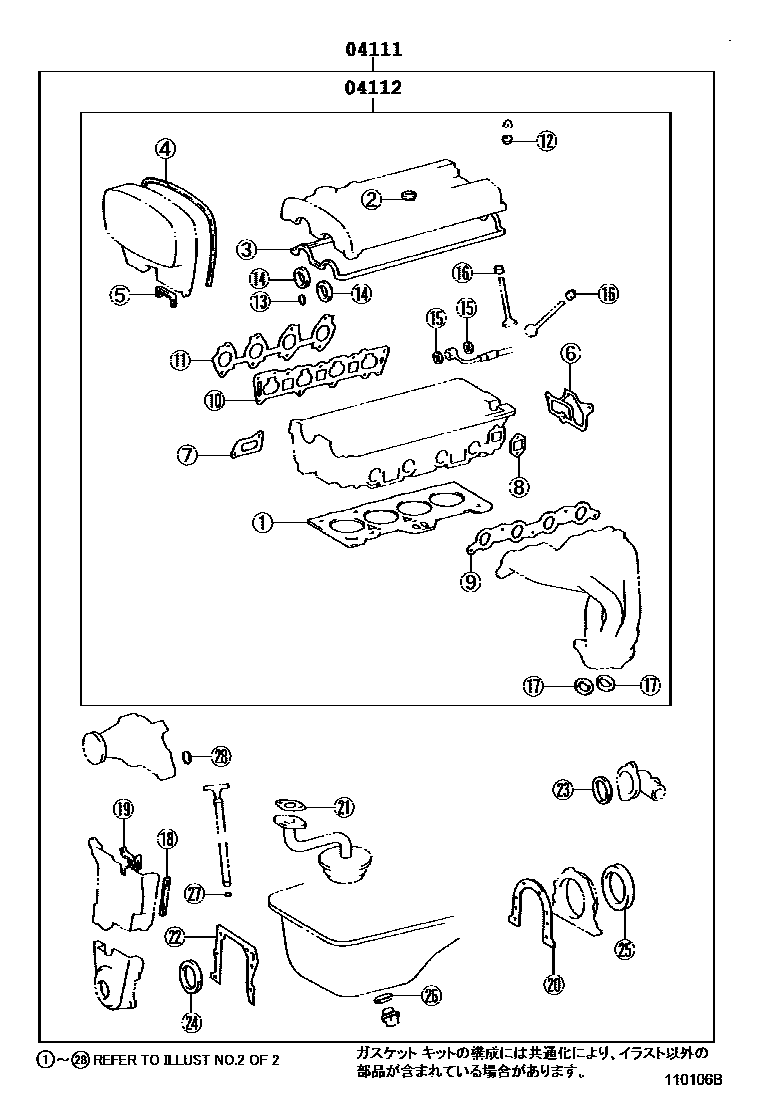

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118126A
Engine Overhaul Gasket Kit — 118126A (199106 – 999999)

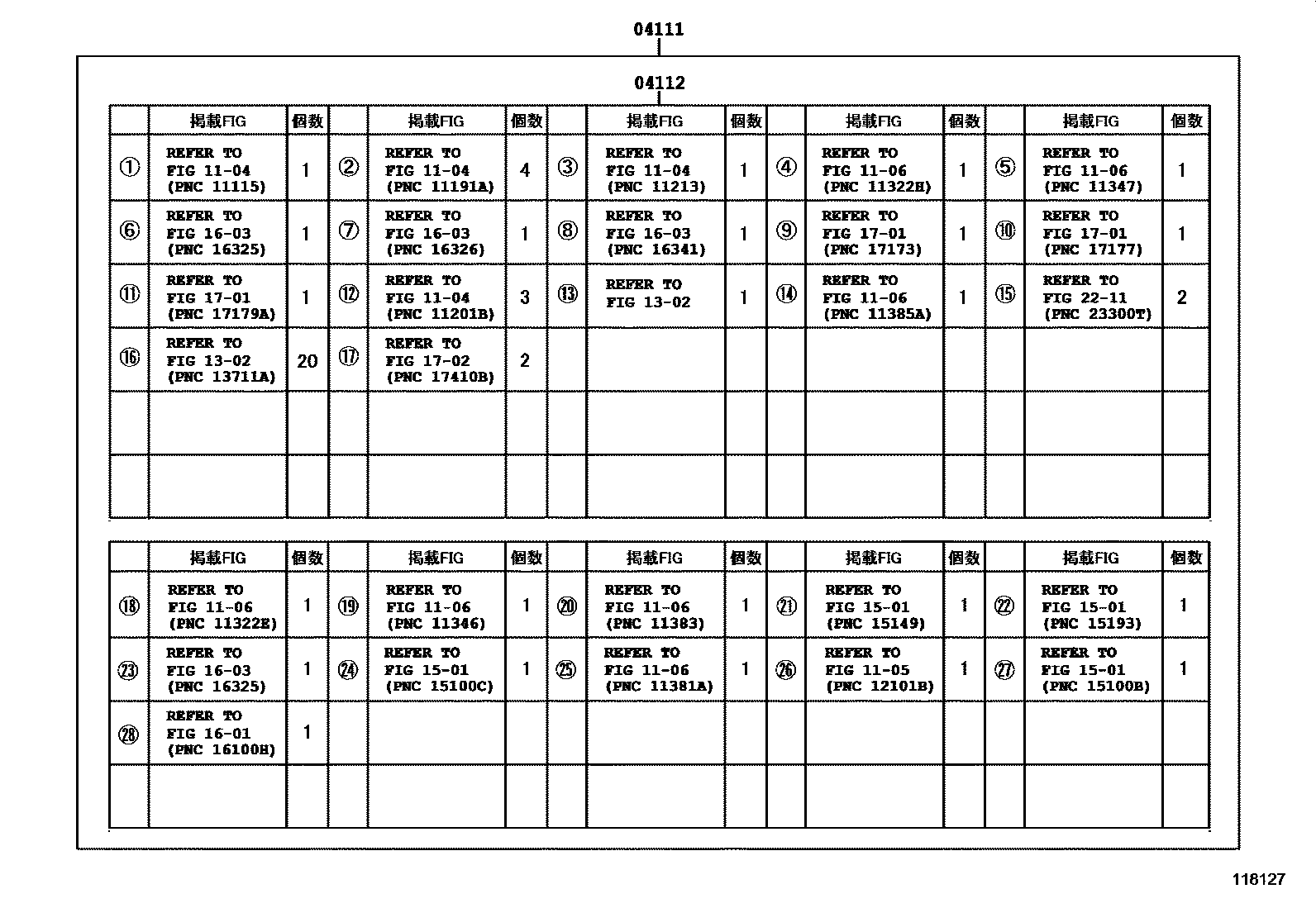

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118127A
Engine Overhaul Gasket Kit — 118127A (199106 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-11024 · 04111-11025 · 04111-11054 · 04111-11090 · 04111-11091 · 04111-11092 · 04111-11132 · 04111-11141 · 04111-11151 · 04111-16210 · 04111-16211 · 04111-16220 · 04111-16221 · 04111-16230 · 04111-16231 · 04111-16330 · 04111-64125 · 04111-64200 · 04111-64201 · 04111-64290 · 04111-64291 · 04111-64292 · 04111-64293 · 04111-64380 · 04111-64381 · 04111-64382 · 04111-64383
04112Engine valve grinding pad assembly04112-11012 · 04112-11043 · 04112-11080 · 04112-11081 · 04112-11101 · 04112-11121 · 04112-11131 · 04112-16210 · 04112-16220 · 04112-16230 · 04112-16330 · 04112-64103 · 04112-64140 · 04112-64141 · 04112-64220 · 04112-64221 · 04112-64222 · 04112-64223 · 04112-64290 · 04112-64291
