Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

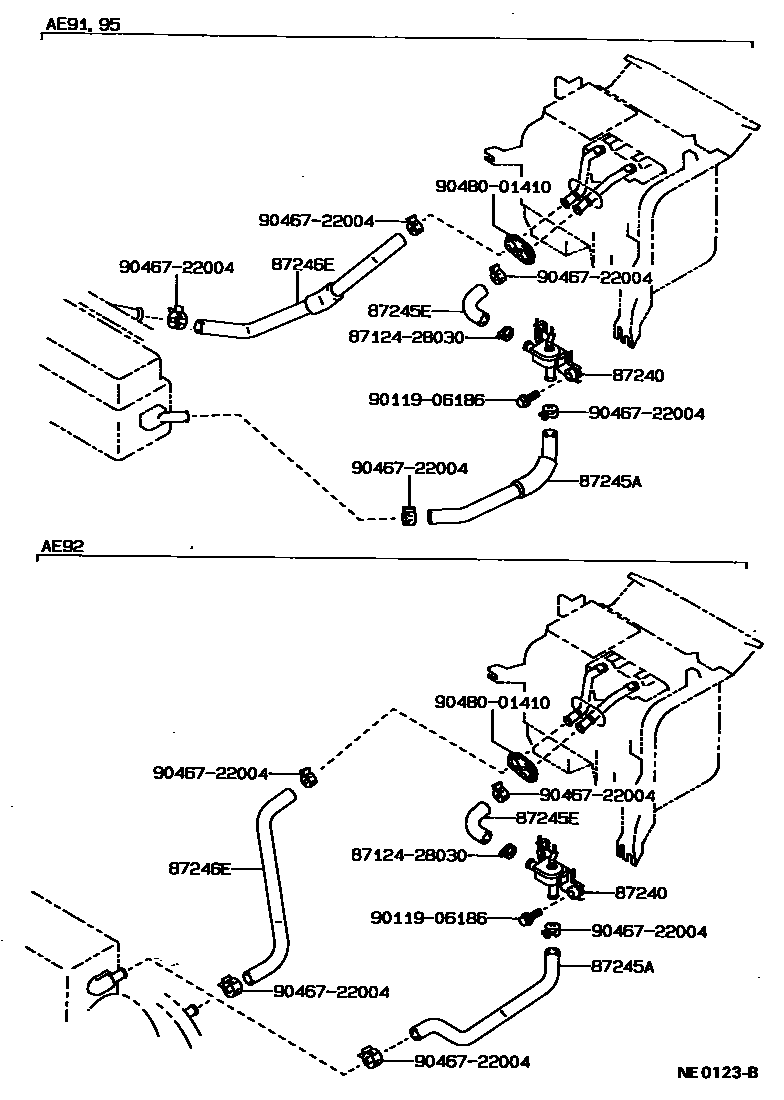

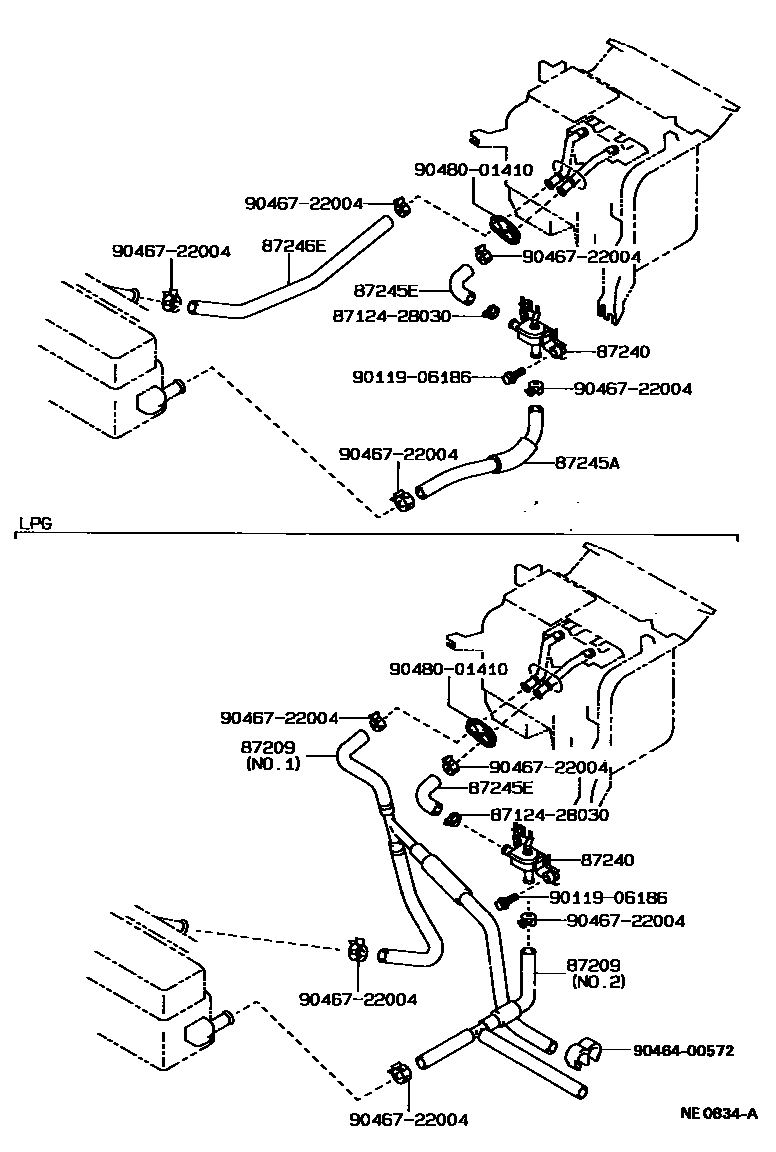

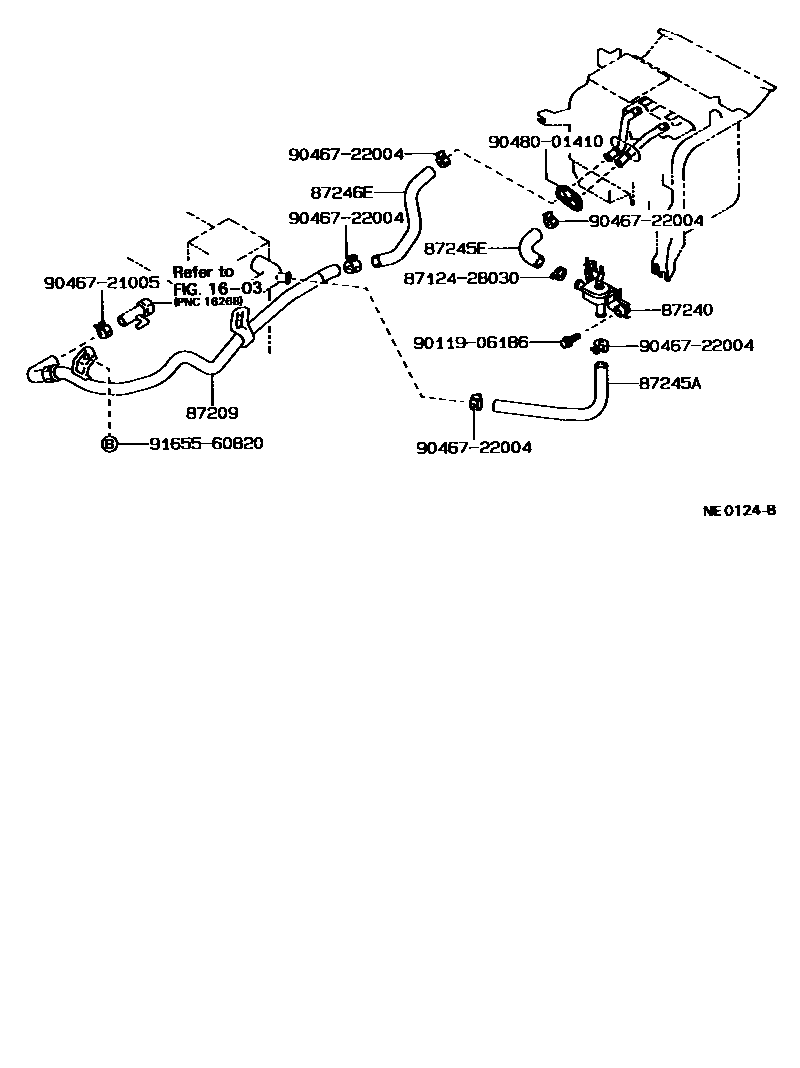

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87209 | Water hose sub-assembly | 87209-12400 · 87209-13010 · 87209-13011 · 87209-13020 · 87209-13021 |
| 87240 | Heater water valve assembly | 87240-12230 |
| 87245A | Heater water inlet hose A | 87245-12840 · 87245-12841 · 87245-1A170 · 87245-1A180 |
| 87245E | Heater water inlet hose E | 87245-1A300 |
| 87246E | Heater outlet hose E | 87245-1A210 · 87245-1A211 · 87245-1A240 · 87245-1A241 · 87245-1A242 · 87245-1A250 · 87245-1A260 · 87245-1A410 · 87245-1A430 |
