Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

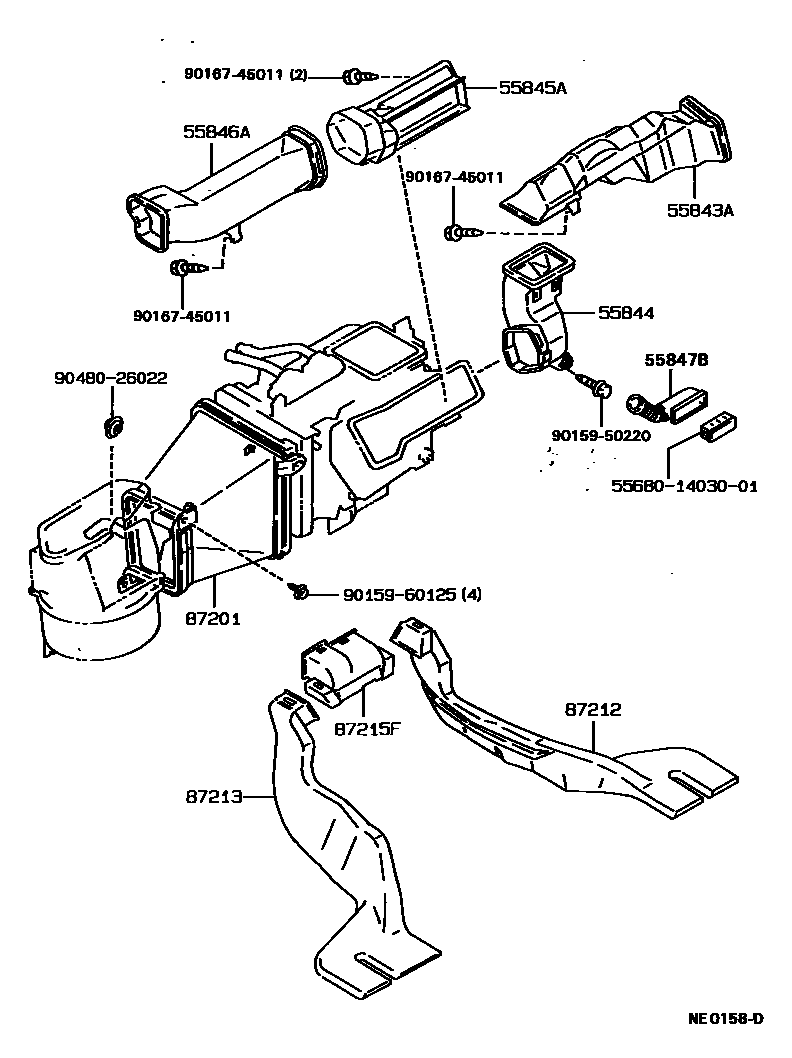

| 55843A | Air duct No. 1 from heater to air register | 55843-12170 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-12210 · 55844-12230 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-12110 |
| 55846A | Air duct No. 4 from heater to air register | 55846-12090 |
| 55847B | Air duct No. 5 from heater to air regulator | 55847-12070 · 55847-12071 |
| 55905A | Heater control button | 55905-12110 · 55905-12120 · 55905-12300 · 55905-12310 · 55905-12320 · 55905-12330 · 55905-12340 · 55905-12350 · 55905-12360 |
| 55905B | Heater control button 2 | 55905-12130 |

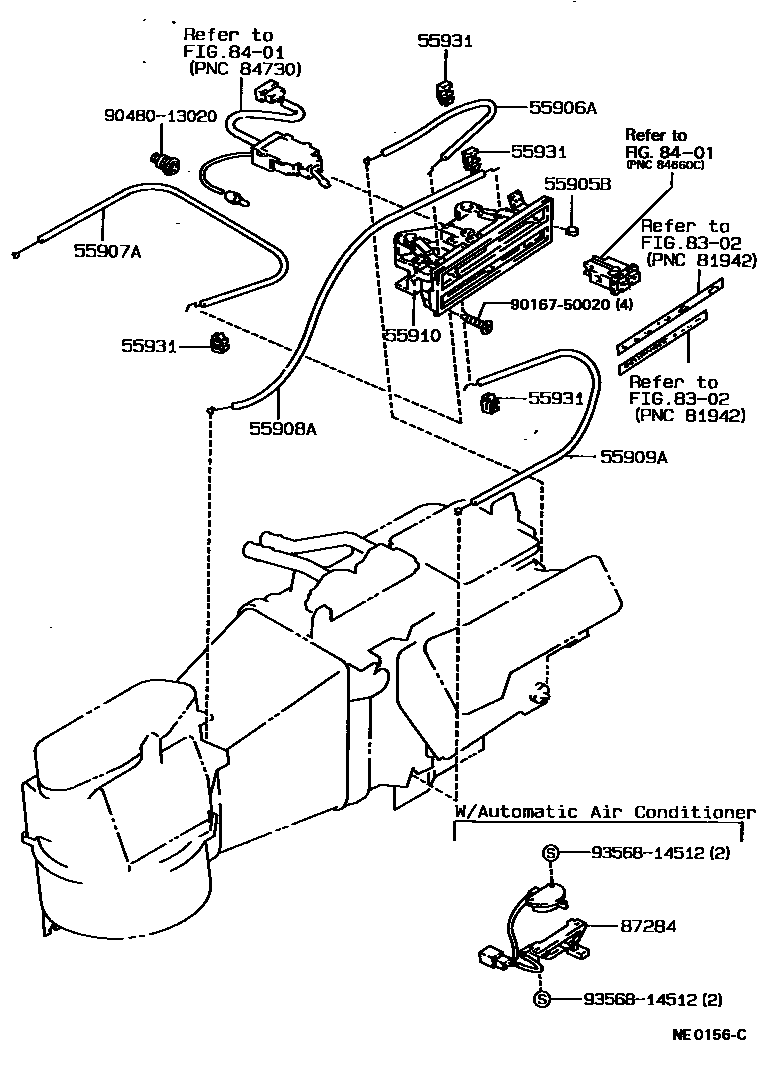

| 55906A | Defroster damper control cable sub-assembly | 55906-12230 · 55906-12250 |
| 55907A | Water valve control cable sub-assembly | 55907-12260 · 55907-12270 · 55907-12320 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12190 · 55908-12230 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12170 · 55909-12180 · 55909-12190 |

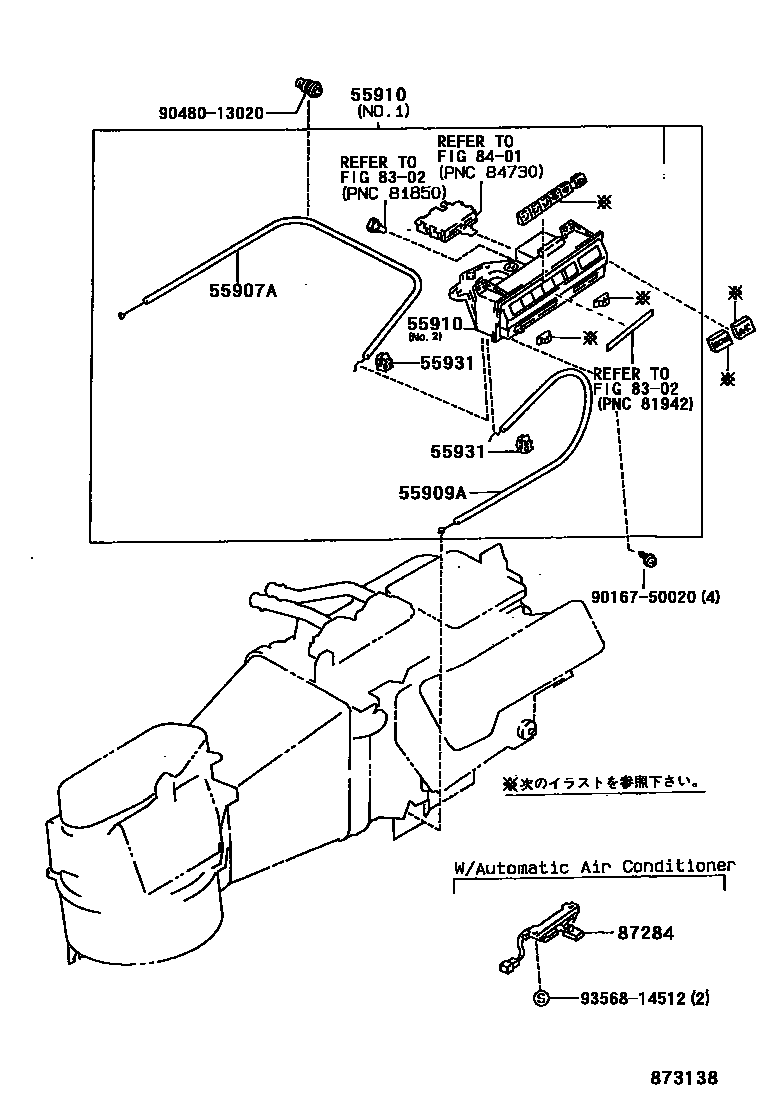

| 55910 | Heater or auxiliary ventilation control assembly | 55900-12490 · 55910-12440 · 55910-12441 · 55910-12530 |
| 55931 | Heater control harness clip | 55933-10010 |
| 87201 | No. 1 air duct sub-assembly | 87201-12120 |
| 87212 | No. 1 rear air duct | 87212-12060 · 87212-12070 |
| 87213 | No. 2 rear air duct | 87213-12030 · 87213-12040 |
| 87215F | No. 3 rear air duct | 87215-12010 |
| 87284 | Variable resistor sub-assembly | 88032-12080 · 88032-12090 · 88032-12091 |

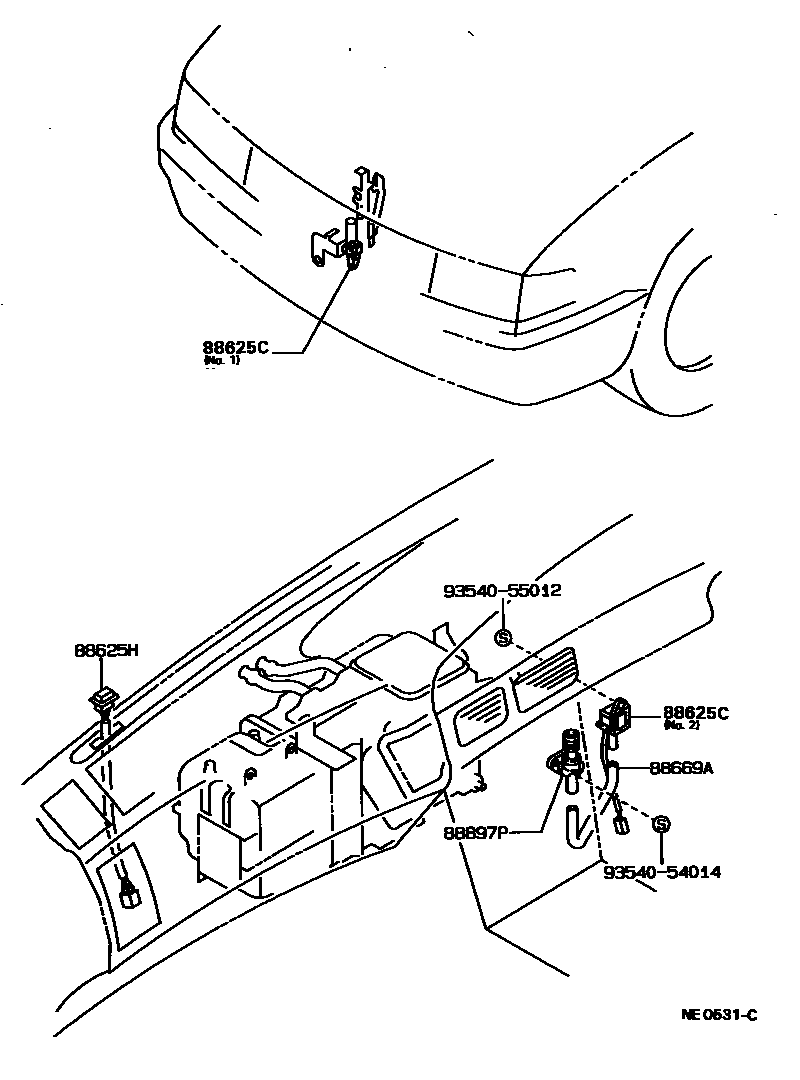

| 88625C | Cooler thermistor | 88625-12210 · 88625-12220 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-20140 |
| 88669A | Hoses (for cooler thermistor) | 88669-12020 |
| 88897P | aspirator | 88897-14010 |
