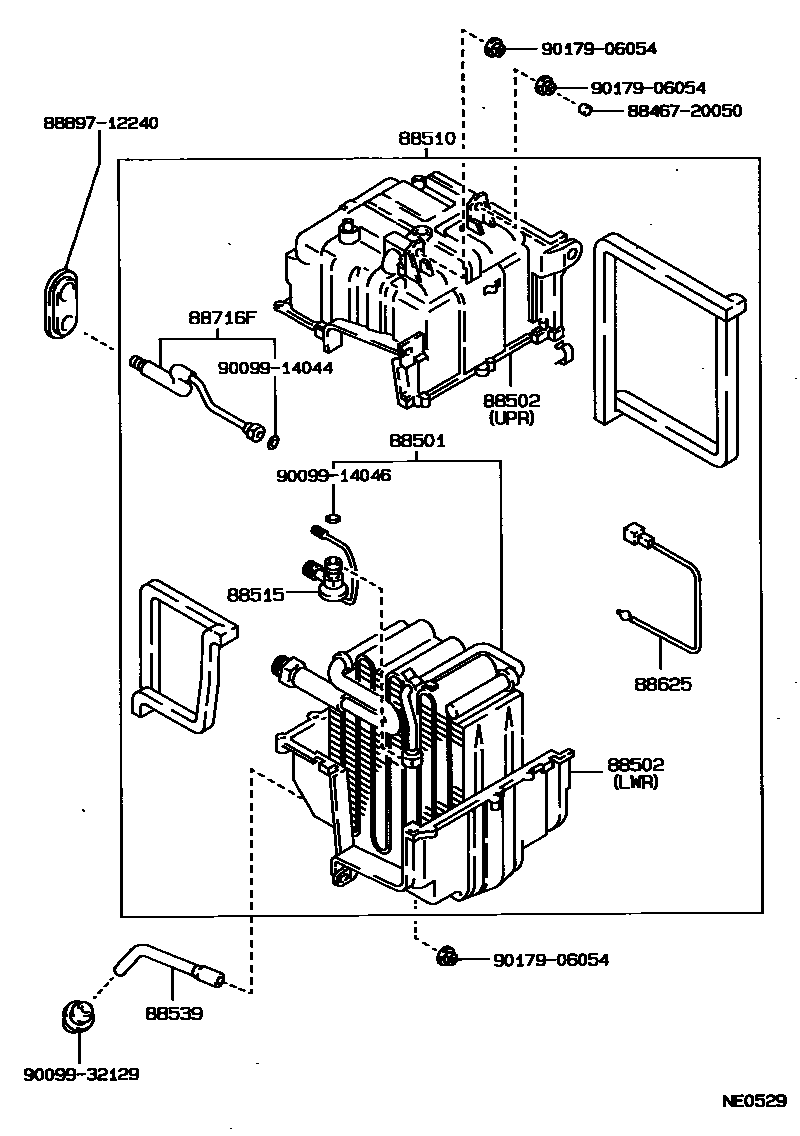

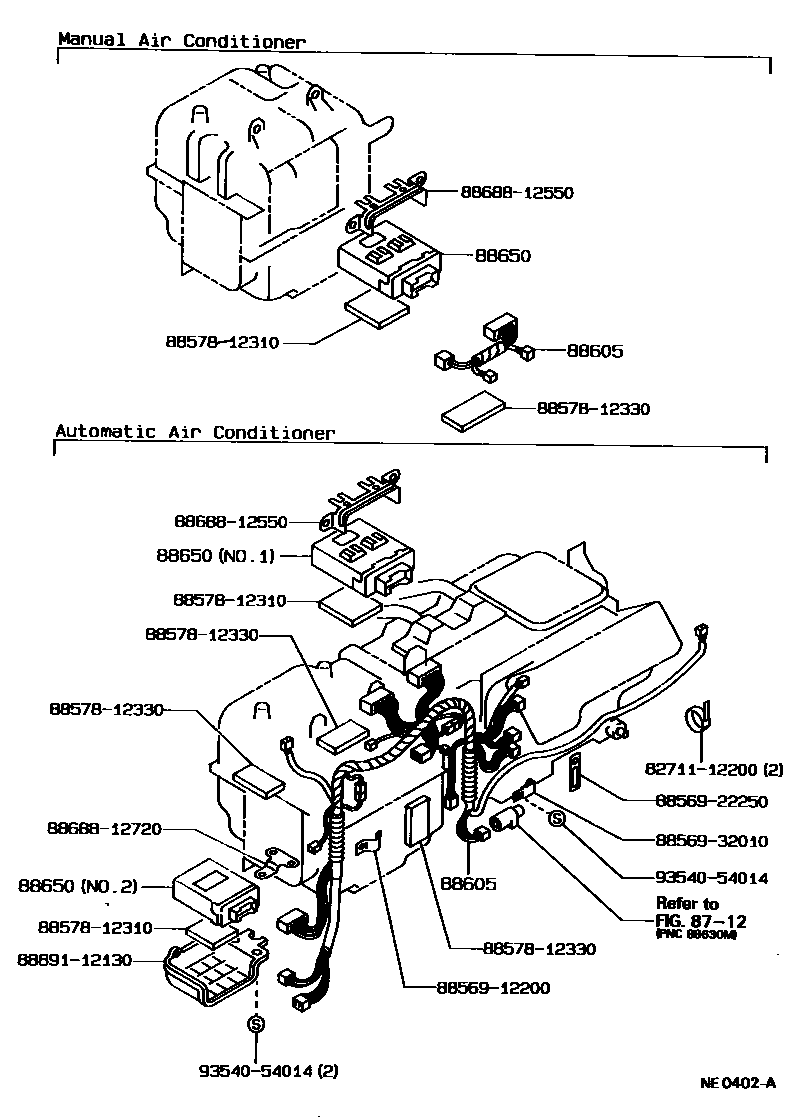

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12330 |
| 88502 | Cooling device shell sub-assembly | 88502-12140 · 88502-12150 |
| 88510 | Cooler device assembly | 88510-12830 |
| 88515 | Cooler expansion valve | 88515-16040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12090 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-1A390 · 88605-1A400 · 88605-1A430 · 88605-1A440 · 88605-1A450 · 88605-1A460 · 88605-1A470 · 88605-1A480 · 88605-1A490 · 88605-1A500 · 88605-1A510 · 88605-1A520 · 88605-1A540 · 88605-1A550 · 88605-1A560 · 88605-1A570 · 88605-1A580 · 88605-1A590 · 88605-1A600 · 88605-1A610 · 88605-1A620 · 88605-1A630 · 88605-1A640 · 88605-1A650 · 88605-1A680 · 88605-1A690 · 88605-1A750 · 88605-1A780 · 88605-1A790 · 88605-1A800 · 88605-1A810 · 88605-1A820 · 88605-1A830 · 88605-1A840 · 88605-1A850 · 88605-1A880 · 88605-1E030 · 88605-1E040 · 88605-1E090 · 88605-1E100 · 88605-1E110 · 88605-1E120 · 88605-1E150 · 88605-1E160 · 88605-1E200 · 88605-1E210 · 88605-1E220 · 88605-1E230 · 88605-1E240 · 88605-1E250 · 88605-1E260 · 88605-1E270 · 88605-1E360 · 88605-1E370 · 88605-1E380 · 88605-1E390 · 88605-1E410 · 88605-1E430 · 88605-1E450 · 88605-1E570 |
| 88625 | Cooler No. 1 Thermistor | 88625-32040 |
| 88650 | Cooler stabilized amplifier assembly | 88650-12580 · 88650-12581 · 88650-12590 · 88650-12600 · 88650-12601 · 88650-12610 · 88650-12620 · 88650-12650 · 88650-12660 · 88650-12670 · 88650-12680 · 88650-12710 · 88650-12720 · 88650-12730 · 88650-12740 · 88650-12750 · 88650-12760 · 88650-12770 · 88650-12780 · 88650-12790 · 88650-12800 · 88650-12890 · 88650-12891 · 88650-1A030 · 88650-1A040 · 88650-1A060 · 88650-1A070 · 88650-1A080 · 88650-1A090 · 88650-1A120 · 88650-1A130 · 88650-1A140 · 88650-1A150 · 88650-1A160 · 88650-1A220 · 88650-1A230 · 88650-1A250 · 88650-1A300 · 88650-1A310 |
| 88716F | Cooler refrigerant liquid pipe F | 88726-12300 |
