Toyota COROLLA 暖风和空调系统 - 组件 — Figure 8711
Toyota COROLLA EPC diagram 8711, 暖风和空调系统 - 组件, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

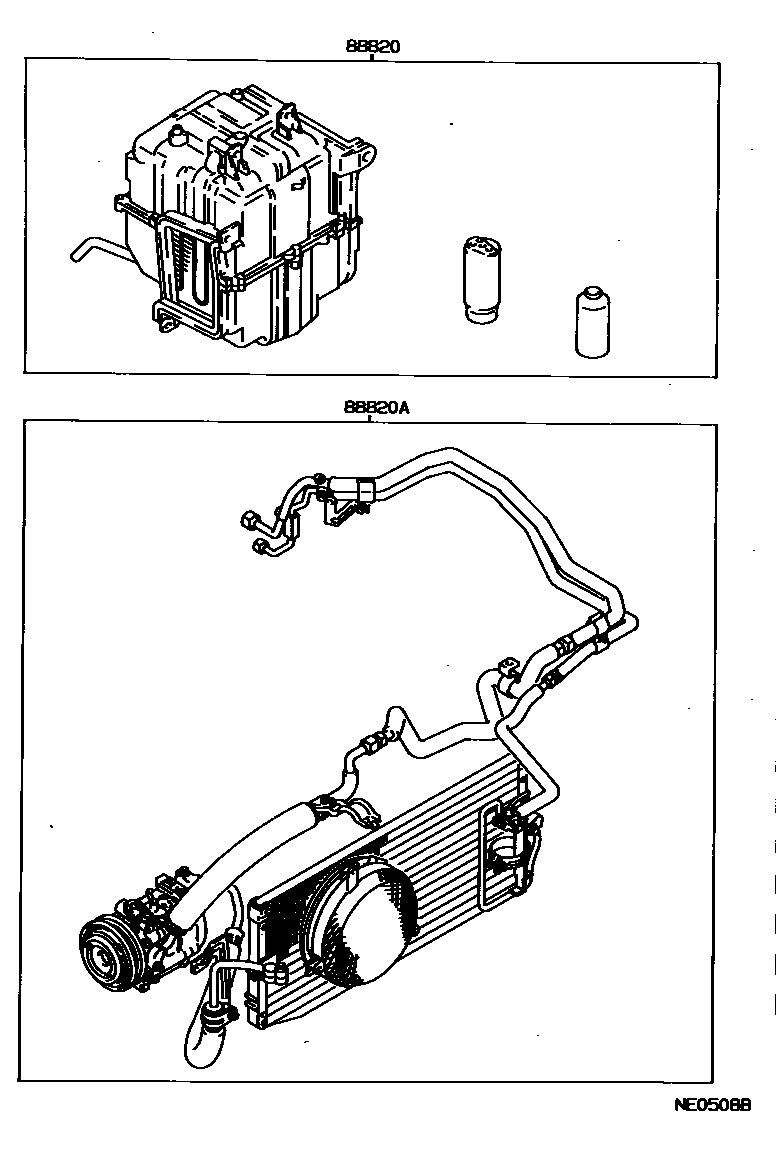

| 88820 | No. 1 air conditioner and accessories sub-assembly | 88820-12250 · 88820-12251 · 88820-12270 |
| 88820A | No. 2 air conditioner and accessories sub-assembly | 88830-12610 · 88830-12611 · 88830-12612 · 88830-12620 · 88830-12622 · 88830-12630 · 88830-12631 · 88830-12632 · 88830-12640 · 88830-12641 · 88830-12642 · 88830-12650 · 88830-12651 · 88830-12652 · 88830-12660 · 88830-12661 · 88830-12662 · 88830-12670 · 88830-12671 · 88830-12672 · 88830-12680 · 88830-12681 · 88830-12682 · 88830-12690 · 88830-12691 · 88830-12692 · 88830-12700 · 88830-12701 · 88830-12702 · 88830-12740 · 88830-12741 · 88830-12750 · 88830-12751 · 88830-12760 · 88830-12761 · 88830-12770 · 88830-12771 · 88830-12772 · 88830-12780 · 88830-12781 · 88830-12790 · 88830-12791 · 88830-12800 · 88830-12801 · 88830-12810 · 88830-12811 · 88830-12812 · 88830-12820 · 88830-12821 · 88830-12822 · 88830-12830 · 88830-12831 · 88830-12832 · 88830-12840 · 88830-12841 · 88830-12842 · 88830-12850 · 88830-12860 · 88830-12870 · 88830-12871 · 88830-12880 · 88830-12881 · 88830-1A010 · 88830-1A011 · 88830-1A012 · 88830-1A020 · 88830-1A021 · 88830-1A022 · 88830-1A030 · 88830-1A031 · 88830-1A032 · 88830-1A040 · 88830-1A050 · 88830-1A051 · 88830-1A052 · 88830-1A060 · 88830-1A061 · 88830-1A062 · 88830-1A063 · 88830-1A070 · 88830-1A071 · 88830-1A072 · 88830-1A073 · 88830-1A110 · 88830-1A120 · 88830-1A130 · 88830-1A140 · 88830-1A141 · 88830-1A150 · 88830-1A151 · 88830-1A160 · 88830-1A161 · 88830-1A170 · 88830-1A171 · 88830-1A180 · 88830-1A181 · 88830-1A190 · 88830-1A191 · 88830-1A200 · 88830-1A201 · 88830-1A210 · 88830-1A211 · 88830-1A220 · 88830-1A221 · 88830-1A230 · 88830-1A231 · 88830-1A240 · 88830-1A241 · 88830-1A250 · 88830-1A251 · 88830-1A400 · 88830-1A401 · 88830-1A410 · 88830-1A411 · 88830-1A420 · 88830-1A421 · 88830-1A430 · 88830-1A431 · 88830-1A440 · 88830-1A441 · 88830-1A450 · 88830-1A451 · 88830-1A460 · 88830-1A461 · 88830-1A470 · 88830-1A471 · 88830-1A480 · 88830-1A490 · 88830-1A500 · 88830-1A510 · 88830-1A520 · 88830-1A530 · 88830-1A540 · 88830-1A550 · 88830-1A560 · 88830-1A570 · 88830-1A580 · 88830-1A590 · 88830-1A600 · 88830-1A610 · 88830-1A620 · 88830-1A630 · 88830-1A640 · 88830-1A650 · 88830-1A660 · 88830-1A670 · 88830-1A680 · 88830-1A690 · 88830-1A700 · 88830-1A740 · 88830-1A750 · 88830-1A760 · 88830-1A770 · 88830-1A780 · 88830-1A790 · 88830-1A800 · 88830-1A810 · 88830-1A820 · 88830-1A830 · 88830-1A840 · 88830-1A850 · 88830-1A860 · 88830-1A870 · 88830-1A880 · 88830-1A890 · 88830-1A900 · 88830-1A910 · 88830-1A920 · 88830-1A930 · 88830-1A940 · 88830-1A950 · 88830-1A960 · 88830-1A970 · 88830-1A980 · 88830-1A990 · 88830-1E010 · 88830-1E020 · 88830-1E030 · 88830-1E040 · 88830-1E050 · 88830-1E060 · 88830-1E070 · 88830-1E080 · 88830-1E090 · 88830-1E100 · 88830-1E130 · 88830-1E140 · 88830-1E150 · 88830-1E170 · 88830-1E210 · 88830-1E220 · 88830-1E230 · 88830-1E240 · 88830-1E250 · 88830-1E260 · 88830-1E270 · 88830-1E280 · 88830-1E290 · 88830-1E300 · 88830-1E310 · 88830-1E410 · 88830-1E420 |

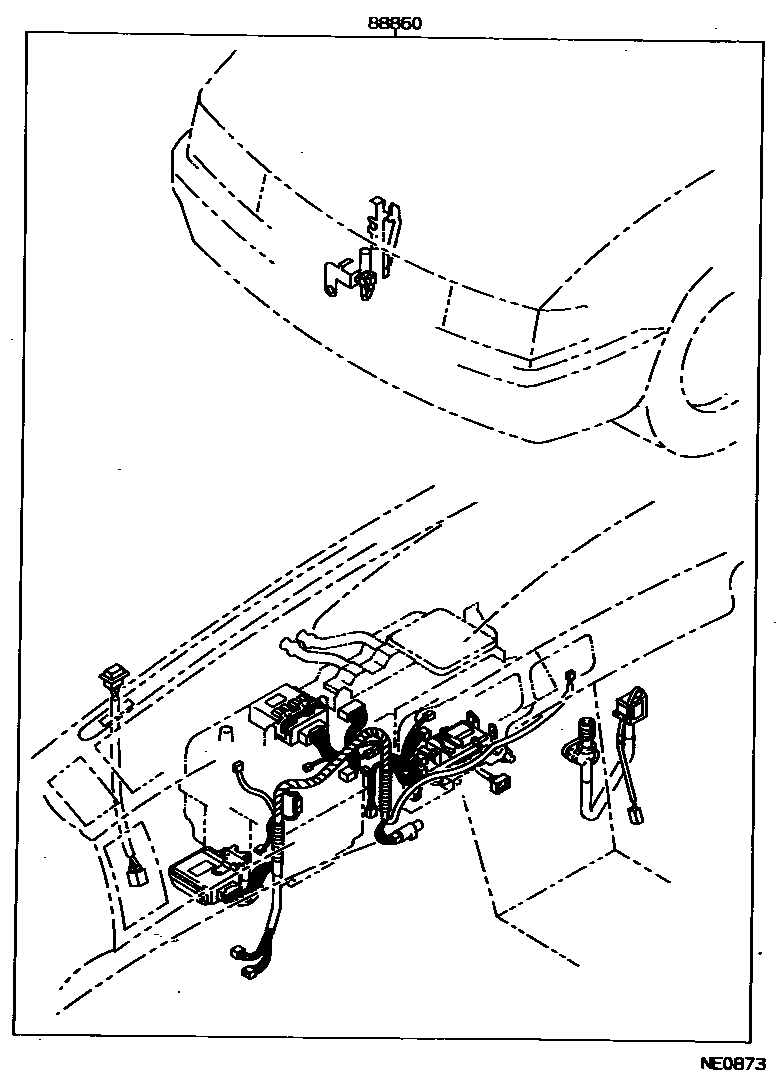

| 88860 | Automatic air conditioning accessory assembly | 88860-12180 · 88860-12190 · 88860-12200 · 88860-12210 · 88860-12250 · 88860-12260 · 88860-12270 · 88860-12280 · 88860-12300 · 88860-12310 · 88860-12350 · 88860-12360 · 88860-12370 · 88860-12380 · 88860-12390 · 88860-12470 · 88860-12480 · 88860-12490 |
