Toyota COROLLA 后视镜 — Figure 8701

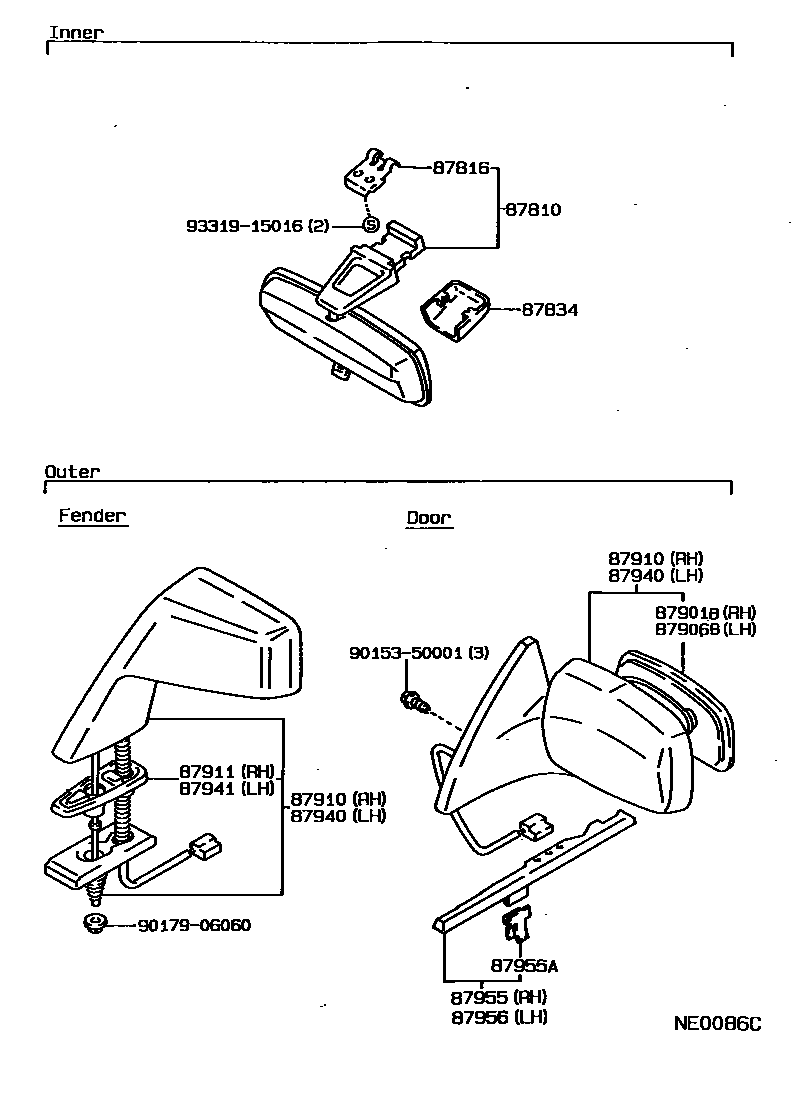

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-1A210 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-1A290 |
| 87910 | Right exterior rearview mirror assembly | 87910-1A160 · 87910-1A180 · 87910-1A200 · 87910-1A210 · 87910-1A211 · 87910-1A480 · 87910-1A490 · 87910-1A500 · 87910-1A510 · 87910-1A600 |
| 87911 | Right exterior mirror pad | 87911-12130 · 87911-12200 · 87911-12220 · 87911-12230 |
| 87940 | Left exterior rearview mirror assembly | 87940-1A240 · 87940-1A260 · 87940-1A280 · 87940-1A290 · 87940-1A291 · 87940-1A480 · 87940-1A490 · 87940-1A500 · 87940-1A510 · 87940-1A730 |
| 87941 | Left exterior mirror pad | 87941-12110 · 87941-12180 · 87941-12220 · 87941-12230 |
| 87955 | Right exterior mirror base lower pad | 87955-12040 · 87955-12050 |
| 87955A | Door glass seal strip clip | 68211-12160 |
| 87956 | Left side exterior mirror base lower pad | 87956-12040 · 87956-12050 |
