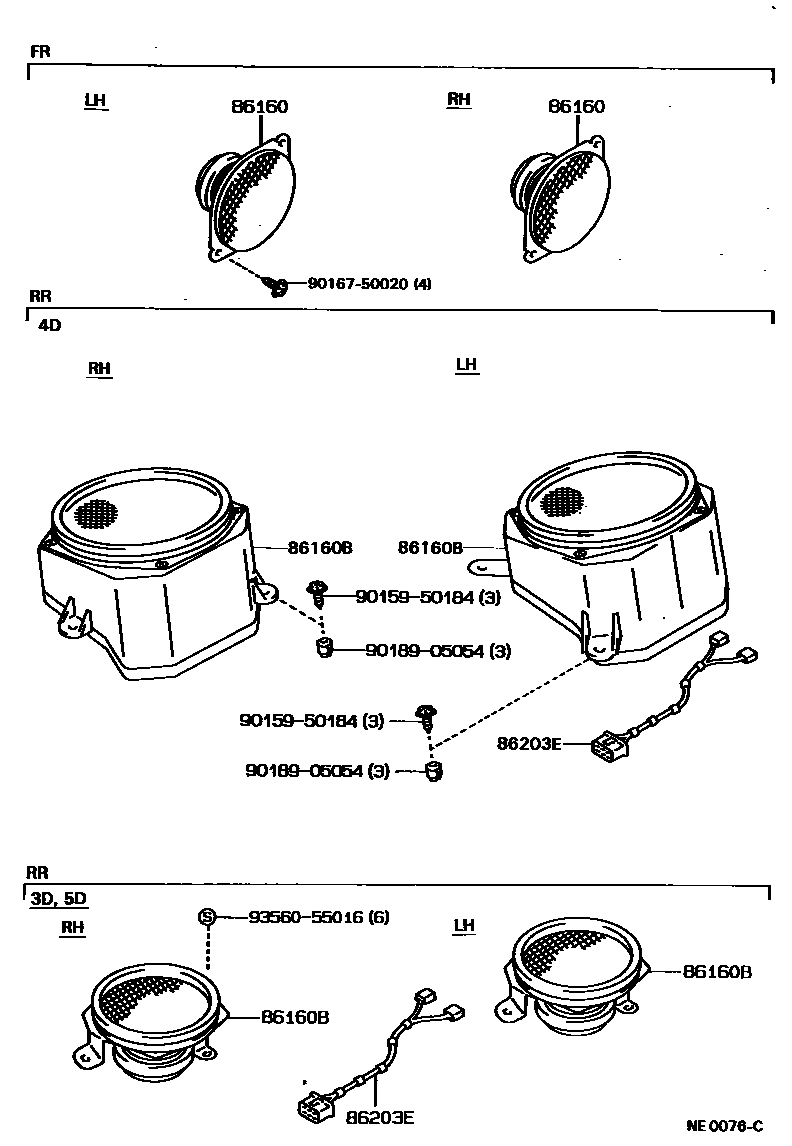

Toyota COROLLA 扬声器 — Figure 8602
Toyota COROLLA EPC diagram 8602, 扬声器, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-12280 · 86160-12290 |
| 86160B | Rear speaker assembly | 86160-12231 · 86160-12241 · 86160-12270 |
| 86203E | Stereo Part 1 Speaker Wire Harness | 86205-12010 |
