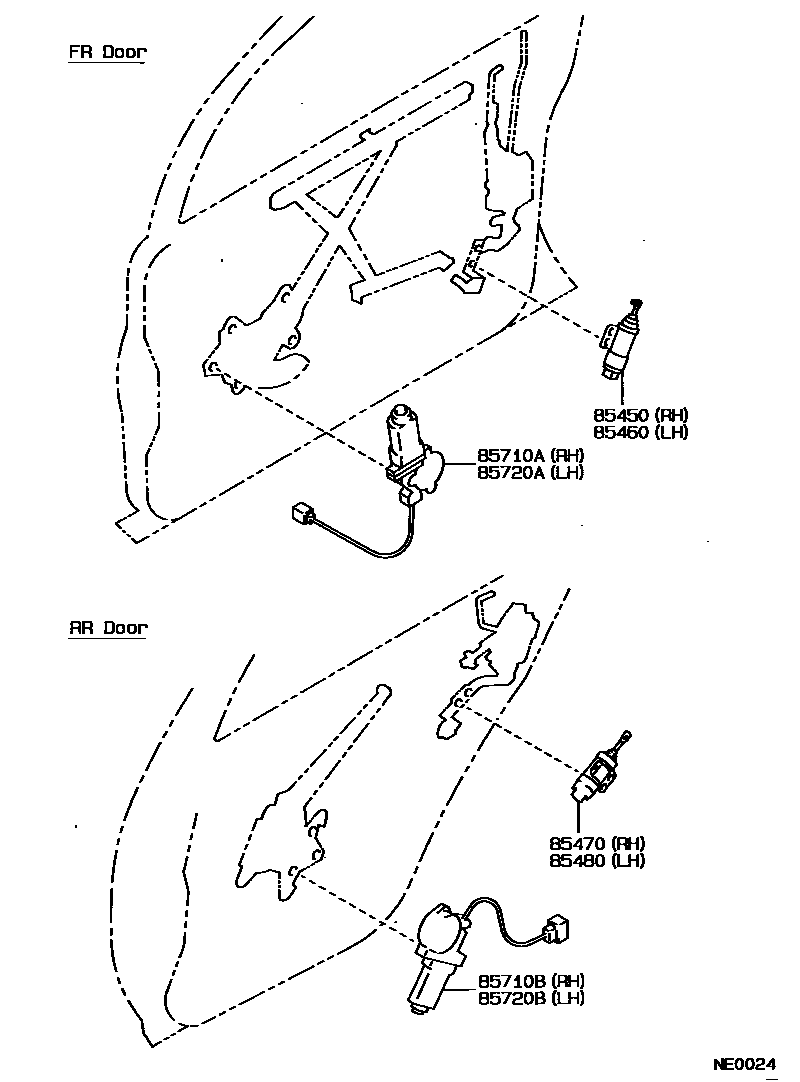

Toyota COROLLA 车门电机和车门电磁阀 — Figure 8511
Toyota COROLLA EPC diagram 8511, 车门电机和车门电磁阀, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85450 | Right front door control solenoid valve assembly | 85450-12160 · 85450-12200 · 85450-12330 |
| 85460 | Left front door control solenoid valve assembly | 85450-12170 · 85450-12210 · 85450-12340 |
| 85470 | Right rear door control solenoid valve assembly | 85450-12250 · 85450-12320 · 85450-12360 |
| 85480 | Left rear door control solenoid valve assembly | 85450-12240 · 85450-12310 · 85450-12350 |
| 85490 | Back door control solenoid valve assembly | 85450-13010 |
| 85710A | Right front electric window lift motor assembly | 85710-12060 · 85710-20060 |
| 85710B | Right rear electric window lift motor assembly | 85710-12080 |
| 85720A | Left front electric window lift motor assembly | 85720-12060 · 85720-20060 |
| 85720B | Left rear electric window lift motor assembly | 85720-12070 |
