Toyota COROLLA ABS 和 VSC — Figure 8414

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 2 images and 7 PNC and OE references.

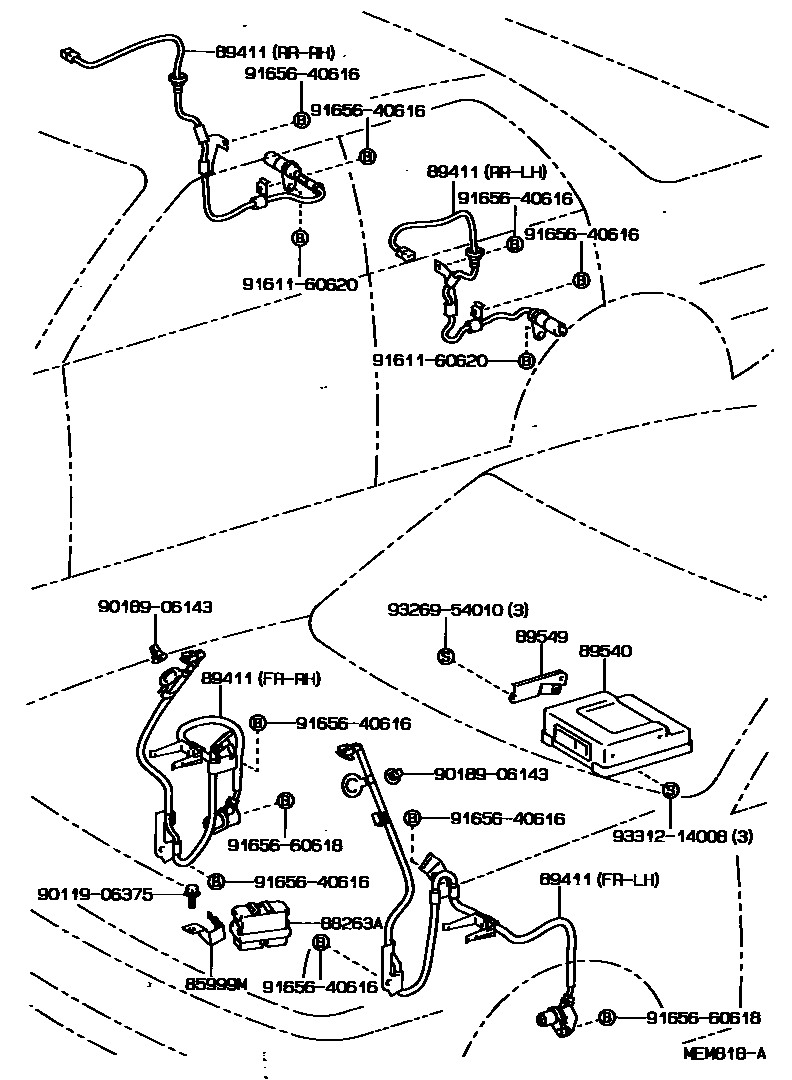

Toyota COROLLA ABS 和 VSC EPC diagram — MEM818A
ABS 和 VSC — MEM818A (198905 – 999999)

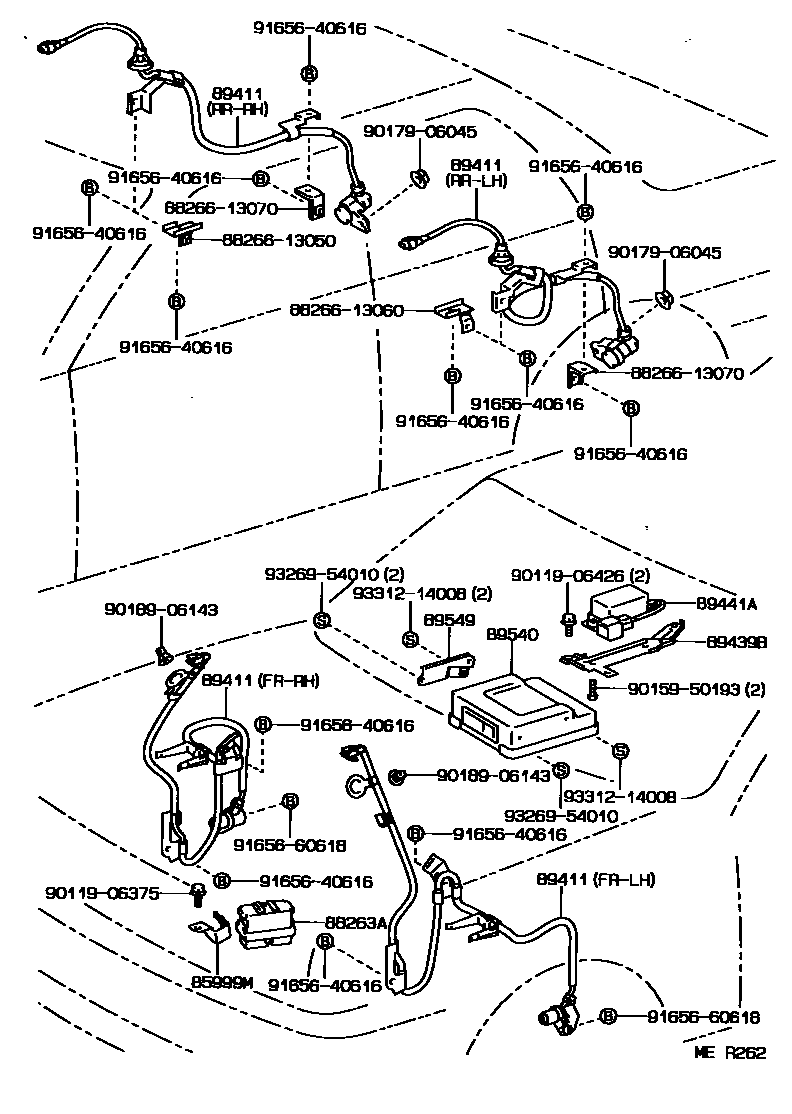

Toyota COROLLA ABS 和 VSC EPC diagram — MER262
ABS 和 VSC — MER262 (199008 – 999999)

PNC and OE references

PNCPart nameOE numbers
85999MRelay bracket85999-12130
88263AAnti-skid control relay88263-12070
89411Speed sensor89542-12010 · 89543-12010 · 89545-12010 · 89545-13010 · 89546-12010 · 89546-13010
89439BSensor holder89439-13010
89441Adeceleration sensor89441-20030
89540Anti-skid control ECU assembly89541-12020 · 89541-13010
89549Anti-slip control ECU bracket89549-12010
