Toyota COROLLA 后牌照灯 — Figure 8113

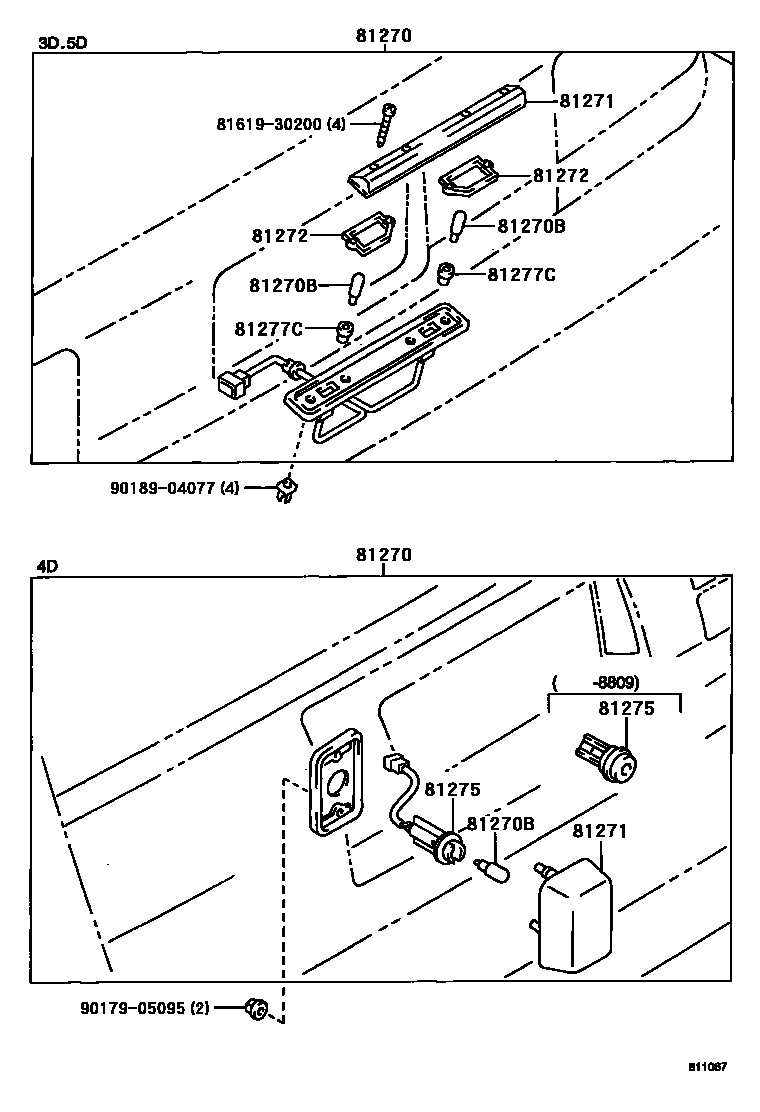

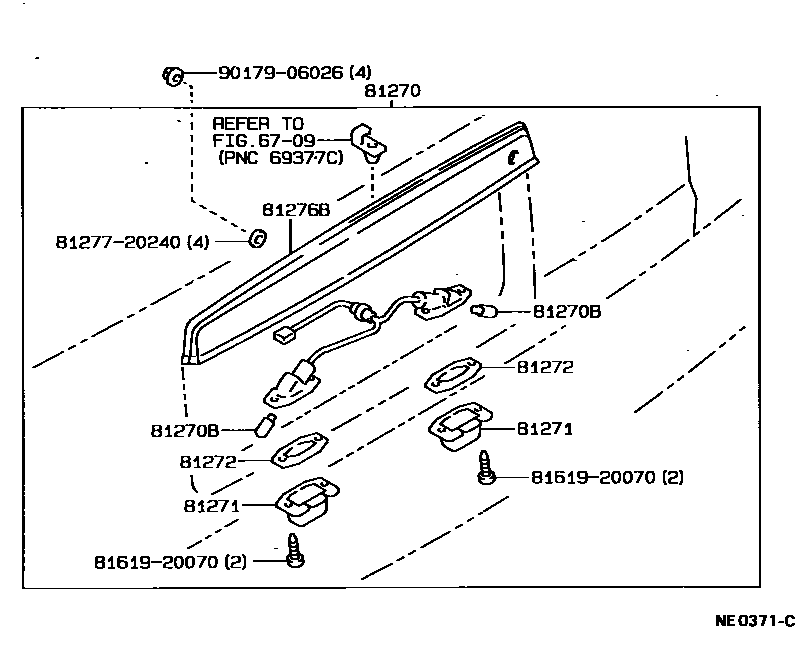

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-12310 · 81270-12360 · 81270-12390 · 81270-12400 · 81270-12410 · 81270-13190 · 81270-13210 |
| 81270B | Bulb (for license plate light) | 99132-12050 |
| 81271 | license plate lamp shade | 81271-12310 · 81271-13190 · 81271-22200 |
| 81272 | License plate lamp shade gasket | 81272-22200 · 81272-24010 |
| 81275 | License plate lamp holder and wiring harness | 81275-12390 · 99159-10232 |
| 81276B | license plate light cover | 81276-13190 · 81276-13210 |
| 81277C | Right license plate light shade | 81277-22200 |
