Toyota COROLLA 后组合灯 — Figure 8111

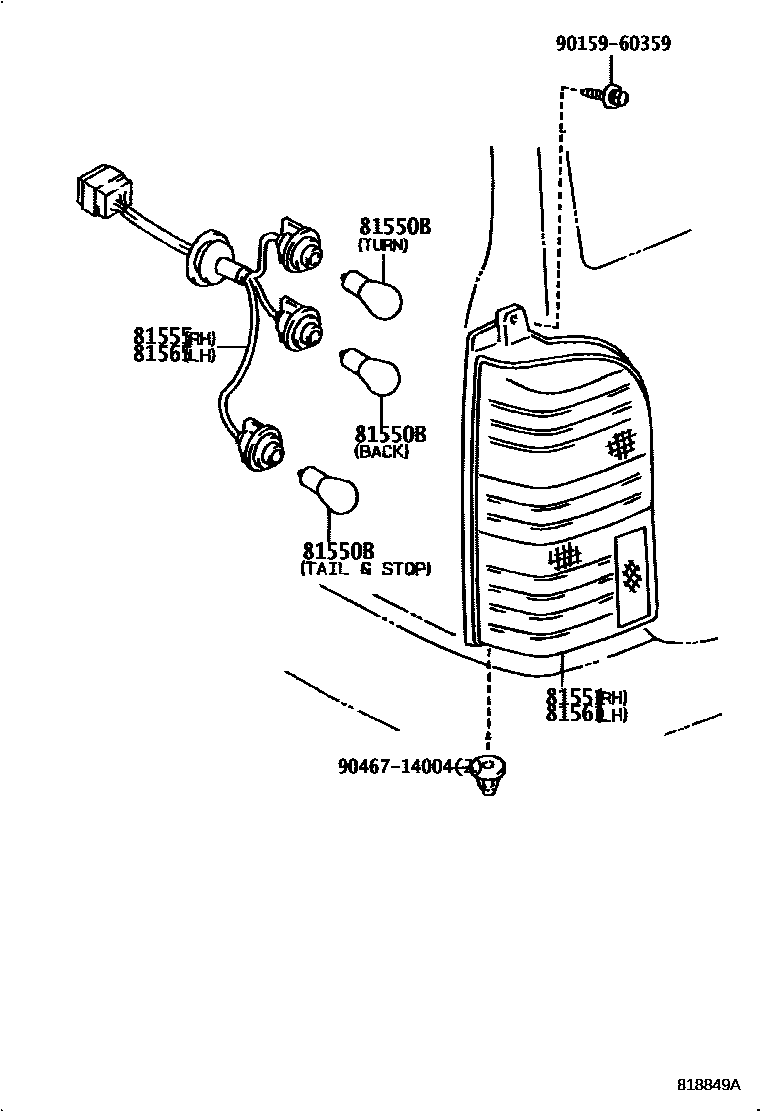

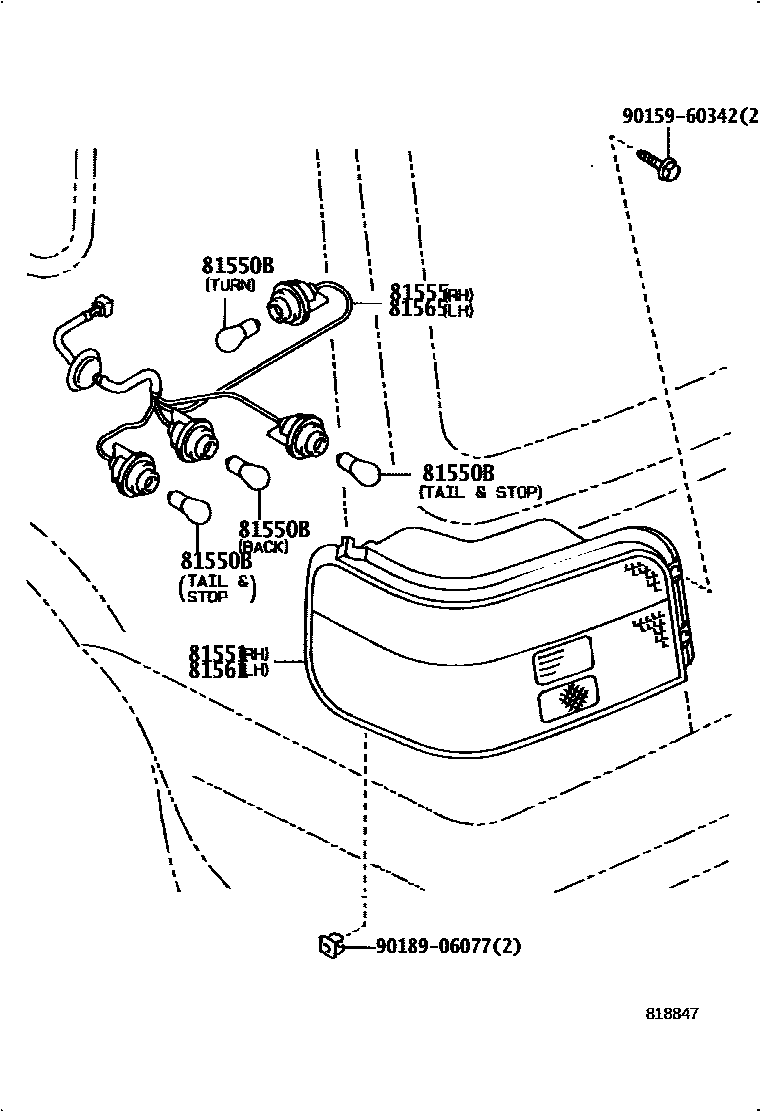

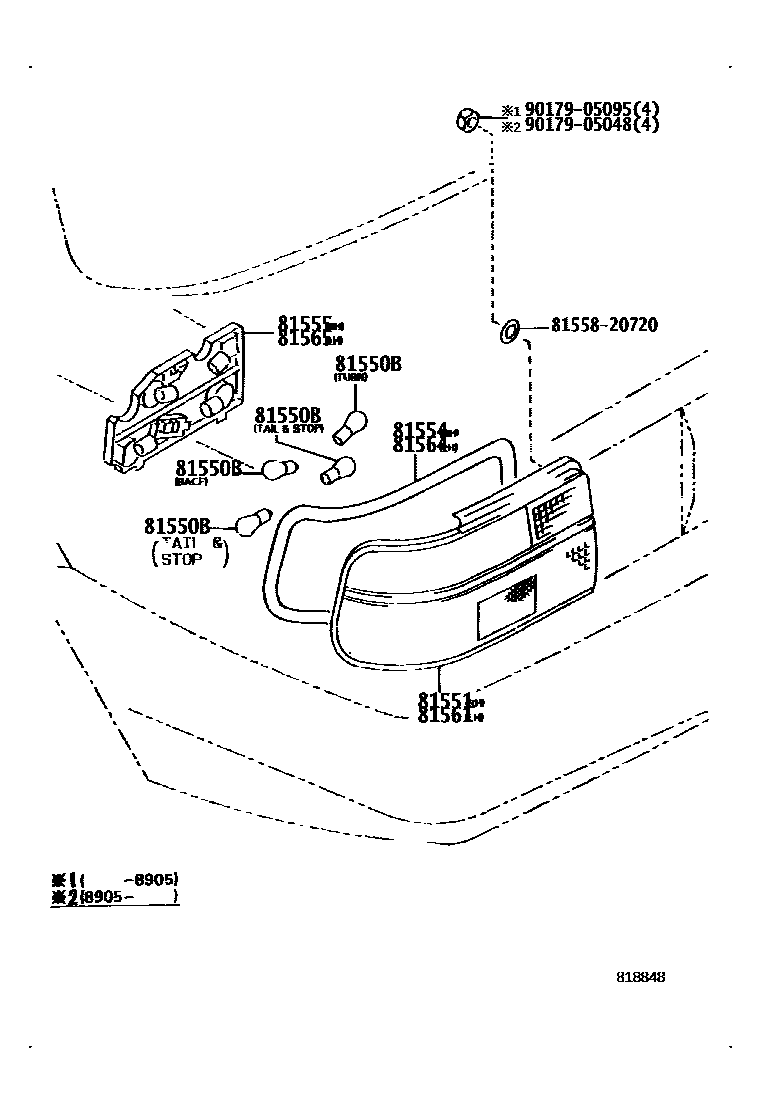

Toyota COROLLA EPC diagram 8111, 后组合灯, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550B | Bulb (for rear combination lights) | 99132-11210 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-13300 · 81551-1A360 · 81551-1A420 · 81551-1A520 · 81551-1A580 · 81551-1A600 · 81551-1A610 |
| 81554 | Right rear combination lamp body gasket | 81554-1A421 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13300 · 81555-1A360 · 81555-1A520 · 81555-1A580 · 81555-1A600 |
| 81561 | Left rear combination lamp shade | 81561-12890 · 81561-13300 · 81561-1A380 · 81561-1A520 · 81561-1A580 · 81561-1A600 · 81561-1A610 |
| 81564 | Left rear combination lamp body gasket | 81554-1A421 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13300 · 81555-1A520 · 81555-1A600 · 81565-12890 · 81565-1A580 |
