Toyota COROLLA 前转向灯 — Figure 8103

Toyota COROLLA EPC diagram 8103, 前转向灯, with 3 images and 8 PNC and OE references.

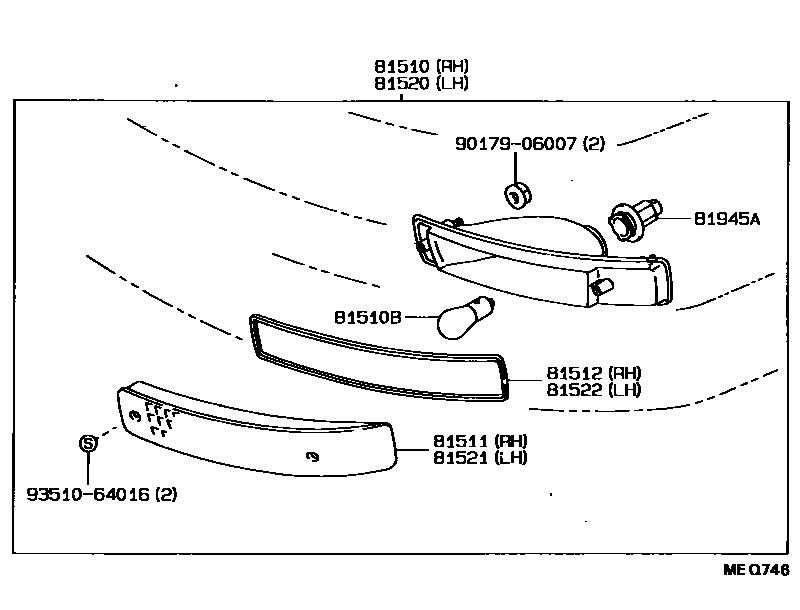

Toyota COROLLA 前转向灯 EPC diagram — MEQ746
前转向灯 — MEQ746 (198905 – 999999)
Toyota COROLLA 前转向灯 EPC diagram — NE0037B
前转向灯 — NE0037B (198705 – 999999)

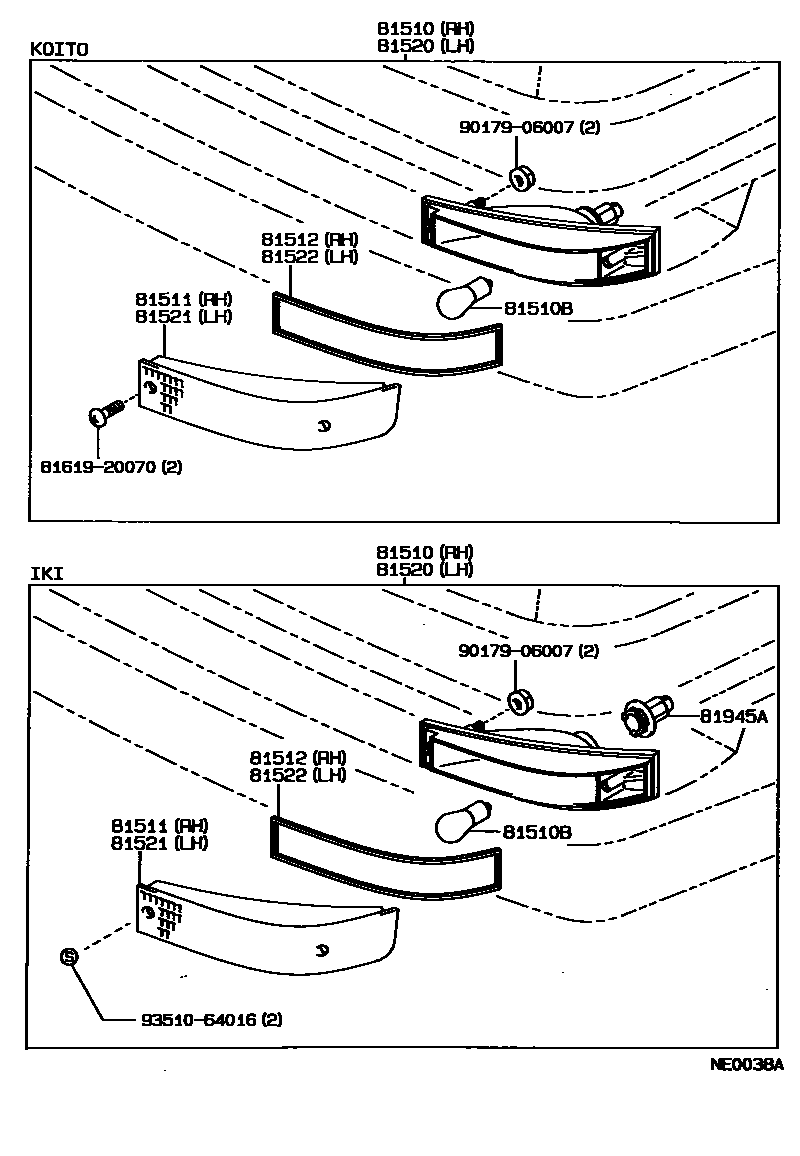

Toyota COROLLA 前转向灯 EPC diagram — NE0038A
前转向灯 — NE0038A (198705 – 198908)

PNC and OE references

PNCPart nameOE numbers
81510Right front turn signal lamp assembly81510-80048 · 81510-80053 · 81510-80054 · 81510-80068 · 81510-80070
81510BBulb (for front turn signal lamp)99132-11210
81511Right front turn signal lamp cover81511-12560 · 81511-12580 · 81511-12590 · 81511-12591 · 81511-12600
81512Right front turn signal lamp housing gasket81512-12560 · 81512-12580 · 81512-12590 · 81512-12591 · 81512-12600
81520Left front turn signal lamp assembly81520-80048 · 81520-80053 · 81520-80054 · 81520-80068 · 81520-80070
81521Left front turn signal lamp cover81521-12560 · 81521-12580 · 81521-12590 · 81521-12591 · 81521-12600
81522Left front turn signal lamp housing gasket81512-12560 · 81512-12580 · 81512-12590 · 81512-12591 · 81512-12600
81945ALamp holder81945-12010
