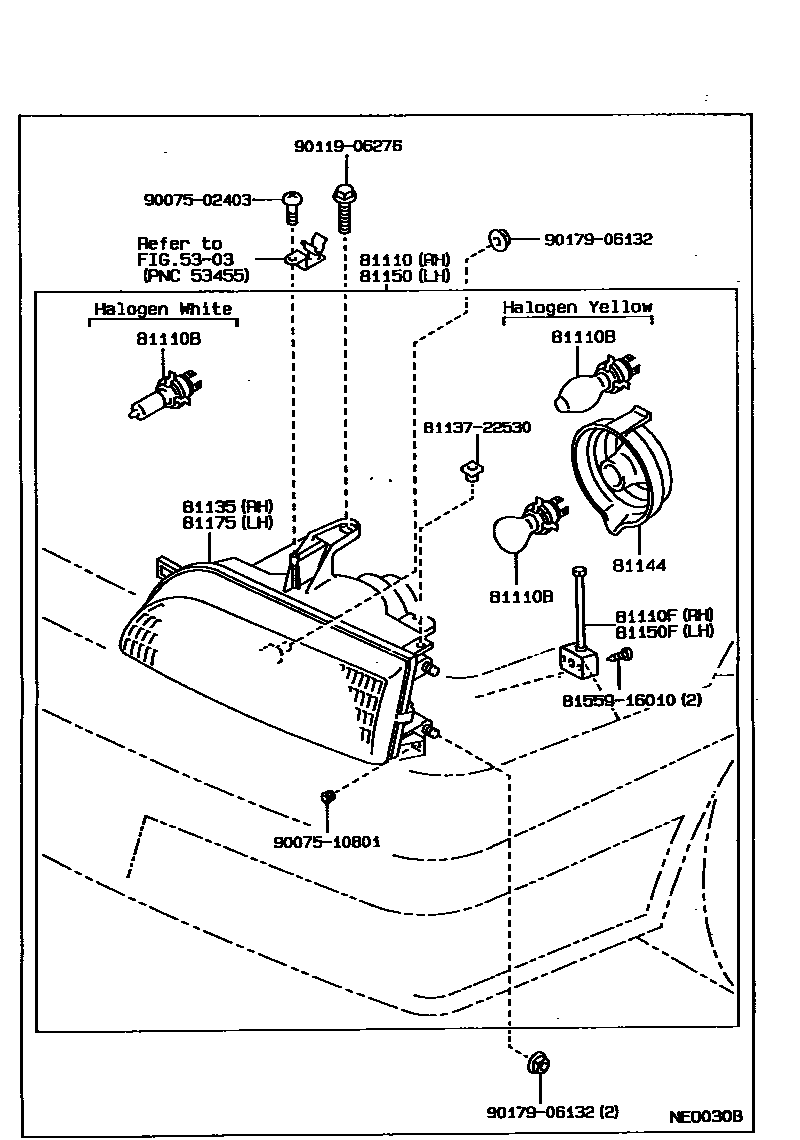

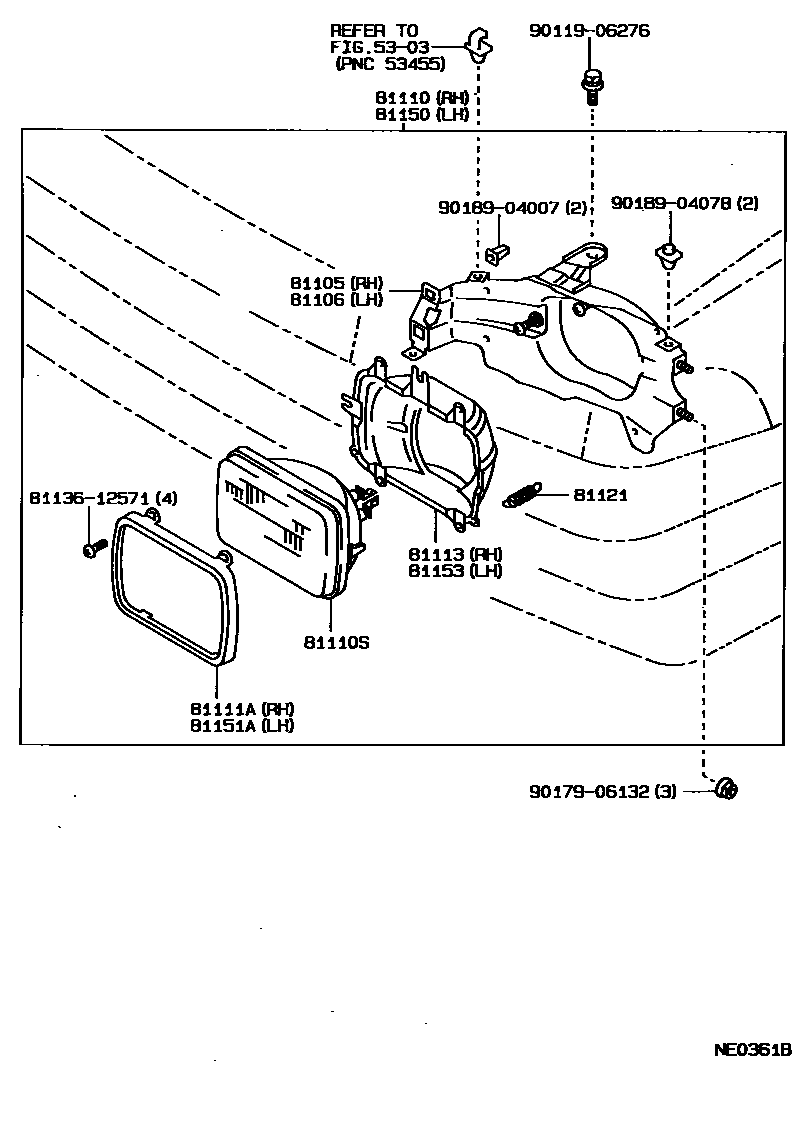

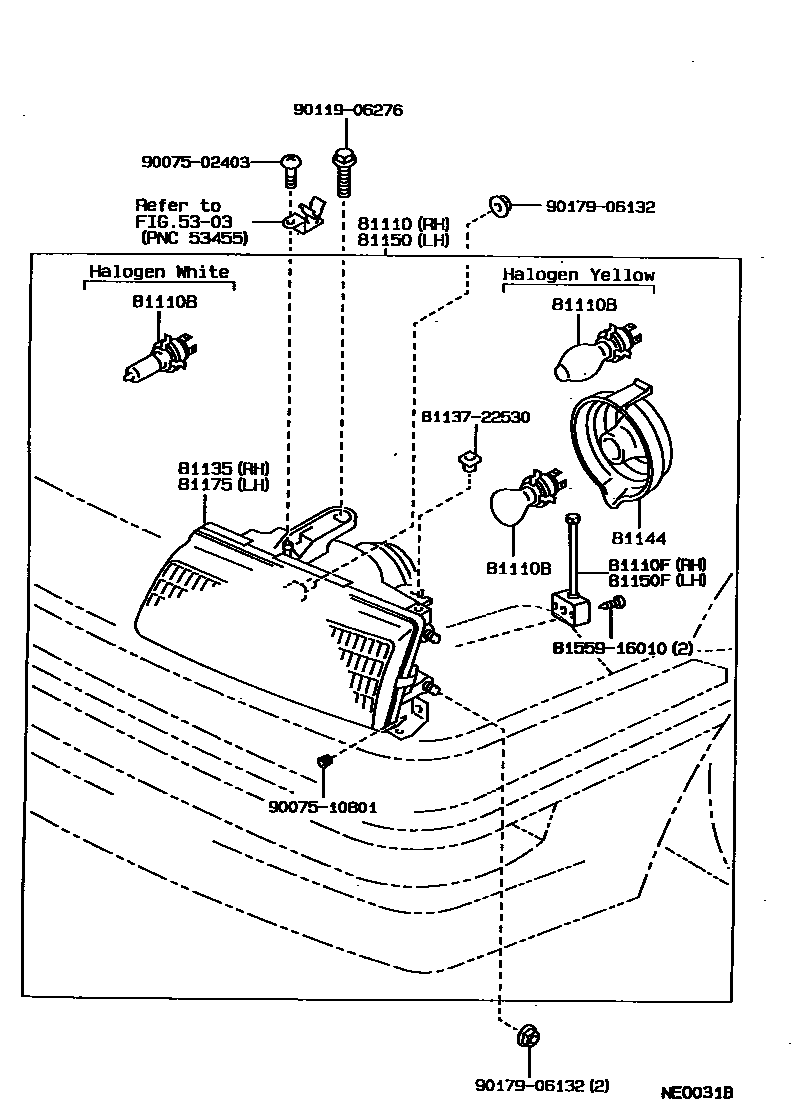

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81105 | Right headlight housing sub-assembly | 81105-13100 |
| 81106 | Left headlight housing sub-assembly | 81106-13100 |
| 81110 | Right headlight assembly | 81110-13100 · 81110-1A580 · 81110-1A581 · 81110-1A590 · 81110-1A600 · 81110-1A760 · 81110-1A761 · 81110-1A770 · 81110-1A780 · 81110-1A781 · 81110-1E050 · 81110-1E150 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-13016 · 90981-13022 |
| 81110F | Right No. 1 gear mechanism assembly | 90075-99077 |
| 81110S | No. 1 enclosed lamp assembly | 90981-04029 |
| 81111A | No. 1 closed car light fixing ring on the right | 81111-13100 |
| 81113 | Right No. 1 closed lamp seat | 81113-13100 |
| 81121 | headlight spring | 81121-16020 |
| 81135 | Right headlight assembly | 81130-1A580 · 81130-1A581 · 81130-1A590 · 81130-1A760 · 81130-1A761 · 81130-1A770 · 81130-1E050 · 81130-1E150 |
| 81144 | No. 1 headlight cover | 81139-20730 |
| 81150 | Left headlight assembly | 81150-13100 · 81160-1A580 · 81160-1A581 · 81160-1A590 · 81160-1A600 · 81160-1A760 · 81160-1A761 · 81160-1A770 · 81160-1A780 · 81160-1A781 · 81160-1E050 · 81160-1E150 |
| 81150F | Left No. 1 gear mechanism assembly | 90075-99077 |
| 81151A | No. 1 closed headlight fixing ring on the left | 81111-13100 |
| 81153 | No. 1 closed lamp seat on the left | 81153-13100 |
| 81175 | Left headlight assembly | 81170-1A580 · 81170-1A581 · 81170-1A590 · 81170-1A760 · 81170-1A761 · 81170-1A770 · 81170-1E050 · 81170-1E150 |
