Toyota COROLLA 燃油箱和燃油管 — Figure 7701

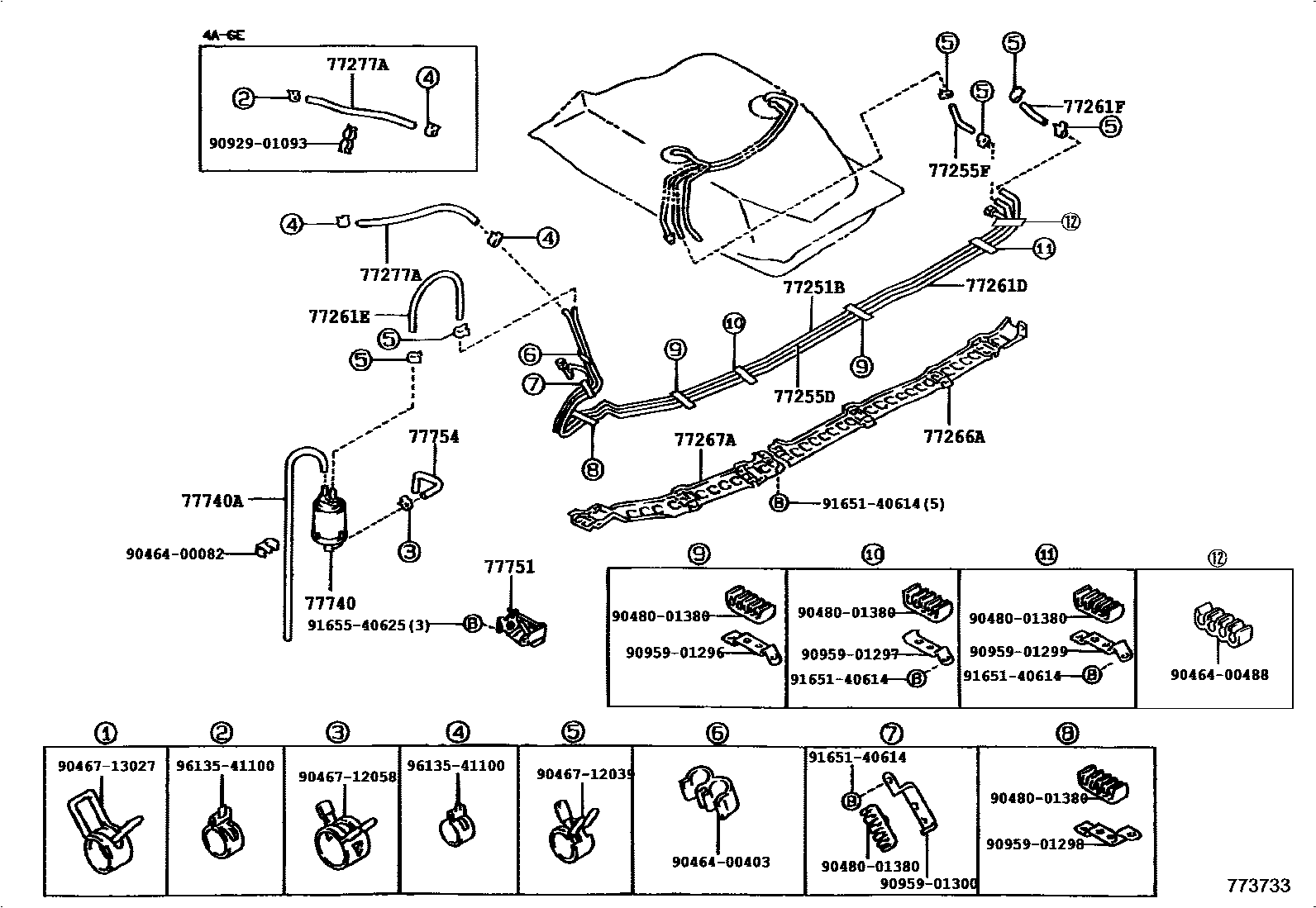

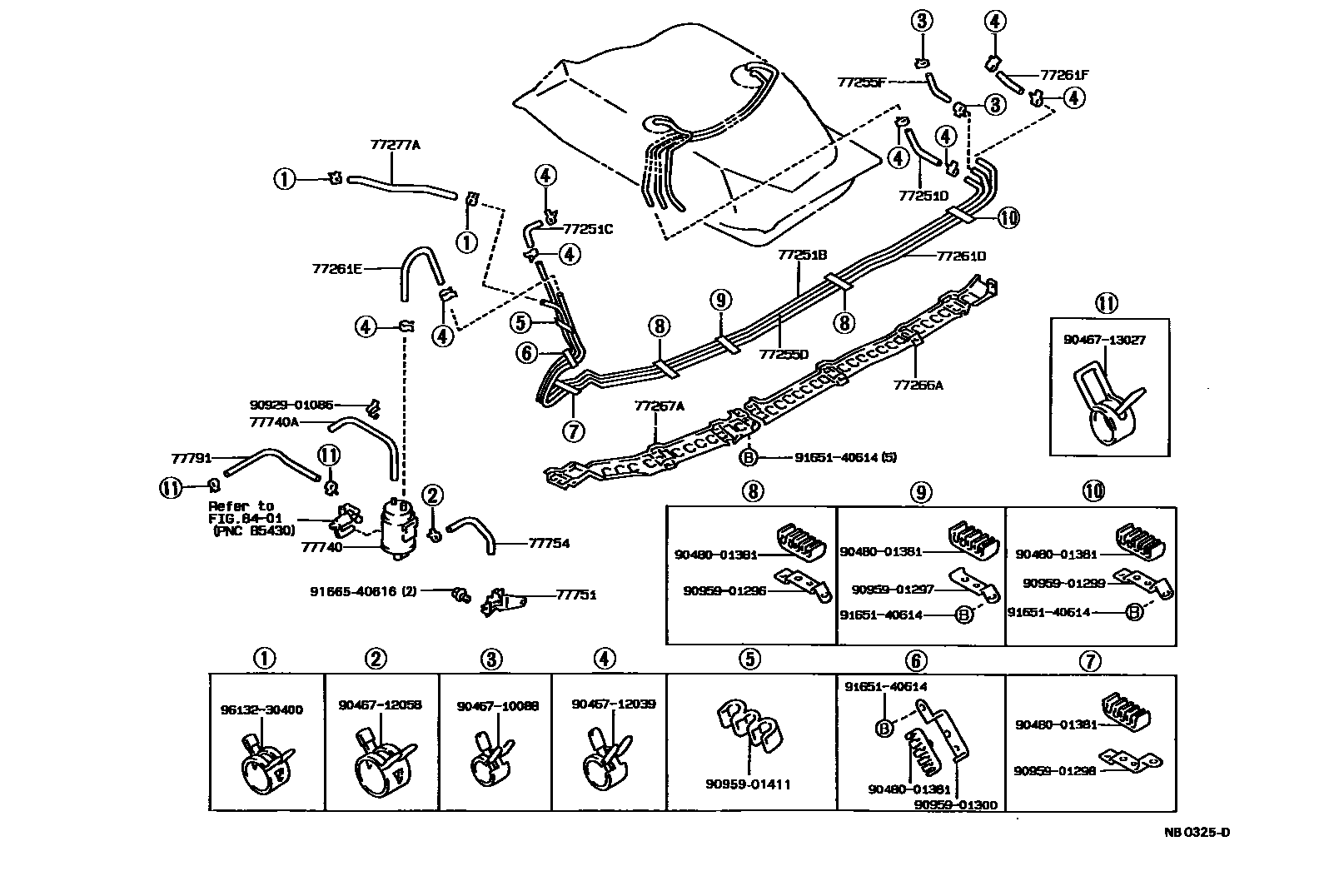

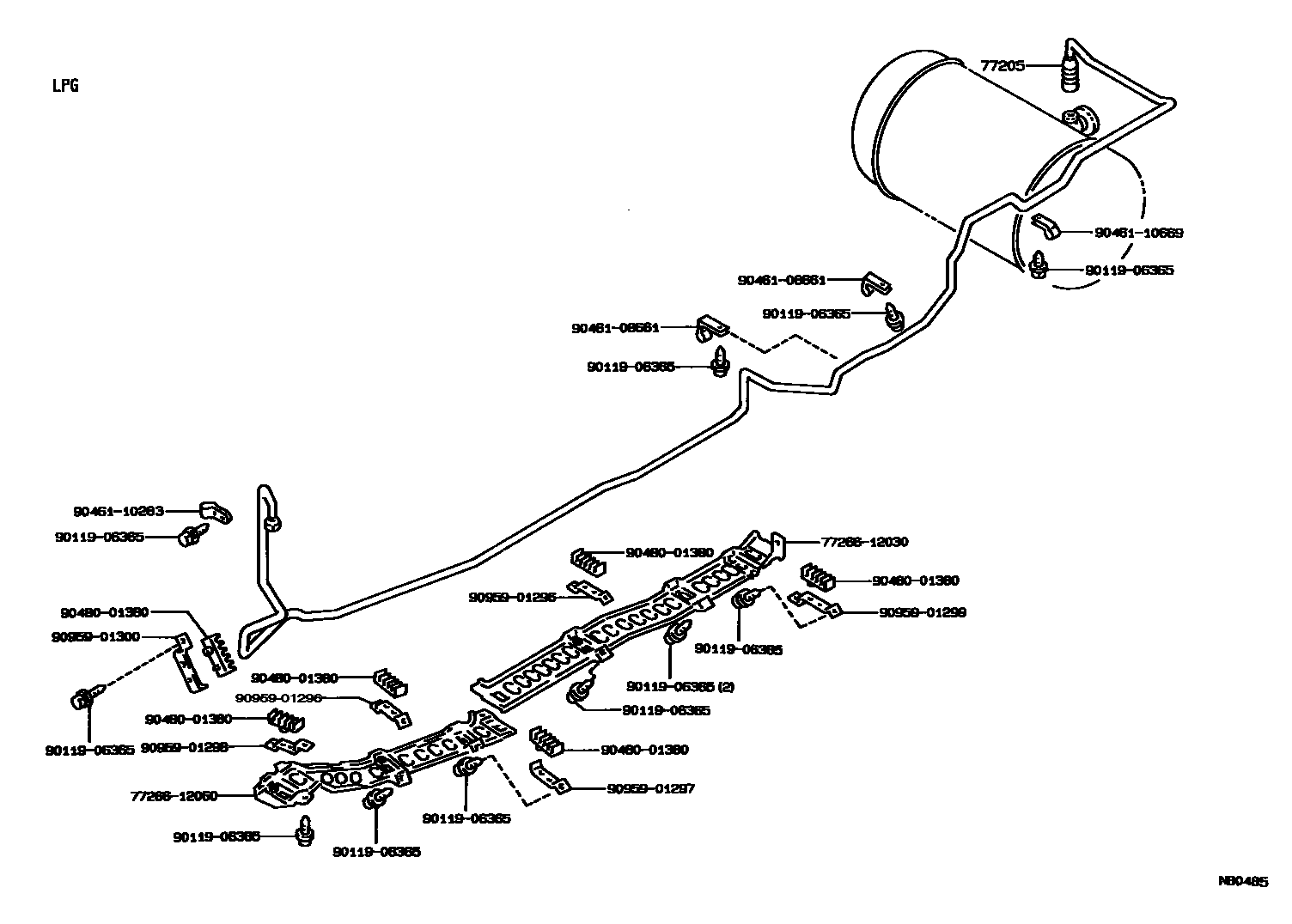

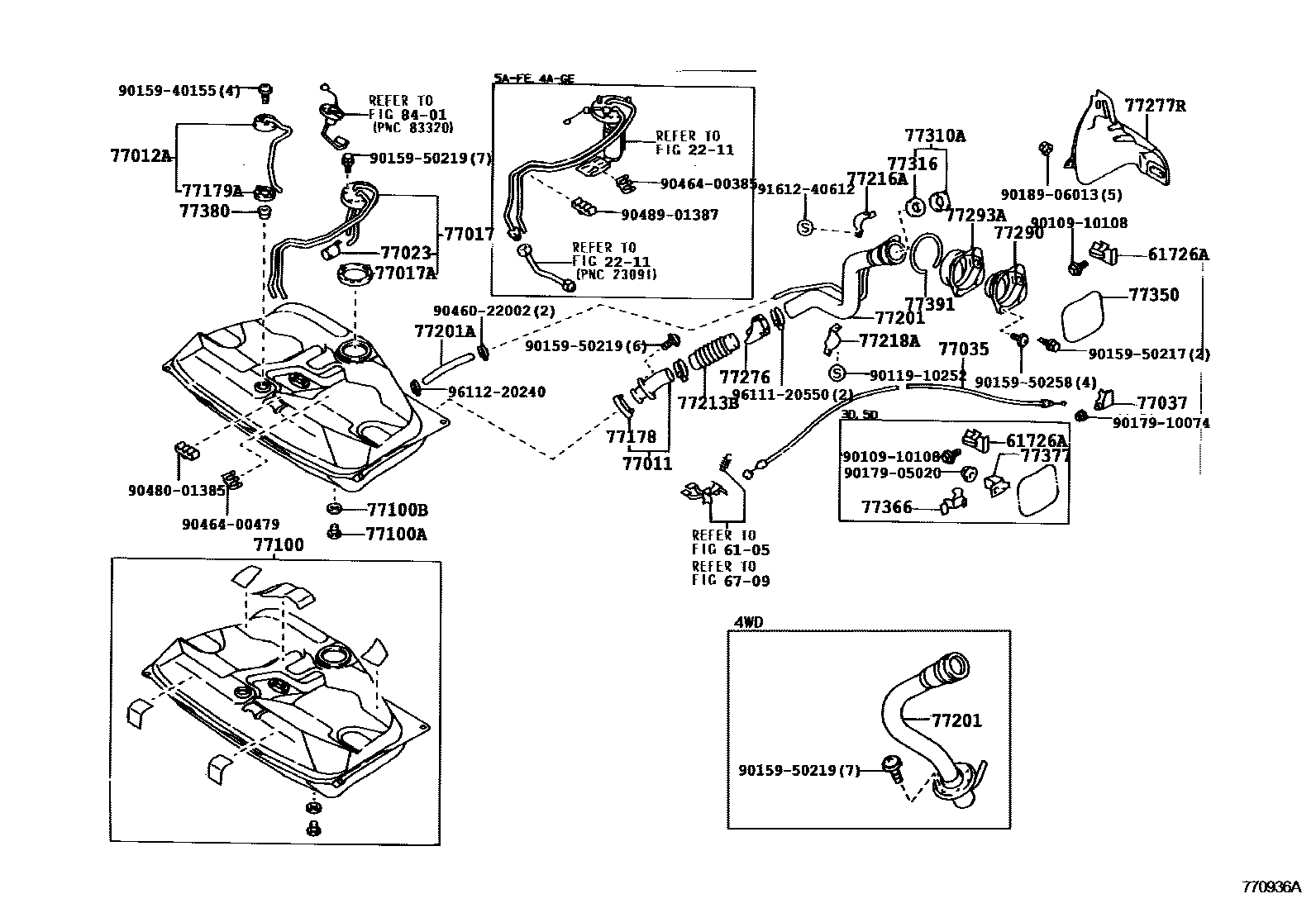

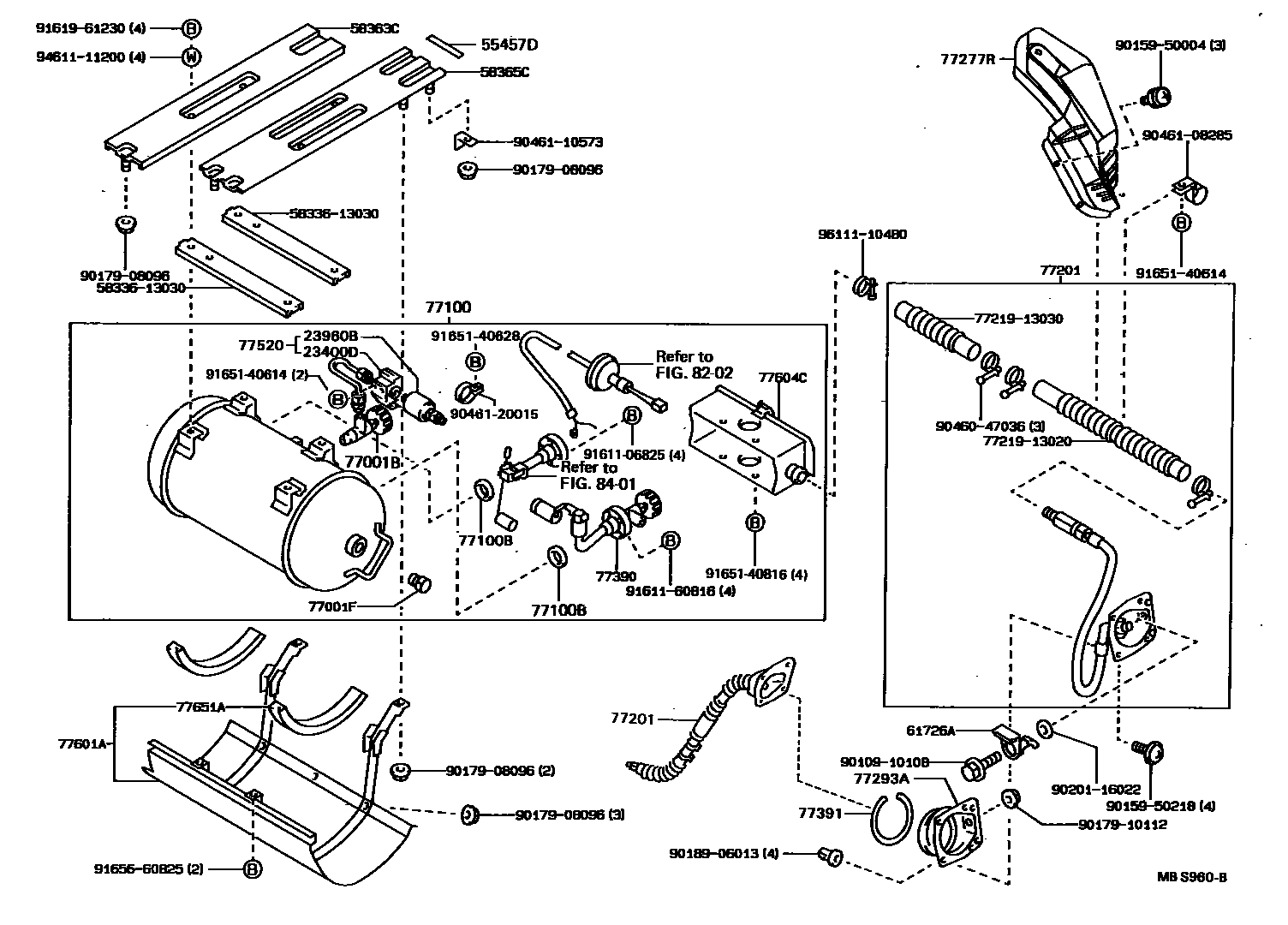

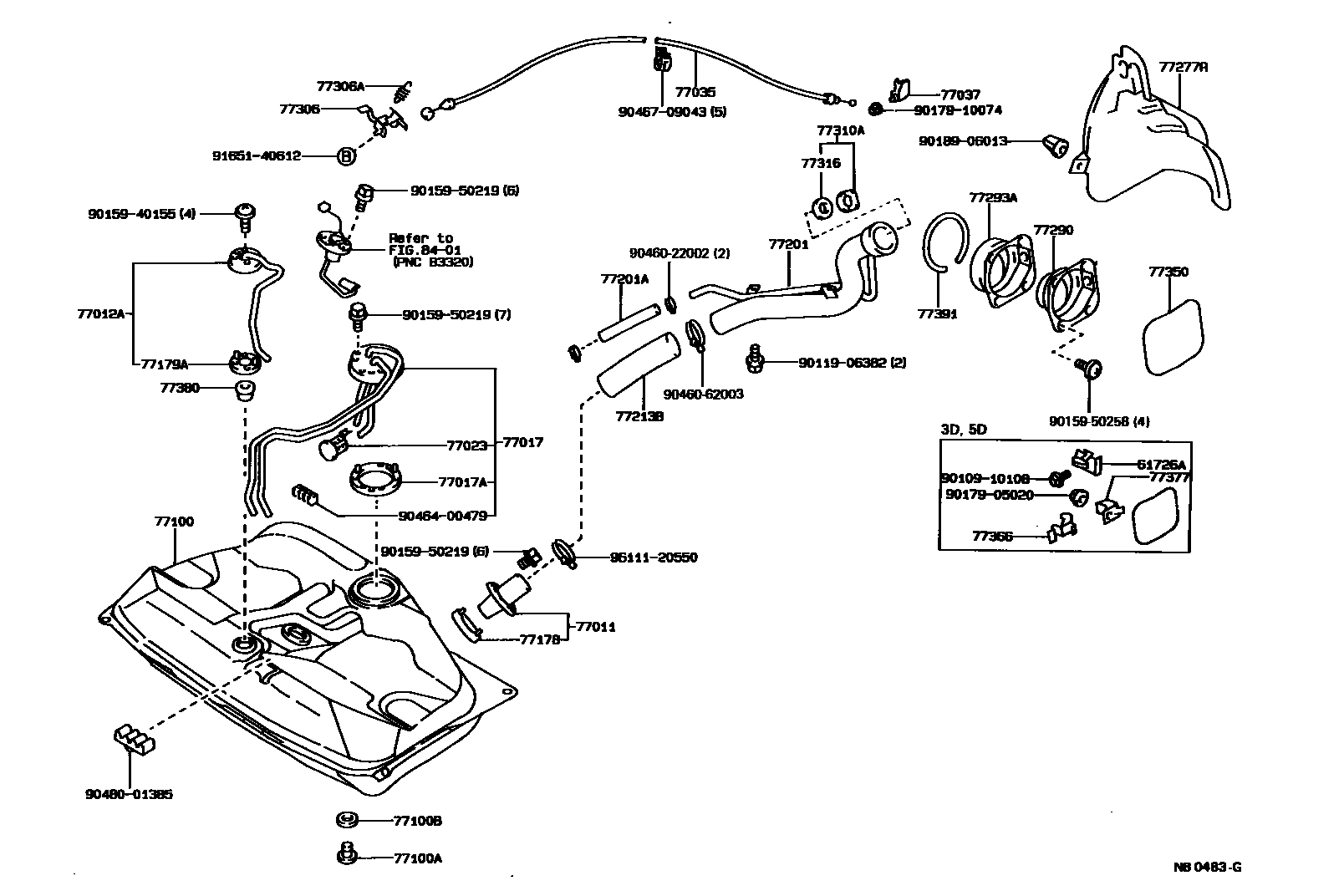

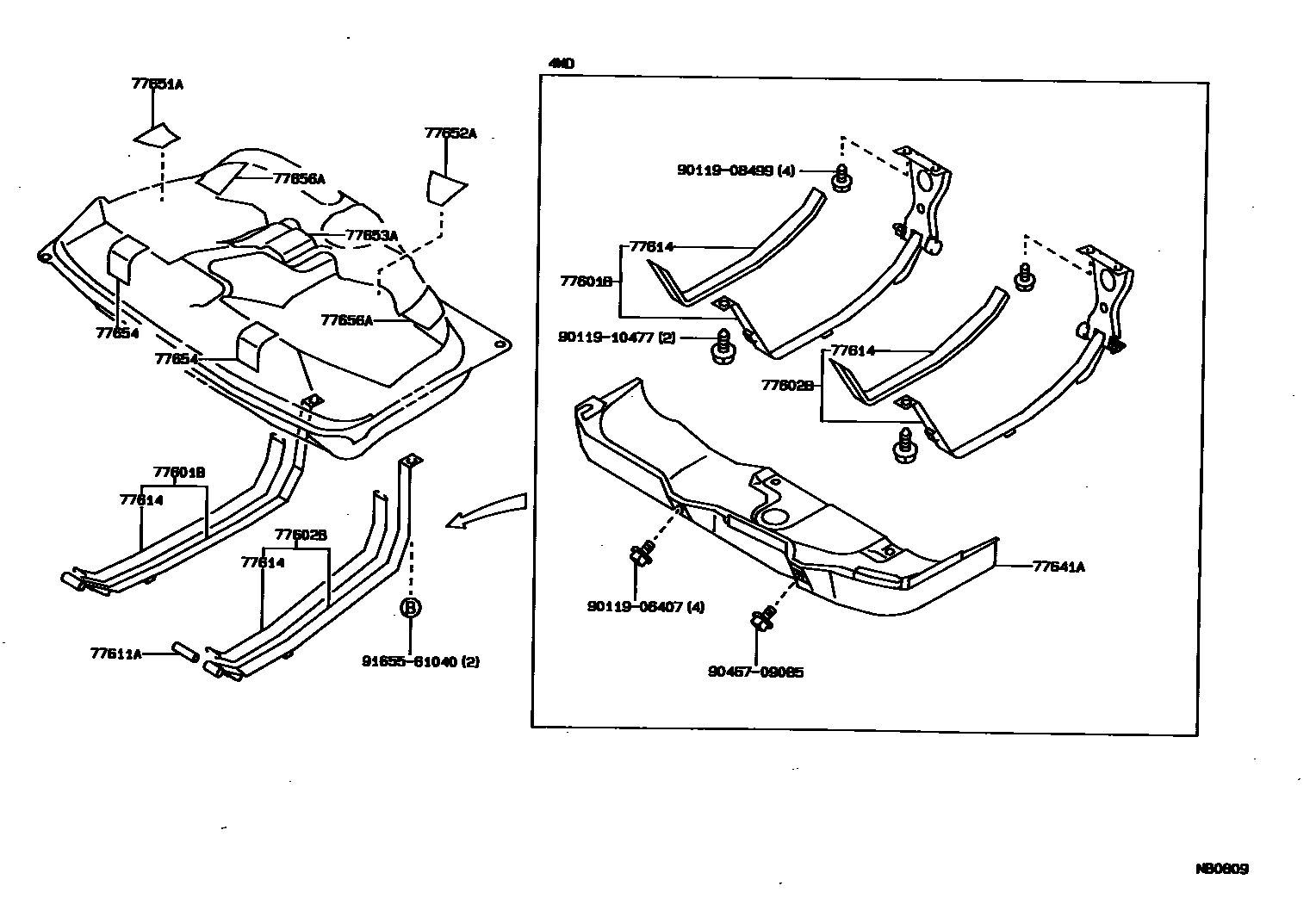

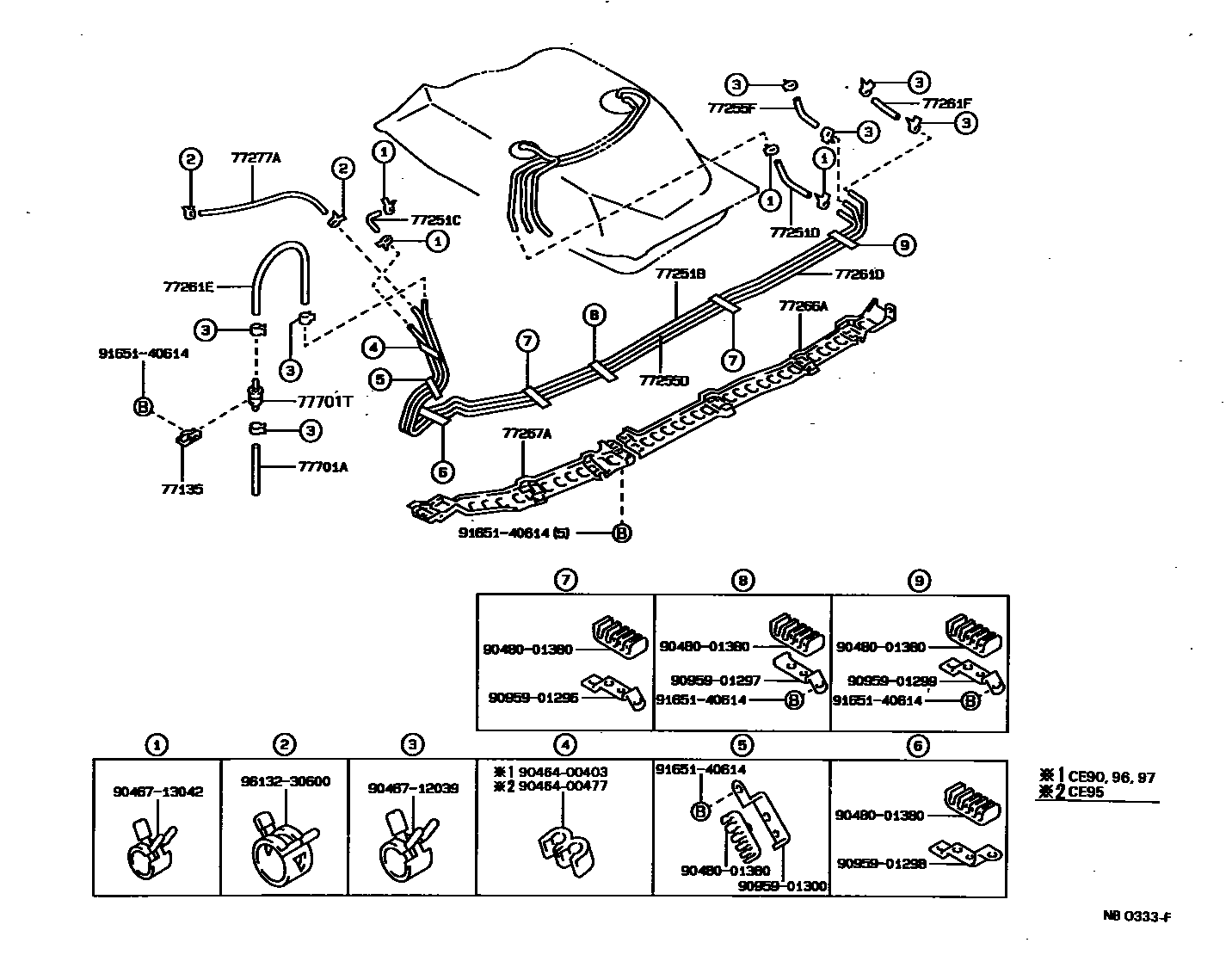

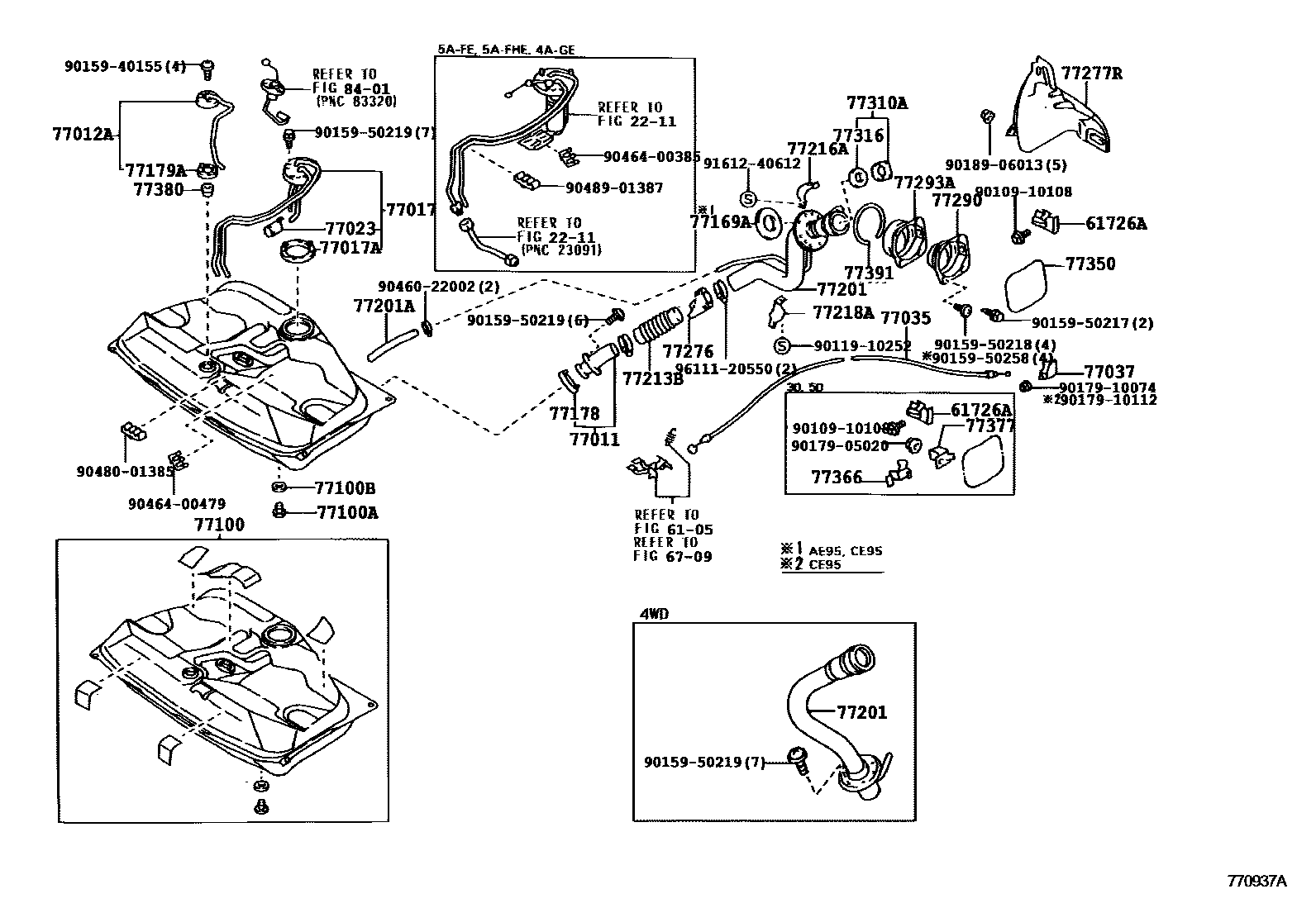

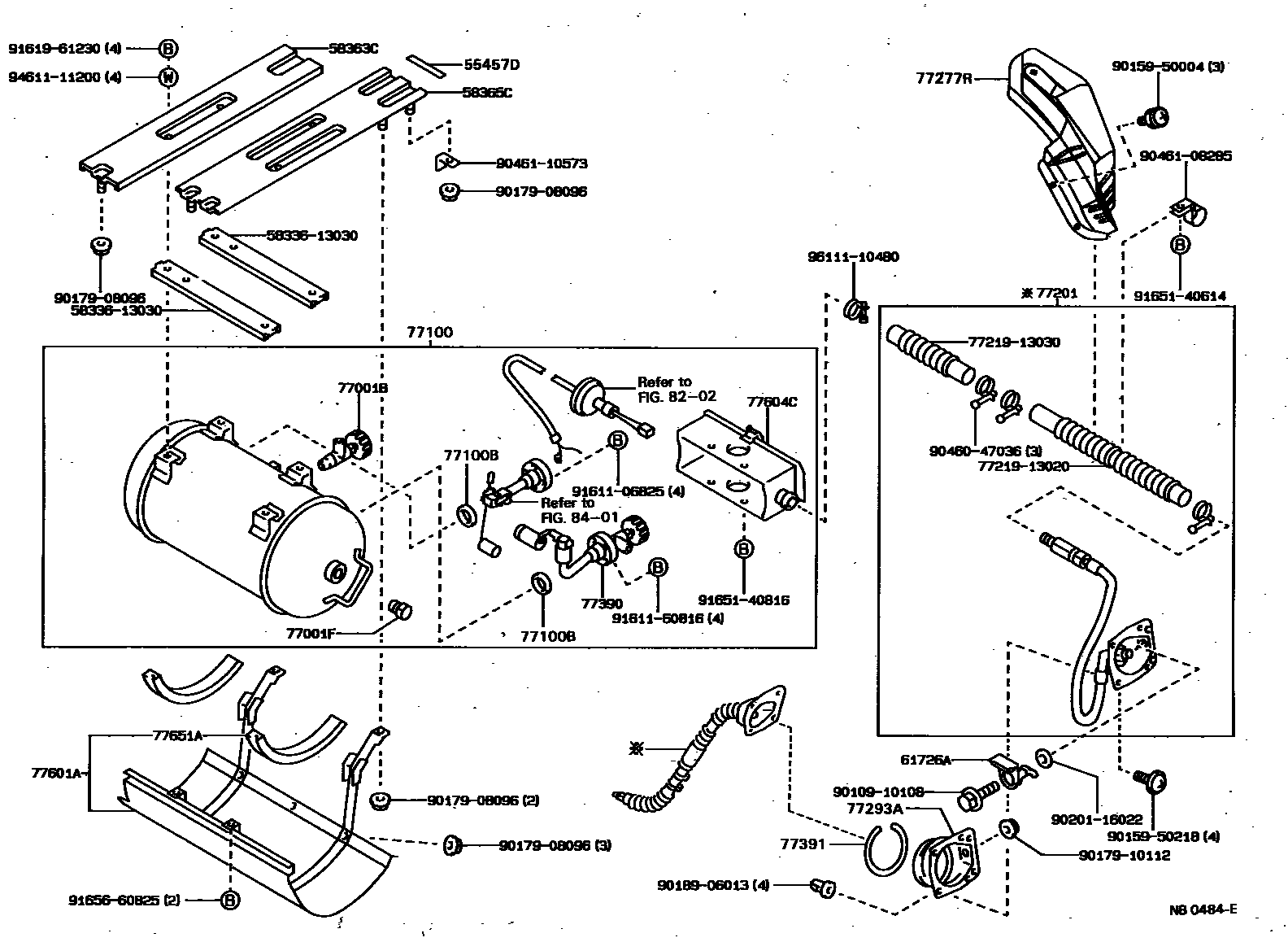

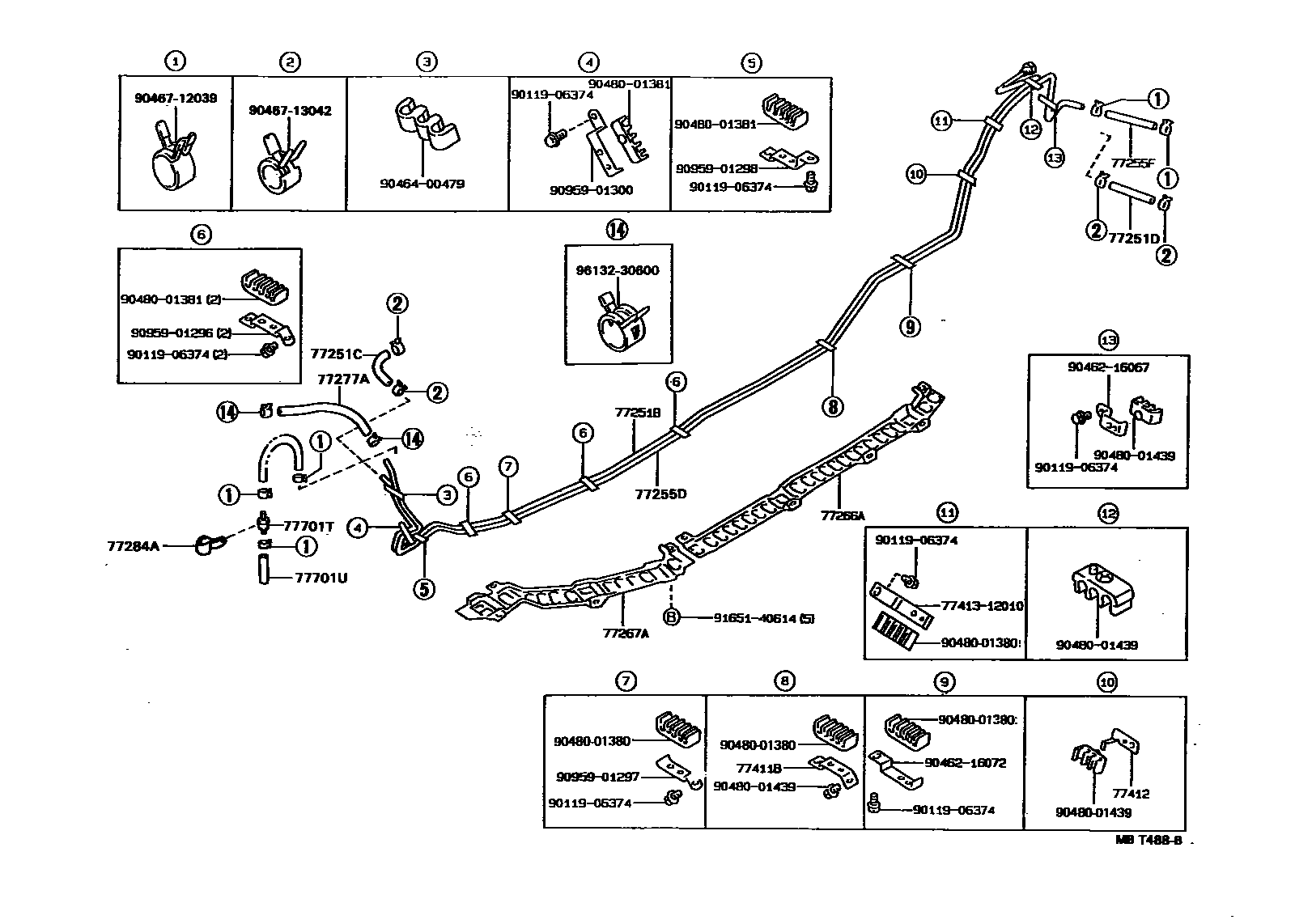

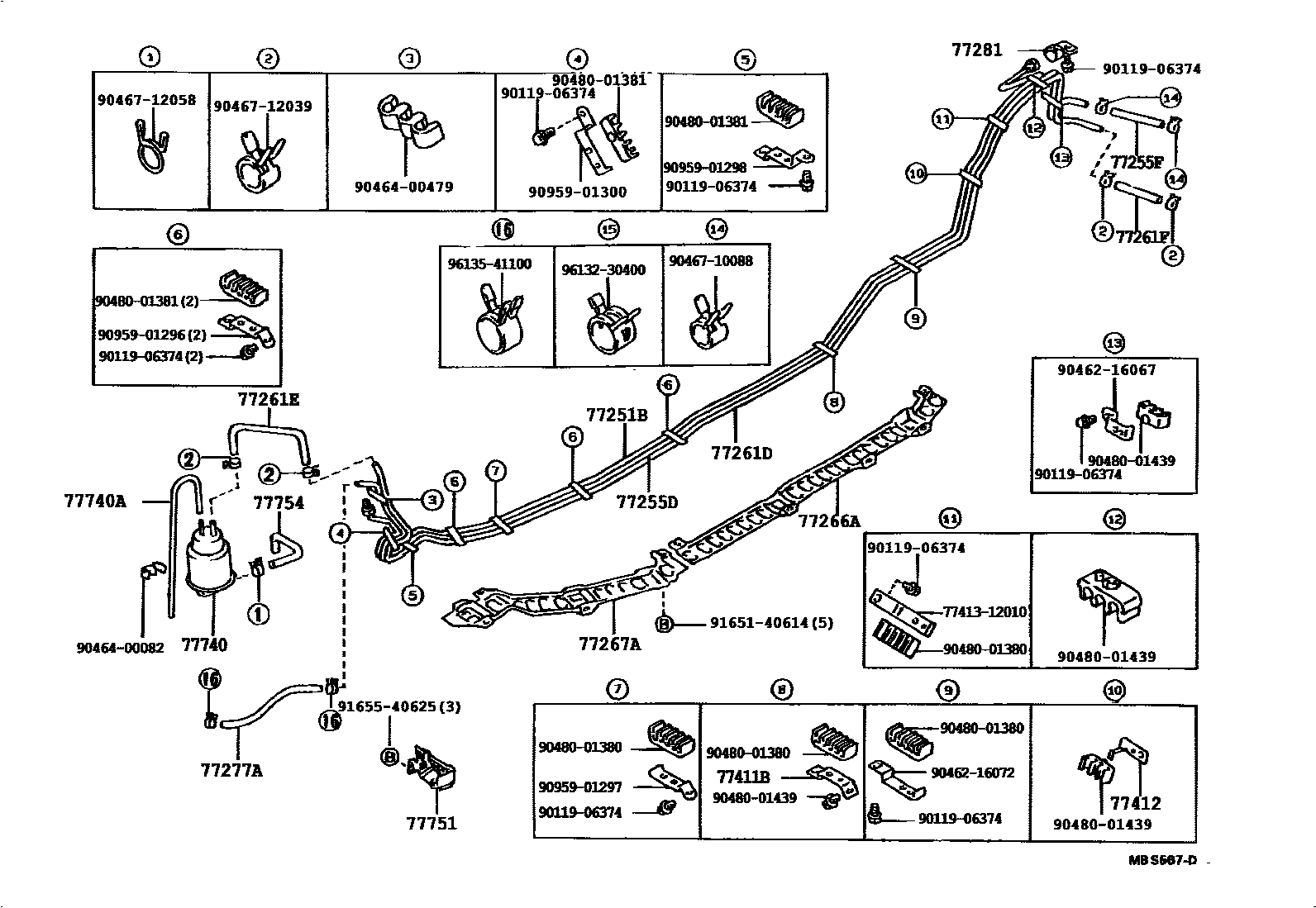

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 12 images and 78 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23400D | LPG filter assembly | 23400-40024 |
| 23960B | LPG solenoid valve assembly | 23960-11010 |
| 55457D | Safety pad spacer | 55457-12020 |
| 58363C | Fuel tank right installation reinforcement | 58363-13010 |
| 58365C | Install reinforcement on the left side of the fuel tank | 58365-13010 |
| 61726A | Fuel inlet cover | 61726-12050 · 61726-13020 |
| 77001B | Valve (for LPG fuel tank) | 90977-01015 · 90977-01024 |
| 77001F | LPG fuel tank screw plug | 90345-26001 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-12040 · 77011-12060 · 77011-12080 · 77011-13020 · 77011-13030 · 77011-13040 |
| 77012A | No. 1 fuel tank breather pipe sub-assembly | 77012-12010 · 77012-12030 · 77012-12060 |
| 77017 | Fuel and evaporative vent pipe sub-assembly | 77017-12270 · 77017-12310 · 77017-12320 · 77017-12400 · 77017-12420 · 77017-12430 |
| 77017A | fuel tank vent pipe gasket | 77169-12020 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-14030 · 77023-32010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12130 · 77035-12230 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-12050 |
| 77100 | fuel tank assembly | 77001-19555 · 77001-19565 · 77001-19575 · 77001-19585 · 77001-19595 · 77001-19605 |
| 77100A | Screw plug (for fuel tank) | 90341-20004 |
| 77100B | Gasket (for fuel tank) | 90430-20007 · 90430-42255 |
| 77135 | One-way valve bracket | 77135-32010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-12020 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-12010 · 77178-20010 |
| 77179A | fuel tank breather gasket | 77179-16010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-12330 · 77201-12350 · 77201-12410 · 77201-13100 · 77201-13110 · 77201-13120 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 77259-13030 · 90445-22011 |
| 77205 | Main fuel pipe sub-assembly | 77205-13120 · 77205-13121 |
| 77213B | Fuel tank to filler pipe hose | 77213-12140 · 77213-13060 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-12040 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-12010 · 77218-12020 |
| 77251B | main fuel pipe | 77251-12350 · 77251-12360 · 77251-12370 · 77251-12420 · 77251-12450 · 77251-12500 |
| 77251C | No. 1 fuel hose (for main fuel line) | 77259-12100 · 95333-08030 |
| 77251D | No. 2 fuel hose (for main fuel line) | 90445-14133 · 95333-06020 · 95333-08020 · 95333-08030 |
| 77255D | fuel return pipe | 77255-12330 · 77255-12340 · 77255-12370 · 77255-12400 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 77279-12090 · 95333-04015 · 95333-04030 · 95333-06020 · 95333-06030 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12250 · 77261-12270 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77259-12120 · 77259-12130 · 77259-12140 |
| 77261F | No. 2 fuel hose (for fuel tank to canister pipe) | 77249-12060 · 95333-06020 |
| 77266A | No. 1 fuel line protection device | 77266-12030 · 77266-12050 |
| 77267A | No. 2 fuel pipe protection device | 77267-12060 |
| 77276 | Fuel hose protector | 77276-12040 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 23271-11010 · 23271-11011 · 23271-15210 · 23271-64110 · 23271-64111 · 90447-11022 · 90447-12091 · 90447-12102 · 90447-12117 |
| 77277R | Fuel tank filler pipe protection device | 77277-01020 · 77277-12080 · 77277-12081 · 77277-12090 · 77277-12120 · 77277-12121 · 77277-13020 · 77277-13030 |
| 77281 | No. 1 main fuel pipe bracket | 77281-12020 |
| 77284A | No. 3 fuel pipe protection device | 77284-12020 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-12060 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-12030 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-13020 |
| 77306A | Fuel filler cap opening lever spring | 90506-09004 |
| 77310A | Fuel tank cap assembly | 77310-12100 · 77310-35061 |
| 77316 | fuel tank cap gasket | 77316-12050 |
| 77350 | Fuel filler cap assembly | 77350-12160 · 77350-12190 · 77350-12200 · 77350-12220 · 77350-12250 · 77350-12260 |
| 77366 | Fuel filler cap hinge spring | 77360-12010 |
| 77377 | Fuel filler cap lock retainer | 77377-12040 |
| 77380 | Fuel shut-off valve assembly | 77380-14020 |
| 77390 | Fuel tank inlet valve assembly | 77390-13010 |
| 77391 | fuel inlet ring | 77391-14020 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-12010 |
| 77412 | No. 2 fuel pipe retaining ring bracket | 77412-12010 |
| 77520 | Solenoid LPG safety valve assembly | 77520-13010 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-13010 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-12100 · 77601-12110 · 77601-12160 · 77601-12161 · 77601-13020 · 77601-13030 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-12060 · 77602-12110 · 77602-13010 |
| 77604C | Fuel tank valve cover sub-assembly | 77604-13010 · 77604-13011 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77614 | Fuel tank strap seat | 77681-12010 · 77681-12020 · 77682-12010 |
| 77641A | No. 1 fuel tank protective shell | 77641-12150 |
| 77651A | No. 1 fuel tank liner | 77651-13030 · 77652-12070 |
| 77652A | No. 2 fuel tank liner | 77652-12090 |
| 77653A | No. 3 fuel tank liner | 77653-12070 · 77653-12090 |
| 77654 | No. 2 fuel tank liner | 77651-13030 · 77652-16050 · 77652-16060 |
| 77656A | No. 4 fuel tank liner | 77654-12030 · 77654-12060 |
| 77701A | No. 1 fuel hose (for breather valve) | 77249-12050 |
| 77701T | Check valve (for main fuel tank) | 90917-10069 |
| 77701U | Fuel hose (for check valve) | 95333-06030 |
| 77740 | Carbon canister assembly | 77704-12360 · 77704-12361 · 77704-12370 · 77704-12430 · 77704-12431 · 77704-12450 |
| 77740A | No. 1 fuel hose (for canister) | 90447-04047 · 90447-04075 · 90447-04112 · 90447-04114 · 90447-04125 · 90999-92003 · 95413-49939 |
| 77751 | Carbon canister base bracket | 77750-12010 · 77751-12140 |
| 77754 | No. 1 carbon canister outlet hose | 77754-12060 · 77754-12080 · 77754-12150 |
| 77791 | External vent valve to carburetor hose | 77791-12071 · 77791-12100 · 90445-14129 |
