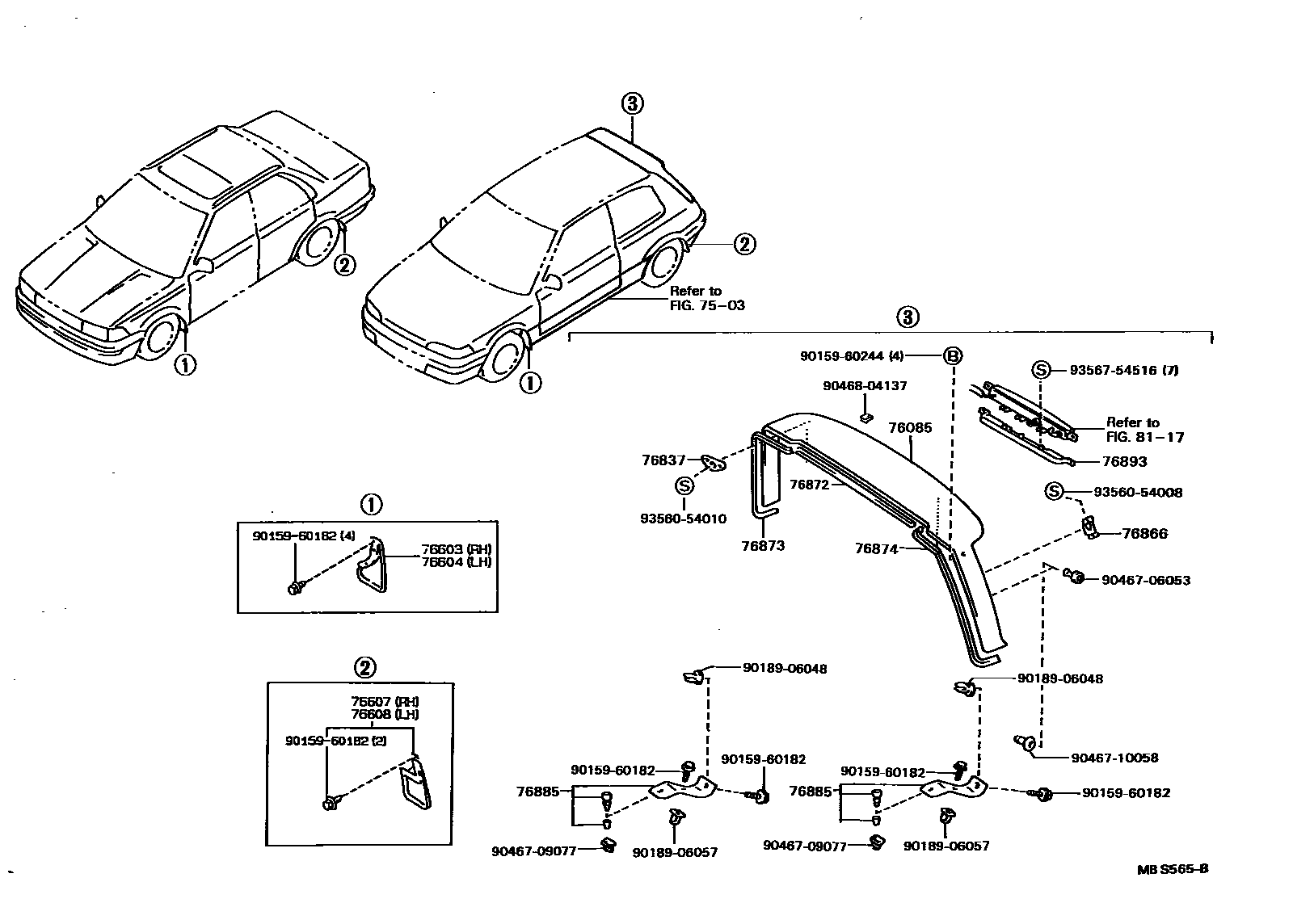

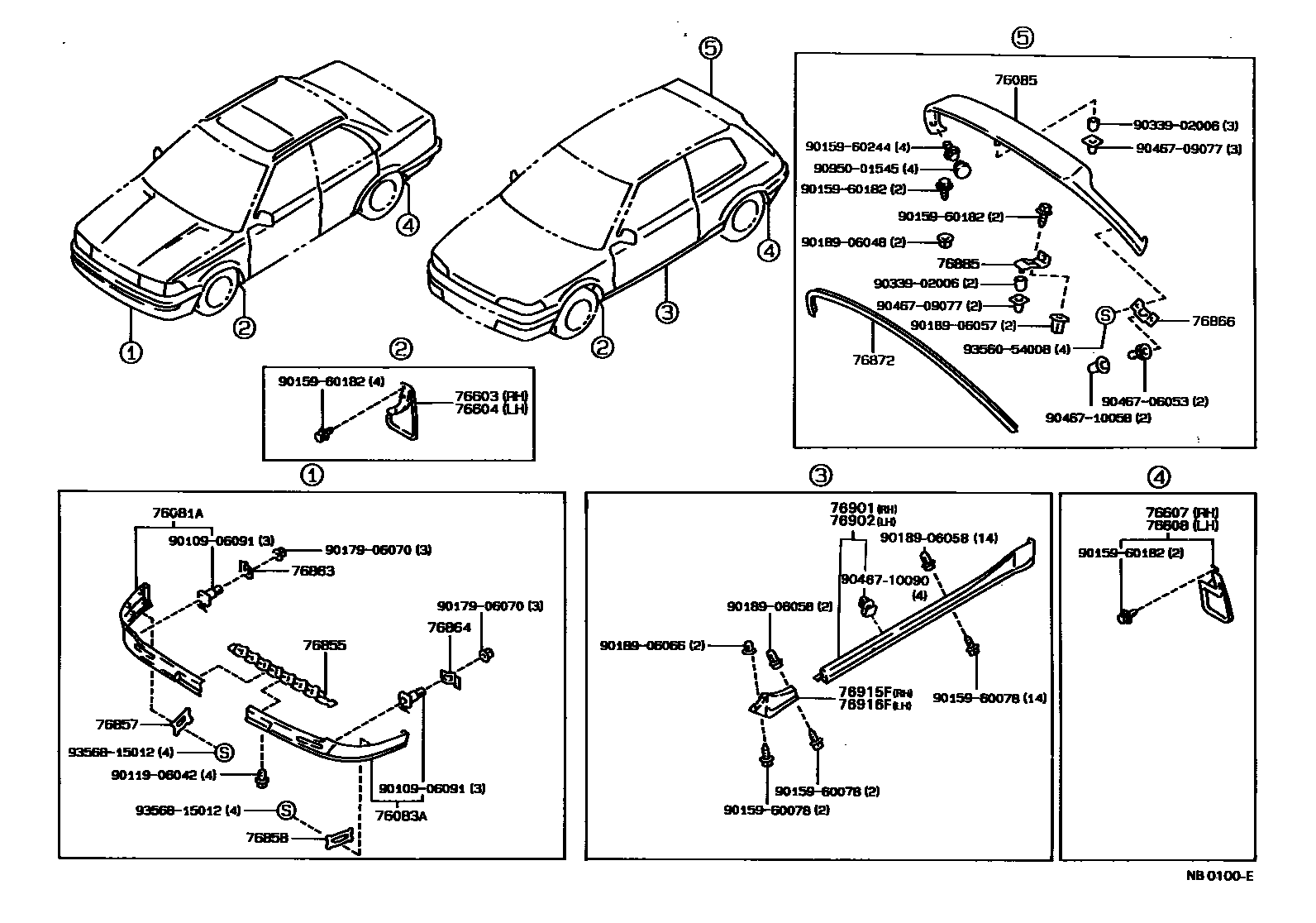

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76085 | Rear spoiler sub-assembly | 76085-12900 · 76085-12907 |
| 76603 | Right front fender fender sub-assembly | 76621-12050 |
| 76604 | Left front fender fender sub-assembly | 76622-12050 |
| 76607 | Right rear side fender sub-assembly | 76625-19225 · 76625-19245 · 76625-19265 |
| 76608 | Left rear side fender sub-assembly | 76626-19235 · 76626-19255 · 76626-19275 |
| 76837 | No. 7 rear spoiler fixing piece | 76837-12020 |
| 76855 | No. 1 front center spoiler lower fixing piece | 76855-12060 |
| 76857 | Right front spoiler fixing | 76857-12050 |
| 76858 | Left front spoiler fixing | 76858-12050 |
| 76863 | No. 2 right front spoiler fixing piece | 76863-12040 |
| 76864 | No. 2 left front spoiler fixing piece | 76863-12040 |
| 76866 | No. 2 rear spoiler fixing piece | 76866-12030 |
| 76872 | No. 1 rear spoiler protective strip | 76872-12070 · 76872-12090 |
| 76873 | No. 2 rear spoiler protective strip | 76873-12100 |
| 76874 | No. 3 rear spoiler protective strip | 76874-12110 |
| 76885 | No. 5 rear spoiler fixing piece | 76885-12050 |
| 76893 | No. 1 rear spoiler cover | 76893-12020 |
