Toyota COROLLA 侧防护条 — Figure 7503

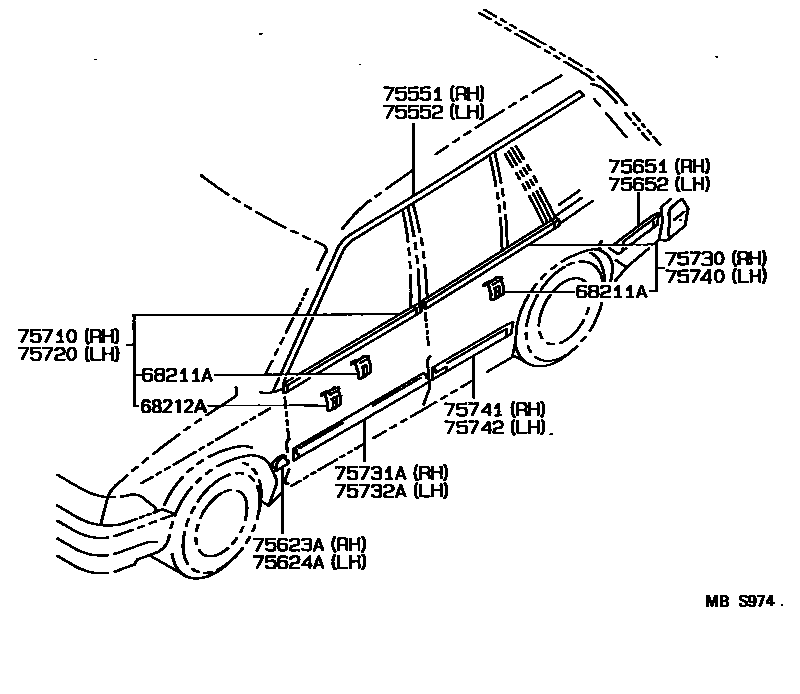

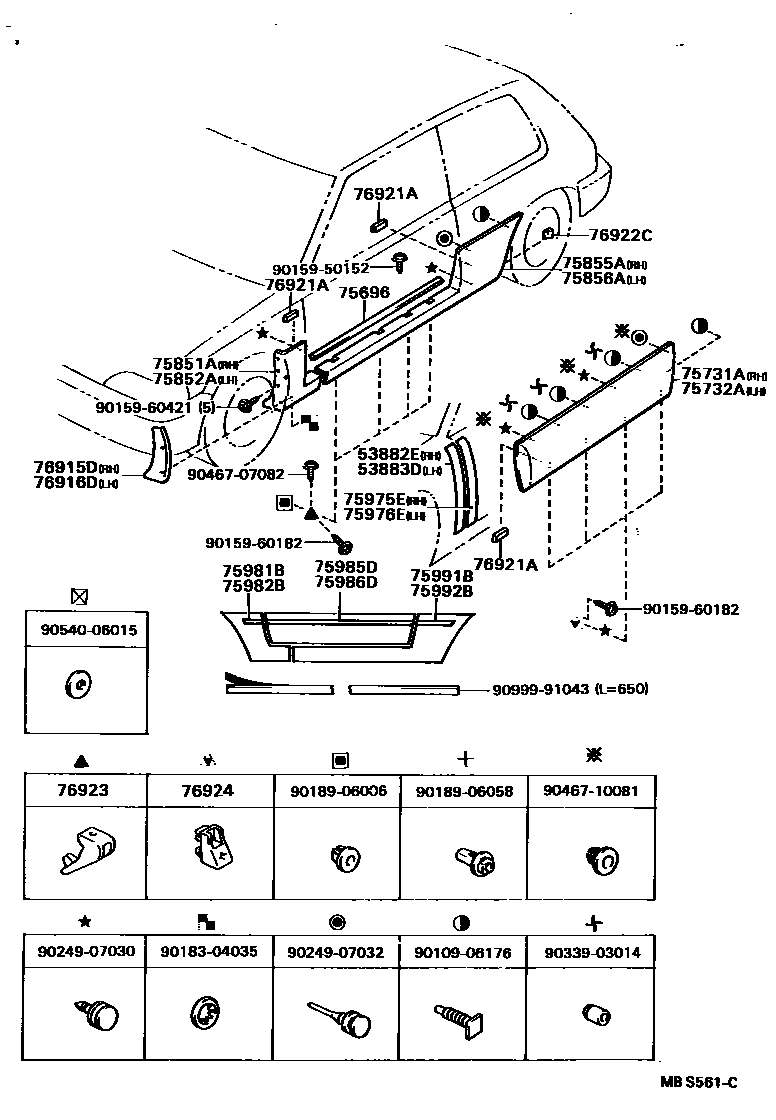

Toyota COROLLA EPC diagram 7503, 侧防护条, with 3 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53882E | Right front fender seal | 53882-12090 |
| 53883D | Left front fender seal | 53883-12040 |
| 68153A | Right corner window No. 2 glass protective strip | 68153-12060 |
| 68154A | No. 2 glass protective strip for left corner window | 68154-12060 |
| 68211A | Door belt line protection strip clip | 68211-12130 |
| 68212A | Car door glass outer seal strip clip | 68212-12010 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-12370 · 75551-12380 · 75551-12410 · 75551-12420 · 75551-12460 · 75551-13071 · 75551-13091 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-12370 · 75552-12380 · 75552-12410 · 75552-12420 · 75552-12460 · 75552-13071 · 75552-13091 |
| 75591 | No. 1 front side panel decorative panel protective strip fixings | 75591-12060 |
| 75623A | Right front fender outer rear protective strip | 75623-12330 · 75623-12460 · 75623-12470 |
| 75624A | Left front fender outer rear protective strip | 75624-12330 · 75624-12460 · 75624-12470 |
| 75651 | Right side outer protective strip | 75651-12710 · 75651-13070 |
| 75652 | Left side outer protective strip | 75652-12710 · 75652-13060 |
| 75671 | Right corner window decorative strip | 75660-12210 |
| 75672 | Left corner window decorative strip | 75670-12210 |
| 75683 | Right rear side panel waistline protection strip | 75683-12080 |
| 75684 | Left rear side panel waistline protection strip | 75684-12080 |
| 75696 | No. 1 body outer protective strip lining | 75696-12090 |
| 75710 | Right front door waistline protection strip assembly | 75710-12400 · 75710-12410 · 75710-12430 · 75710-12480 |
| 75720 | Left front door waistline protection strip assembly | 75720-12400 · 75720-12410 · 75720-12430 · 75720-12480 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12070 · 75730-12120 · 75730-12130 · 75730-13020 |
| 75731A | Right front door outer protective strip | 75731-12860 · 75731-12870 · 75731-1A010 · 75731-1A180 · 75731-1A900 |
| 75732A | Left front door outer protective strip | 75732-12700 · 75732-12710 · 75732-12740 · 75732-1A020 · 75732-1A900 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12160 · 75740-12220 · 75740-12240 · 75740-13020 |
| 75741 | Right rear door outer protective strip | 75741-12490 · 75741-12630 · 75741-12640 |
| 75742 | Left rear door outer protective strip | 75742-12610 · 75742-12620 · 75742-12760 |
| 75851A | Right front door sill panel protective strip | 75851-12900 |
| 75852A | Left front door sill panel protective strip | 75852-12900 |
| 75855A | Right rear door sill panel protective strip | 75855-12900 |
| 75856A | Left rear door sill panel protective strip | 75856-12900 |
| 75975E | Right front door outer seal | 75975-12060 |
| 75976E | Left front door outer seal | 75976-12050 |
| 76671 | No. 1 corner window decoration with clip | 76671-12010 |
| 76915D | Right front fender | 76915-12040 |
| 76916D | Left front fender | 76916-12040 |
| 76921A | No. 1 side fender protection strip | 76921-12040 |
| 76922C | No. 2 side fender protection strip | 76922-12040 |
| 76923 | Side fender fixings | 76923-12020 |
| 76924 | No. 2 side fender fixings | 76924-12010 |
