Toyota COROLLA 前防护条 — Figure 7502

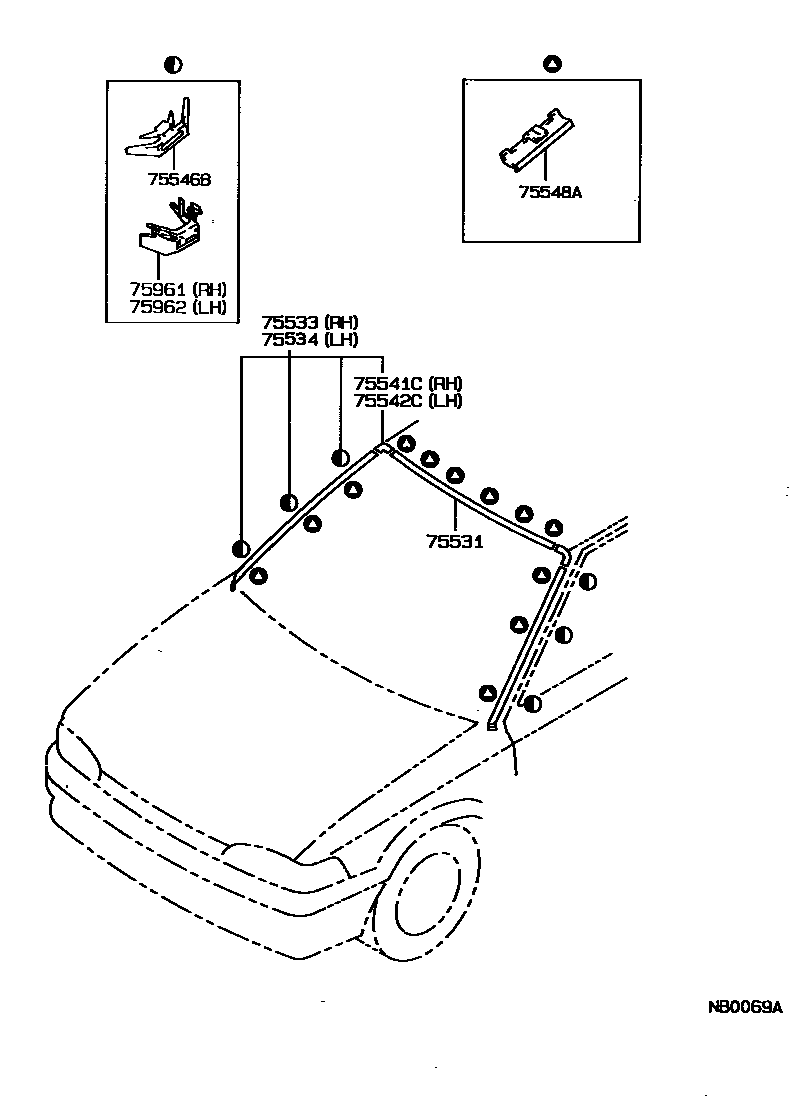

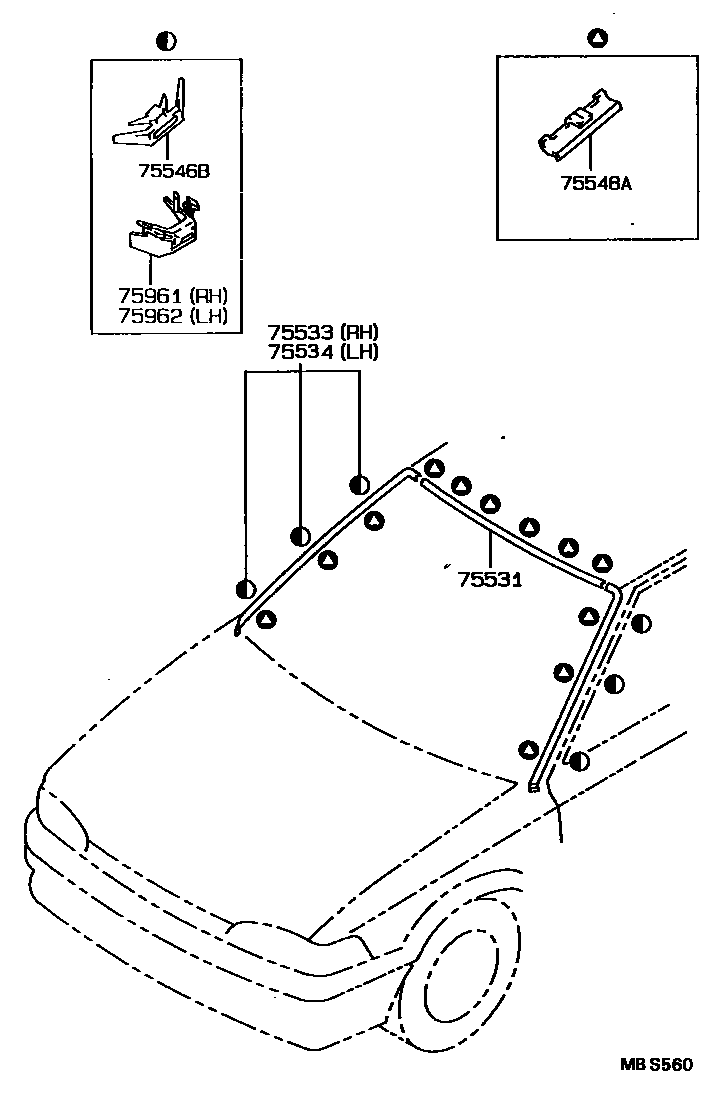

Toyota COROLLA EPC diagram 7502, 前防护条, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75531-12290 · 75531-12300 · 75531-12360 · 75531-12380 · 75531-12440 |
| 75533 | Windshield right outer protective strip | 75533-12350 · 75533-12360 · 75533-12380 · 75533-12410 · 75533-12420 · 75533-12440 |
| 75534 | Windshield left outer protective strip | 75534-12280 · 75534-12290 · 75534-12330 · 75534-12340 · 75534-12360 · 75534-12380 |
| 75541C | Windshield upper right protective strip joint cover | 75541-12180 · 75541-12190 |
| 75542C | Windshield upper left protective strip joint cover | 75542-12150 · 75542-12160 |
| 75546B | No. 2 windshield outer protective strip clip | 75546-12070 · 75546-12090 |
| 75548A | No. 1 windshield outer protective strip fasteners | 75548-16030 |
| 75961 | No. 4 windshield outer protective strip clip | 75961-12020 · 75961-12040 · 75961-12050 |
| 75962 | No. 5 windshield outer protective strip clip | 75961-12050 · 75962-12020 · 75962-12040 |
