Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

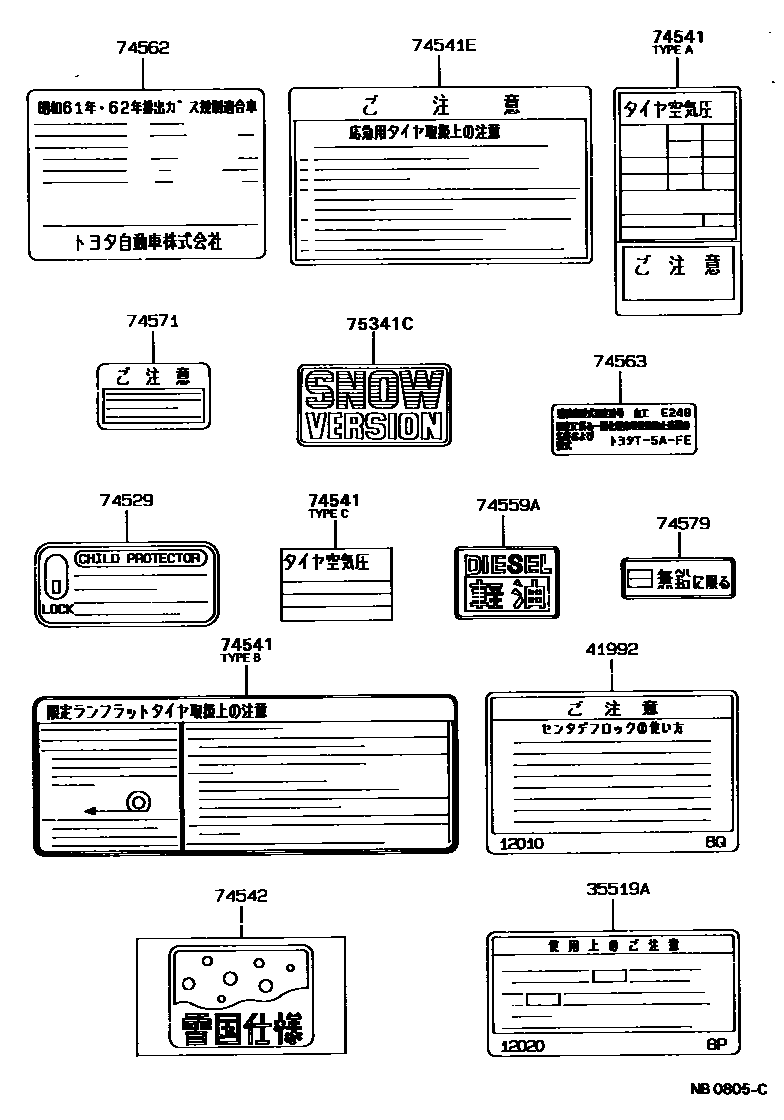

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35519A | Automatic transfer case information label | 35519-12020 |
| 41992 | Differential attention label | 41992-12010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74541 | tire pressure warning plate | 42661-12670 · 42661-12671 · 42661-12750 · 42661-12780 · 42661-12781 · 42661-12790 · 42661-12810 · 42661-13130 · 42661-13131 · 42661-13132 · 42661-1A040 · 42661-1A041 · 42661-1A060 · 42661-1A061 · 42661-1A160 · 42661-1A170 · 42661-1A190 |
| 74541E | Small spare tire warning plate | 42668-32010 |
| 74542 | Rear window marking plate | 74542-12020 |
| 74559A | Fuel warning plate | 74559-14010 · 74559-14030 |
| 74562 | Emission control system information plate | 74562-11050 · 74562-12400 · 74562-12410 · 74562-12420 · 74562-12430 · 74562-12440 · 74562-12460 · 74562-12470 · 74562-12480 · 74562-13061 · 74562-13080 · 74562-13090 · 74562-13091 · 74562-13100 · 74562-13101 · 74562-13110 · 74562-20400 · 74562-20470 · 74562-28100 |
| 74563 | Emission control equipment identification plate | 74563-11020 · 74563-12140 · 74563-12150 · 74563-12160 · 74563-13020 · 74563-13030 · 74563-13040 · 74563-13050 |
| 74571 | Brake fluid warning plate | 47288-32010 |
| 74579 | Unleaded fuel warning nameplate | 74579-24010 · 74579-30011 |
| 75341C | engine cover plate | 75341-20060 |
