Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

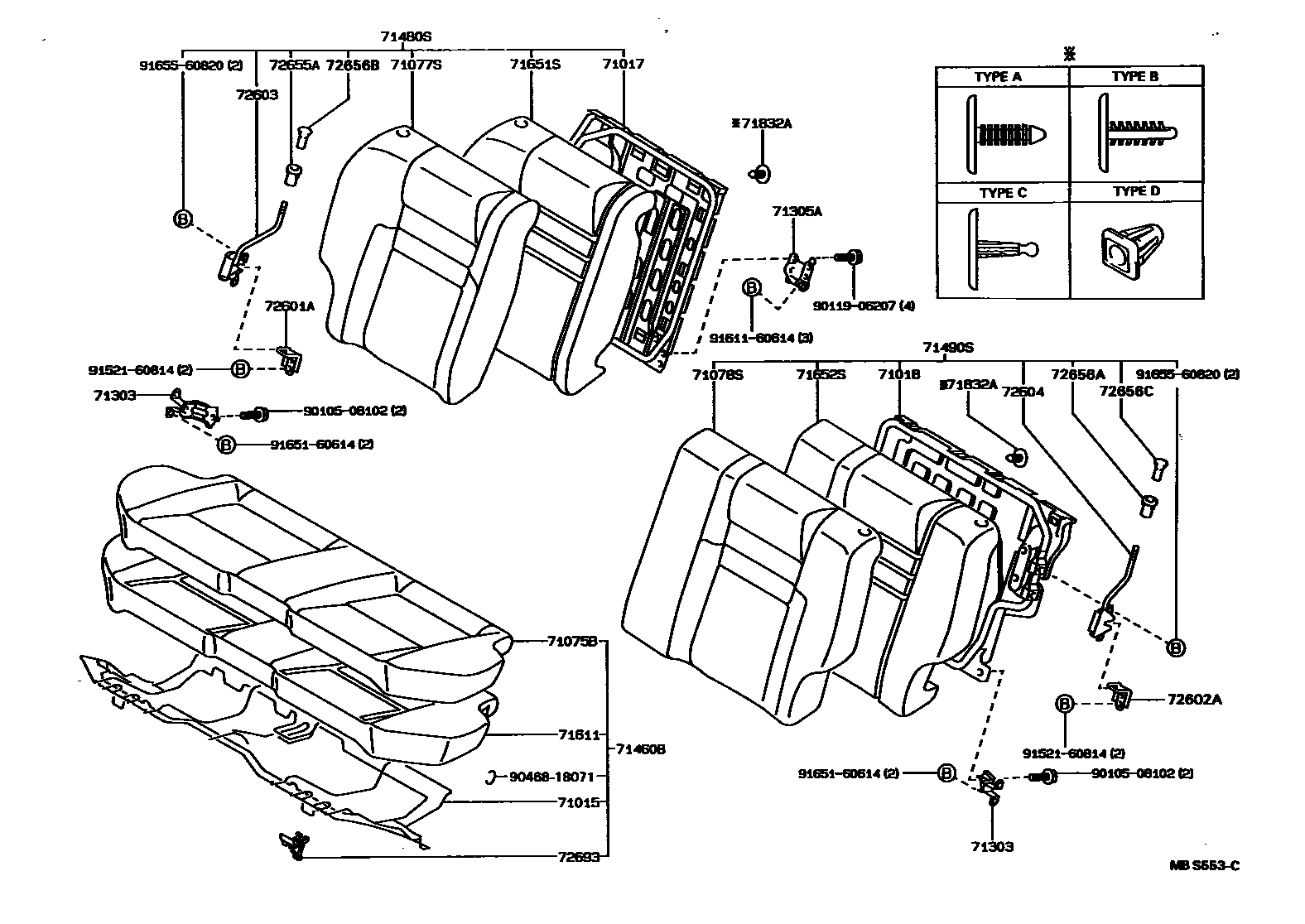

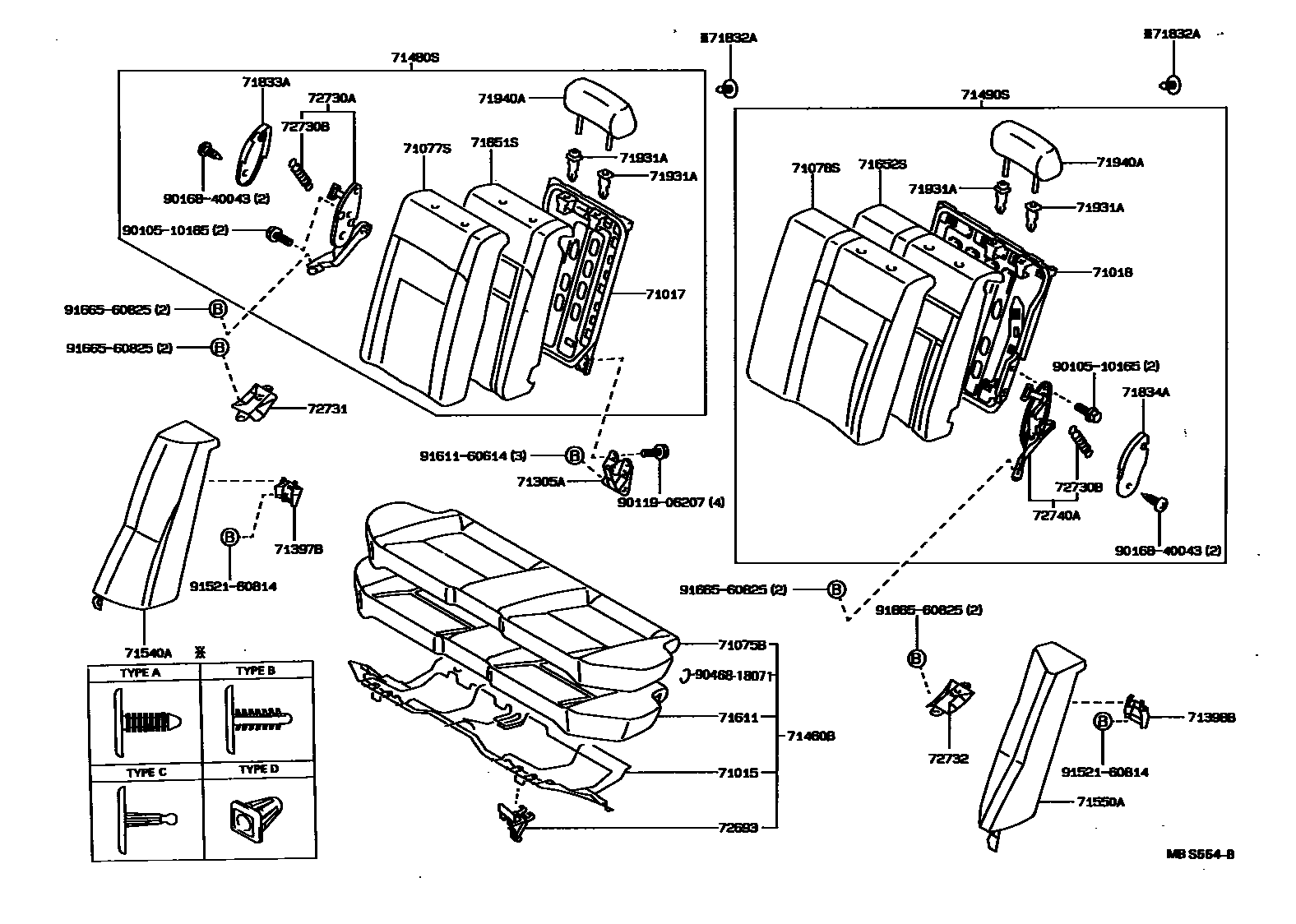

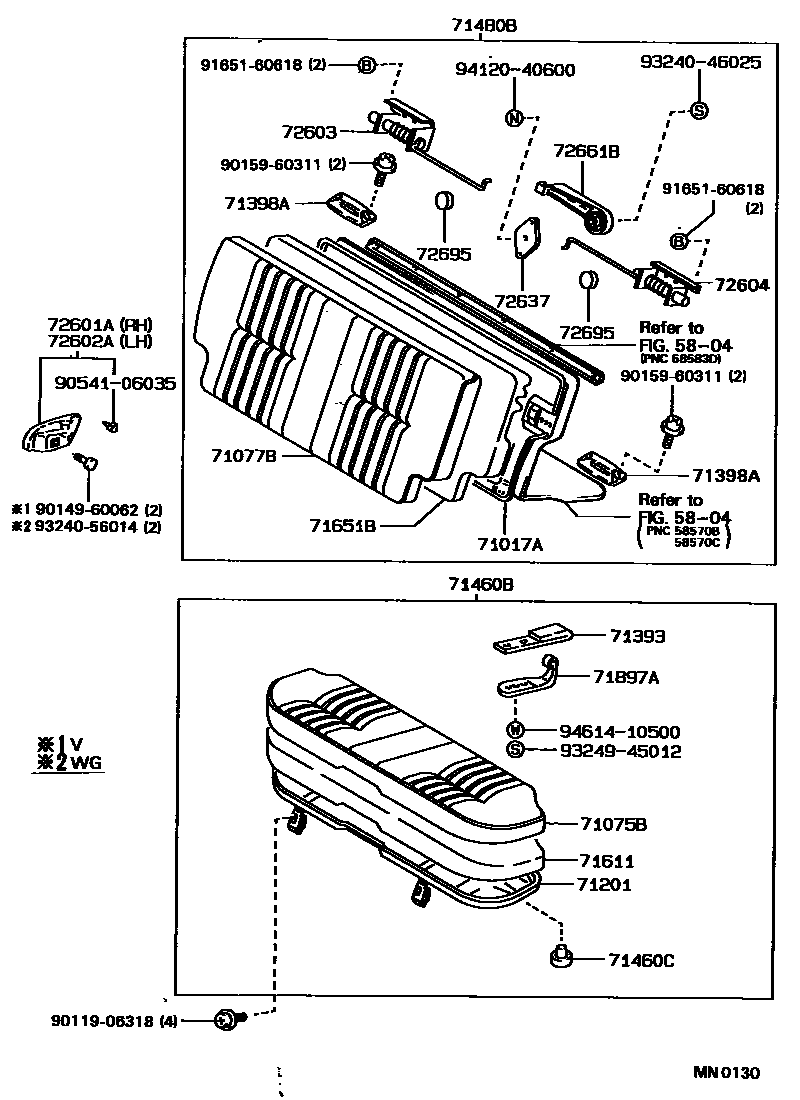

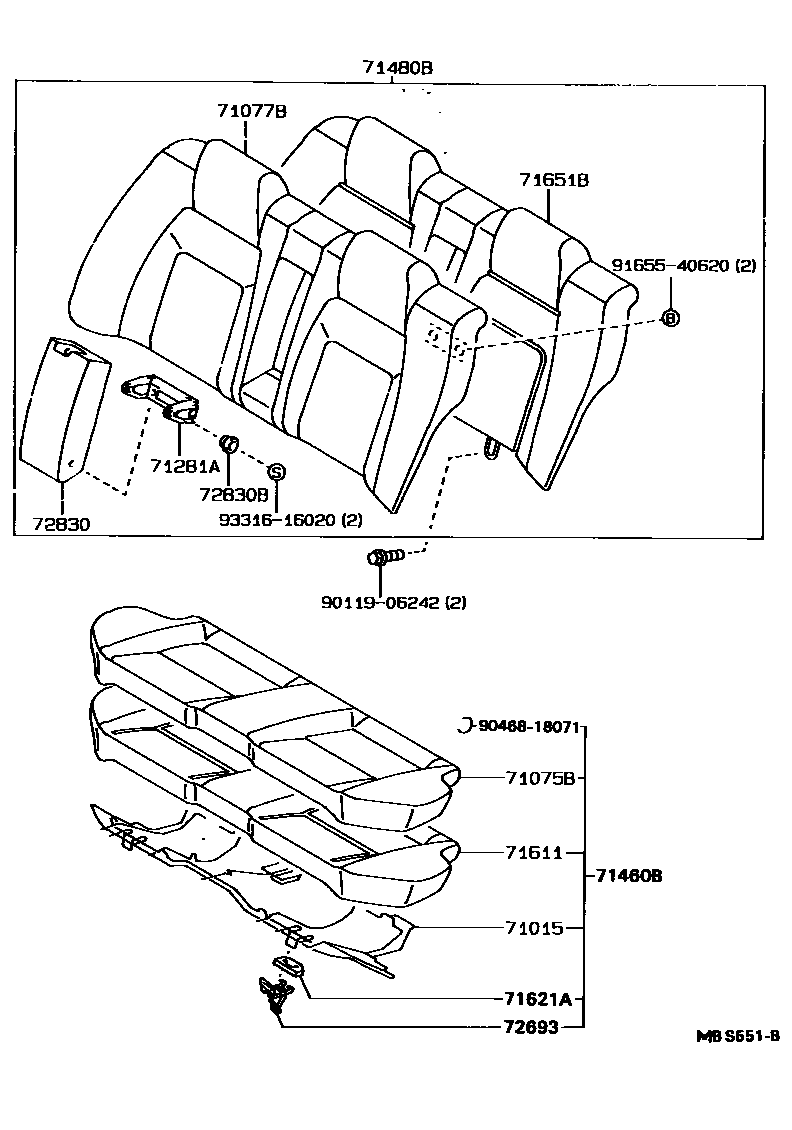

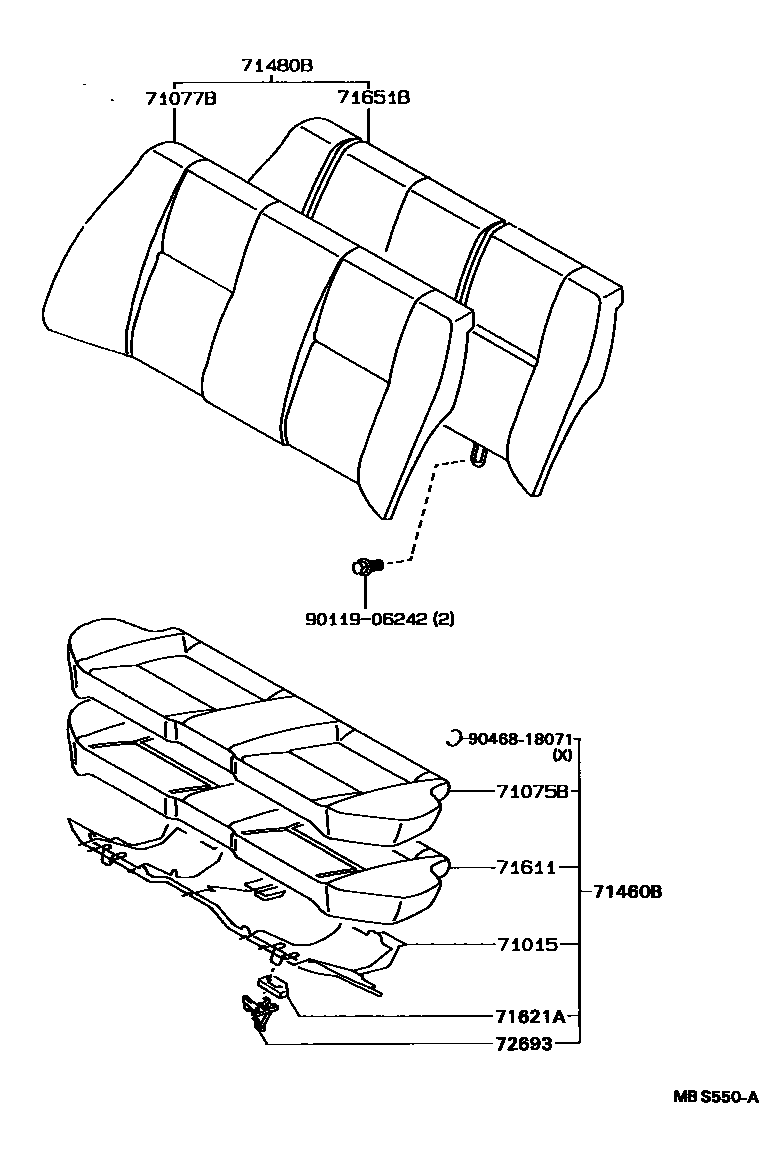

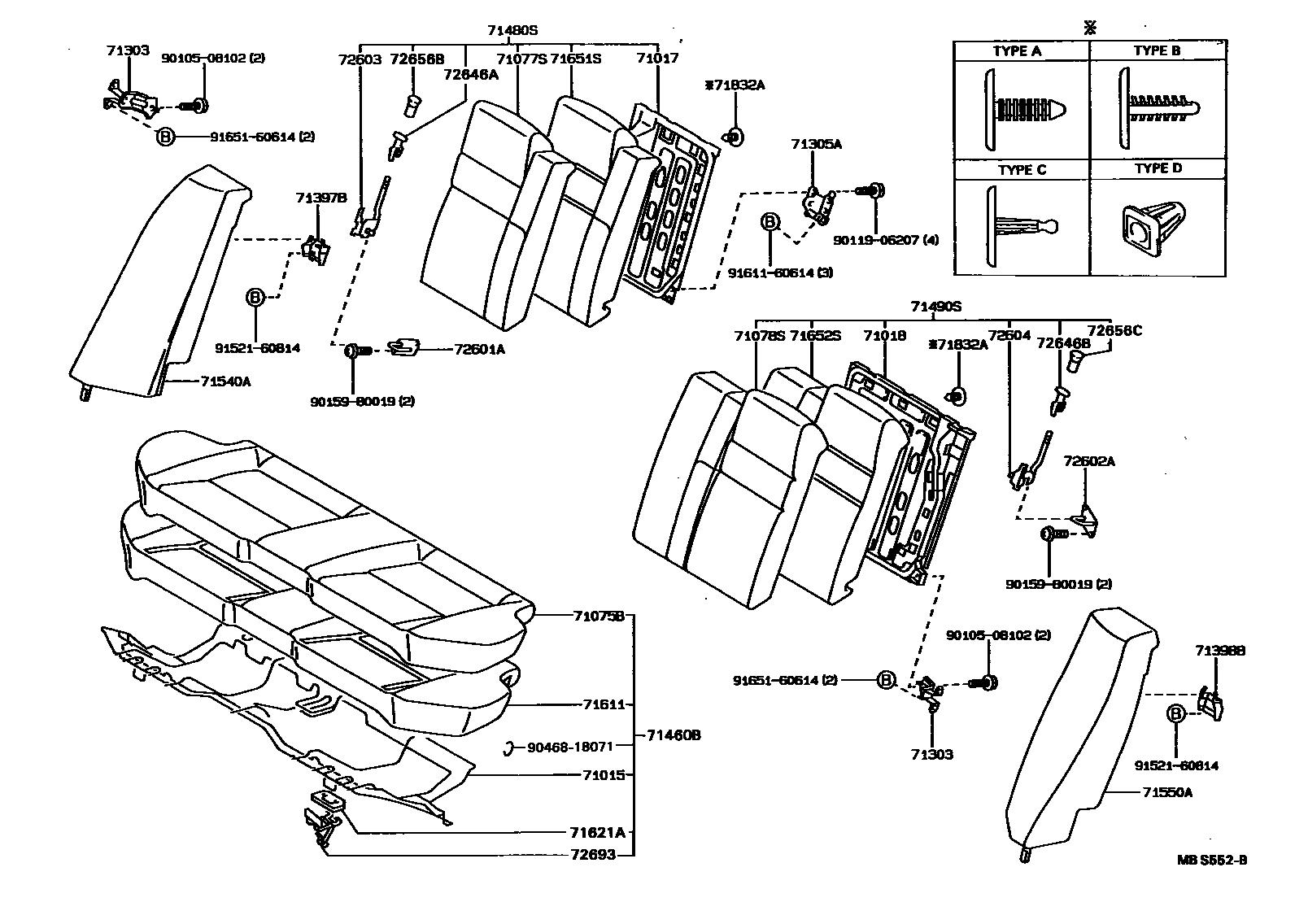

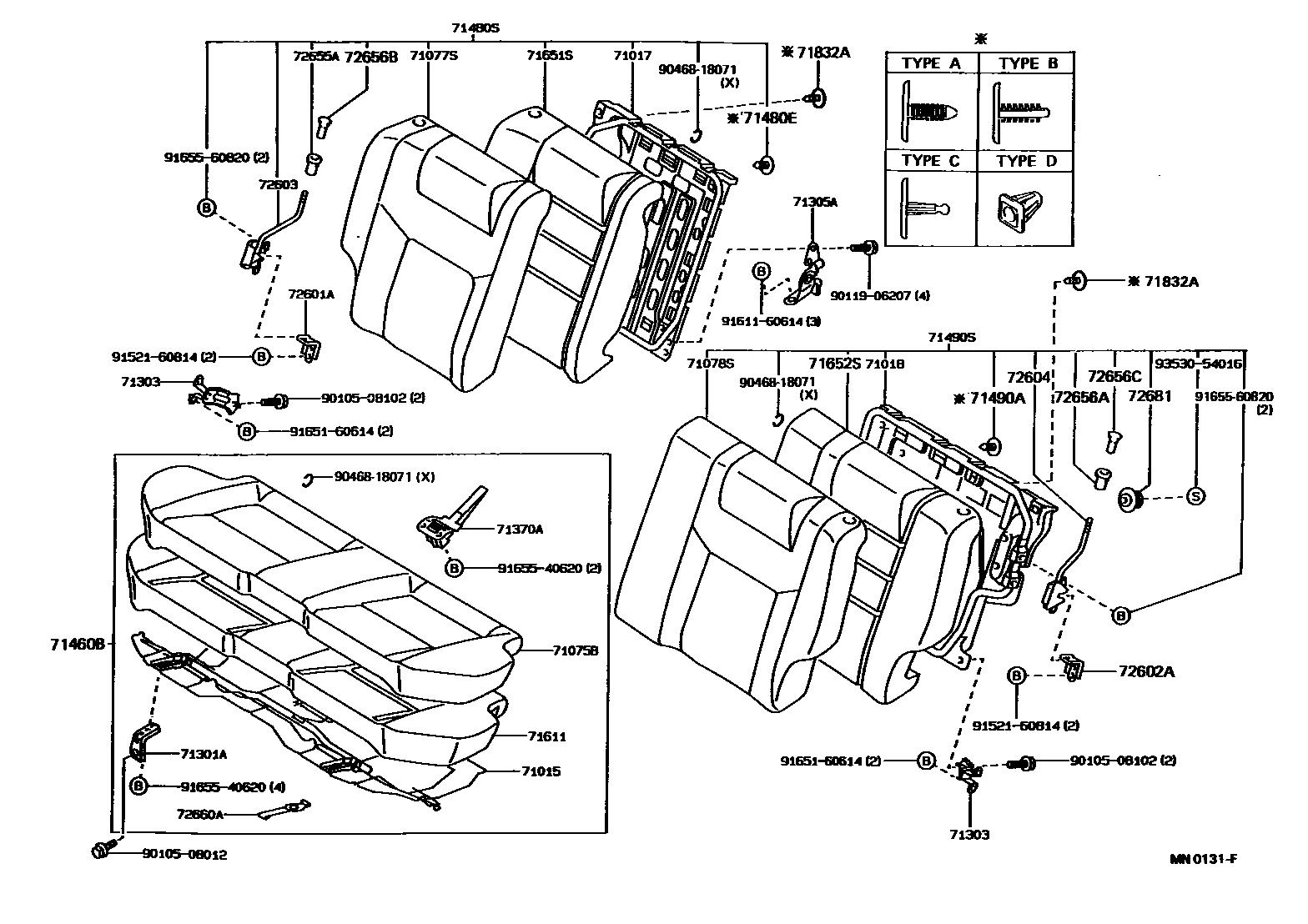

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 7 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-12260 · 71015-12270 · 71015-12290 · 71015-12300 |
| 71017 | Right rear seat back frame sub-assembly | 71017-12260 · 71017-12270 · 71017-12280 |
| 71017A | Rear seat back frame sub-assembly | 71017-13070 · 71017-13080 · 71017-13090 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12050 · 71018-12060 · 71018-12070 |
| 71201 | Rear seat cushion panel sub-assembly | 71201-13111 · 71201-13112 · 71201-13121 · 71201-13122 |
| 71281A | Rear seat center armrest hinge | 71281-12020 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12060 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12060 · 71305-12070 |
| 71397B | Rear right seat backrest fixer | 71397-12020 |
| 71398B | Rear left seat back retainer | 71398-12020 |
| 71460C | Seat cushion (for rear seat cushion) | 90541-09057 |
| 71611 | Rear seat cushion cushion | 71611-12530 · 71611-12540 · 71611-12550 · 71611-12560 · 71611-12610 · 71611-12630 · 71611-13130 · 71611-13140 |
| 71621A | Rear seat A seat cushion muffler | 71621-12270 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-12040 · 71507-12060 · 71507-12070 · 71507-12080 · 71507-12090 · 71651-13120 · 71651-13130 · 71651-13150 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12560 · 71651-12570 · 71651-12580 · 71651-12610 · 71651-12620 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12400 · 71652-12410 · 71652-12420 · 71652-12430 · 71652-12440 |
| 71832A | Rear seat backrest felt pad or backrest pad clip | 90467-10023 |
| 71897A | Rear seat cushion strap support plate | 71897-13020 |
| 72601A | Right rear seat back lock sub-assembly | 72601-12080 · 72601-12090 |
| 72602A | Rear left seat back lock sub-assembly | 72601-12080 · 72602-12040 |
| 72603 | Rear right seat back lock sub-assembly | 72630-12130 · 72630-12140 · 72630-12210 · 72630-13080 |
| 72604 | Rear left seat back lock sub-assembly | 72640-12120 · 72640-12130 · 72640-12200 · 72640-13080 |
| 72637 | Rear seat backrest inner control lever | 72637-13030 |
| 72693 | Rear seat cushion hook | 72693-12020 · 72693-12030 · 72693-12040 · 72693-12050 |
| 72695 | Rear seat back lock control lever silencer | 72695-13020 |
| 72730B | Tension spring (for rear seatback recliner) | 90506-14116 |
| 72731 | Rear right seat backrest tilt adjustment bracket | 72731-12020 |
| 72732 | Rear left seat backrest tilt adjustment bracket | 72732-12020 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06022 |
