Toyota COROLLA 背门锁和背门把手 — Figure 6709

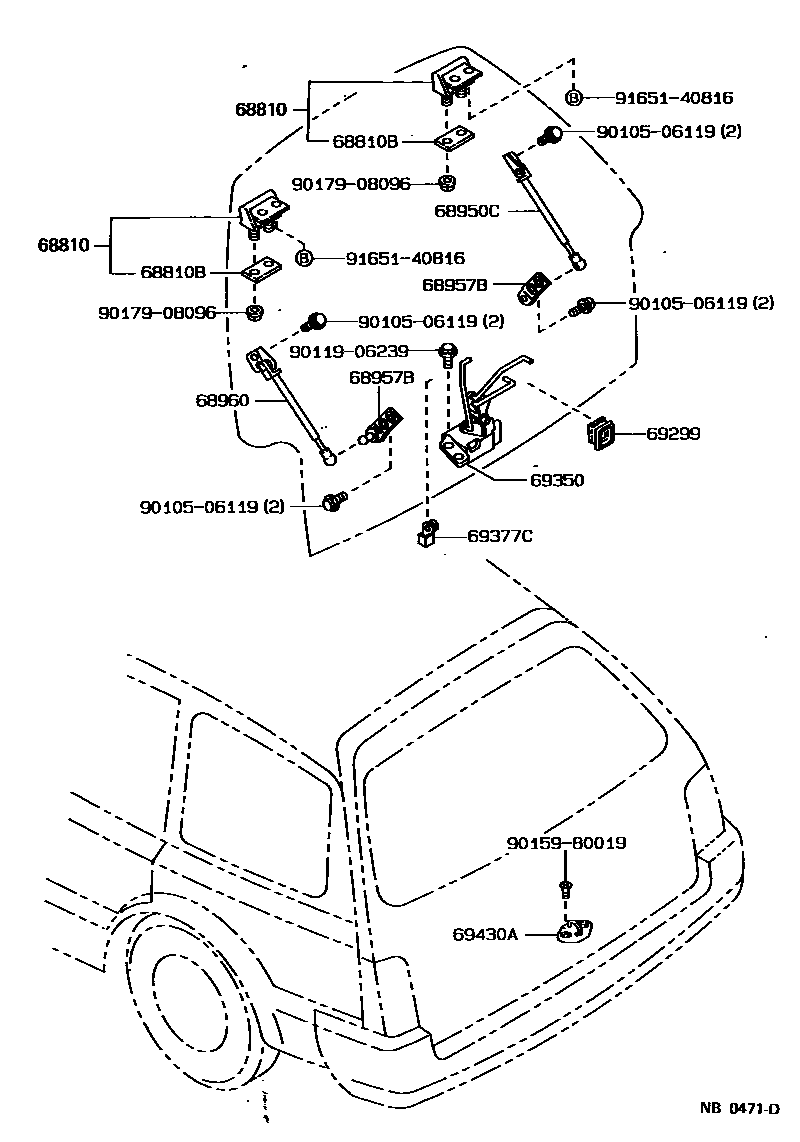

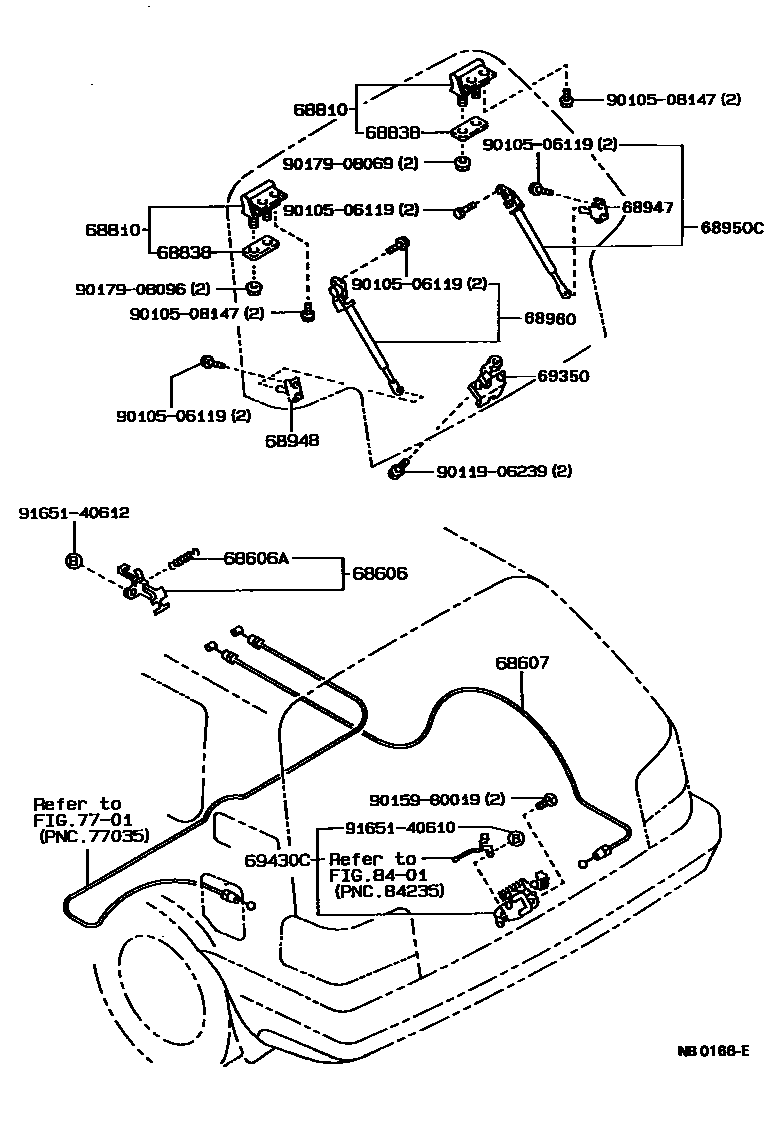

Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68606 | Rear door lock opening lever sub-assembly | 64606-12060 |
| 68606A | Tension spring (for the rear door lock opening lever) | 90506-09034 |
| 68607 | Rear door lock control cable sub-assembly | 64607-12530 |
| 68810 | Back door upper hinge assembly | 68801-12040 · 68801-12041 · 68801-13080 · 68801-13081 |
| 68810B | Back door hinge gasket | 68838-14021 · 68838-14022 |
| 68838 | Back door hinge No. 1 gasket | 68838-10010 · 68838-10011 |
| 68947 | Back door right damping strut lower bracket | 68947-12010 |
| 68948 | Rear door left damping strut lower bracket | 68948-12010 |
| 68950C | Back door right support rod assembly | 68950-13070 · 68950-13080 · 68950-13090 · 68950-19605 · 68950-19606 · 68950-19615 · 68950-19616 · 68950-19815 |
| 68957B | Rear door support rod lower bracket | 68957-13010 |
| 68960 | Back door left support rod assembly | 68960-13070 · 68960-13080 · 68960-13090 · 68960-19295 · 68960-19296 · 68960-19305 · 68960-19306 · 68960-19505 |
| 69299 | Rear door handle seal | 69299-13010 |
| 69350 | Rear door lock assembly | 69350-12130 · 69350-13070 · 69350-13080 · 69350-13090 |
| 69377C | Door lock lever buckle | 69377-13030 |
| 69430A | Back door lower lock assembly | 69430-13020 |
| 69430C | Back door lock assembly | 69430-12210 · 69430-12240 |
