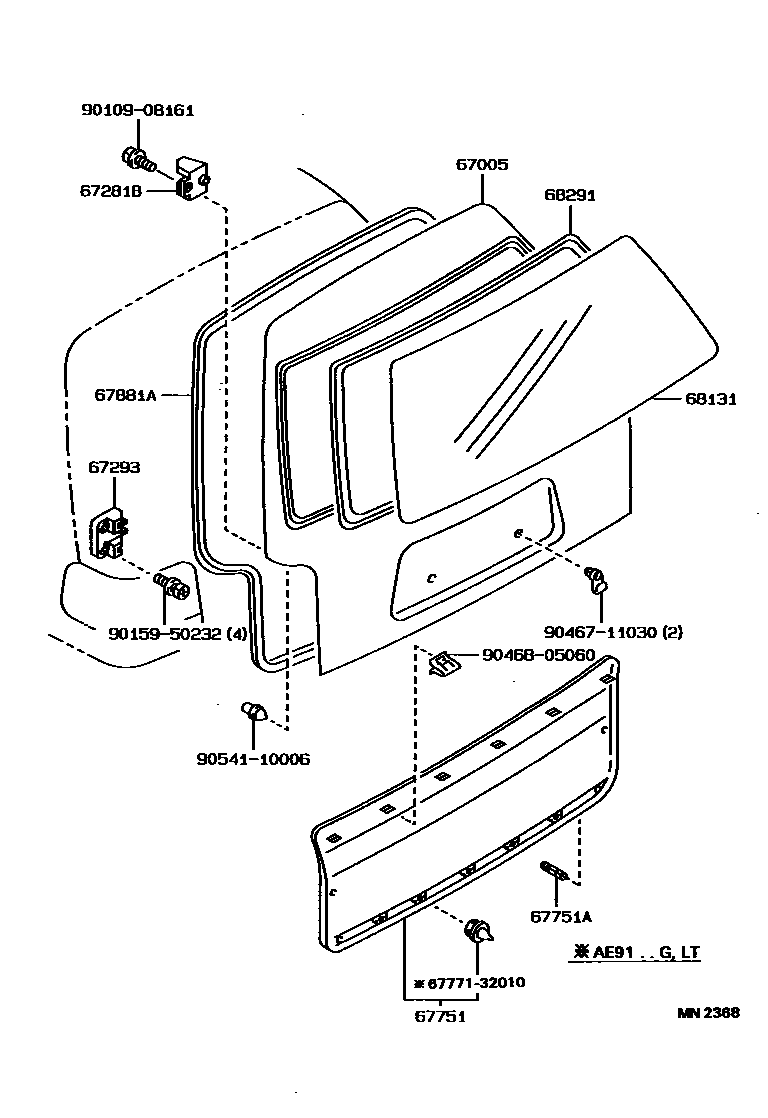

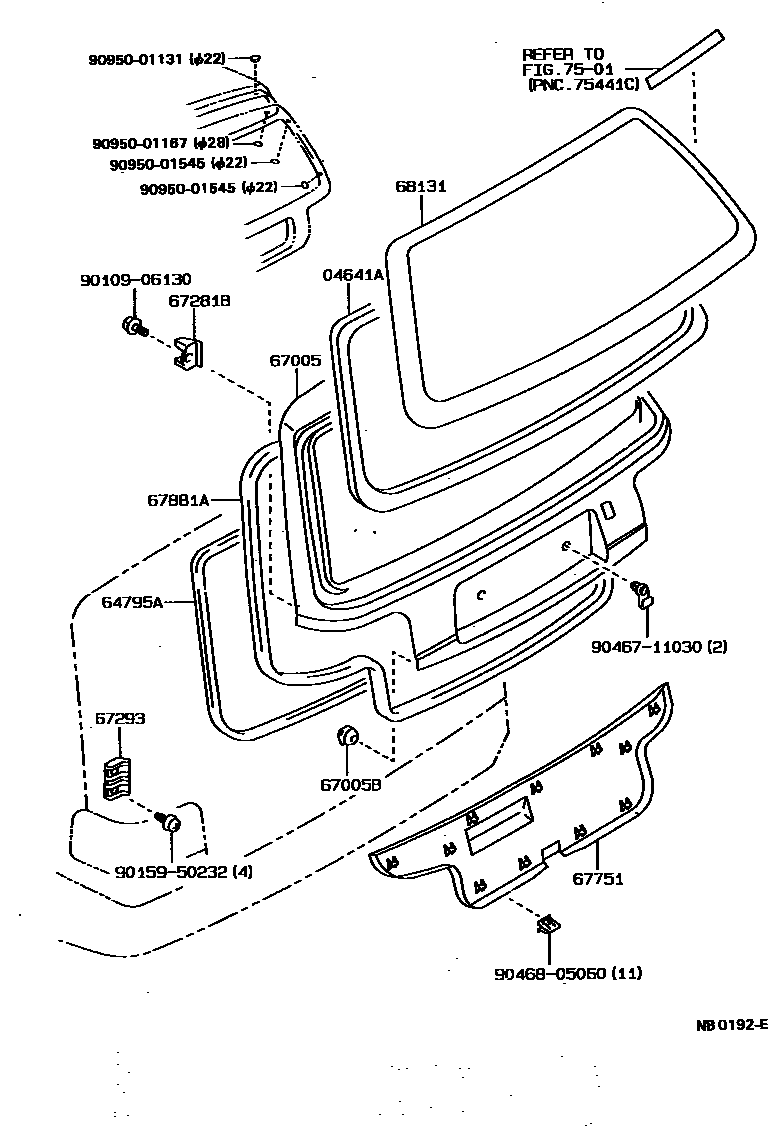

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641A | Rear window glass adhesive sealing strip assembly | 04562-12010 |
| 64795A | Rear window opening decorative strip | 64795-12030 |
| 67005 | Rear door panel sub-assembly | 67005-13740 · 67005-13750 · 67005-13760 · 67005-13770 · 67005-1A330 · 67005-1A340 · 67005-1A350 · 67005-1A560 · 67005-1A570 · 67005-1F040 · 67005-1F050 |
| 67005B | Cushion pad (for back door panel) | 90541-17002 |
| 67281B | Back door lower block | 67281-12050 · 67281-13050 |
| 67293 | Back door lower block cushion | 67293-12040 · 67293-13010 |
| 67881A | Back door seal | 67881-12210 · 67881-13100 · 67881-13110 · 67881-13140 · 67881-13160 |
| 68131 | back door glass | 68131-12540 · 68131-12550 · 68131-12560 · 68131-12660 · 68131-12680 · 68131-13170 · 68131-13180 · 68131-13190 · 68131-13210 · 68131-1A010 · 68131-1A260 |
| 68291 | Rear door glass seal strip | 68291-13101 |
