Toyota COROLLA 前门板和前门玻璃 — Figure 6701

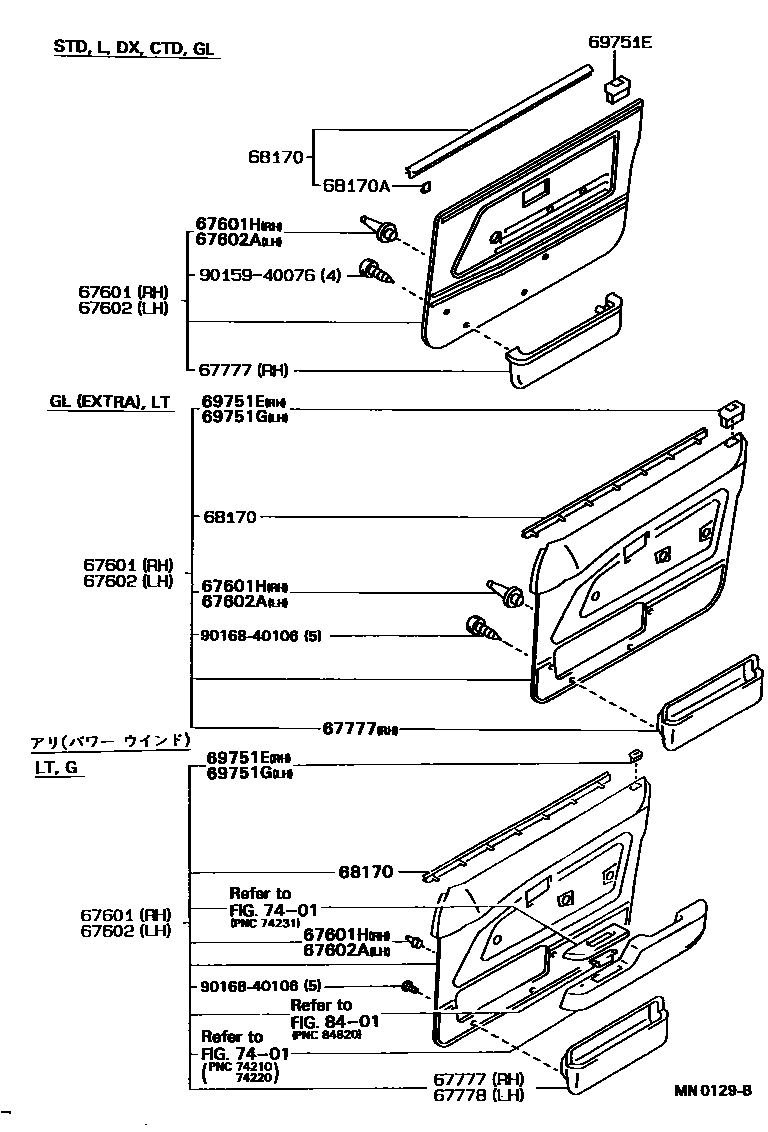

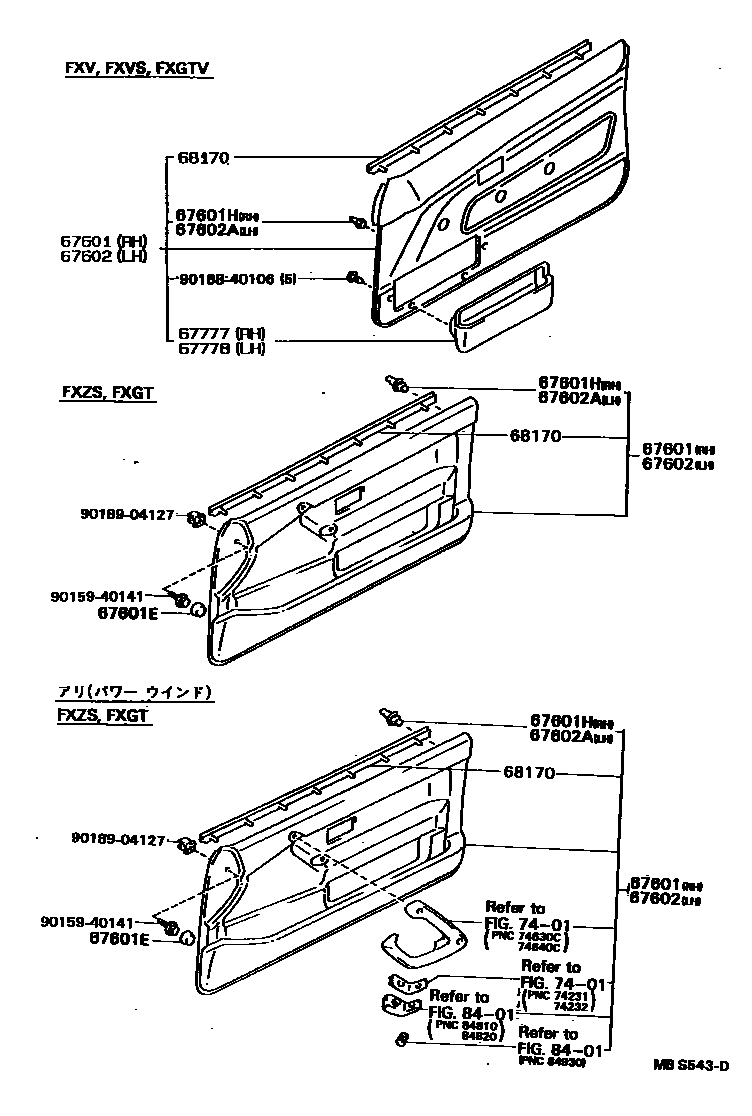

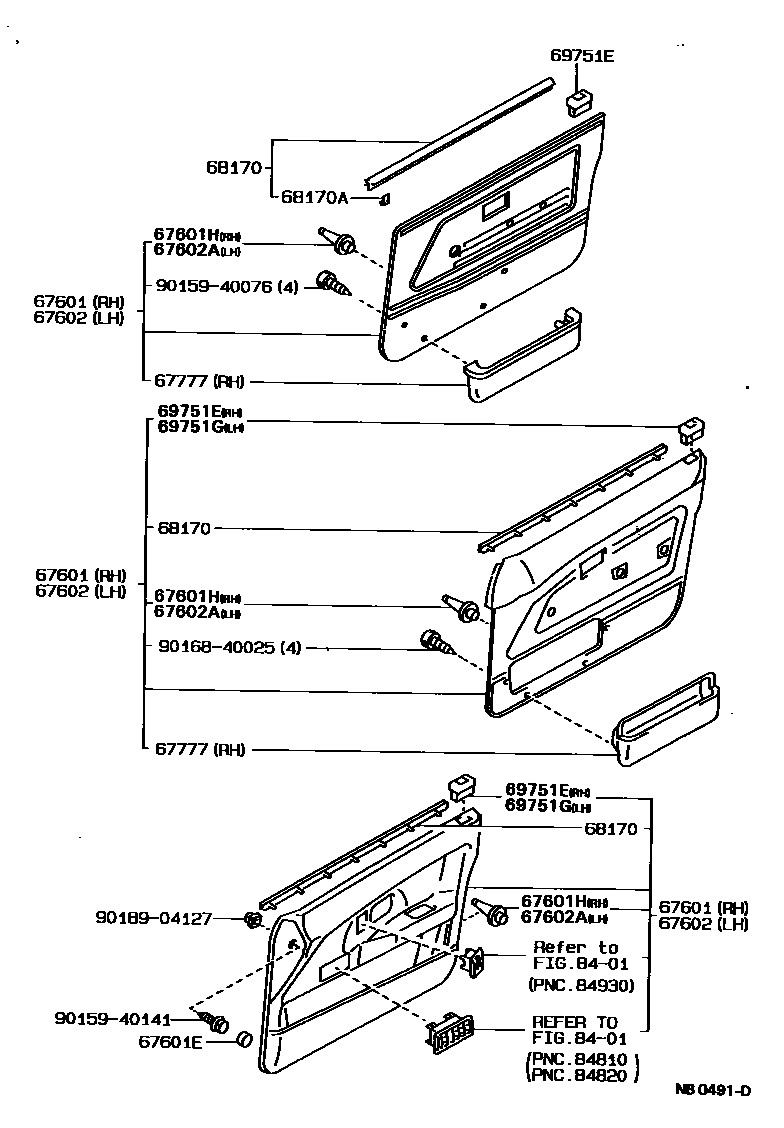

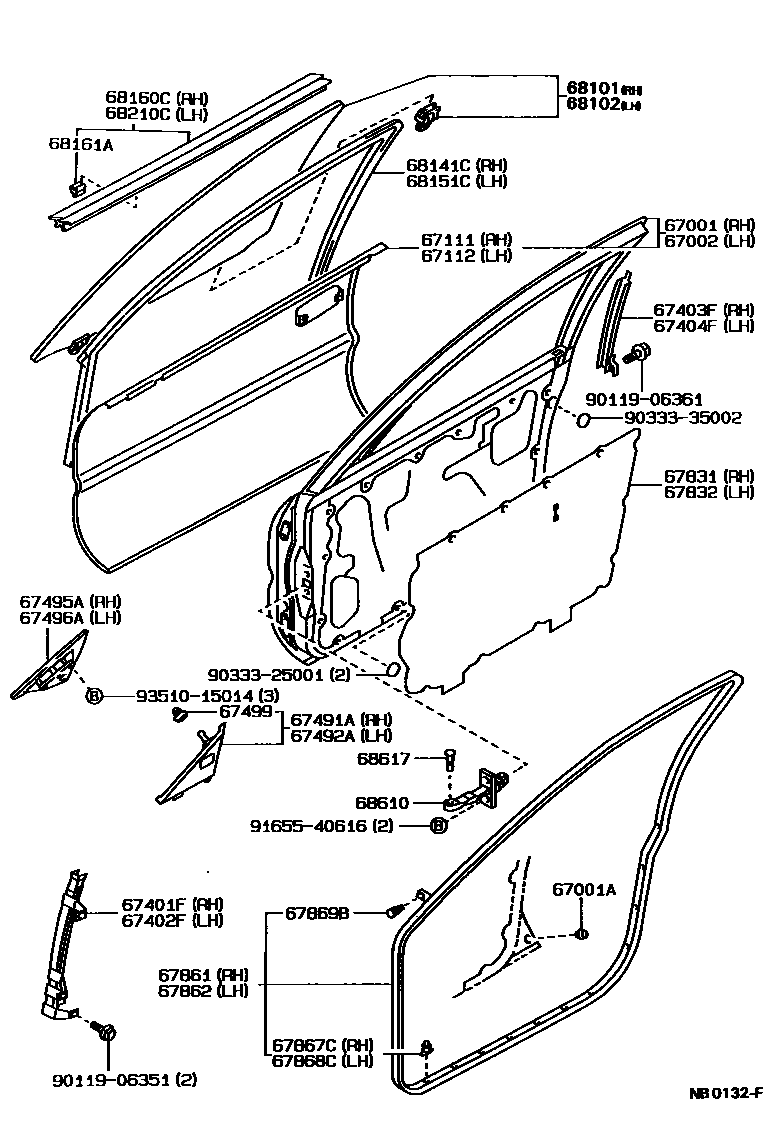

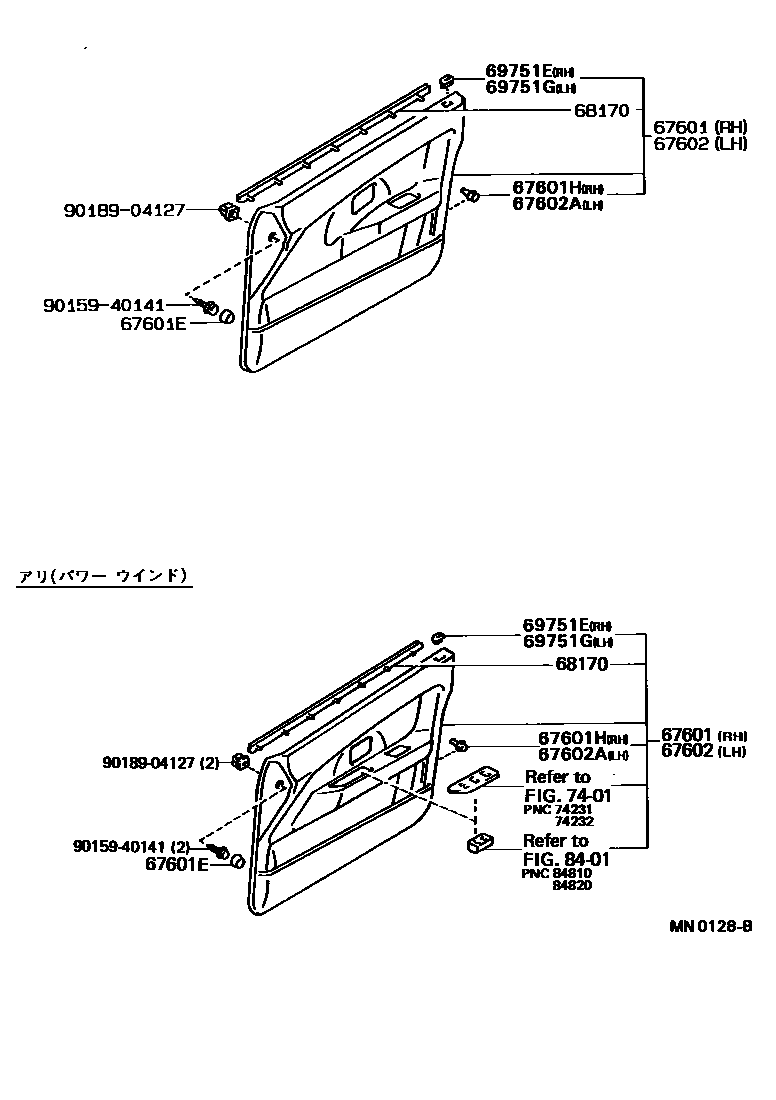

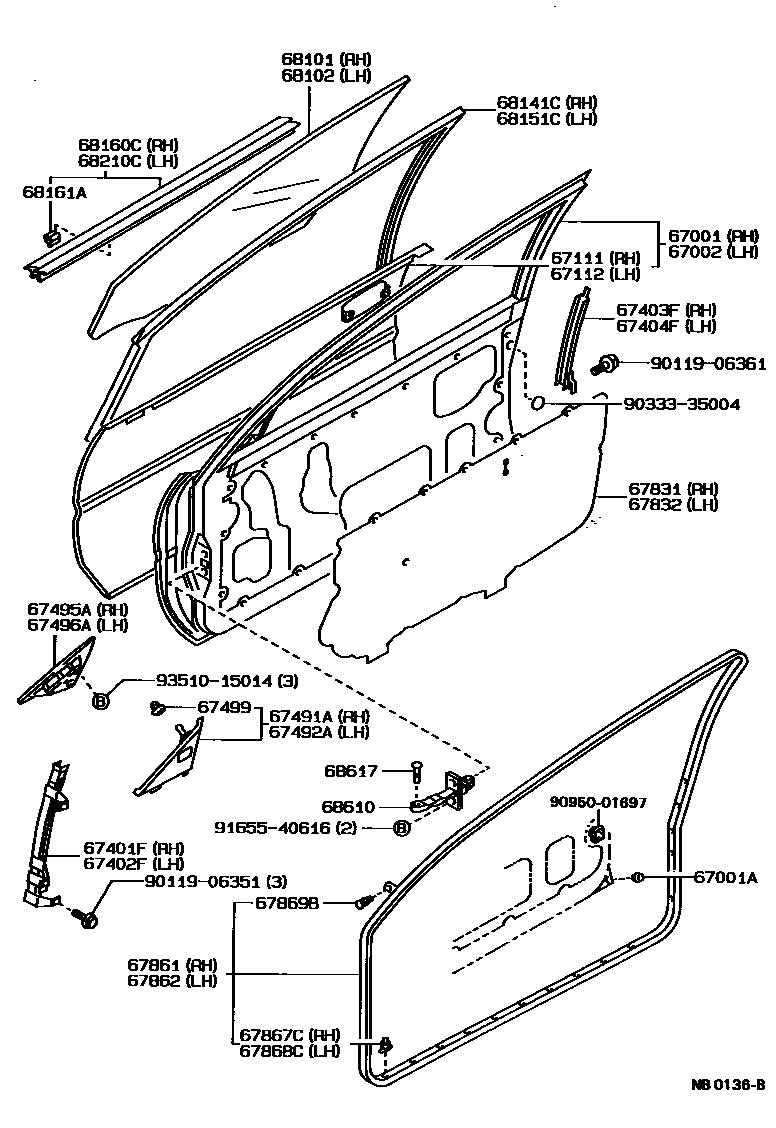

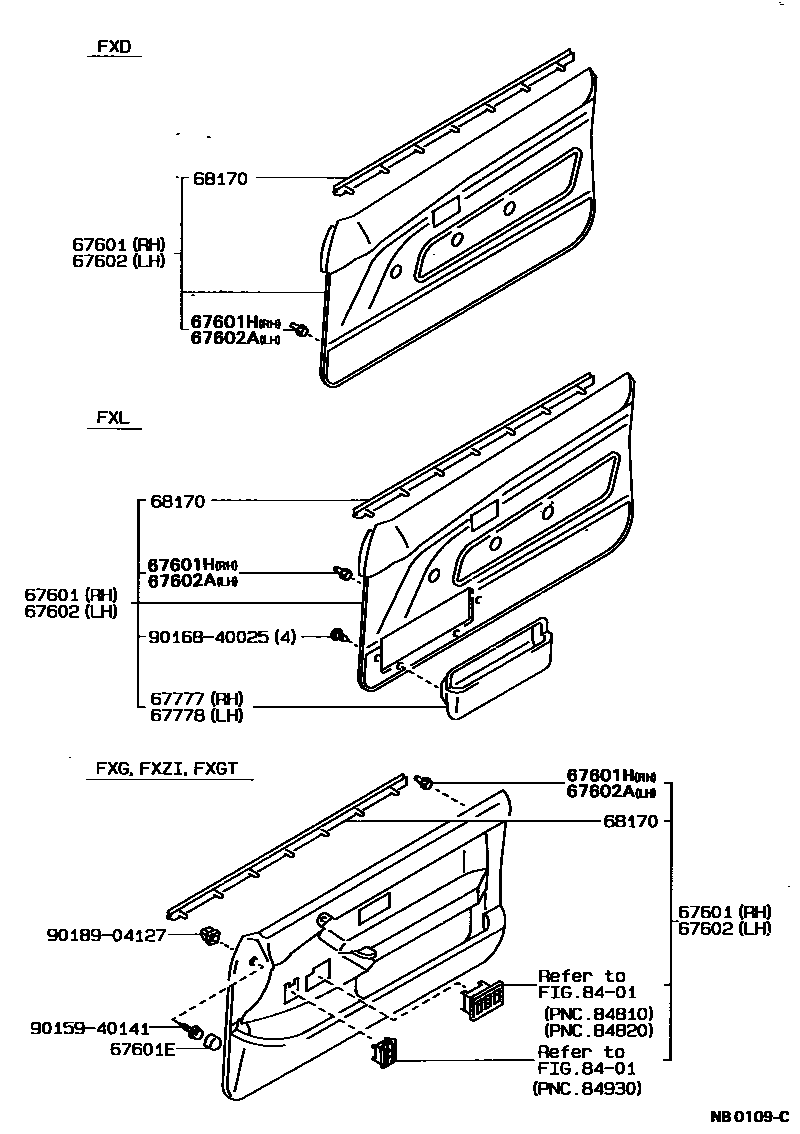

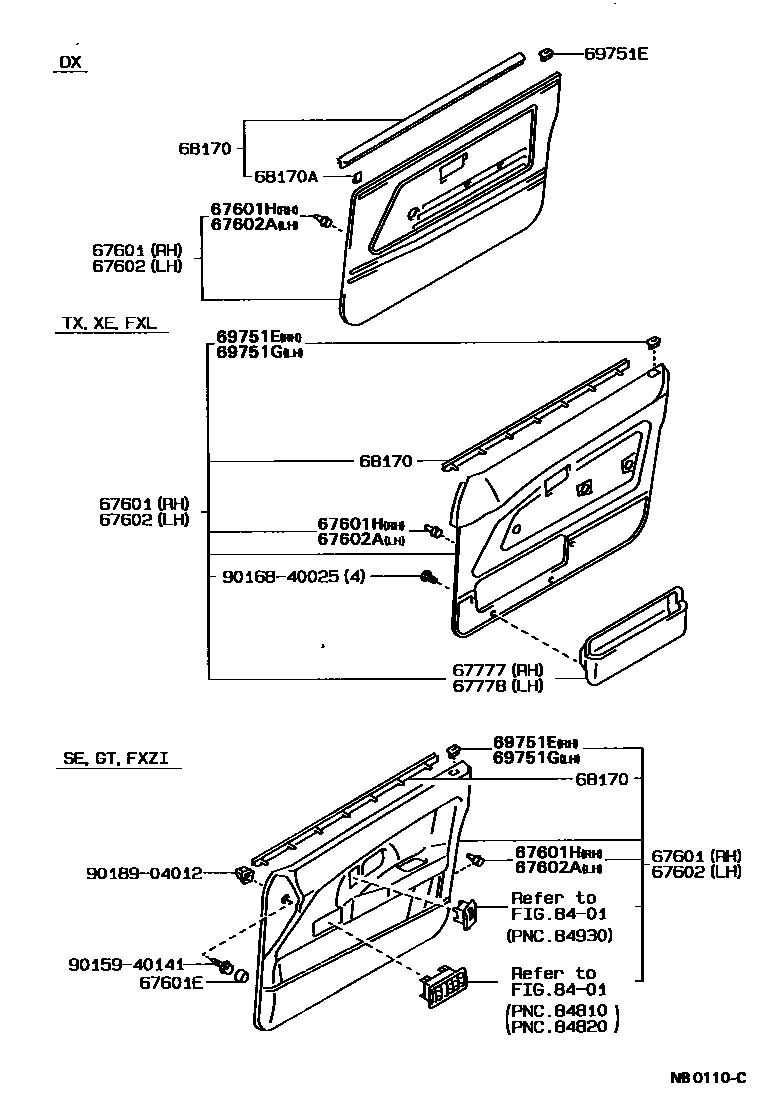

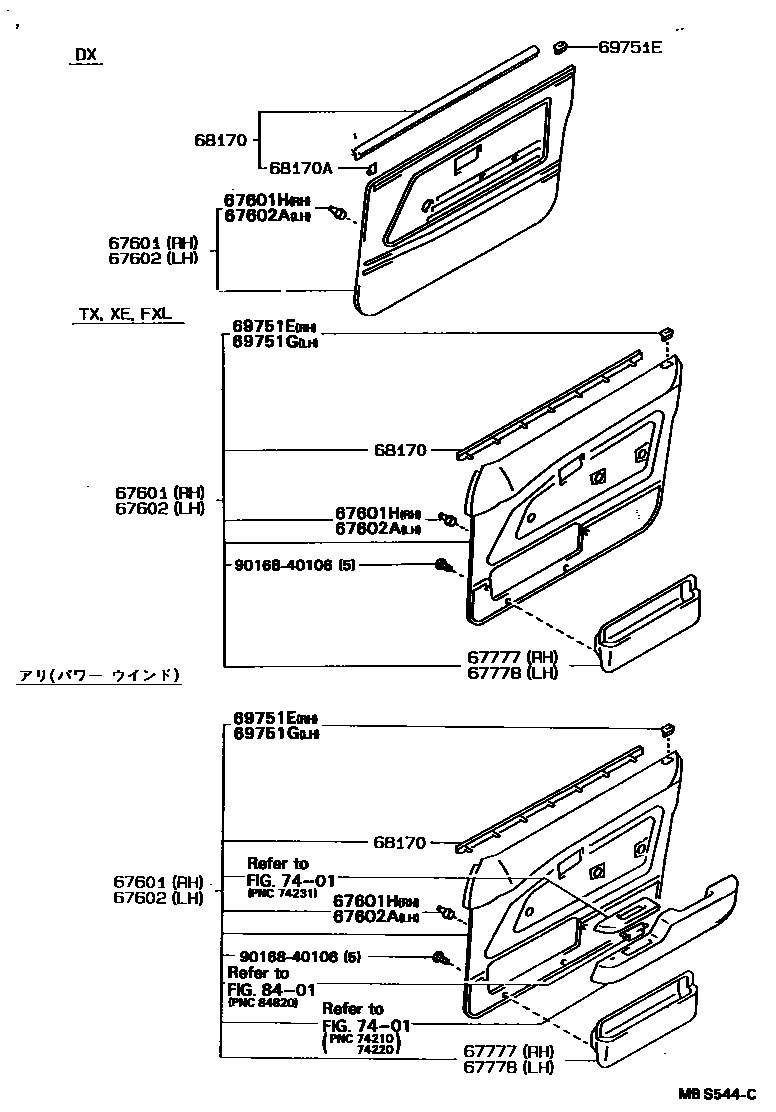

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 9 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-1A140 · 67001-1A141 · 67001-1A190 · 67001-1A320 · 67001-1A321 |
| 67001A | Front door panel cushion | 90541-09035 · 90541-09059 |
| 67002 | Left front door panel sub-assembly | 67002-1A120 · 67002-1A121 · 67002-1A170 · 67002-1A300 · 67002-1A301 |
| 67111 | Outer right front door panel | 67111-12440 · 67111-12450 · 67111-12480 |
| 67112 | Outer left front door panel | 67112-12430 · 67112-12440 · 67112-12470 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-12280 · 67401-12290 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-12300 · 67402-12310 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12090 · 67403-12100 · 67403-12110 · 67403-12160 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12090 · 67404-12100 · 67404-12110 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-12150 · 67491-12190 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-12130 · 67492-12190 |
| 67495A | Right front door front lower door frame upper cover | 67495-12120 · 67495-12140 |
| 67496A | Left front door front lower door frame upper cover | 67496-12120 · 67496-12140 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67499-12030 · 67499-32010 |
| 67601H | Right door trim panel fixing | 67771-12030 · 67771-12040 · 67771-12050 · 67771-89104 |
| 67602A | Left door trim panel fixing | 67771-12030 · 67771-12040 · 67771-12050 · 67771-89104 |
| 67831 | Right front door access hole cover | 67831-12360 · 67831-12390 · 67831-12430 · 67832-12260 |
| 67832 | Left front door access hole cover | 67831-12360 · 67832-12220 · 67832-12260 |
| 67861 | Right front door seal | 67861-12440 · 67861-12610 · 67861-12710 · 67861-12750 |
| 67862 | Left front door seal | 67862-12580 · 67862-12610 · 67862-12670 · 67862-12710 |
| 67867C | Right front door seal strip fixing | 67868-12020 · 67868-12050 |
| 67868C | Left front door seal strip fixing | 67868-12020 · 67868-12030 · 67868-12050 |
| 67869B | Front door seal strip clip | 67869-12020 |
| 68101 | Right front door glass sub-assembly | 68101-12530 · 68101-12540 · 68101-12550 · 68101-12750 · 68111-12650 · 68111-12660 · 68111-12670 · 68111-12760 |
| 68102 | Left front door glass sub-assembly | 68102-12530 · 68102-12540 · 68102-12550 · 68102-12750 · 68112-12650 · 68112-12660 · 68112-12670 · 68112-12760 |
| 68141C | Right front door glass lift channel | 68141-12310 · 68141-12311 · 68141-12360 · 68141-12361 |
| 68151C | Left front door glass lift channel | 68151-12030 · 68151-12031 · 68151-12080 · 68151-12081 |
| 68160C | Right front door glass outer sealing strip assembly | 68160-12170 · 68160-12180 |
| 68161A | Catch (for front door glass outer sealing strip) | 68211-12160 |
| 68170 | Front door glass inner sealing strip assembly | 68170-12270 · 68171-12180 · 68171-12190 · 68171-12200 · 68171-12210 · 68172-12110 · 68172-12120 · 68172-12130 · 68172-12140 · 68220-12190 |
| 68170A | Catch (for front door glass inner sealing strip assembly) | 68211-10030 |
| 68210C | Left front door glass outer sealing strip assembly | 68210-12120 · 68210-12130 |
| 68610 | Front door opening limiter assembly | 68610-12050 · 68610-12070 |
| 68617 | Front door opening limiter pin | 68617-12030 · 68617-22020 |
