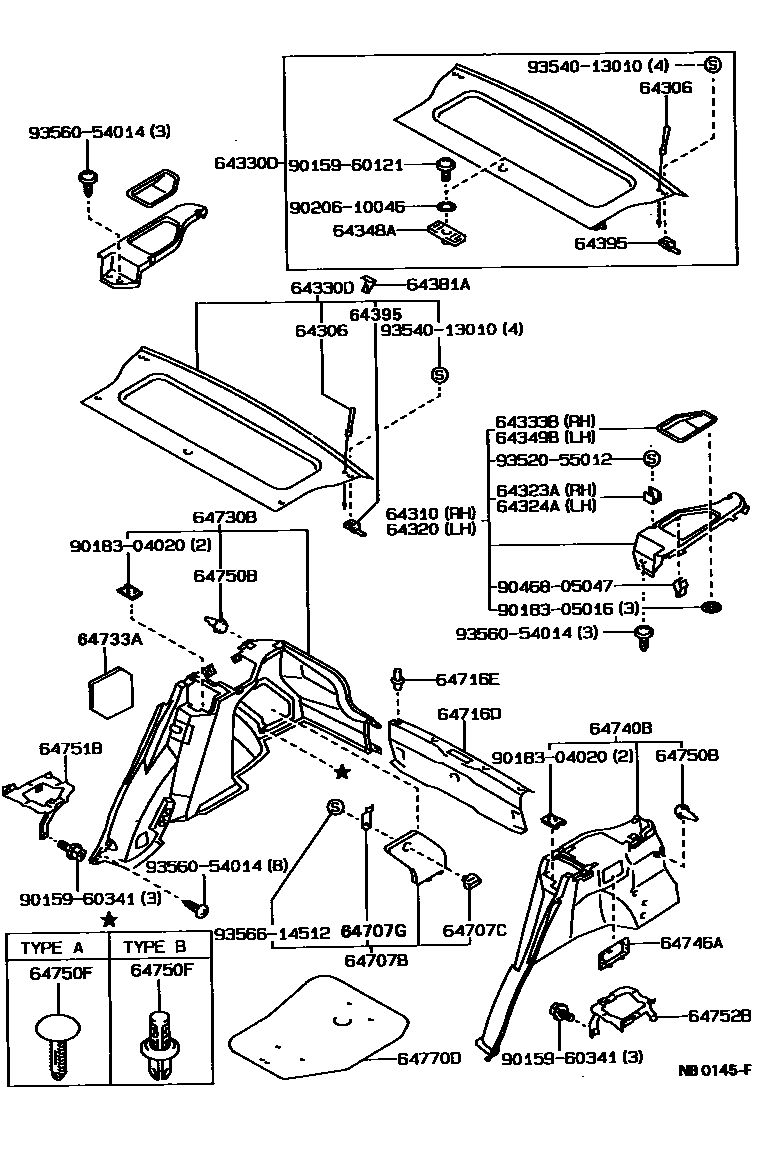

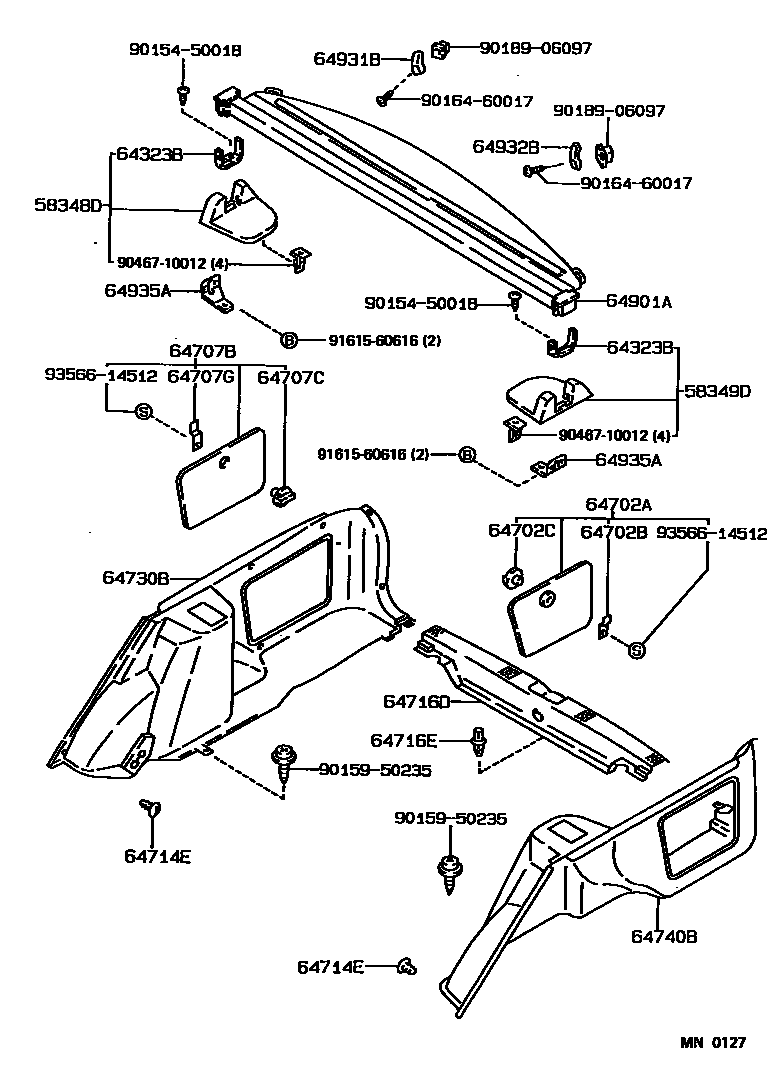

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-12030 · 64306-12060 |
| 64323A | Glove box decorative panel right clip | 64323-12020 |
| 64324A | Glove box decorative panel left clip | 64324-12010 |
| 64381A | Glove box decorative panel hanger | 64381-10010 |
| 64395 | Glove box trim panel hinge pin | 64395-12050 |
| 64702B | Washer water tank cover stopper | 64981-13010 |
| 64707G | Jack cover stop | 64981-13010 · 64981-16021 |
| 64733A | No. 1 base plate side decorative pad | 64733-12040 |
| 64750B | Fixings (for floor side decorative panels) | 67771-32010 |
| 64751B | No. 1 right speaker fixing bracket | 64751-12020 |
| 64752B | No. 1 left speaker fixing bracket | 64752-12020 |
| 64770D | Spare tire cover assembly | 64770-12120 |
| 64935A | Trunk cover holder | 64935-13020 |
