Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 4 PNC and OE references.

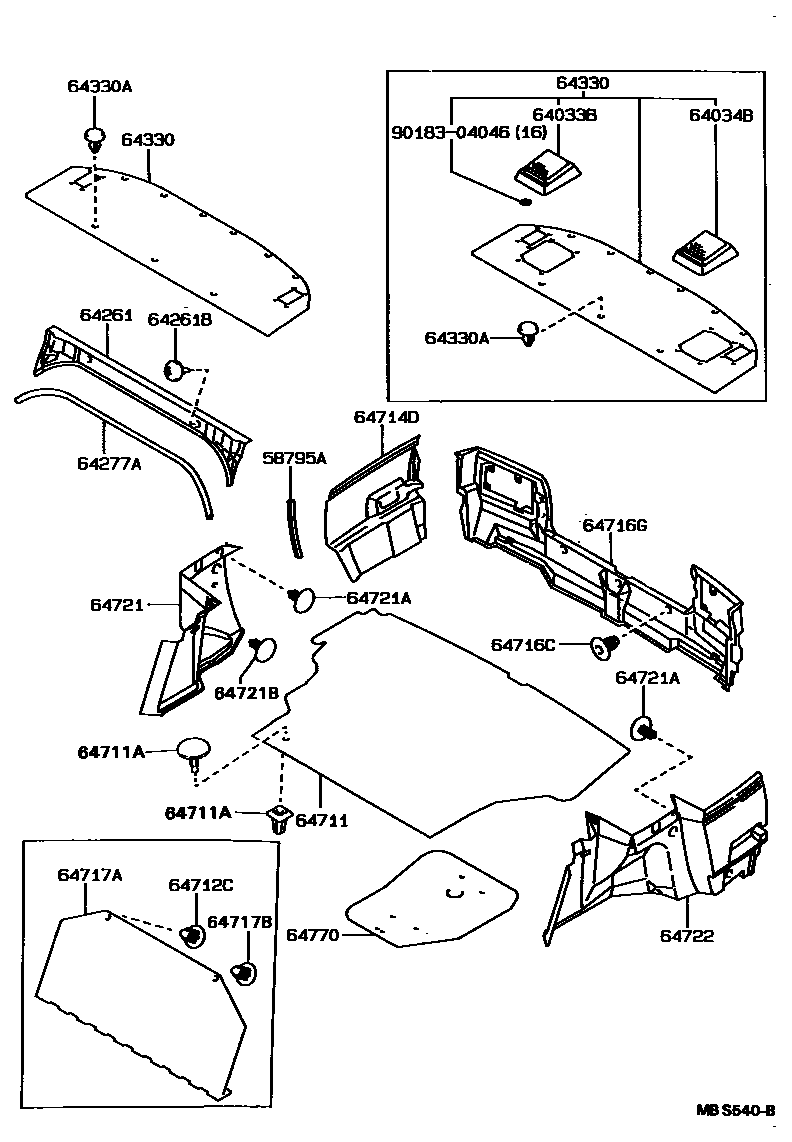

Toyota COROLLA 杂物箱板和行李箱垫 EPC diagram — MBS540B
杂物箱板和行李箱垫 — MBS540B (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
58795AJack cover opening trim strip58795-16020
64261BCushion pad (for cabin partition trim)90541-09010 · 90541-09060
64711AClip (for trunk floor mat)90467-10023
64770Spare tire cover assembly64770-12100 · 64770-12150 · 64770-16080
