Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 5 images and 7 PNC and OE references.

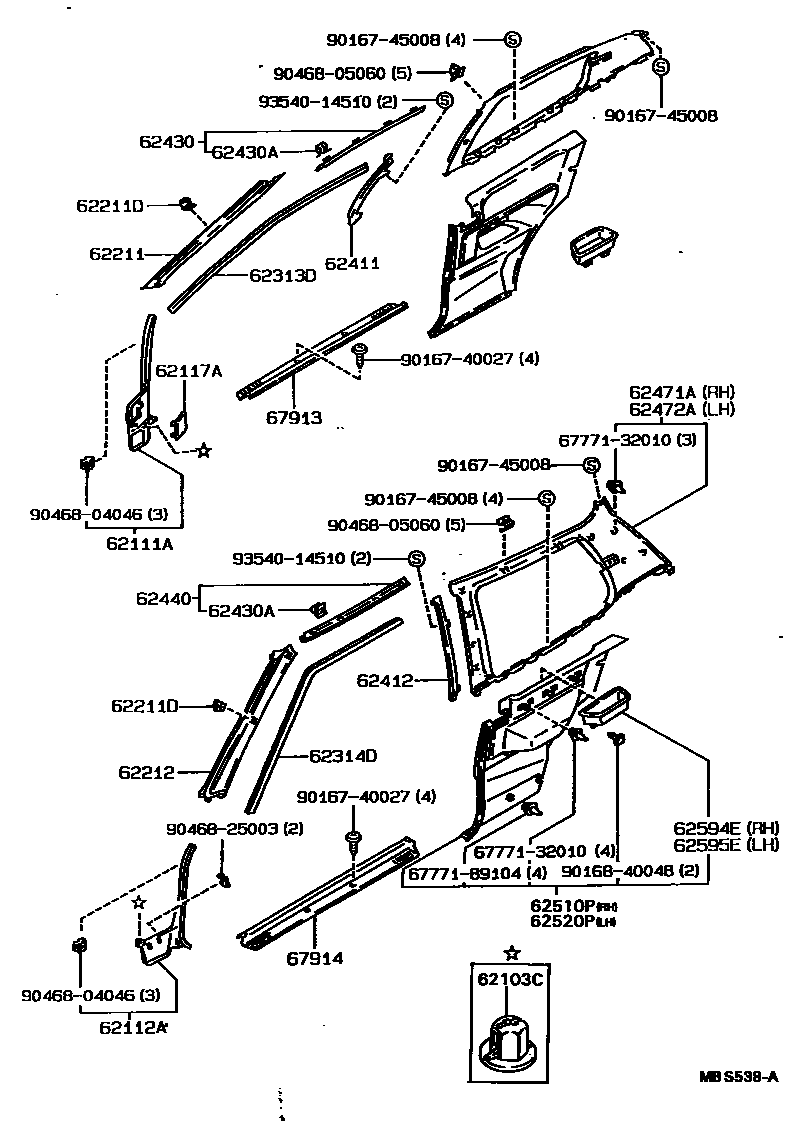

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — MBS538A
内饰板和车门防水胶条 — MBS538A (198705 – 999999)

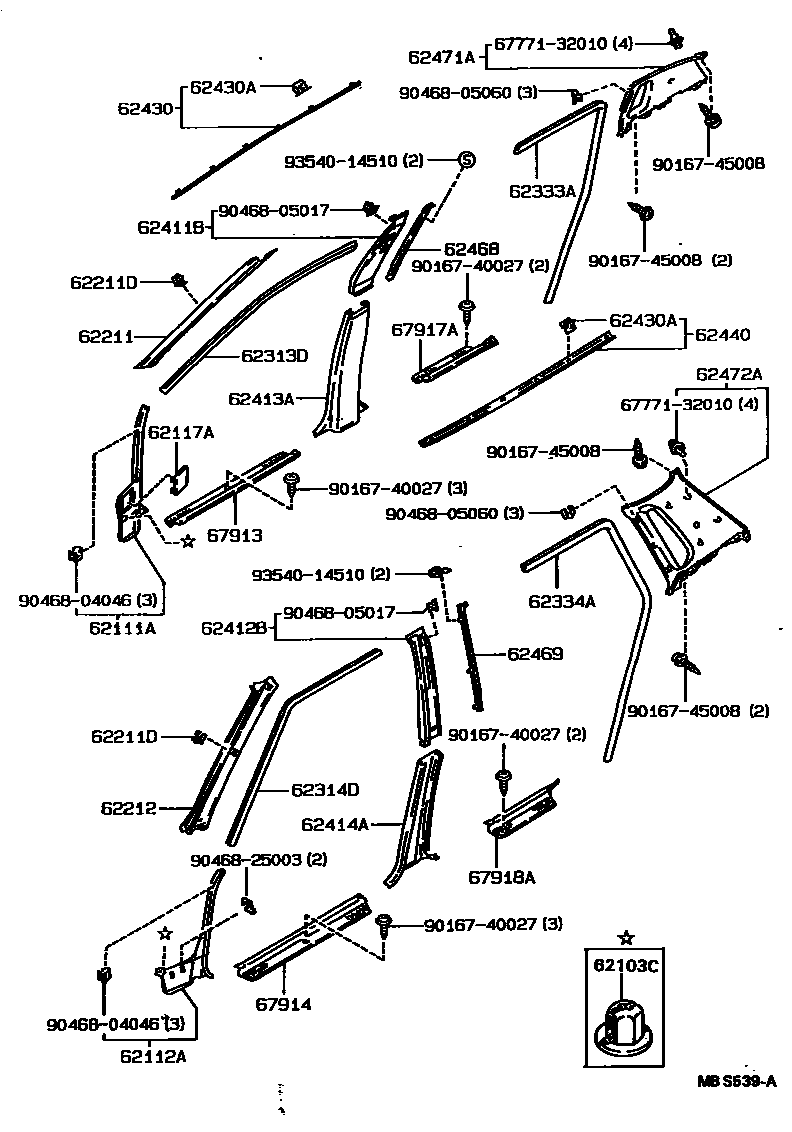

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — MBS539A
内饰板和车门防水胶条 — MBS539A (198705 – 999999)

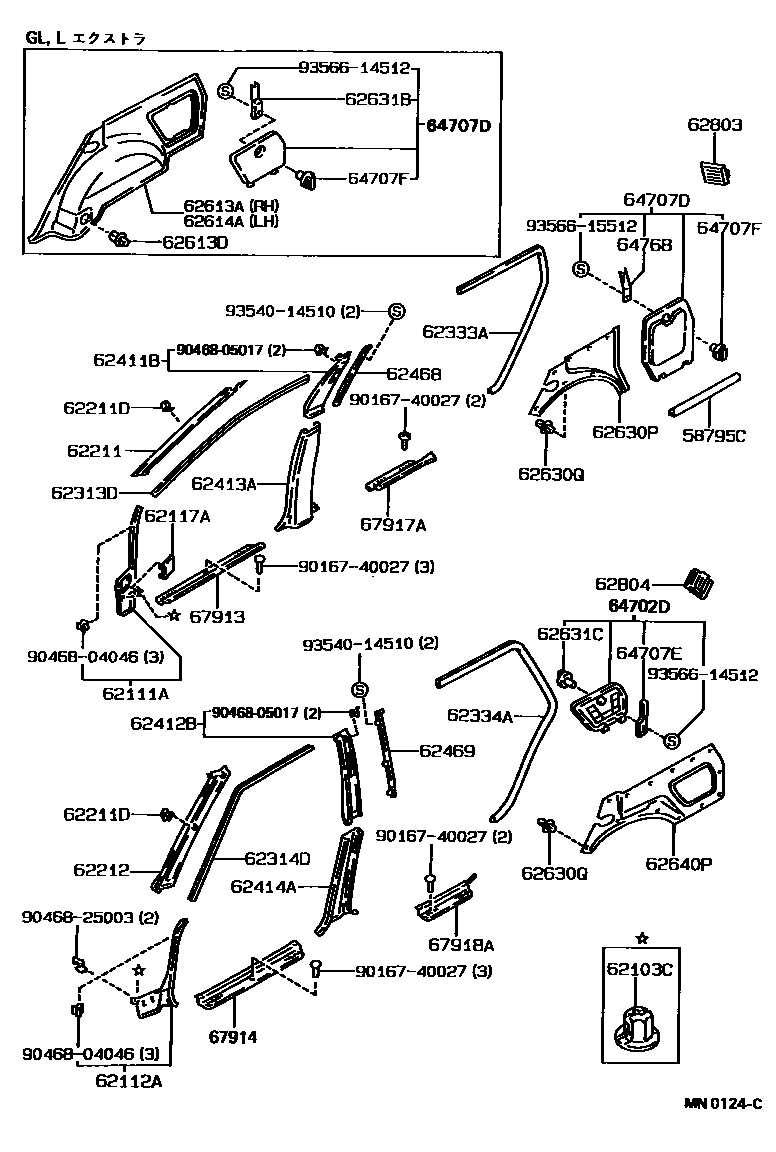

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — MN0124C
内饰板和车门防水胶条 — MN0124C (198708 – 999999)

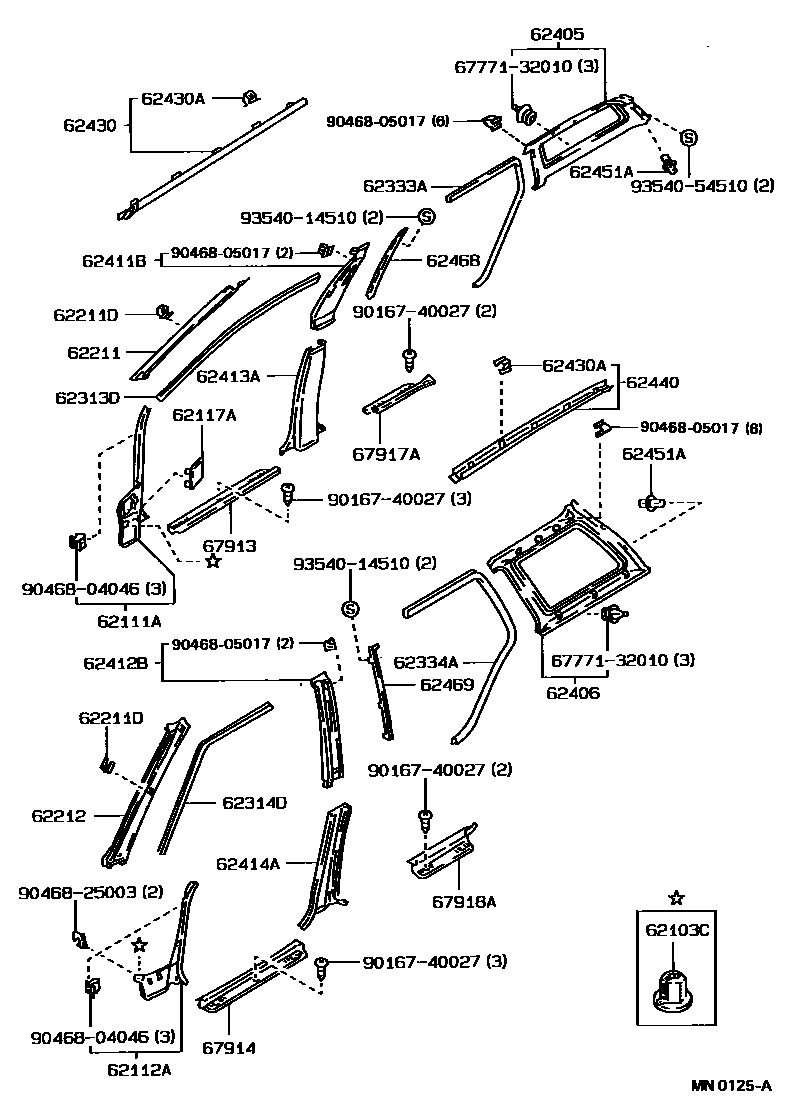

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — MN0125A
内饰板和车门防水胶条 — MN0125A (198708 – 999999)

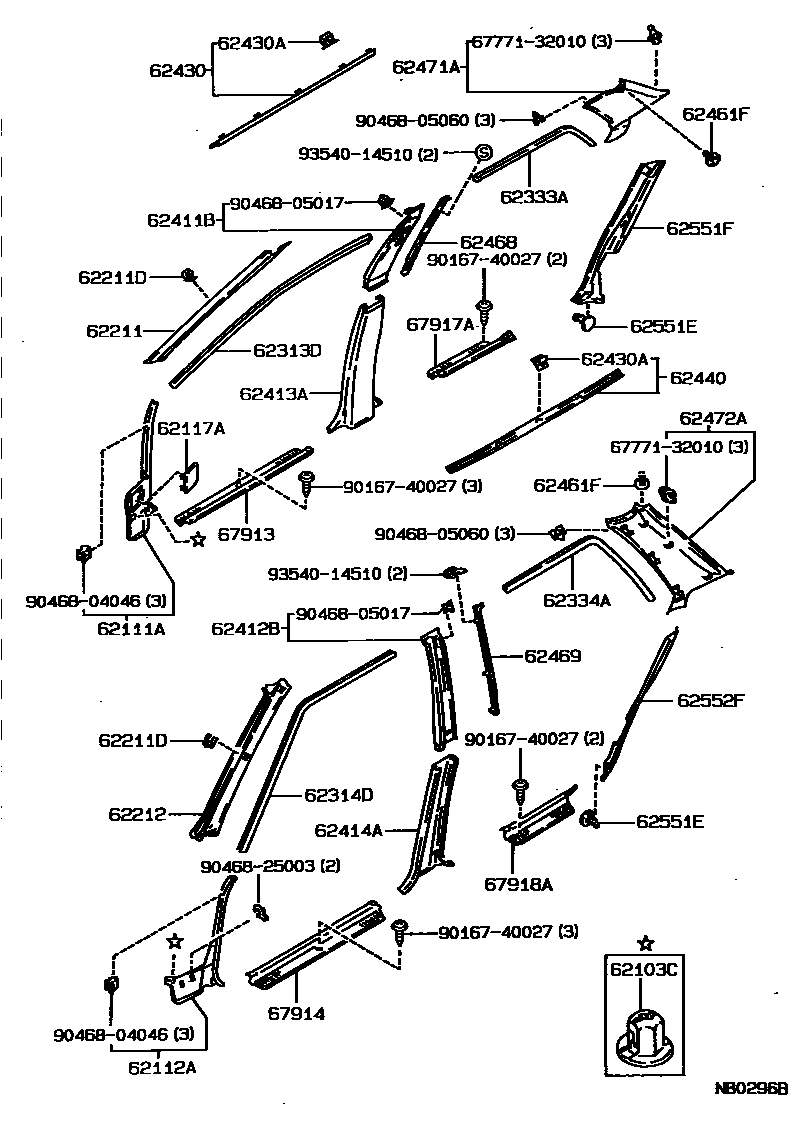

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — NB0296B
内饰板和车门防水胶条 — NB0296B (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
58795CJack cover opening trim strip58795-13030
62103CFront wall side trim panel fixing clips90467-08160
62211DClip (for body front pillar decorative panel)90468-05060
62430ARoof rail decorative strip clip90468-05017
62631BJack cover stop64981-13010
64707EWasher water tank cover stopper64981-13010
64768Jack cover stop64768-13010
