Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

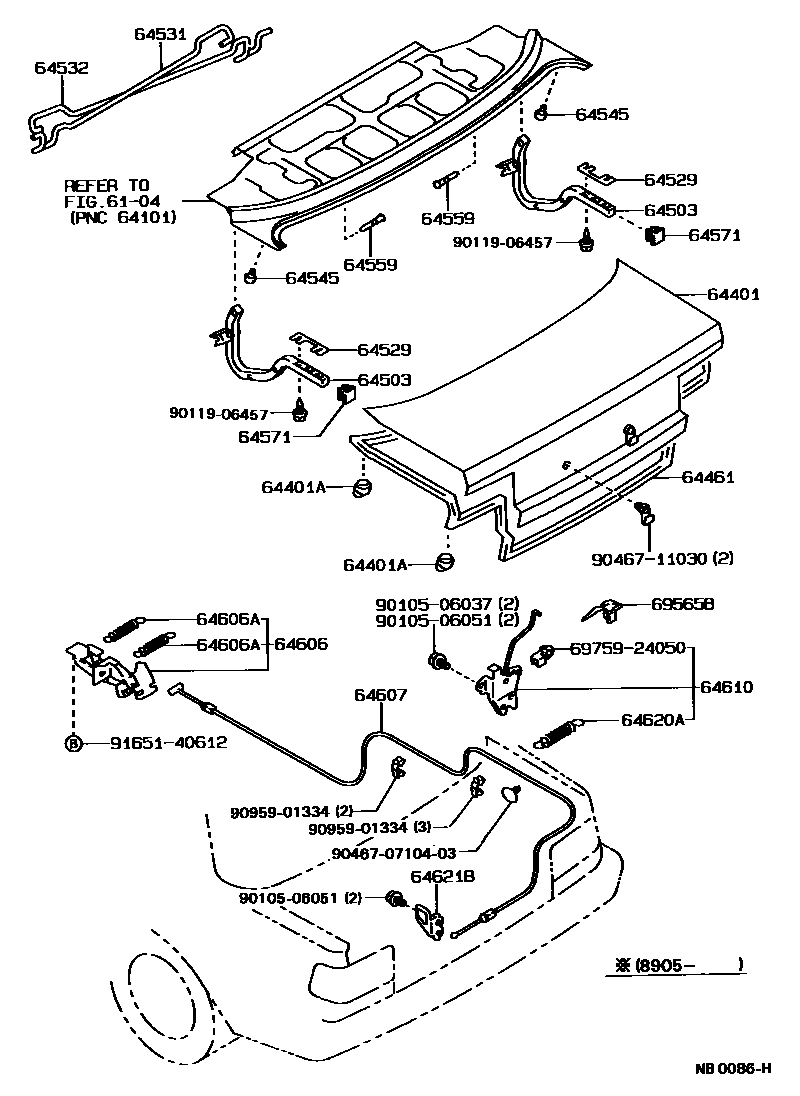

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-1A330 · 64401-1A332 · 64401-1A340 · 64401-1A342 |
| 64401A | Cushion pad (for luggage compartment door panel) | 64459-12010 · 90541-06076 · 90541-20002 |
| 64461 | Trunk door seal | 64461-12350 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-12030 |
| 64529 | Trunk door hinge spacer | 64529-14010 |
| 64531 | Trunk door right hinge torsion bar | 64531-12240 · 64531-12250 |
| 64532 | Trunk door left hinge torsion bar | 64532-12230 · 64532-12240 |
| 64545 | Trunk door hinge cushion | 90541-09014 |
| 64559 | Trunk door hinge pin | 64559-32010 |
| 64571 | Trunk door hinge cover | 64571-30020 |
| 64606 | Trunk door lock opening lever sub-assembly | 64606-12060 |
| 64606A | Tension spring (for trunk door lock opening lever) | 90506-09034 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-12350 · 64607-12351 |
| 64610 | Trunk door lock assembly | 64610-12100 |
| 64620A | Tension spring (for trunk door lock) | 90506-07013 |
| 64621B | Trunk door latch | 64621-12070 |
| 69565B | Trunk door funnel-shaped lock core | 69565-12040 |
