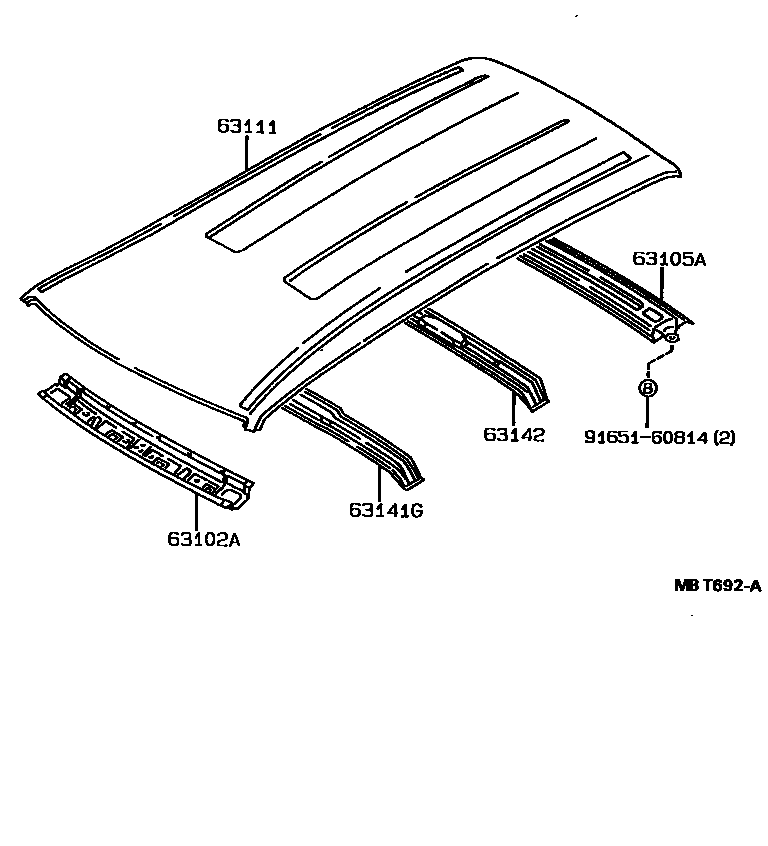

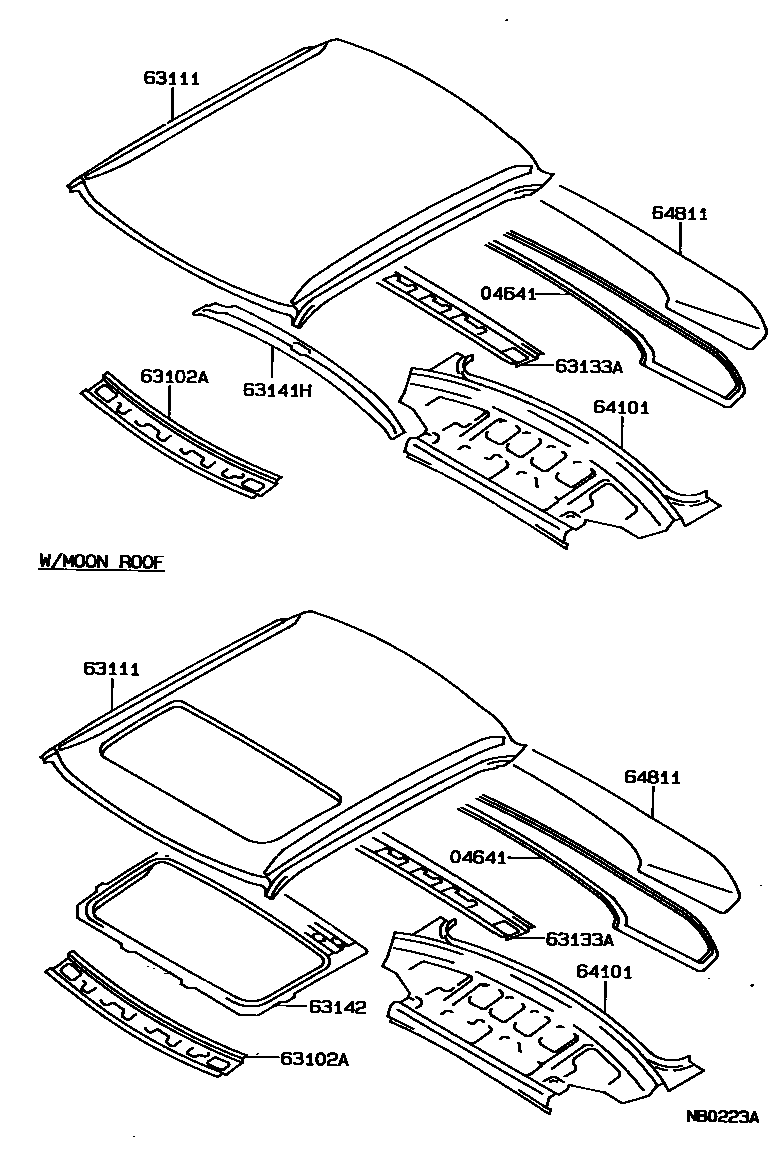

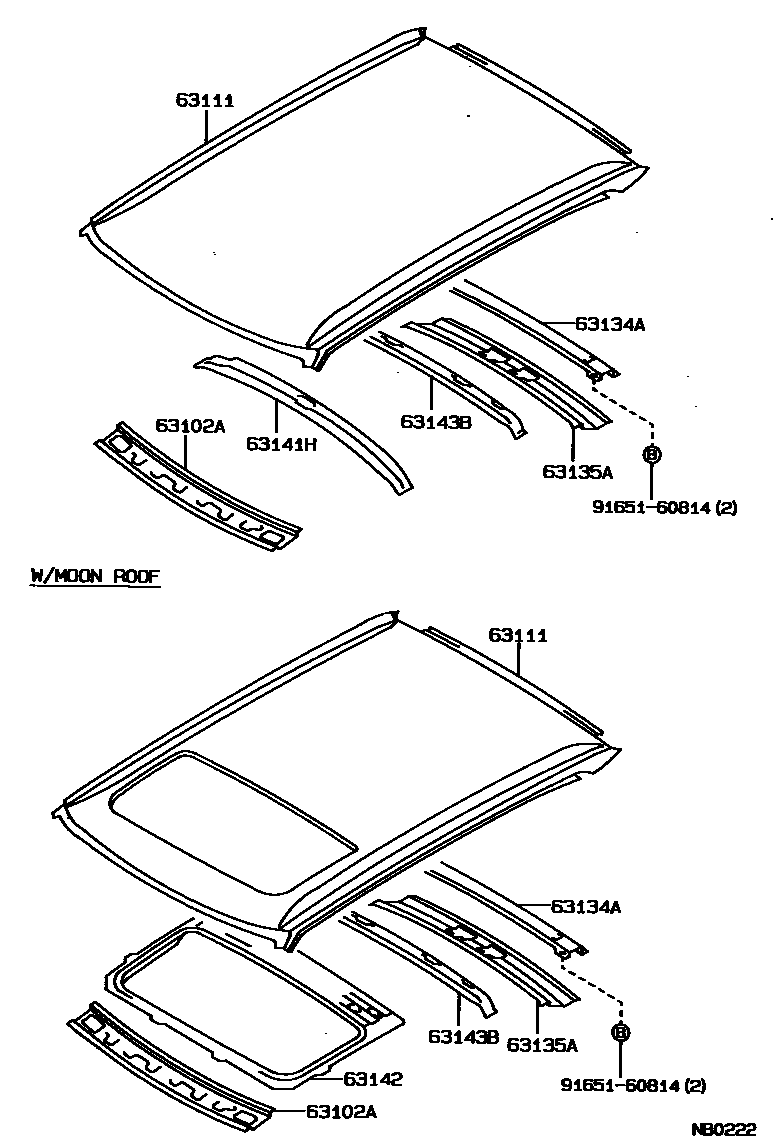

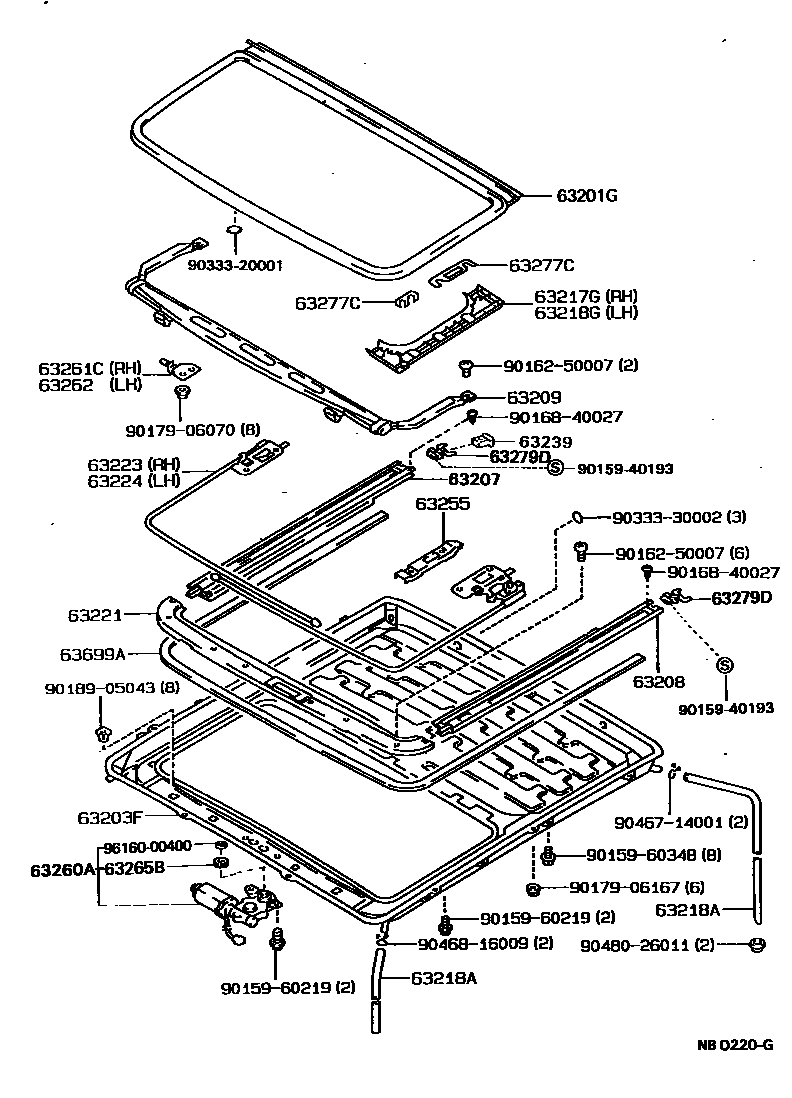

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641 | Back window glass sealing strip assembly | 04562-12010 |
| 63102A | Windshield roof sub-assembly | 63102-12040 · 63102-13010 |
| 63105A | Back door opening frame sub-assembly | 63105-13090 · 63105-13100 |
| 63111 | roof panel | 63111-12300 · 63111-12301 · 63111-12310 · 63111-12311 · 63111-12390 · 63111-12391 · 63111-12400 · 63111-12401 · 63111-13070 |
| 63133A | upper frame of back window | 63133-12160 |
| 63134A | Opening frame on back door | 63134-12140 |
| 63135A | Opening frame under rear door | 63135-12080 |
| 63141G | No. 1 roof panel reinforcement | 63141-13050 |
| 63141H | Center roof panel reinforcement | 63141-12130 |
| 63142 | No. 2 roof panel reinforcement | 63142-12030 · 63142-13040 |
| 63143B | No. 3 roof panel reinforcement | 63143-12040 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-12050 · 63201-12160 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-12120 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-12051 · 63207-16020 · 63207-16021 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-12051 · 63208-16020 · 63208-16021 |
| 63209 | Roof deflector sub-assembly | 63209-12050 · 63209-12051 · 63209-12052 · 63209-12070 · 63209-12071 |
| 63217G | Right sliding sunroof trim | 63217-12030 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-12070 · 63249-12100 · 63249-14020 |
| 63218G | Sliding sunroof trim, left | 63218-12030 |
| 63221 | Sliding sunroof cable duct | 63221-16020 |
| 63223 | Right sliding sunroof transmission cable | 63223-12030 · 63223-12031 · 63223-12032 · 63223-12033 |
| 63224 | Left sliding sunroof transmission cable | 63224-12020 · 63224-12021 · 63224-12022 · 63224-12023 |
| 63239 | Sliding roof panel stop | 63239-24010 |
| 63255 | Right sliding sunroof guide cover | 63255-16010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12040 · 63260-12041 |
| 63261C | Right front sliding sunroof slider | 63261-12070 · 63261-16020 · 63261-16021 |
| 63262 | Left front sliding sunroof slider | 63262-12070 · 63262-16020 · 63262-16021 |
| 63265B | Sliding sunroof driving gear | 63265-20010 |
| 63277C | Sliding skylight panel gasket | 63277-24010 · 63277-30020 |
| 63279D | Sliding sunroof guide rail stop | 63279-32010 |
| 63699A | Sliding sunroof guide seals | 63699-16010 |
| 64101 | Upper back panel sub-assembly | 64101-12350 |
| 64811 | back window glass | 64811-1A090 · 64811-1A100 · 64811-1A130 · 64811-1A150 |
