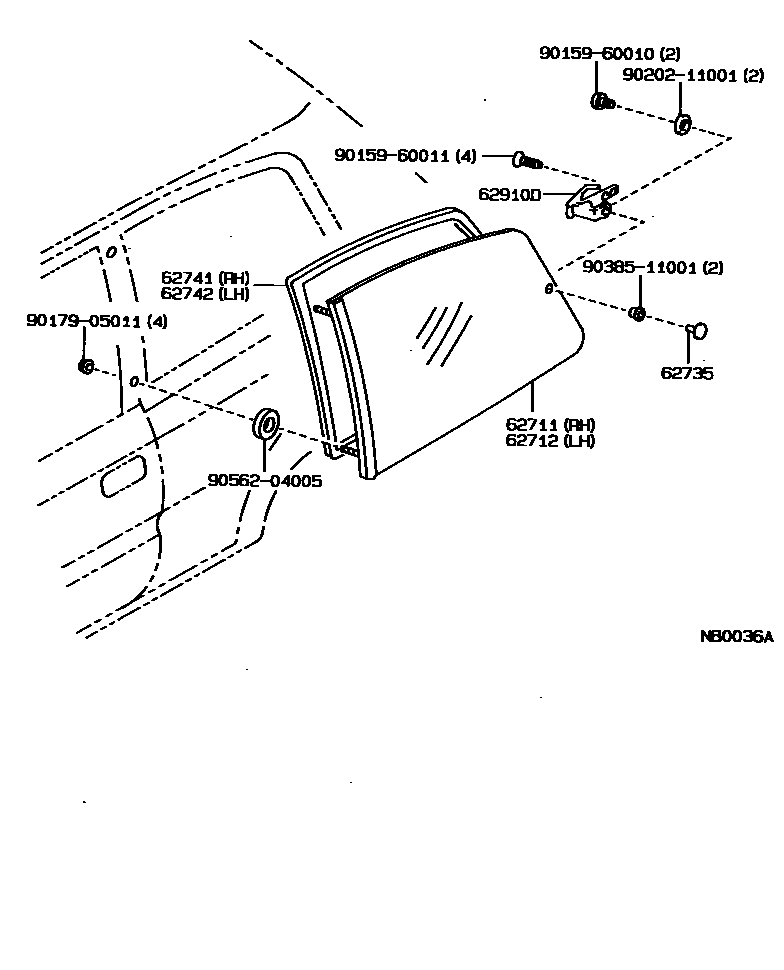

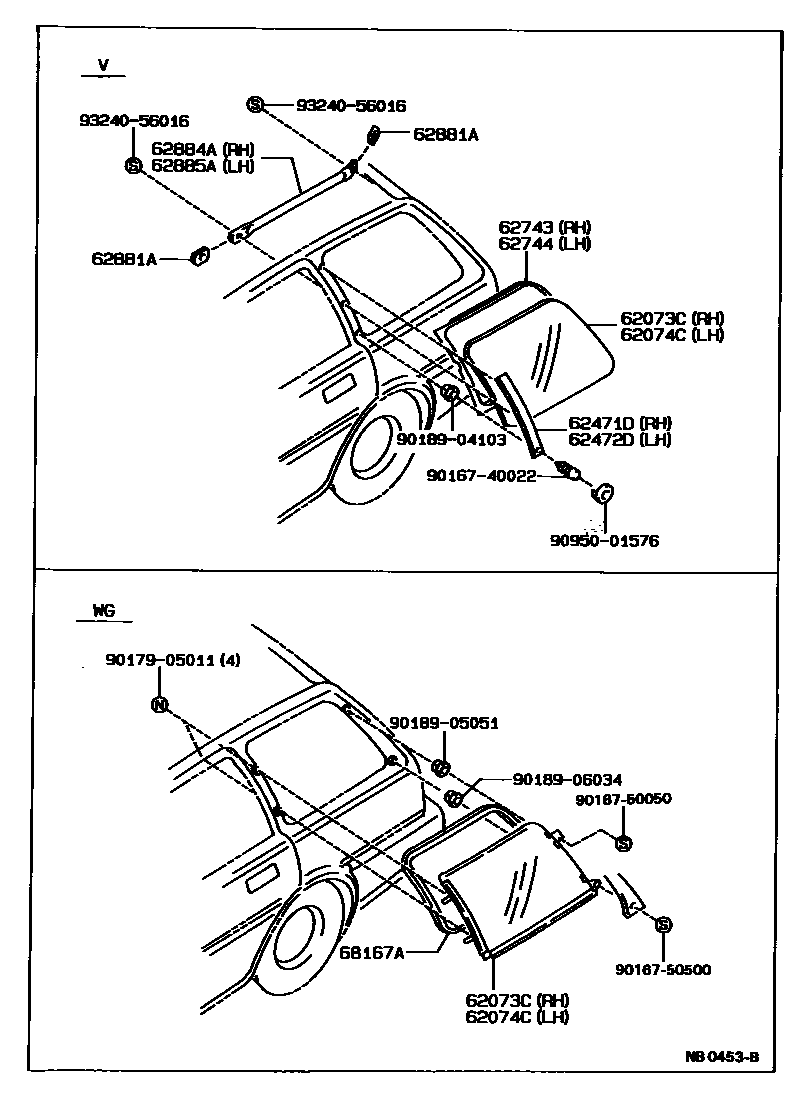

Toyota COROLLA 角窗 — Figure 6103
Toyota COROLLA EPC diagram 6103, 角窗, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62073C | Right rear corner window glass sub-assembly | 62073-13040 · 62073-13070 · 68133-13030 · 68133-13040 |
| 62074C | Left rear corner window glass sub-assembly | 62074-13040 · 62074-13070 · 68134-13030 · 68134-13040 |
| 62471D | Decorative panel on right rear pillar | 62471-13020 |
| 62472D | Decorative panel on left rear pillar | 62472-13020 |
| 62711 | Right corner window glass | 62071-12180 · 62071-12190 · 62071-12200 · 62071-12210 · 62711-12600 · 62711-12610 · 62711-12680 |
| 62712 | Left corner window glass | 62072-12180 · 62072-12190 · 62072-12200 · 62072-12210 · 62712-12600 · 62712-12610 · 62712-12730 |
| 62735 | Corner window hinge fixings | 62735-14010 |
| 62741 | Right corner window sealing strip | 62741-12150 |
| 62742 | Left corner window sealing strip | 62741-12150 |
| 62743 | Right rear corner window sealing strip | 62743-13060 |
| 62744 | Left rear corner window sealing strip | 62744-13060 |
| 62881A | Corner window guardrail bracket | 62881-13040 |
| 62884A | Right corner window guardrail | 62884-13080 |
| 62885A | Left corner window guardrail | 62885-13020 |
| 62910D | Corner window lock assembly | 62910-12090 |
| 68167A | Corner window No. 2 glass sealing strip | 68167-13010 |
