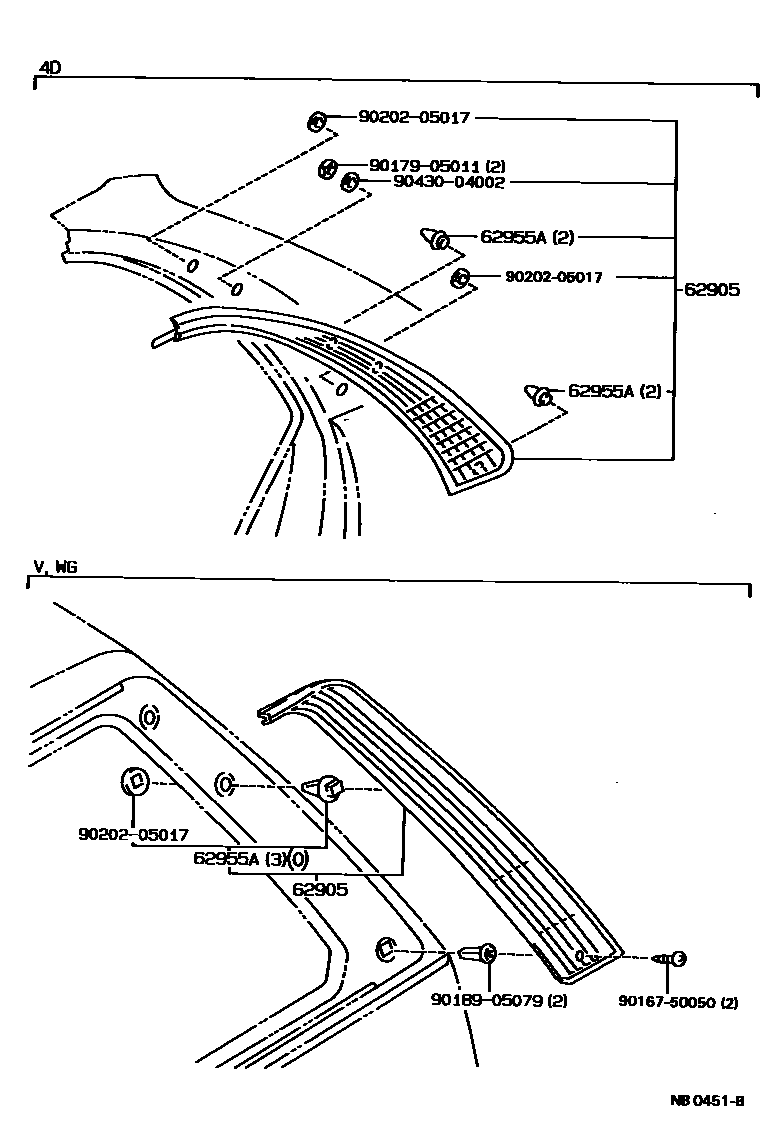

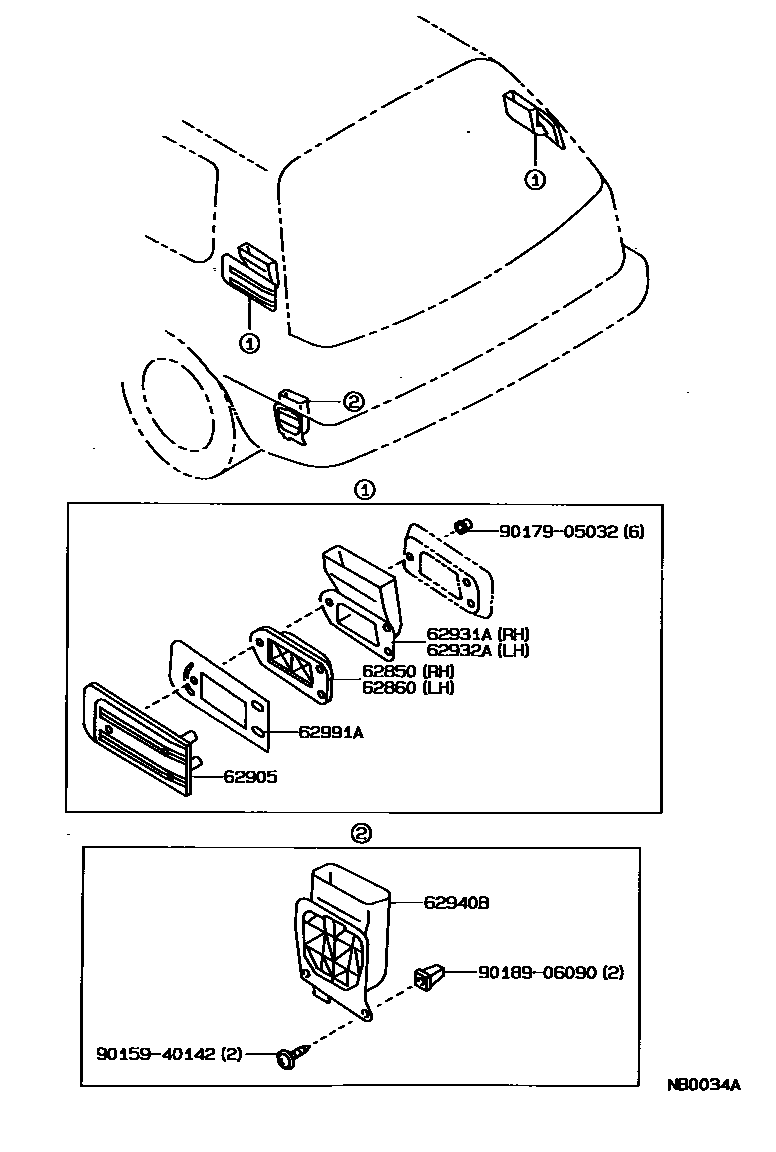

Toyota COROLLA 车侧通风装置 — Figure 6102
Toyota COROLLA EPC diagram 6102, 车侧通风装置, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62850 | Right compartment pressure reducing valve assembly | 62850-12090 |
| 62860 | Left compartment pressure reducing valve assembly | 62860-12070 |
| 62905 | Side ventilation grilles | 62905-12250 · 62905-12310 · 62905-12320 · 62905-13050 · 62905-13070 · 62906-12250 · 62906-12310 · 62906-12320 · 62906-13050 · 62906-13070 |
| 62931A | Right side ventilation duct | 62931-12220 |
| 62932A | Left side ventilation duct | 62932-12220 |
| 62940B | Left side ventilation duct assembly | 62940-12120 |
| 62955A | Side ventilation grille fixings | 62955-12020 · 62955-12040 · 62955-20020 |
| 62991A | Side ventilation grille lining | 62991-12100 |
